1×19 Stainless Steel Wire Rope — WR001

Model: EL-WR-001 (catalogue reference)

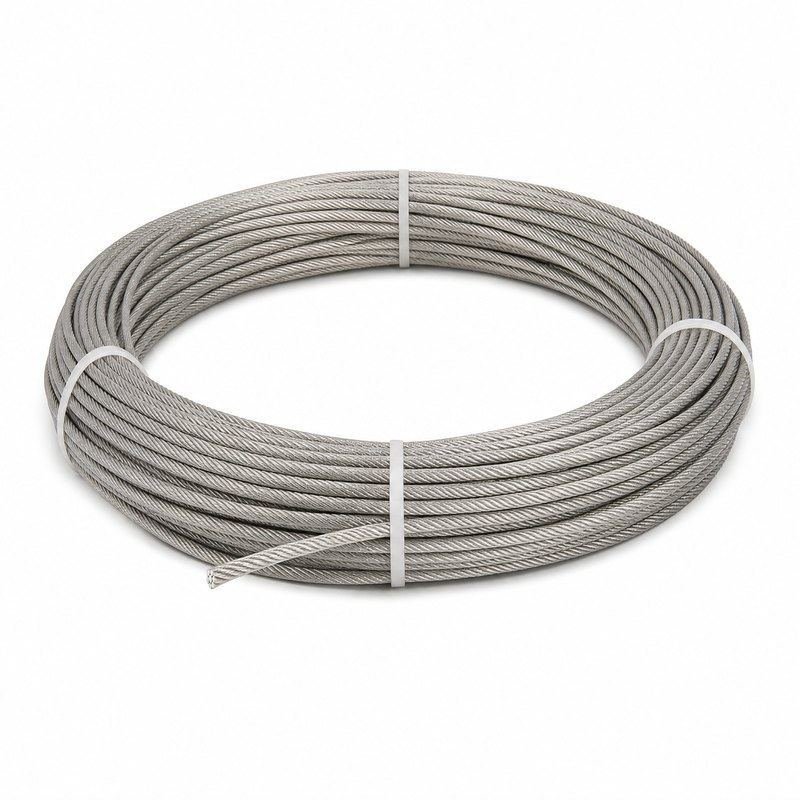

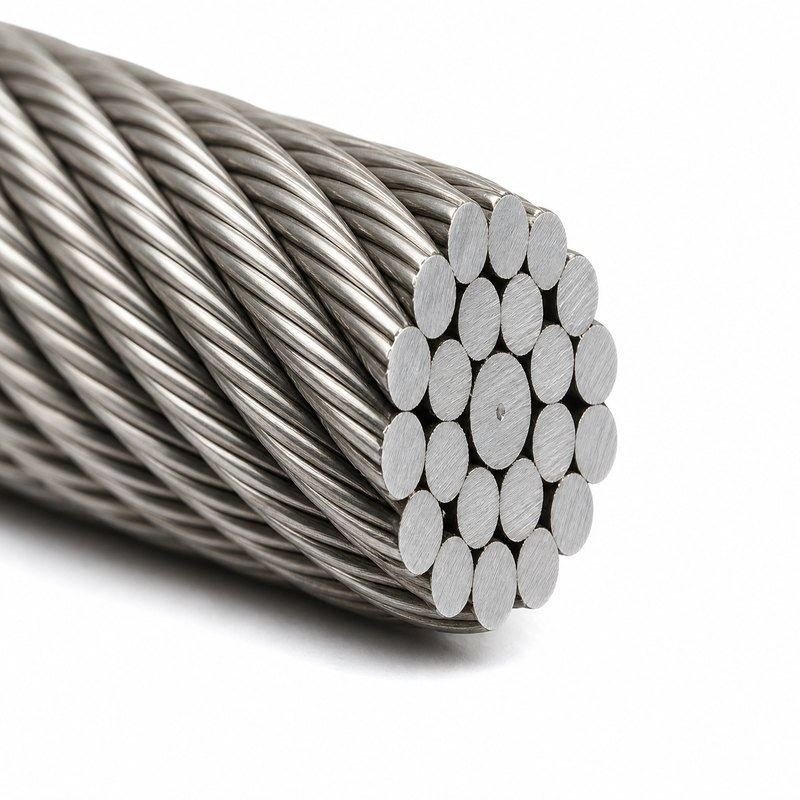

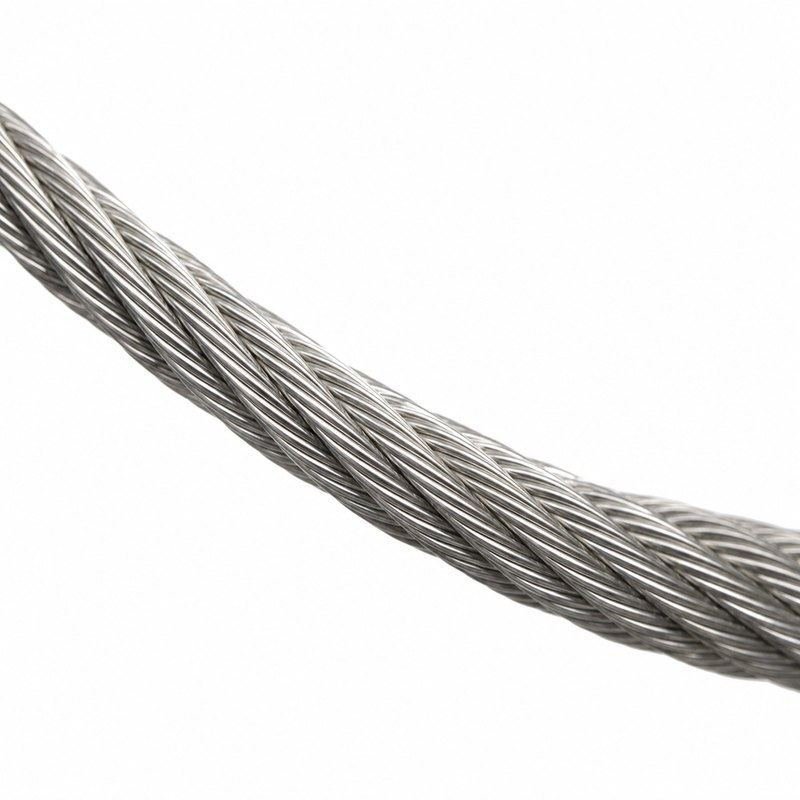

1x19 stainless steel wire rope for project enquiries, illustrated with coiled wire rope with a compact strand appearance. Specify cable diameter, strand construction, cut length and terminal compatibility when requesting the matching configuration.

Material Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.

Surface Finish Reference: natural bright-drawn silver cable. Matte/bright images are appearance references, not verified surface treatments.

Dimensions Reference options, not measured image dimensions: 3 / 4 / 5 / 6 mm cable; 100 m or 250 m reels.

Glass Thickness Not applicable: this wire rope item is not a glass clamp or glass support.

MOQ 200 metres per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

1×19 stainless steel wire rope is presented for component selection and project enquiries. The supplied views show coiled wire rope with a compact strand appearance. Send cable diameter, strand construction, cut length and terminal compatibility so the quoted configuration can be matched to your installation. Confirm the strand construction and diameter on the model-specific data sheet. Quotation starting options: 3 / 4 / 5 / 6 mm cable; 100 m or 250 m reels. These reference options are not measurements of the pictured model.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

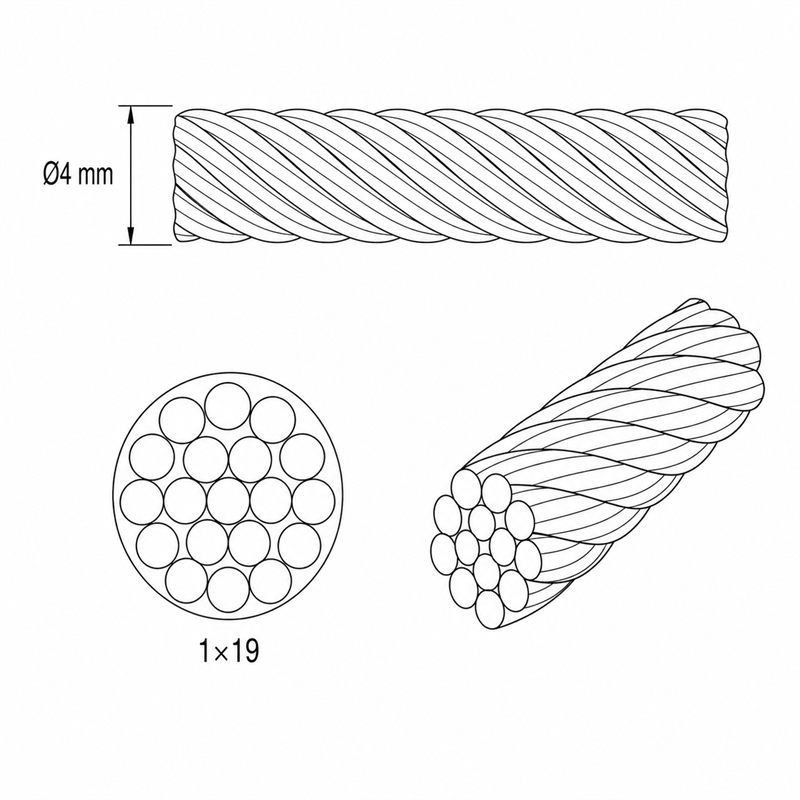

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

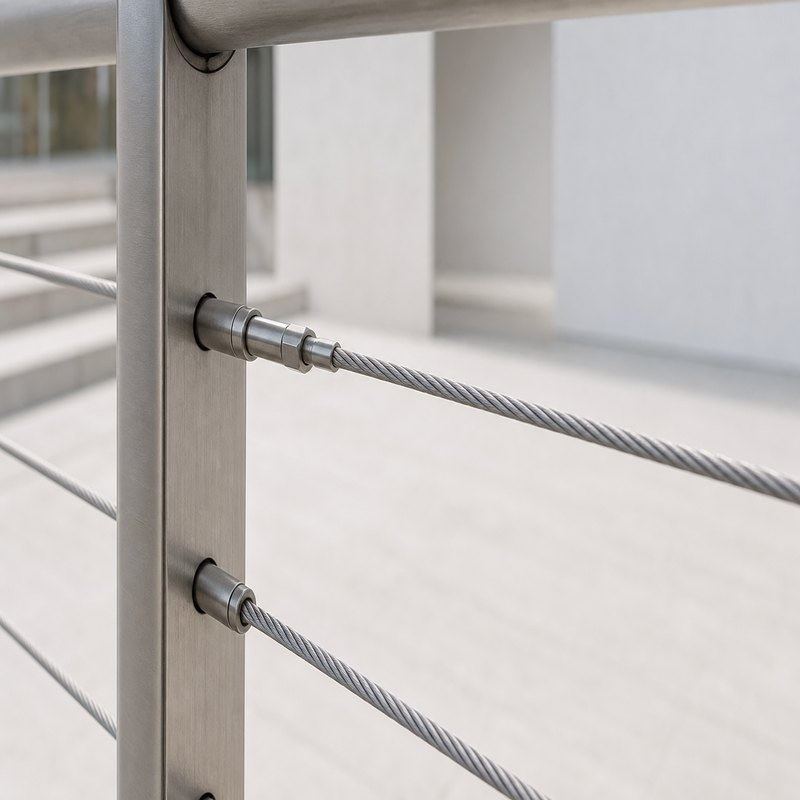

Balustrade cable selection

Coiled wire rope with a compact strand appearance. Reference selection: 3 / 4 / 5 / 6 mm cable; 100 m or 250 m reels. Match the project layout and mating parts; the image is a configuration illustration.

Customization

Quotation options include cable length, connection dimensions, thread type, surface finish, laser marking and private-label packaging. Send the drawing and order quantity for a manufacturing review. Custom tooling and prototypes are quoted separately before production.

Frequently Asked Questions

How should 1x19 cable be specified?

For 1x19 stainless steel cable, state the required diameter, cut length and terminal style together. The source identifies this as 1x19 wire rope; obtain the matching construction specification before comparing quotations.

Which reference sizes can be used for an enquiry?

Reference options, not measured image dimensions: 3 / 4 / 5 / 6 mm cable; 100 m or 250 m reels. 1x19 construction; select terminals explicitly approved for the chosen cable. Provide cable diameter, strand construction, cut length and terminal compatibility for model matching.

Which material and finish should be specified?

Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade. Reference: natural bright-drawn silver cable. Matte/bright images are appearance references, not verified surface treatments. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What can be included in a customization enquiry?

Request the required dimensions, connection type, thread, finish, marking and packing. Proposed sample schedule: 7 calendar days.

What are the reference MOQ, sample time and production lead time?

Minimum order quantity: 200 metres per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Specifications

Product type	1x19 Stainless Steel Wire Rope
Visible configuration	Coiled wire rope with a compact strand appearance
Material	Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.
Surface finish	Reference: natural bright-drawn silver cable. Matte/bright images are appearance references, not verified surface treatments.
Reference dimensions	Reference options, not measured image dimensions: 3 / 4 / 5 / 6 mm cable; 100 m or 250 m reels.
Compatibility	1x19 construction; select terminals explicitly approved for the chosen cable.
Packaging	Proposed packing: 100 m reel with cable ends secured, protective wrap and labeled export carton; 250 m reels by quotation.
Load and compliance	No model-specific load rating or certification supplied. Assess the complete assembly against project requirements before installation.

Trade Information

Minimum Order Quantity 200 metres per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Proposed terms: EXW factory or FOB named port. Specify the collection location or loading port in the quotation.
Packaging Proposed packing: 100 m reel with cable ends secured, protective wrap and labeled export carton; 250 m reels by quotation.
Quality Control Proposed checks: material traceability, cable diameter, construction, reel length and surface condition. Any tensile or assembly testing needs an agreed test plan.
