Coated Stainless Steel Wire Rope

Model: EL-WR-100 (catalogue reference)

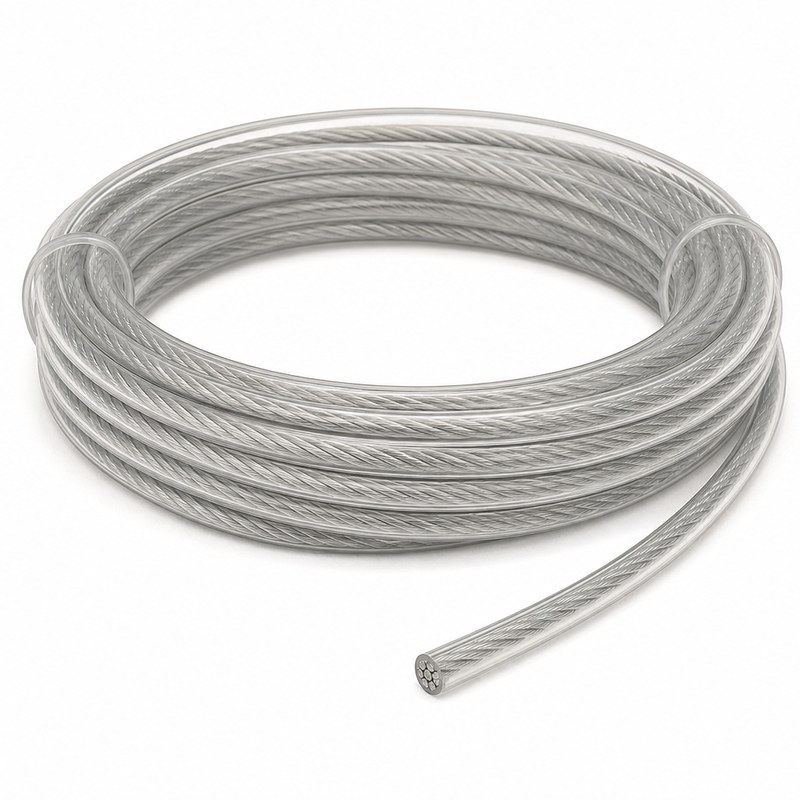

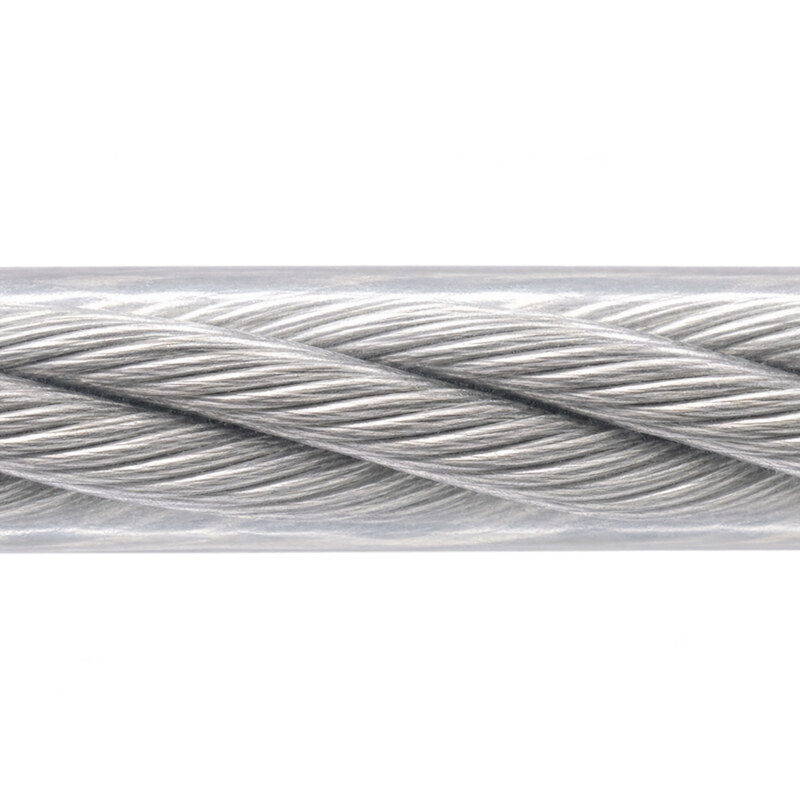

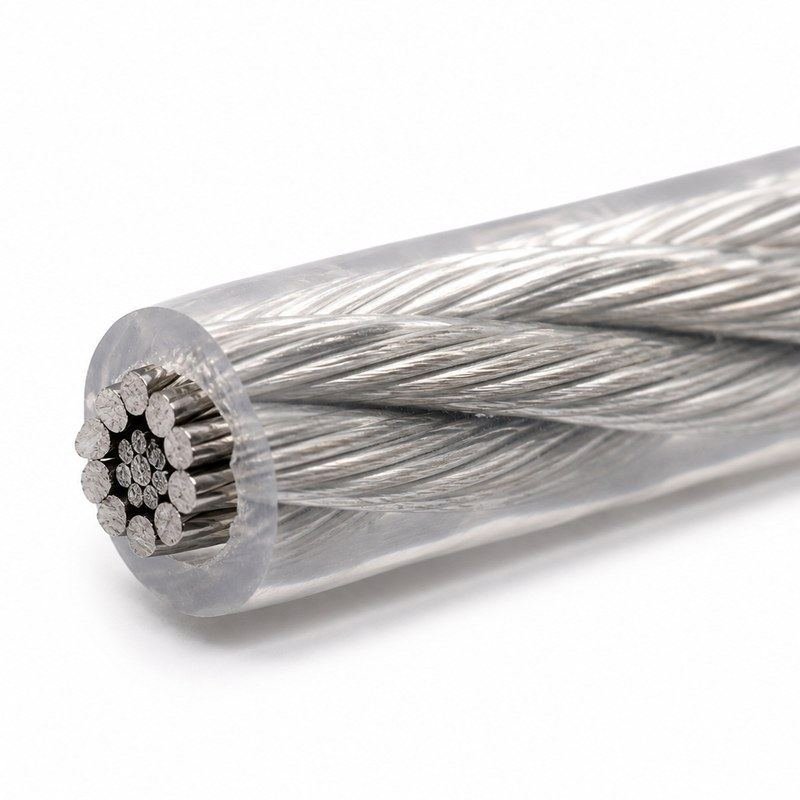

Coated stainless steel wire rope for project enquiries, illustrated with a coiled cable and a visible transparent outer jacket. Specify core diameter, overall diameter, coating specification and end preparation when requesting the matching configuration.

Material Reference: AISI 316 stainless steel core with a clear polymer jacket. Jacket composition is not established by the photographs.

Surface Finish Reference: clear polymer jacket over silver-colored stainless cable; polymer composition is specified in the quotation.

Dimensions Reference options, not measured image dimensions: RFQ example: 3 mm core / 4 mm overall diameter; 100 m reel.

Glass Thickness Not applicable: this wire rope item is not a glass clamp or glass support.

MOQ 200 metres per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Coated stainless steel wire rope is presented for component selection and project enquiries. The supplied views show a coiled cable and a visible transparent outer jacket. Send core diameter, overall diameter, coating specification and end preparation so the quoted configuration can be matched to your installation. The images show a clear jacket; the coating composition must be specified in the quotation. Quotation starting options: RFQ example: 3 mm core / 4 mm overall diameter; 100 m reel. These reference options are not measurements of the pictured model.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

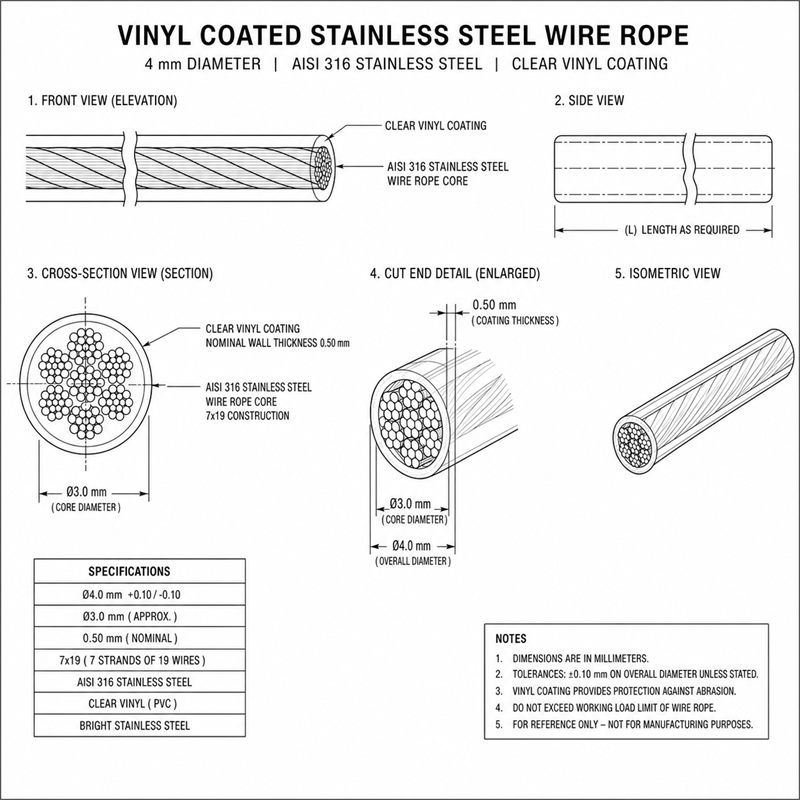

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

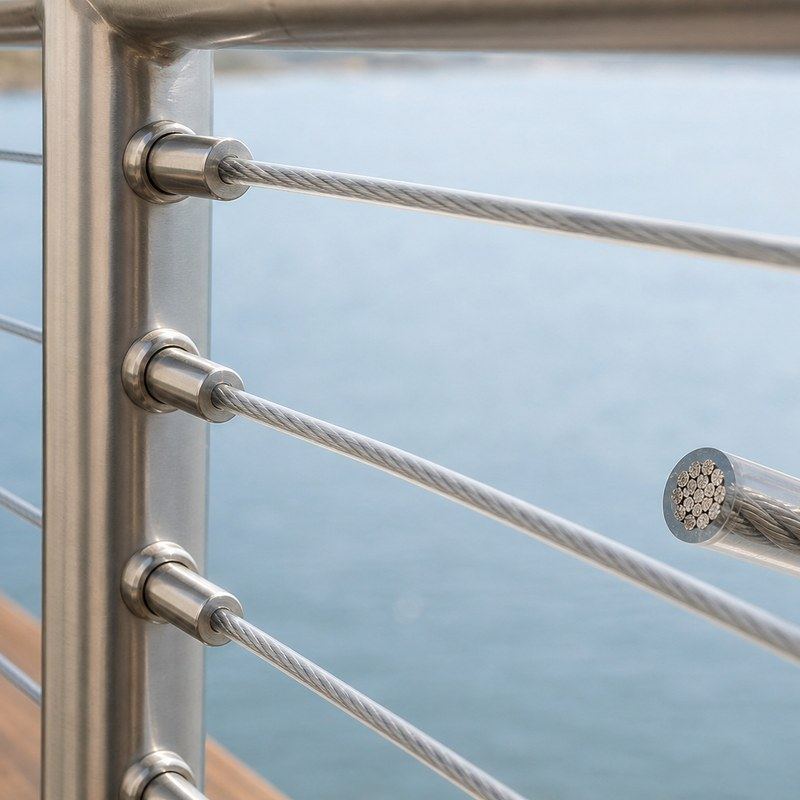

Coated cable selection

A coiled cable and a visible transparent outer jacket. Reference selection: RFQ example: 3 mm core / 4 mm overall diameter; 100 m reel. Match the project layout and mating parts; the image is a configuration illustration.

Customization

Quotation options include cable length, connection dimensions, thread type, surface finish, laser marking and private-label packaging. Send the drawing and order quantity for a manufacturing review. Custom tooling and prototypes are quoted separately before production.

Frequently Asked Questions

Can the coating material be identified from the pictures?

The coated stainless steel cable is shown with a clear outer jacket. The pictures alone do not establish PVC, vinyl or another polymer; request the coating composition, core diameter and overall diameter in the quotation.

Which reference sizes can be used for an enquiry?

Reference options, not measured image dimensions: RFQ example: 3 mm core / 4 mm overall diameter; 100 m reel. Clear polymer jacket; composition and core construction must be specified independently of the image. Provide core diameter, overall diameter, coating specification and end preparation for model matching.

Which material and finish should be specified?

Reference: AISI 316 stainless steel core with a clear polymer jacket. Jacket composition is not established by the photographs. Reference: clear polymer jacket over silver-colored stainless cable; polymer composition is specified in the quotation. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What can be included in a customization enquiry?

Request the required dimensions, connection type, thread, finish, marking and packing. Proposed sample schedule: 7 calendar days.

What are the reference MOQ, sample time and production lead time?

Minimum order quantity: 200 metres per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Specifications

Product type	Coated Stainless Steel Wire Rope
Visible configuration	A coiled cable and a visible transparent outer jacket
Material	Reference: AISI 316 stainless steel core with a clear polymer jacket. Jacket composition is not established by the photographs.
Surface finish	Reference: clear polymer jacket over silver-colored stainless cable; polymer composition is specified in the quotation.
Reference dimensions	Reference options, not measured image dimensions: RFQ example: 3 mm core / 4 mm overall diameter; 100 m reel.
Compatibility	Clear polymer jacket; composition and core construction must be specified independently of the image.
Packaging	Proposed packing: 100 m reel, secured ends, protective wrap and labeled export carton. Protect the clear jacket from abrasion.
Load and compliance	No model-specific load rating or certification supplied. Assess the complete assembly against project requirements before installation.

Trade Information

Minimum Order Quantity 200 metres per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Proposed terms: EXW factory or FOB named port. Specify the collection location or loading port in the quotation.
Packaging Proposed packing: 100 m reel, secured ends, protective wrap and labeled export carton. Protect the clear jacket from abrasion.
Quality Control Proposed checks: material traceability, cable diameter, construction, reel length and surface condition. Any tensile or assembly testing needs an agreed test plan.
