Model: EL-GW-064 (catalogue reference)

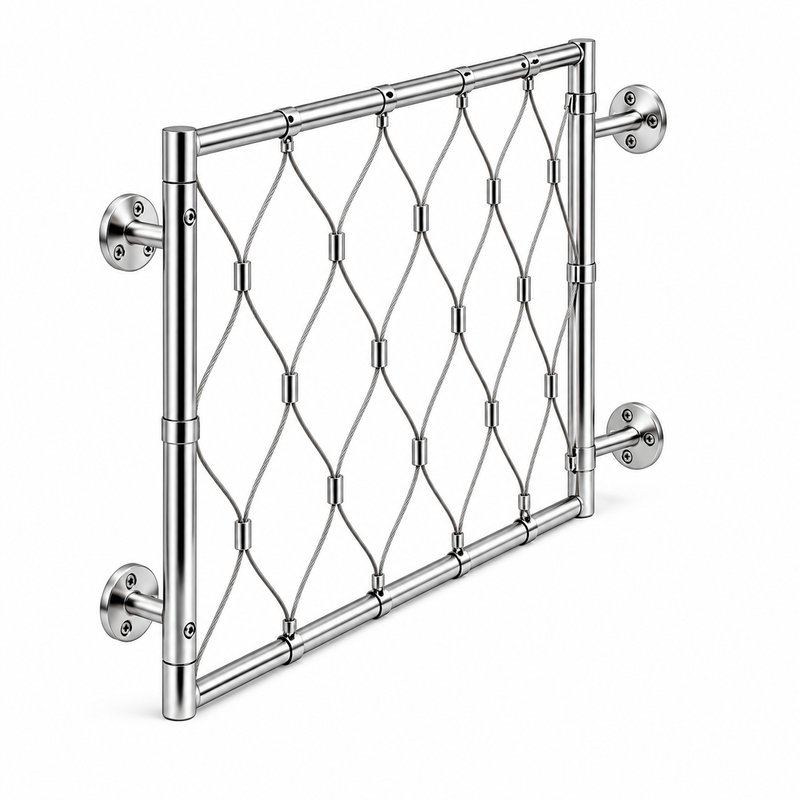

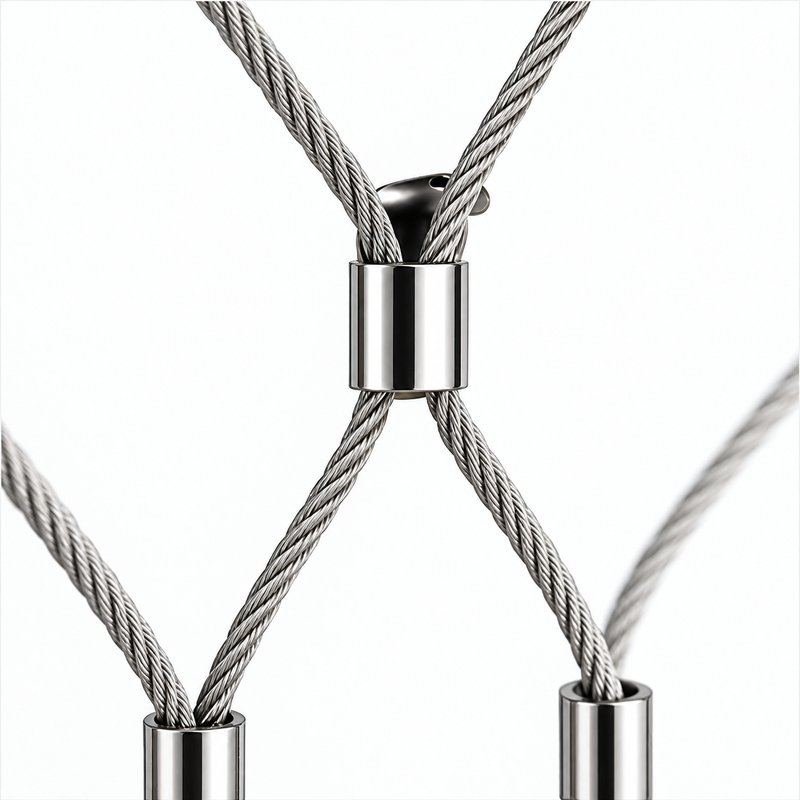

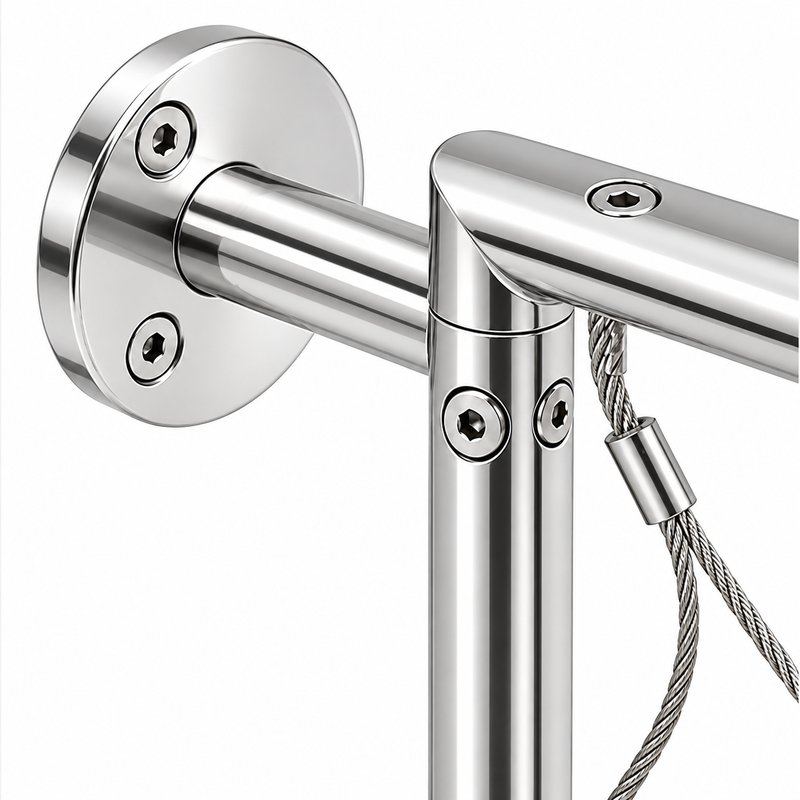

This ferruled cable mesh frame is presented for B2B specification review. A round tube frame carries large diamond cable openings. Elongated sleeves connect the cable intersections, and side standoffs connect the frame to a wall. Proposed finish options: Mirror polished. is shown for selection; finish availability requires confirmation.
Product Highlights
This ferruled cable mesh frame is presented for B2B specification review. A round tube frame carries large diamond cable openings. Elongated sleeves connect the cable intersections, and side standoffs connect the frame to a wall.
The design is described here as a ferrule cable mesh. Buyers comparing stainless steel ferrule rope mesh options should check the ferrule geometry, cable specification and frame mounting positions.
Select this construction when the visible connection layout fits the project brief. For an enquiry, send a marked wall or frame layout, the required quantities and photographs of the mating parts. Confirm the ferrule geometry, cable specification and frame mounting positions before choosing a finish. Appearance variants shown in the source set are references, and are not separate verified stock models.

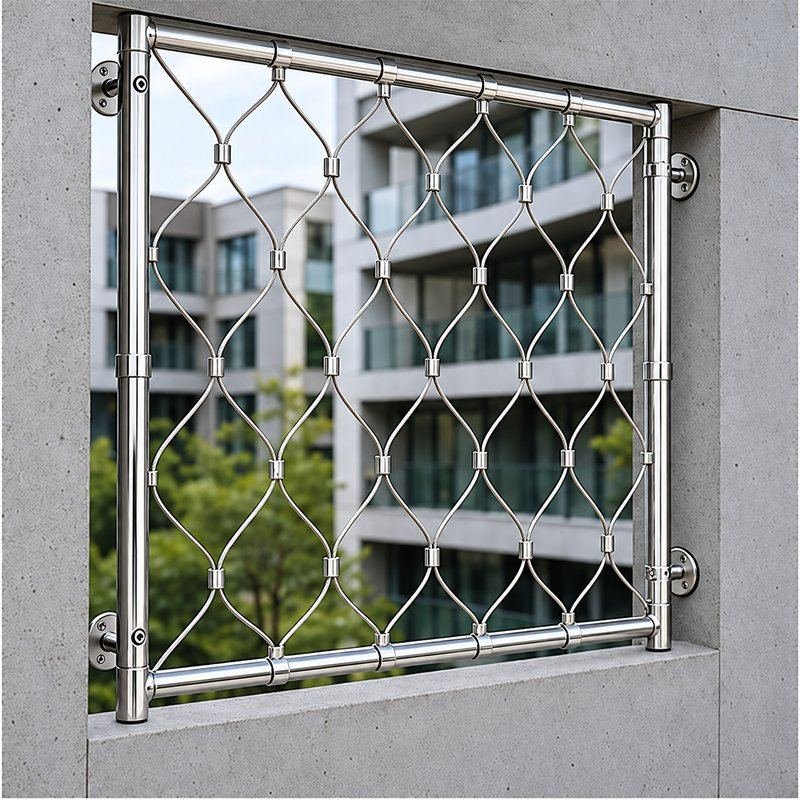

The framed net is shown across a building opening. Image context does not establish engineering suitability. The source drawing is retained for traceability and requires manufacturer approval before it can define dimensions, hole positions, threads or performance.
The source catalogue uses stainless-steel terminology for many components. A specific alloy, coating process, corrosion class and finish availability have not been verified for this record. Request the material designation and an approved finish sample in the quotation.
For a complete RFQ, identify the product reference, proposed material, surface appearance, interface dimensions, quantity, packaging preference and destination. Ask the supplier to confirm the minimum order quantity, sample timing, production lead time and trade terms in writing. These commercial values are not fixed in the source files.
Before approving an order, agree the dimensions to inspect, the finish acceptance sample and any assembly checks. Request applicable test evidence where the installation has a load-bearing or barrier function. No certification, working load or universal fixing schedule is claimed in this draft.
A round tube frame carries large diamond cable openings. Elongated sleeves connect the cable intersections, and side standoffs connect the frame to a wall.
Confirm the ferrule geometry, cable specification and frame mounting positions, the actual factory model and the approved material and finish.
The supplied set includes appearance concepts. Use the parent product page to compare them and request availability; a unique factory SKU for each appearance has not been provided.
No. The retained image is an unapproved reference. Obtain a revision-controlled drawing and a project-specific fixing specification before manufacture or installation.
MOQ, sample time, production lead time and delivery terms depend on the confirmed specification and quotation. No numerical commitment has been supplied.
Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

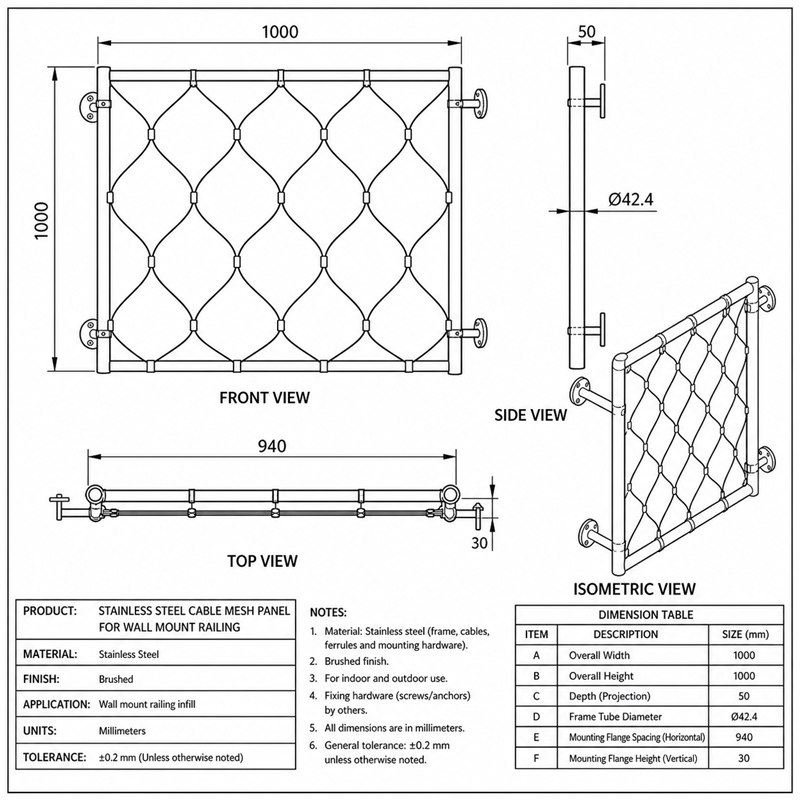

View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
The framed net is shown across a building opening. Project suitability requires review; the image is not proof of a completed Elim installation.
Submit an annotated drawing with the required interface dimensions, material, finish, quantity and packaging brief. Ask for written feasibility and tooling confirmation before placing a custom order. No specific OEM capability or tolerance is guaranteed by these images.
