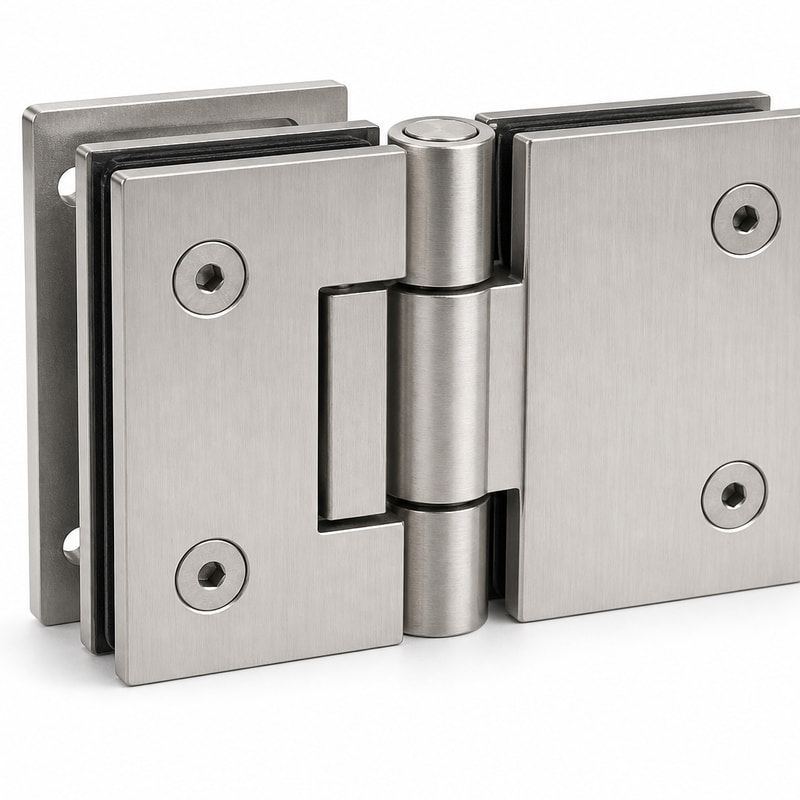

Heavy-Duty Shower Door Hinge

Model: SHS-019

Heavy-Duty Shower Door Hinge for B2B shower hardware sourcing. Broad rectangular clamping leaves around a substantial central hinge body. Confirm model dimensions, fit and finish before bulk ordering.

Material Proposed material options: Solid brass / AISI 304 stainless steel.

Surface Finish Proposed finish options: Satin brushed / mirror polished.

Dimensions Proposed leaf height: 100 mm; leaf width: 57 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Proposed glass options: 10 / 12 mm. Model-specific fit is not verified.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Product configuration

Heavy-Duty Shower Door Hinge (SHS-019) is intended to review hinge options for shower doors with demanding size or weight requirements. Broad rectangular clamping leaves around a substantial central hinge body.

Function verification

The adjustment or operating capability associated with this model designation must be confirmed with model-specific documentation and a working sample; appearance alone does not establish performance.

Selection and fit

Provide door mass, width, height, glass thickness and the intended hinge quantity. Obtain the model-specific working limits and supporting verification before procurement.

Bulk sourcing information

Provide the required quantity, drawing revision, finish reference and packing requirements. Agree the model-specific material, dimensions and supplied accessories before sample approval.

Compare the Shower Systems range and request a model-specific quotation.

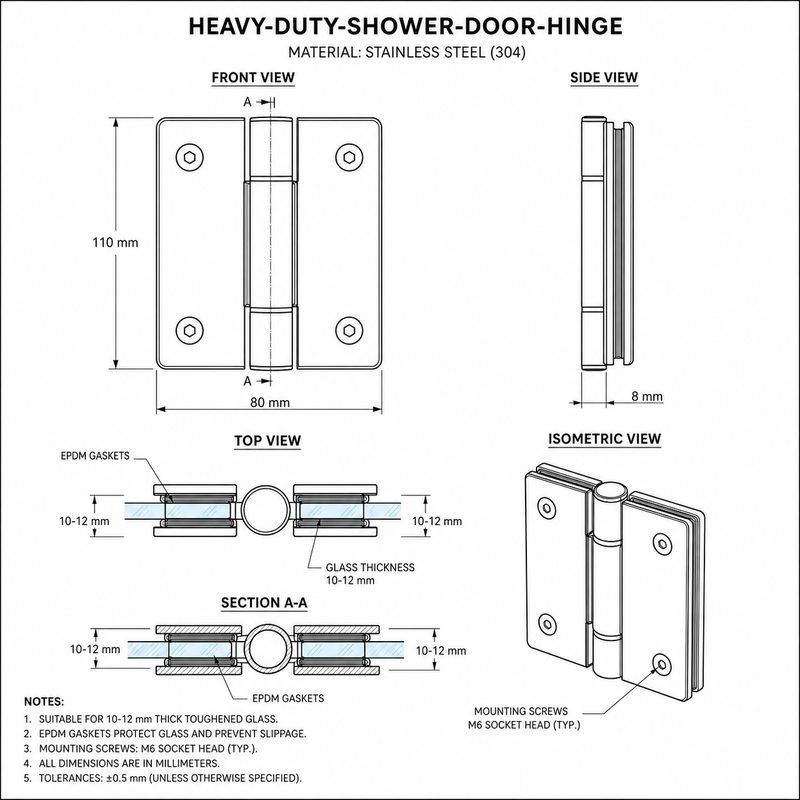

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

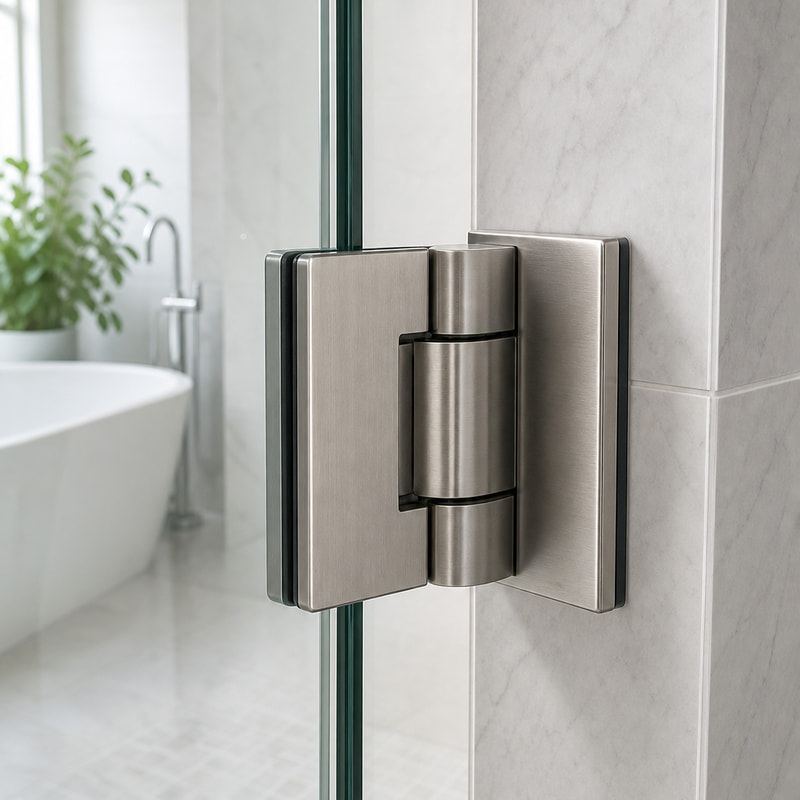

Applications

Frameless shower doors

Review this hinge within the complete door, fixed-panel and wall arrangement. Confirm the mounting and opening requirements before glass production.

Shower enclosure product lines

Use the approved hinge drawing and sample as a reference for repeat procurement, gasket matching and finish coordination.

Project hardware packages

Coordinate the hinge schedule with the door weight, glass preparation, handles, seals and agreed installation details.

Customization

Elim Hardware can review drawing-based changes to the glass thickness, cut-out, door dimensions, door mass, pivot position and hinge quantity. Material selection, finish, marking, coordinated accessories and private-label packaging are reviewed for manufacturing feasibility and the intended order.

Confirm the sample and drawing revision before bulk production. Concept finish images illustrate a proposed appearance and do not establish the production material or an available stock finish.

Learn about OEM and ODM development and the relevant manufacturing capabilities.

Frequently Asked Questions

What door weight can this heavy-duty hinge carry?

A numerical capacity cannot be determined from the product name or image. Request the approved load limit for the exact hinge and door configuration.

What information is needed to check SHS-019 compatibility?

Provide the glass thickness, cut-out, door dimensions, door mass, pivot position and hinge quantity. Proposed glass options: 10 / 12 mm. Model-specific fit is not verified.

How are material and finish confirmed?

Proposed material options: Solid brass / AISI 304 stainless steel. Proposed finish options: Satin brushed / mirror polished. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What are the MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Can this product be customized for a wholesale or project order?

Drawing-based changes can be reviewed. Send the glass thickness, cut-out, door dimensions, door mass, pivot position and hinge quantity, estimated quantity, intended market and packing requirements. The final scope depends on model suitability and manufacturing feasibility.

Specifications

Product model	SHS-019
Product configuration	Broad rectangular clamping leaves around a substantial central hinge body
Material	Proposed material options: Solid brass / AISI 304 stainless steel.
Surface finish	Proposed finish options: Satin brushed / mirror polished.
Dimensions and fitting	Proposed leaf height: 100 mm; leaf width: 57 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Glass compatibility	Proposed glass options: 10 / 12 mm. Model-specific fit is not verified.
Supply scope	Hinge body and the agreed gasket / fixing set; anchors and accessories as quoted.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Agree the Incoterm, named place and payment terms in the written quotation.
Packaging Agree protective packing, carton quantity and shipping marks for the actual order.
Quality Control Dimensional, surface and assembly checks against the approved sample/drawing; agree model-specific functional inspection. Verify opening / closing behavior for the specified door arrangement.
