Jaw To Jaw Turnbuckle — WR046

Model: EL-WR-046 (catalogue reference)

Jaw to jaw turnbuckle for project enquiries, illustrated with an open body with a pinned fork at each end. Specify both fork gaps, pin diameters, thread and adjustment range when requesting the matching configuration.

Material Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.

Surface Finish Reference options: satin silver or polished silver; approve the surface sample for the selected model.

Dimensions Reference options, not measured image dimensions: M6 / M8 / M10 reference threads; jaw-to-jaw end arrangement.

Glass Thickness Not applicable: this wire rope item is not a glass clamp or glass support.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Jaw to jaw turnbuckle is presented for component selection and project enquiries. The supplied views show an open body with a pinned fork at each end. Send both fork gaps, pin diameters, thread and adjustment range so the quoted configuration can be matched to your installation. Quotation starting options: M6 / M8 / M10 reference threads; jaw-to-jaw end arrangement. These reference options are not measurements of the pictured model.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

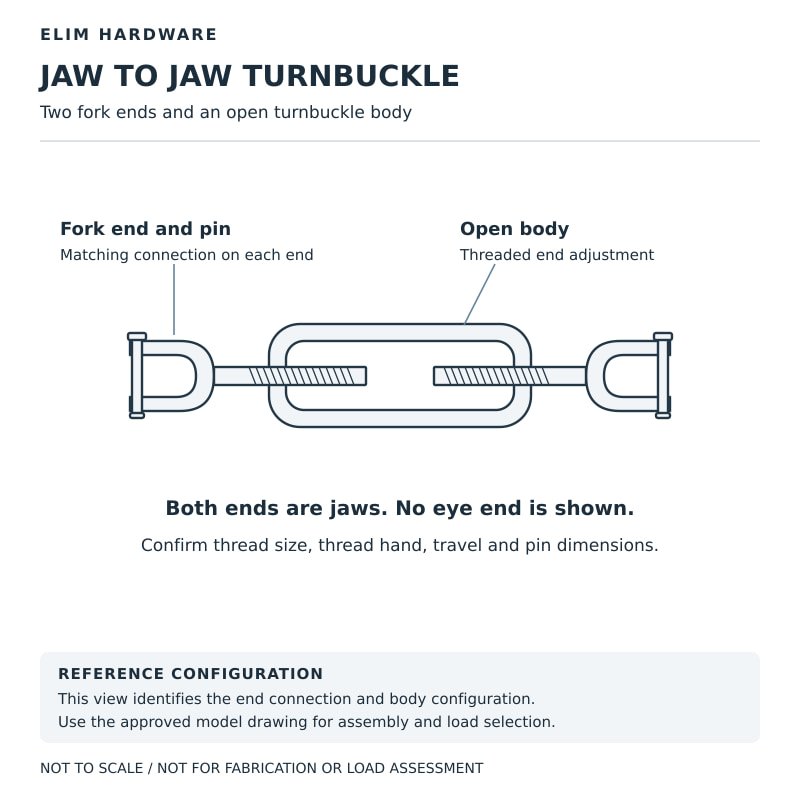

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

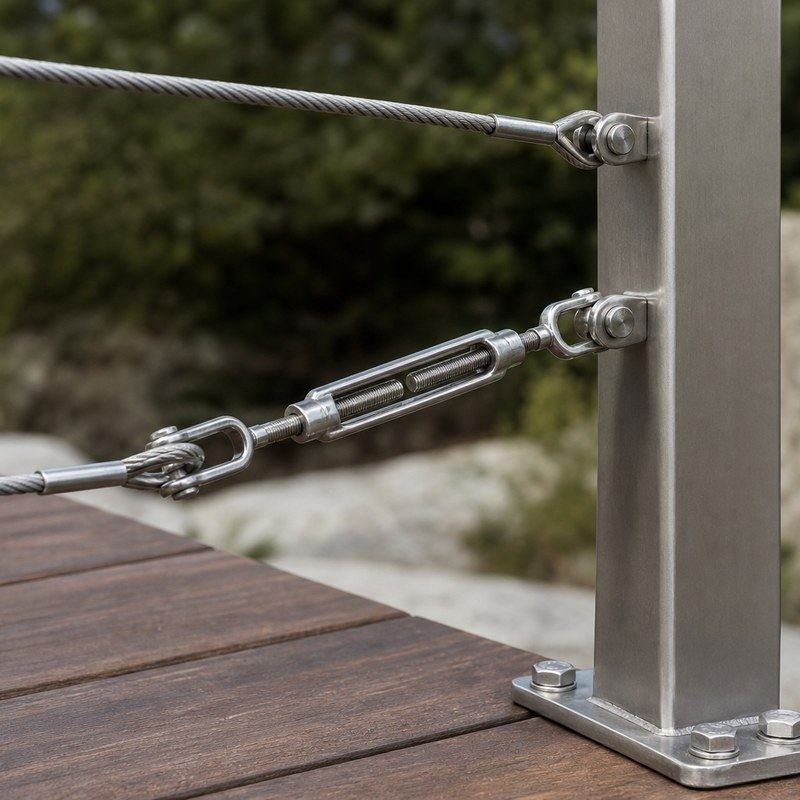

Fork-ended tension adjustment

An open body with a pinned fork at each end. Reference selection: M6 / M8 / M10 reference threads; jaw-to-jaw end arrangement. Match the project layout and mating parts; the image is a configuration illustration.

Customization

Quotation options include cable length, connection dimensions, thread type, surface finish, laser marking and private-label packaging. Send the drawing and order quantity for a manufacturing review. Custom tooling and prototypes are quoted separately before production.

Frequently Asked Questions

What distinguishes the double-jaw configuration?

A jaw jaw stainless steel turnbuckle uses a pinned fork at both ends. Both connections need matching pin diameters and fork gaps; the source M8 label is not a verified thread measurement.

Which reference sizes can be used for an enquiry?

Reference options, not measured image dimensions: M6 / M8 / M10 reference threads; jaw-to-jaw end arrangement. Both fork gaps and pin diameters must match; the source M8 label is not a measured specification. Provide both fork gaps, pin diameters, thread and adjustment range for model matching.

Which material and finish should be specified?

Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade. Reference options: satin silver or polished silver; approve the surface sample for the selected model. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What can be included in a customization enquiry?

Request the required dimensions, connection type, thread, finish, marking and packing. Proposed sample schedule: 7 calendar days.

What are the reference MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Specifications

Product type	Jaw To Jaw Turnbuckle

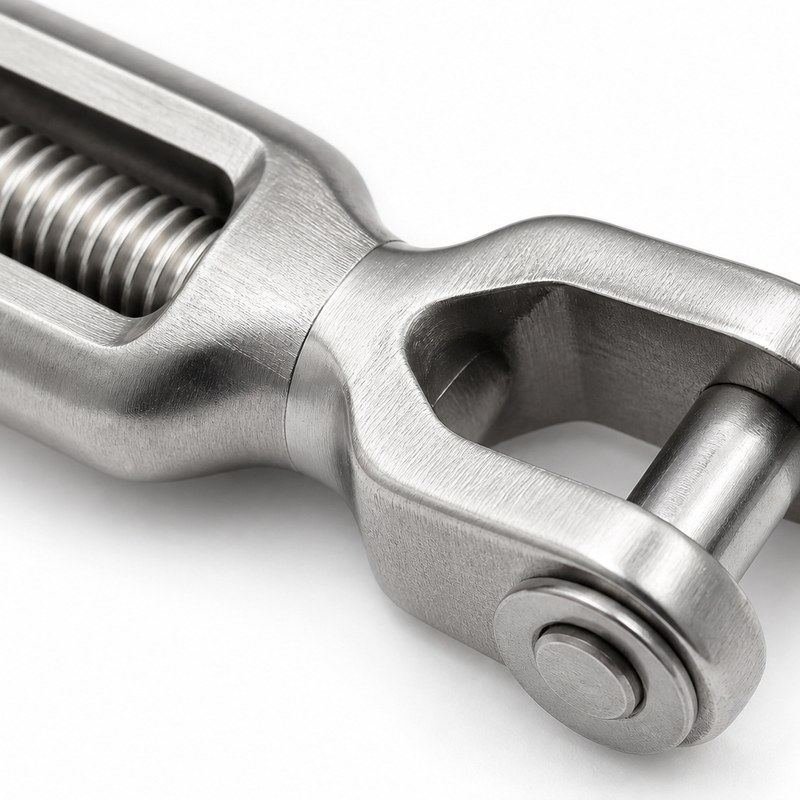

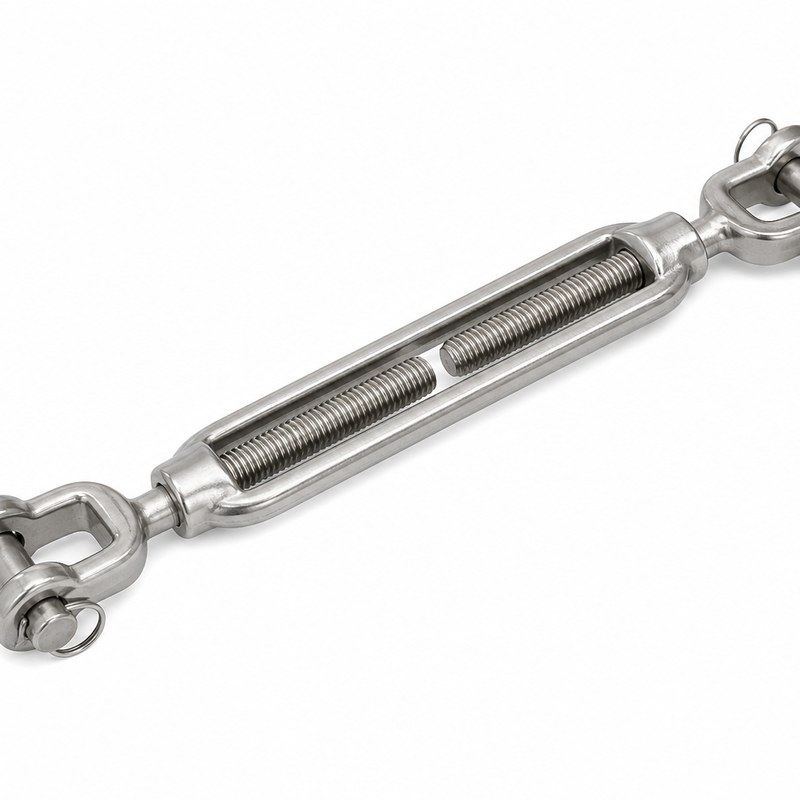

Visible configuration	An open body with a pinned fork at each end
Material	Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.
Surface finish	Reference options: satin silver or polished silver; approve the surface sample for the selected model.
Reference dimensions	Reference options, not measured image dimensions: M6 / M8 / M10 reference threads; jaw-to-jaw end arrangement.
Compatibility	Both fork gaps and pin diameters must match; the source M8 label is not a measured specification.
Packaging	Proposed packing: individual protective bag, separated inner box and export carton; labels identify item, size, finish and quantity.
Load and compliance	No model-specific load rating or certification supplied. Assess the complete assembly against project requirements before installation.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Proposed terms: EXW factory or FOB named port. Specify the collection location or loading port in the quotation.
Packaging Proposed packing: individual protective bag, separated inner box and export carton; labels identify item, size, finish and quantity.
Quality Control Proposed checks: material traceability, critical dimensions, surface appearance and mating fit. Inspect threads or bores where present; agree any termination testing separately.

Jaw To Jaw Turnbuckle — WR046
