Matte Black Aluminum U-Channel for Shower Glass — Finish Concept

Matte Black Aluminum U-Channel for Shower Glass — Finish Concept

Model: SHS-011 / SHS-011-C-BK (finish concept reference)

Matte Black aluminum u-channel for shower glass finish concept for B2B design review. Confirm the physical sample, model dimensions, actual material and finish availability before ordering. Images illustrate proposed appearance.

Material Proposed material options: Aluminium.

Surface Finish Proposed finish options: Anodized aluminium.

Dimensions Proposed supply lengths: 3000 / 6000 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Proposed glass options: 10 / 12 mm. Model-specific fit is not verified.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Finish concept reference. This page illustrates a proposed finish. Production material, finish process, availability and performance require confirmation on the actual sample.

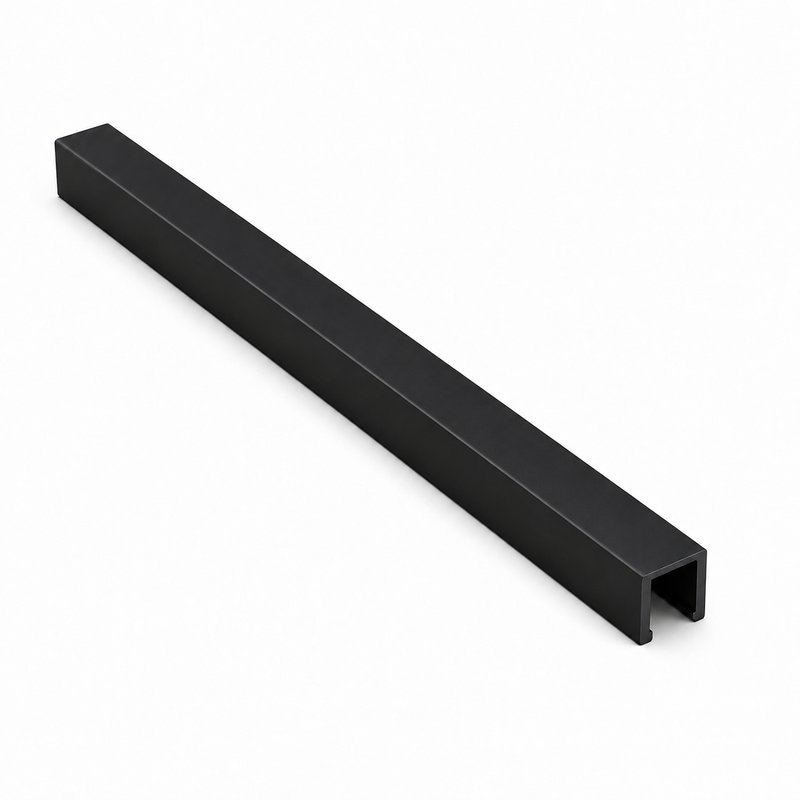

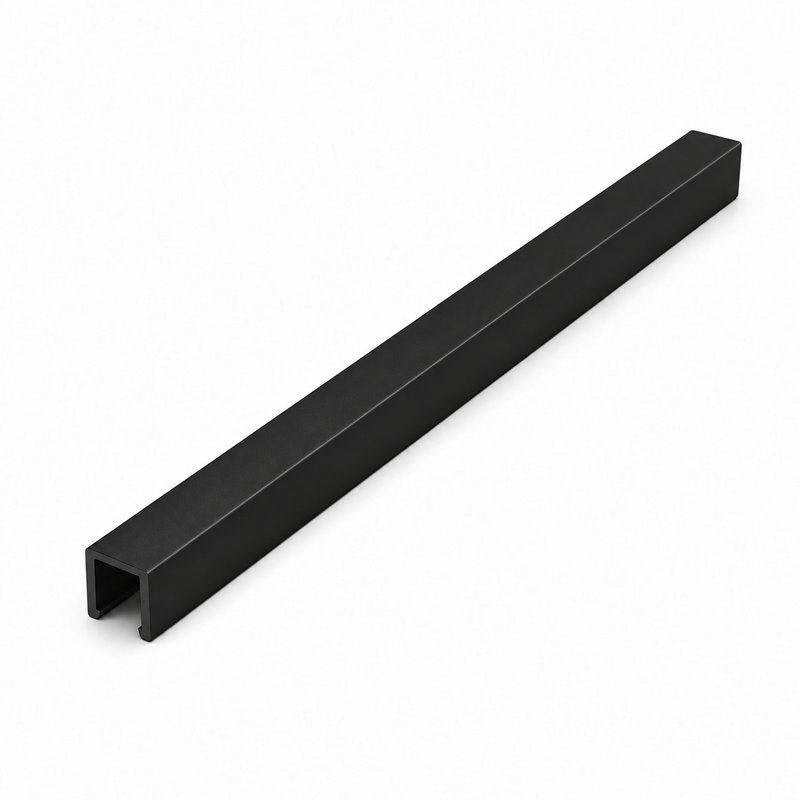

Matte Black Aluminum U-Channel for Shower Glass

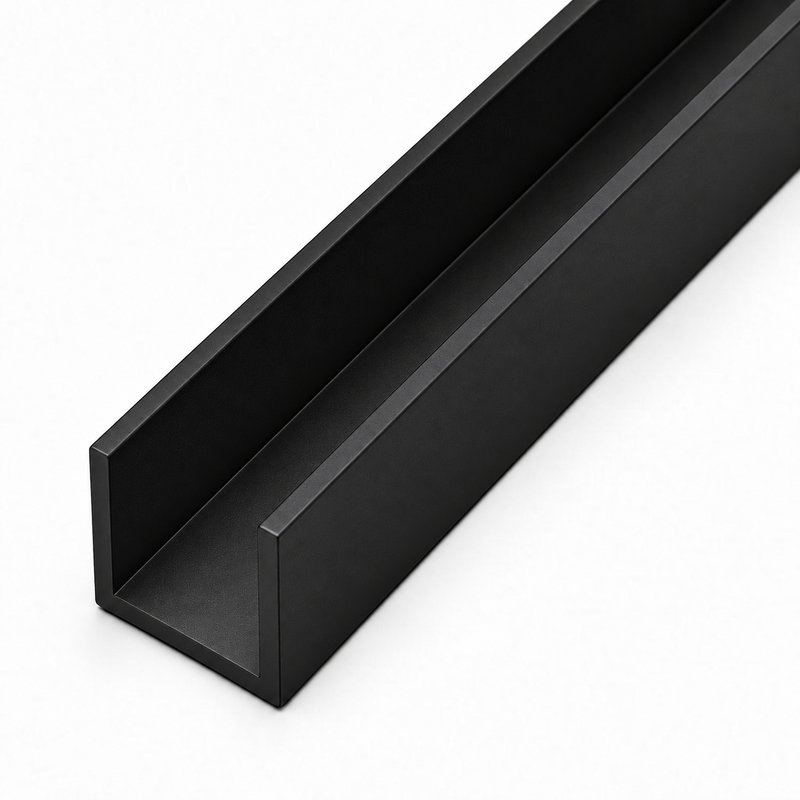

This matte black aluminum u channel for shower glass reference illustrates a proposed finish on the SHS-011 configuration. Straight U-section with an open glass seating channel. The concept does not verify production material, finish process, stock or functional performance.

Fit and finish selection

Specify the internal channel width, wall height, section thickness and required cut length. Coordinate liners, setting blocks and the installation detail with the glass supplier.

Approve the physical finish sample and confirm the supplied parts and availability before ordering.

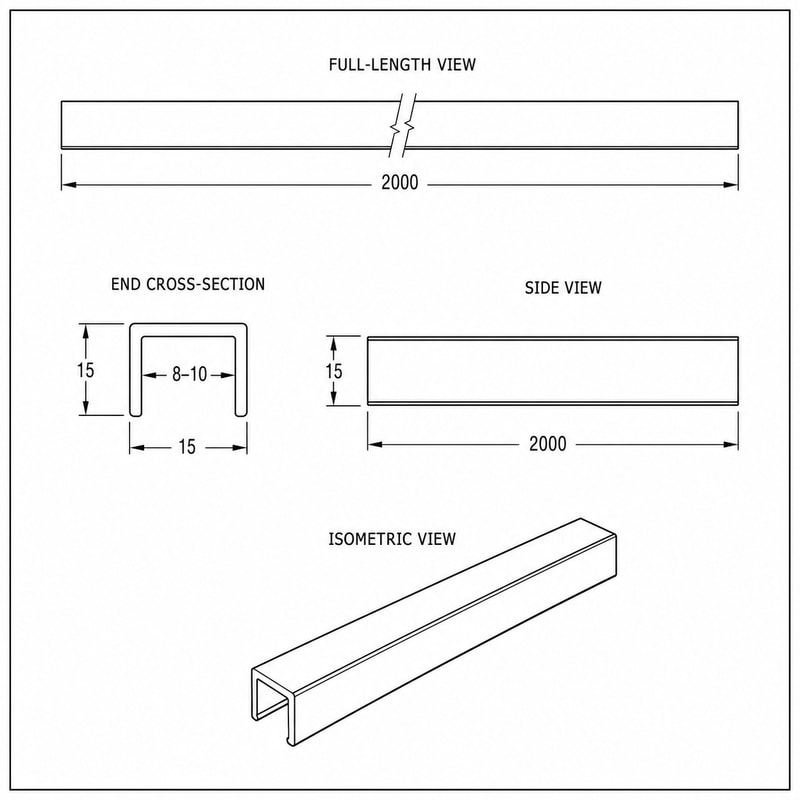

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

Fixed shower glass edges

Locate the fixed panel within the confirmed channel section and glass seating detail.

Wall and floor channel layouts

Define the profile position, fixing approach and required channel lengths from the project drawing.

Profile distribution and project supply

Order by the approved section, material grade, finish and cutting schedule.

Customization

Elim Hardware can review drawing-based changes to the profile cross-section, cut length, receiving surface, glass seating or door-bottom clearance. Material selection, finish, marking, coordinated accessories and private-label packaging are reviewed for manufacturing feasibility and the intended order.

Confirm the sample and drawing revision before bulk production. Concept finish images illustrate a proposed appearance and do not establish the production material or an available stock finish.

Learn about OEM and ODM development and the relevant manufacturing capabilities.

Frequently Asked Questions

Is the matte black finish shown here a confirmed production option?

The supplied matte black images are finish concepts for reference model SHS-011. Confirm a physical sample, the finish process and supply availability before ordering.

Is the U-channel a moving door track?

This listing concerns a profile for fixed shower glass. A sliding door requires a separately designed track and roller system.

How are material and finish confirmed?

Proposed material options: Aluminium. Proposed finish options: Anodized aluminium. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What are the MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Can this product be customized for a wholesale or project order?

Drawing-based changes can be reviewed. Send the profile cross-section, cut length, receiving surface, glass seating or door-bottom clearance, estimated quantity, intended market and packing requirements. The final scope depends on model suitability and manufacturing feasibility.

Specifications

Product model	SHS-011 reference; actual finish-variant SKU to be confirmed
Product configuration	Straight U-section with an open glass seating channel
Material	Proposed material options: Aluminium.
Surface finish	Proposed finish options: Anodized aluminium.
Dimensions and fitting	Proposed supply lengths: 3000 / 6000 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Glass compatibility	Proposed glass options: 10 / 12 mm. Model-specific fit is not verified.
Supply scope	Profile supplied to the agreed length; liners, end caps, sealants and fixings as separately specified.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Agree the Incoterm, named place and payment terms in the written quotation.
Packaging Agree protective packing, carton quantity and shipping marks for the actual order.
Quality Control Dimensional, surface and assembly checks against the approved sample/drawing; agree model-specific functional inspection. Check the profile cross-section, cut length, receiving surface, glass seating or door-bottom clearance.
