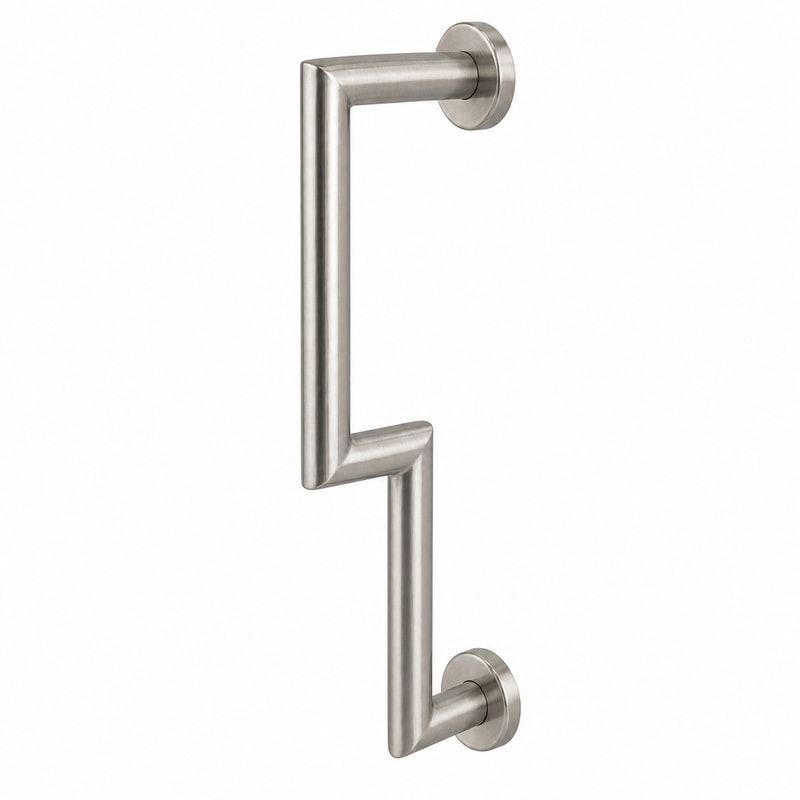

Offset Shower Door Pull Handle

Model: SHS-021

Offset Shower Door Pull Handle for B2B shower hardware sourcing. Stepped grip geometry between two glass mounting interfaces. Confirm model dimensions, fit and finish before bulk ordering.

Material Proposed material options: Solid brass / AISI 304 / AISI 316 stainless steel.

Surface Finish Proposed finish options: Satin brushed / mirror polished.

Dimensions Proposed fixing centres: 152 / 203 mm; round grip diameter: 19 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Proposed glass options: 6 / 8 / 10 / 12 mm. Model-specific fit is not verified.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Product configuration

Offset Shower Door Pull Handle (SHS-021) is intended to position a shower door grip away from its mounting line where the layout requires an offset. Stepped grip geometry between two glass mounting interfaces.

Selection and fit

Define the offset direction and distance in addition to the mounting centers. Check handing and nearby panel clearance in the closed and open positions.

Bulk sourcing information

Provide the required quantity, drawing revision, finish reference and packing requirements. Agree the model-specific material, dimensions and supplied accessories before sample approval.

Compare the Shower Systems range and request a model-specific quotation.

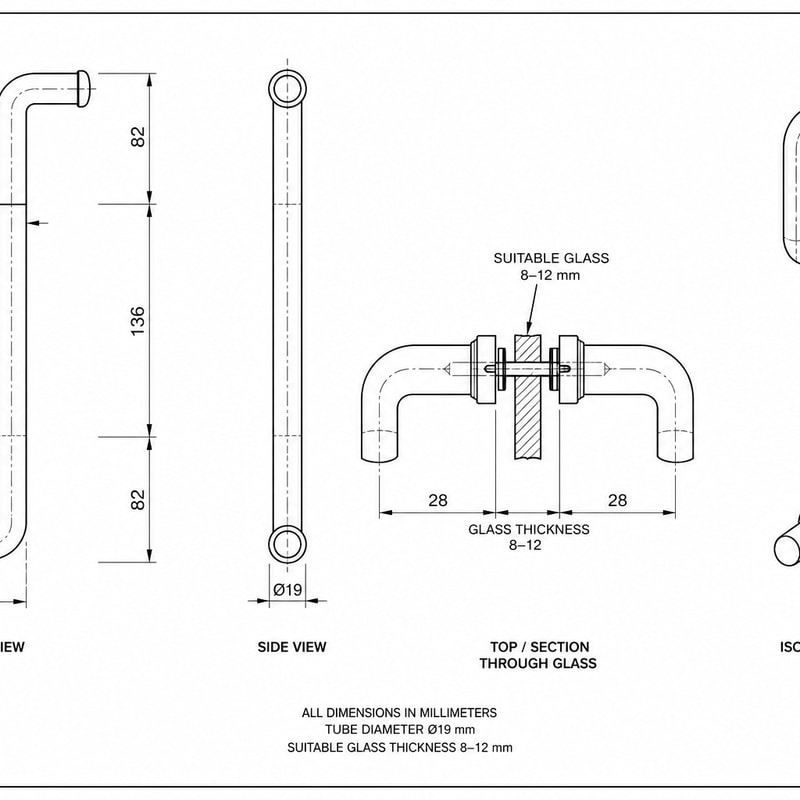

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

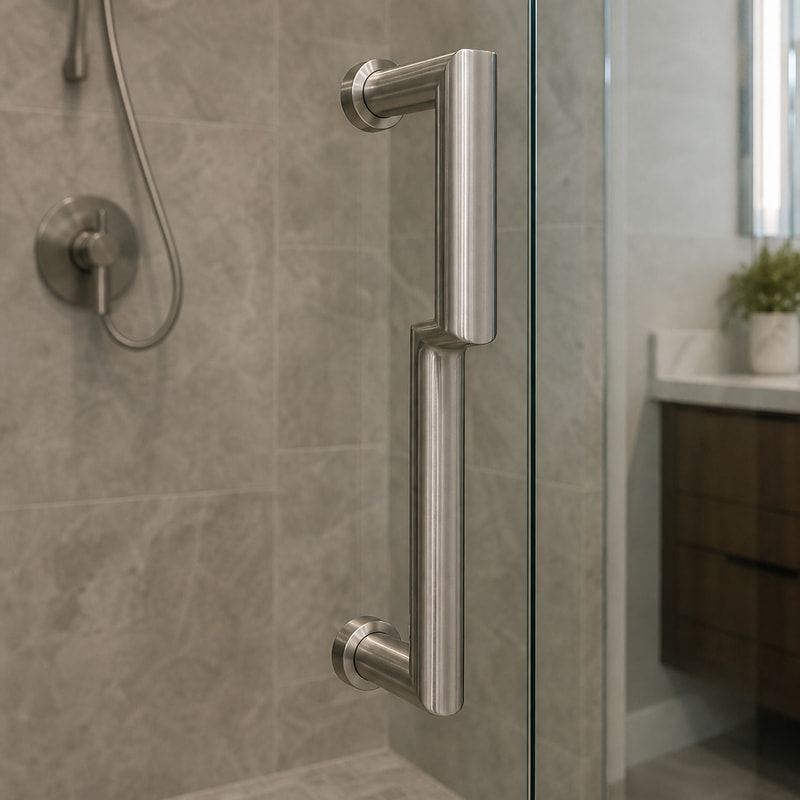

Applications

Glass shower door pulls

Choose the grip and fixing arrangement to match the door glass preparation and available opening clearance.

Bathroom hardware ranges

Coordinate the handle finish and visual profile with hinges, clamps and surrounding fittings using an approved sample.

Wholesale replacement matching

Use measured hole centers, glass thickness and the fixing detail to identify a suitable configuration. Appearance alone does not establish interchangeability.

Customization

Elim Hardware can review drawing-based changes to the mounting-hole centers, hole diameter, glass thickness, grip size and stand-off. Material selection, finish, marking, coordinated accessories and private-label packaging are reviewed for manufacturing feasibility and the intended order.

Confirm the sample and drawing revision before bulk production. Concept finish images illustrate a proposed appearance and do not establish the production material or an available stock finish.

Learn about OEM and ODM development and the relevant manufacturing capabilities.

Frequently Asked Questions

Does the offset handle have a left and right version?

Handing depends on the exact geometry and mounting method. Include the intended orientation in the inquiry so that the correct arrangement can be confirmed.

What information is needed to check SHS-021 compatibility?

Provide the mounting-hole centers, hole diameter, glass thickness, grip size and stand-off. Proposed glass options: 6 / 8 / 10 / 12 mm. Model-specific fit is not verified.

How are material and finish confirmed?

Proposed material options: Solid brass / AISI 304 / AISI 316 stainless steel. Proposed finish options: Satin brushed / mirror polished. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What are the MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Can this product be customized for a wholesale or project order?

Drawing-based changes can be reviewed. Send the mounting-hole centers, hole diameter, glass thickness, grip size and stand-off, estimated quantity, intended market and packing requirements. The final scope depends on model suitability and manufacturing feasibility.

Specifications

Product model	SHS-021
Product configuration	Stepped grip geometry between two glass mounting interfaces
Material	Proposed material options: Solid brass / AISI 304 / AISI 316 stainless steel.
Surface finish	Proposed finish options: Satin brushed / mirror polished.
Dimensions and fitting	Proposed fixing centres: 152 / 203 mm; round grip diameter: 19 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Glass compatibility	Proposed glass options: 6 / 8 / 10 / 12 mm. Model-specific fit is not verified.
Supply scope	Handle / knob with the agreed connectors and washers; single or paired configuration as quoted.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Agree the Incoterm, named place and payment terms in the written quotation.
Packaging Agree protective packing, carton quantity and shipping marks for the actual order.
Quality Control Dimensional, surface and assembly checks against the approved sample/drawing; agree model-specific functional inspection. Check the mounting-hole centers, hole diameter, glass thickness, grip size and stand-off.
