Round Cable Railing Posts — WR050

Model: EL-WR-050 (catalogue reference)

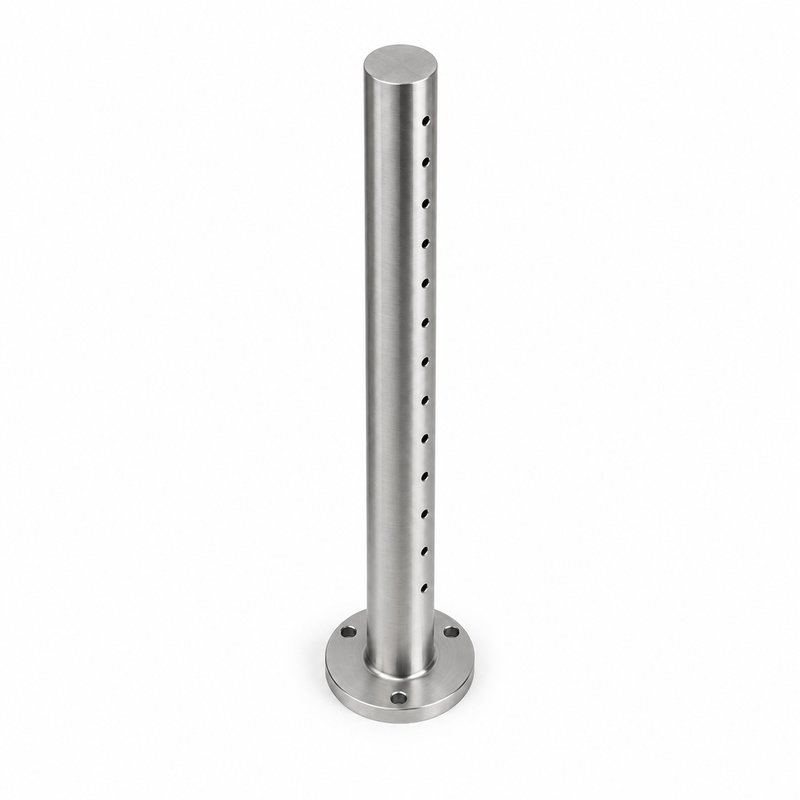

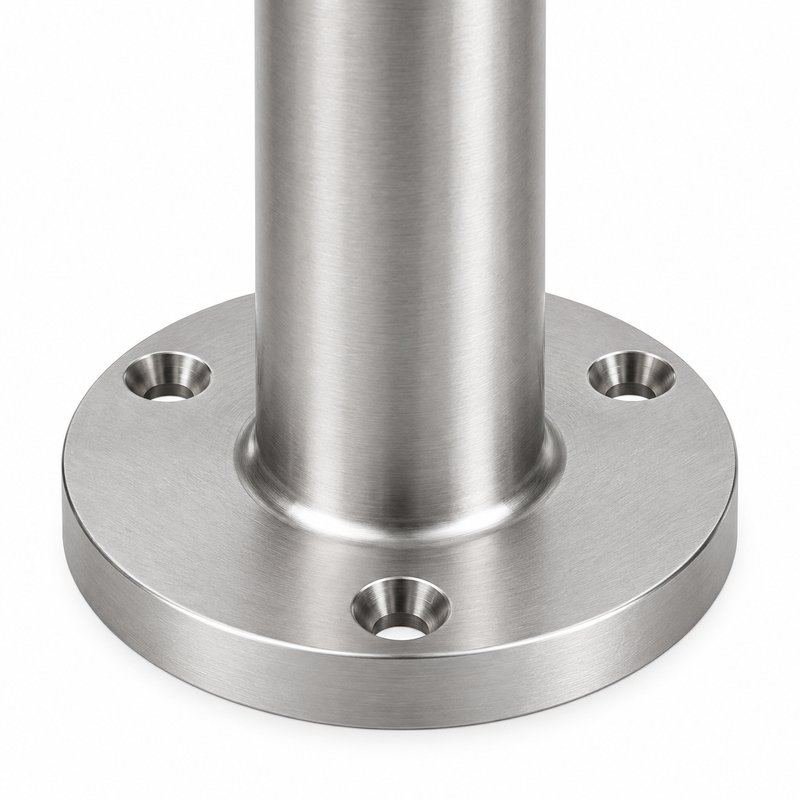

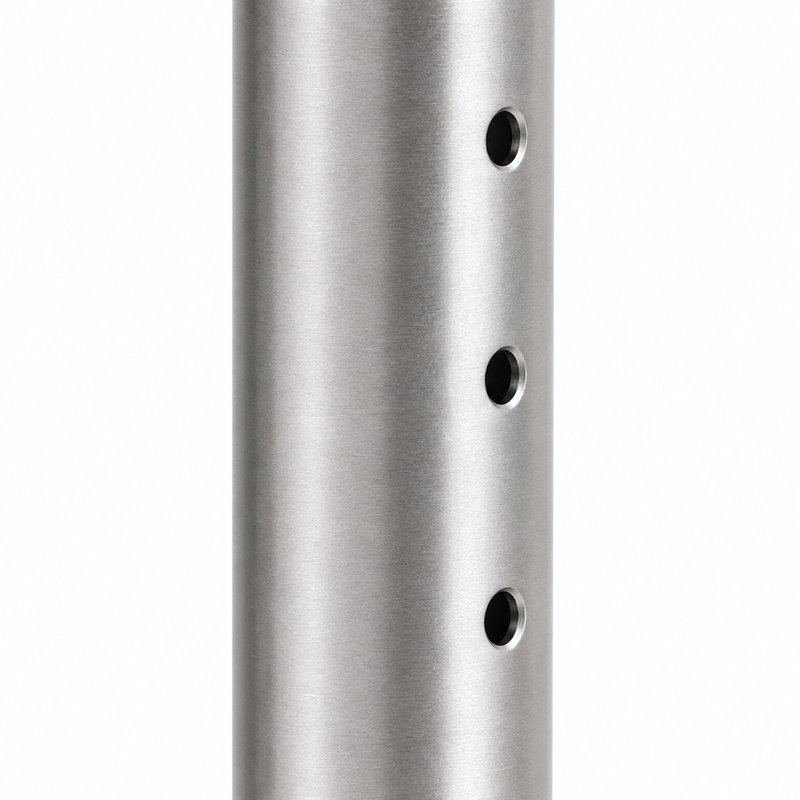

Round cable railing posts for project enquiries, illustrated with a round post with pre-drilled cable holes and a circular base. Specify post diameter and height, hole spacing and base anchorage when requesting the matching configuration.

Material Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.

Surface Finish Reference: satin/matte silver appearance. The image is a finish concept; approve the manufacturing process and sample.

Dimensions Reference options, not measured image dimensions: 42.4 or 50.8 mm round-post diameter; cable-size options 3 / 4 / 5 / 6 mm.

Glass Thickness Not applicable: this wire rope item is not a glass clamp or glass support.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Round cable railing posts is presented for component selection and project enquiries. The supplied views show a round post with pre-drilled cable holes and a circular base. Send post diameter and height, hole spacing and base anchorage so the quoted configuration can be matched to your installation. Quotation starting options: 42.4 or 50.8 mm round-post diameter; cable-size options 3 / 4 / 5 / 6 mm. These reference options are not measurements of the pictured model.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

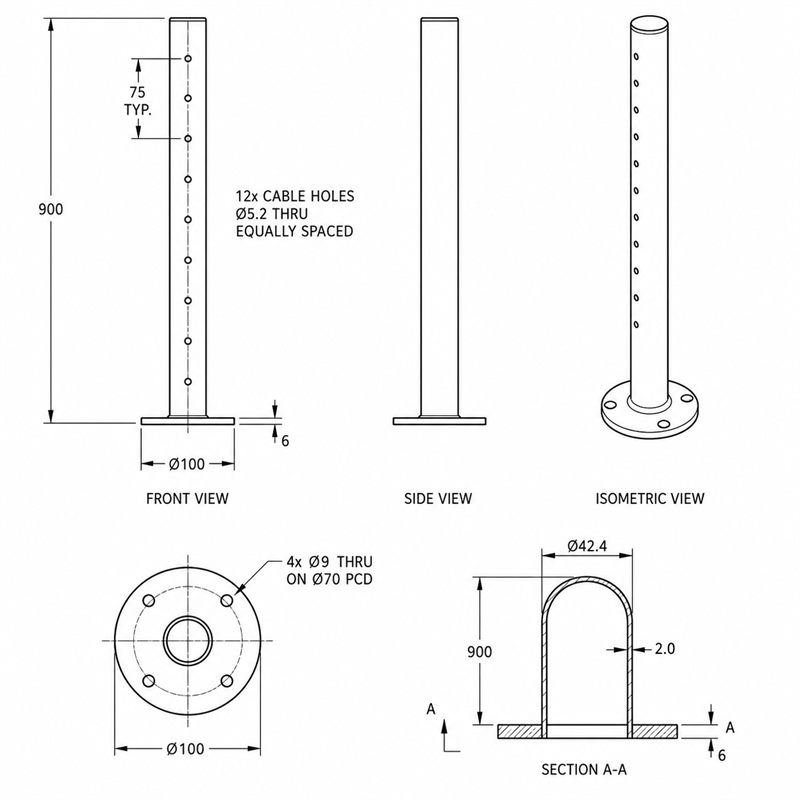

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

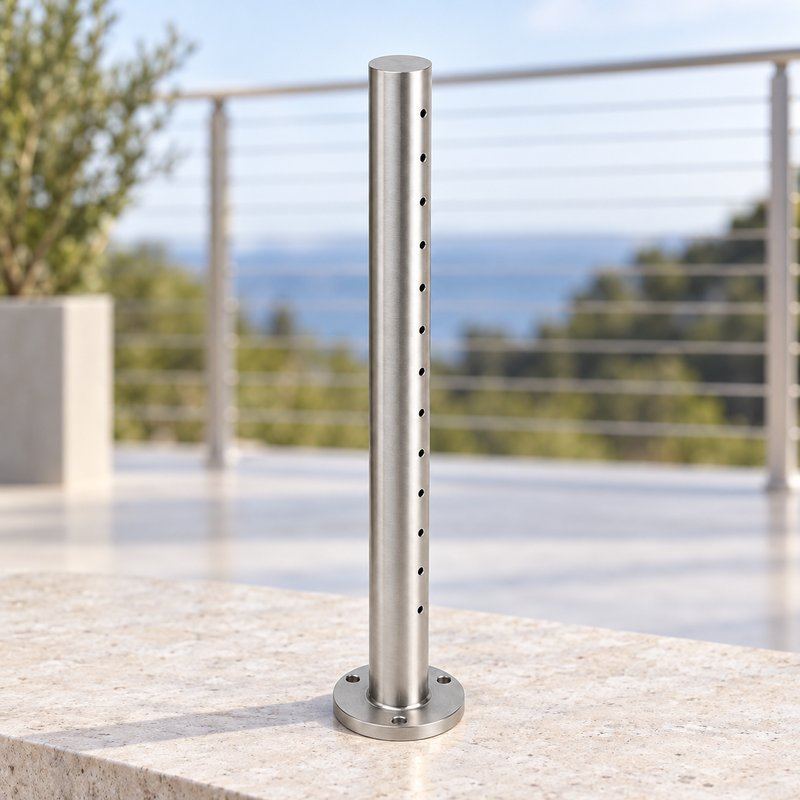

Round-post cable layouts

A round post with pre-drilled cable holes and a circular base. Reference selection: 42.4 or 50.8 mm round-post diameter; cable-size options 3 / 4 / 5 / 6 mm. Match the project layout and mating parts; the image is a configuration illustration.

Customization

Quotation options include cable length, connection dimensions, thread type, surface finish, laser marking and private-label packaging. Send the drawing and order quantity for a manufacturing review. Custom tooling and prototypes are quoted separately before production.

Frequently Asked Questions

What dimensions identify a round-post configuration?

Coordinate the round tube diameter, post height, cable hole positions and circular base with the project layout. The pictured hole arrangement should be checked against the quoted model drawing.

Which reference sizes can be used for an enquiry?

Reference options, not measured image dimensions: 42.4 or 50.8 mm round-post diameter; cable-size options 3 / 4 / 5 / 6 mm. Round tube and circular base; order height, cable holes and anchors against a project drawing. Provide post diameter and height, hole spacing and base anchorage for model matching.

Which material and finish should be specified?

Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade. Reference: satin/matte silver appearance. The image is a finish concept; approve the manufacturing process and sample. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What can be included in a customization enquiry?

Request the required dimensions, connection type, thread, finish, marking and packing. Proposed sample schedule: 7 calendar days.

What are the reference MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Specifications

Product type	Round Cable Railing Posts
Visible configuration	A round post with pre-drilled cable holes and a circular base
Material	Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.
Surface finish	Reference: satin/matte silver appearance. The image is a finish concept; approve the manufacturing process and sample.
Reference dimensions	Reference options, not measured image dimensions: 42.4 or 50.8 mm round-post diameter; cable-size options 3 / 4 / 5 / 6 mm.
Compatibility	Round tube and circular base; order height, cable holes and anchors against a project drawing.
Packaging	Proposed packing: each post in a protective sleeve with foam separation, individually boxed or separated in an export carton; hardware bag labeled by post.
Load and compliance	No model-specific load rating or certification supplied. Assess the complete assembly against project requirements before installation.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Proposed terms: EXW factory or FOB named port. Specify the collection location or loading port in the quotation.
Packaging Proposed packing: each post in a protective sleeve with foam separation, individually boxed or separated in an export carton; hardware bag labeled by post.
Quality Control Proposed checks: material traceability, tube section, post height, hole positions, mounting details, surface finish and assembly fit against the approved drawing.
