Shower Glass-to-Bar Clamp

Model: SHS-032

Shower Glass-to-Bar Clamp for B2B shower hardware sourcing. Rectangular glass clamp integrated with a cylindrical tube socket. Confirm model dimensions, fit and finish before bulk ordering.

Material Proposed material options: AISI 304 / AISI 316 stainless steel.

Surface Finish Proposed finish options: Satin brushed / mirror polished.

Dimensions Proposed clamp width: 50 mm; body depth: 26 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Proposed glass options: 8 / 10 / 12 mm. Model-specific fit is not verified.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Product configuration

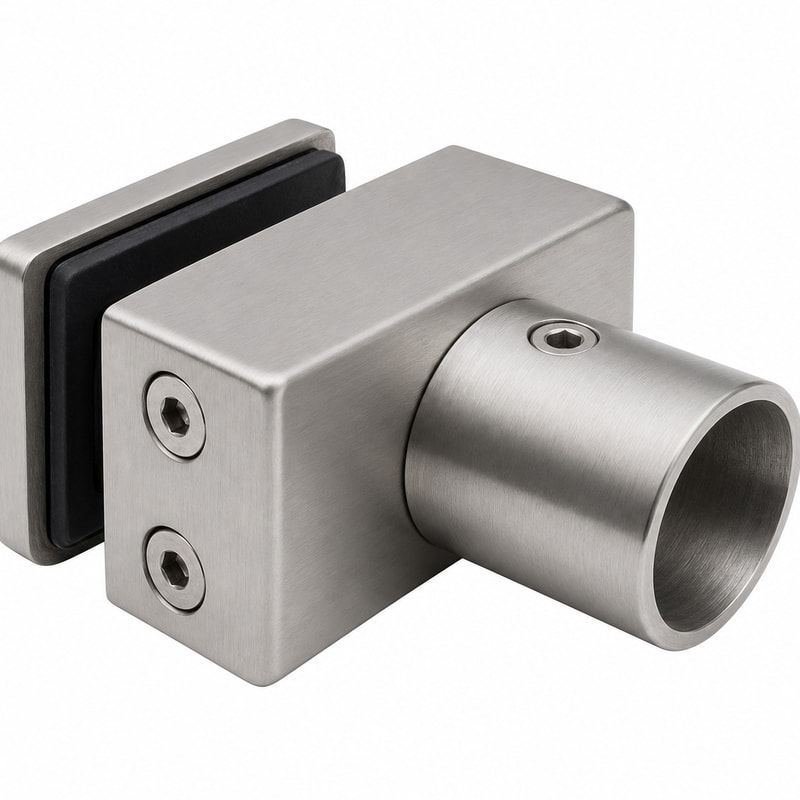

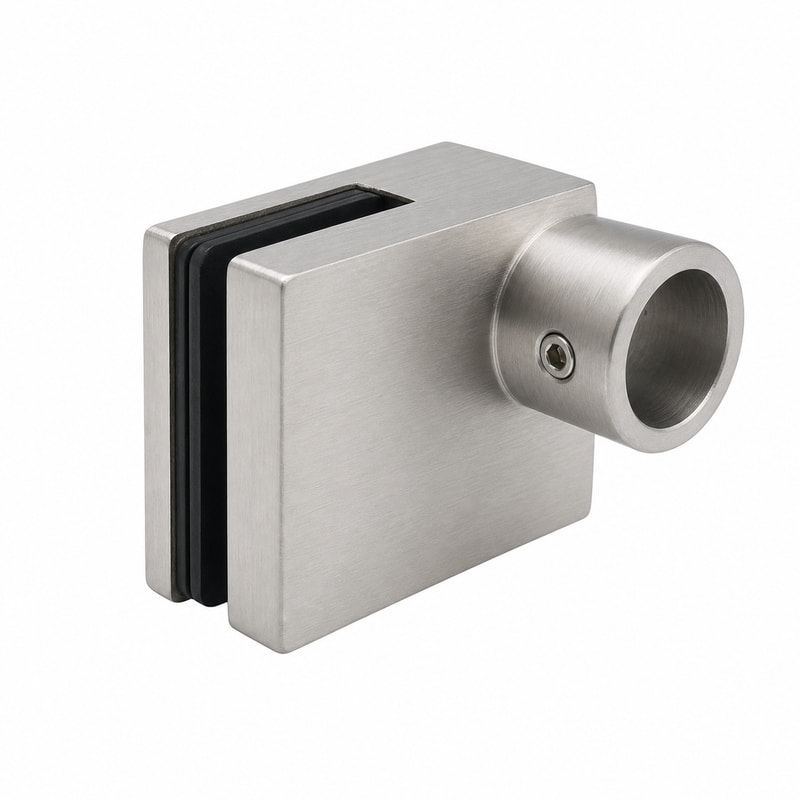

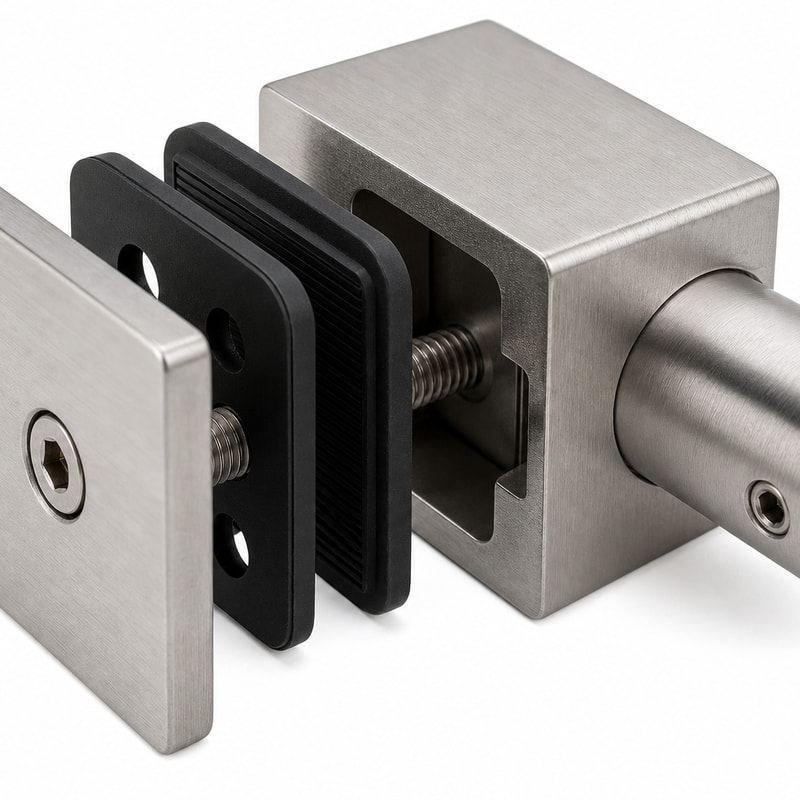

Shower Glass-to-Bar Clamp (SHS-032) is intended to connect a fixed shower glass panel to a compatible round support bar. Rectangular glass clamp integrated with a cylindrical tube socket.

Selection and fit

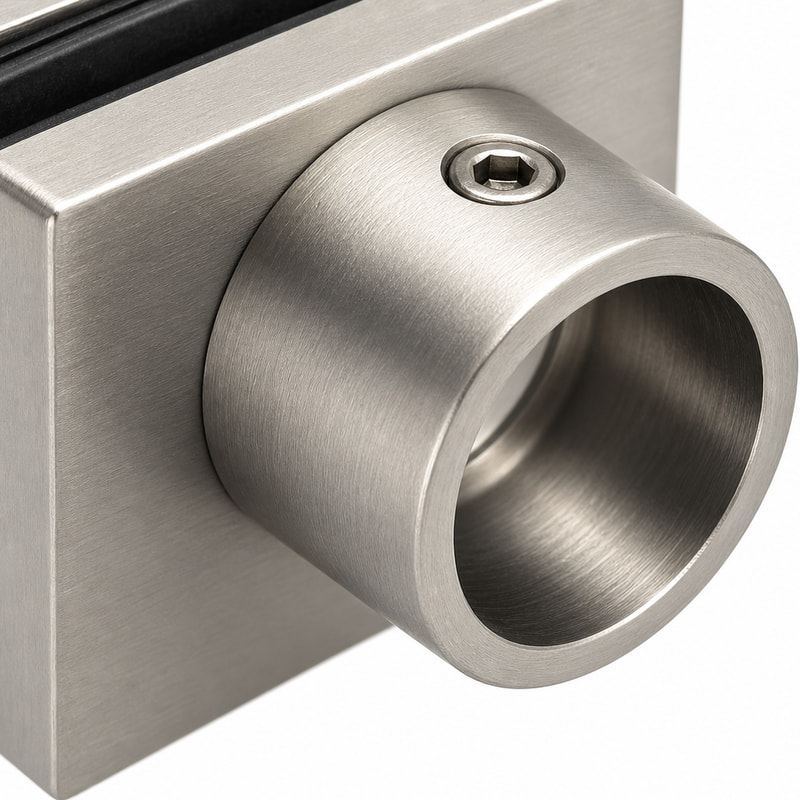

Match the socket diameter, glass thickness and support direction. Confirm the tube insertion and locking detail before purchasing parts from separate sources.

Bulk sourcing information

Provide the required quantity, drawing revision, finish reference and packing requirements. Agree the model-specific material, dimensions and supplied accessories before sample approval.

Compare the Shower Systems range and request a model-specific quotation.

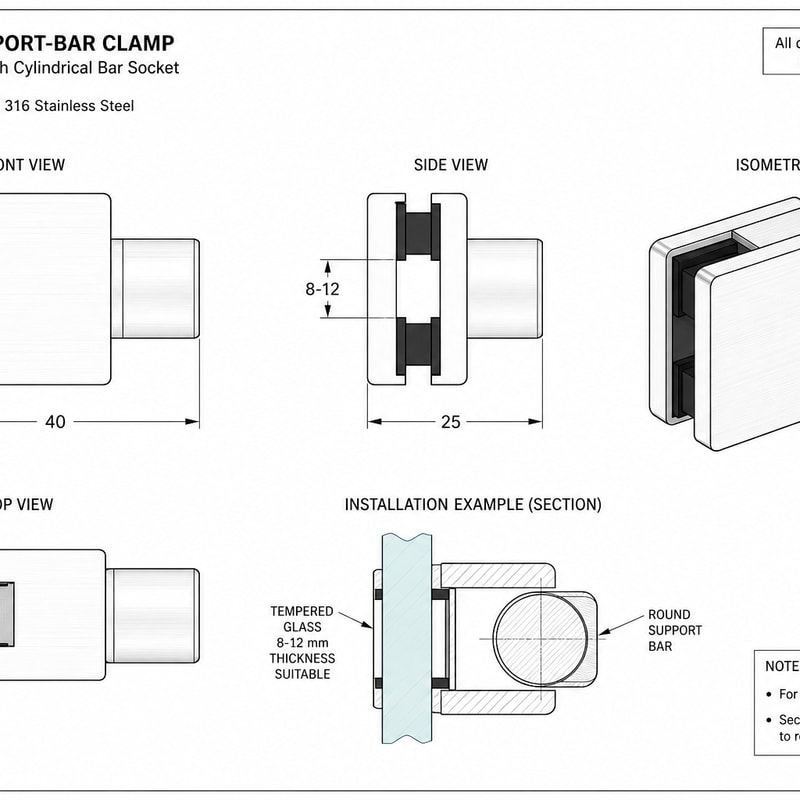

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

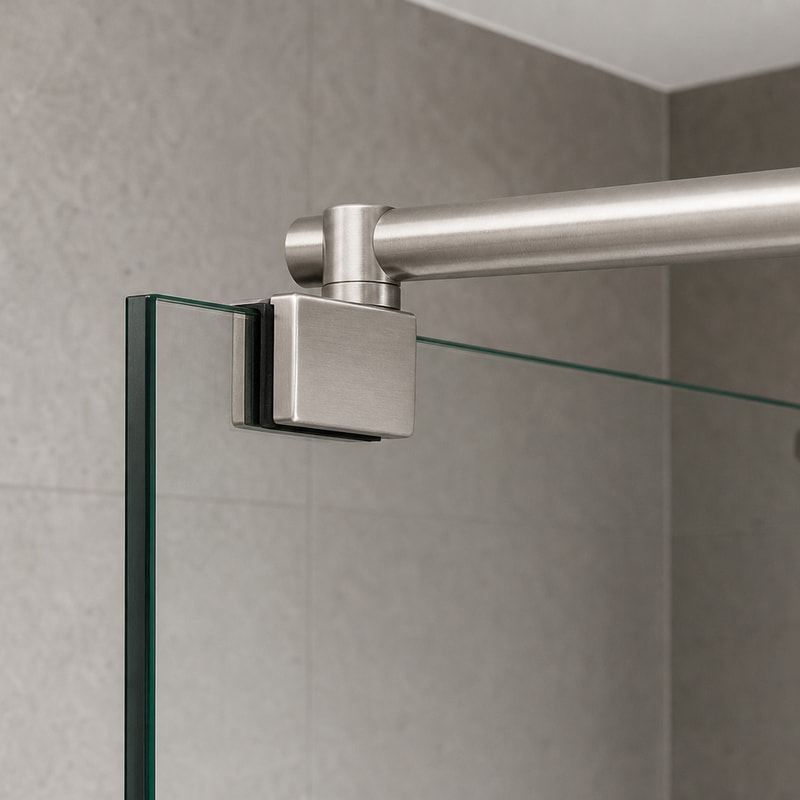

Fixed-panel shower supports

Coordinate this support component with the fixed panel and the structural fixing location. Review the complete assembly.

Walk-in shower screen layouts

Specify the finished dimensions and the intended wall or ceiling connection before selecting support hardware.

Matched support assemblies

Confirm compatible bar sections, sockets, glass fittings and anchors as one coordinated supply package.

Customization

Elim Hardware can review drawing-based changes to the bar section, installed span, fixing angle, end connections and structural substrate. Material selection, finish, marking, coordinated accessories and private-label packaging are reviewed for manufacturing feasibility and the intended order.

Confirm the sample and drawing revision before bulk production. Concept finish images illustrate a proposed appearance and do not establish the production material or an available stock finish.

Learn about OEM and ODM development and the relevant manufacturing capabilities.

Frequently Asked Questions

Can a bar with the same nominal size always fit?

Check the actual outside diameter and the socket tolerance, not only a nominal size description. The clamping or locking method must also be compatible.

What information is needed to check SHS-032 compatibility?

Provide the bar section, installed span, fixing angle, end connections and structural substrate. Proposed glass options: 8 / 10 / 12 mm. Model-specific fit is not verified.

How are material and finish confirmed?

Proposed material options: AISI 304 / AISI 316 stainless steel. Proposed finish options: Satin brushed / mirror polished. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What are the MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Can this product be customized for a wholesale or project order?

Drawing-based changes can be reviewed. Send the bar section, installed span, fixing angle, end connections and structural substrate, estimated quantity, intended market and packing requirements. The final scope depends on model suitability and manufacturing feasibility.

Specifications

Product model	SHS-032
Product configuration	Rectangular glass clamp integrated with a cylindrical tube socket
Material	Proposed material options: AISI 304 / AISI 316 stainless steel.
Surface finish	Proposed finish options: Satin brushed / mirror polished.
Dimensions and fitting	Proposed clamp width: 50 mm; body depth: 26 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Glass compatibility	Proposed glass options: 8 / 10 / 12 mm. Model-specific fit is not verified.
Supply scope	Bar or bracket and end fittings only as listed in the quotation; define bare-component or complete-set supply.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Agree the Incoterm, named place and payment terms in the written quotation.
Packaging Agree protective packing, carton quantity and shipping marks for the actual order.
Quality Control Dimensional, surface and assembly checks against the approved sample/drawing; agree model-specific functional inspection. Check the bar section, installed span, fixing angle, end connections and structural substrate.
