Side Mount Cable Railing Post — WR060

Model: EL-WR-060 (catalogue reference)

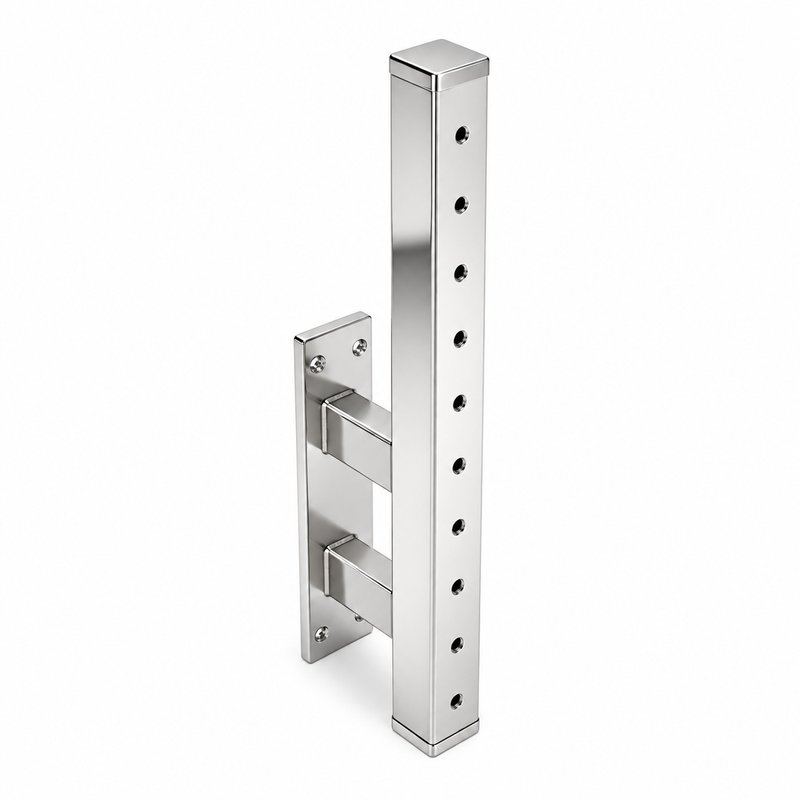

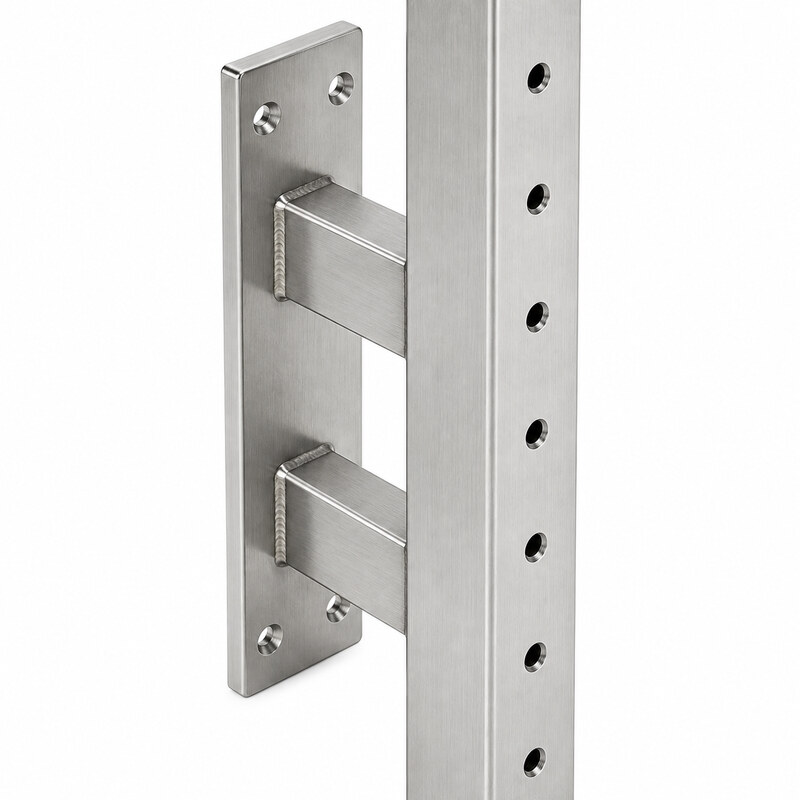

Side mount cable railing post for project enquiries, illustrated with a square cable post with an offset rectangular mounting plate. Specify edge mounting position, standoff, post height and anchor arrangement when requesting the matching configuration.

Material Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.

Surface Finish Reference: polished silver appearance. The image is a finish concept; approve the final sample.

Dimensions Reference options, not measured image dimensions: 40 x 40 or 50 x 50 mm square-post options; cable-size options 3 / 4 / 5 / 6 mm.

Glass Thickness Not applicable: this wire rope item is not a glass clamp or glass support.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

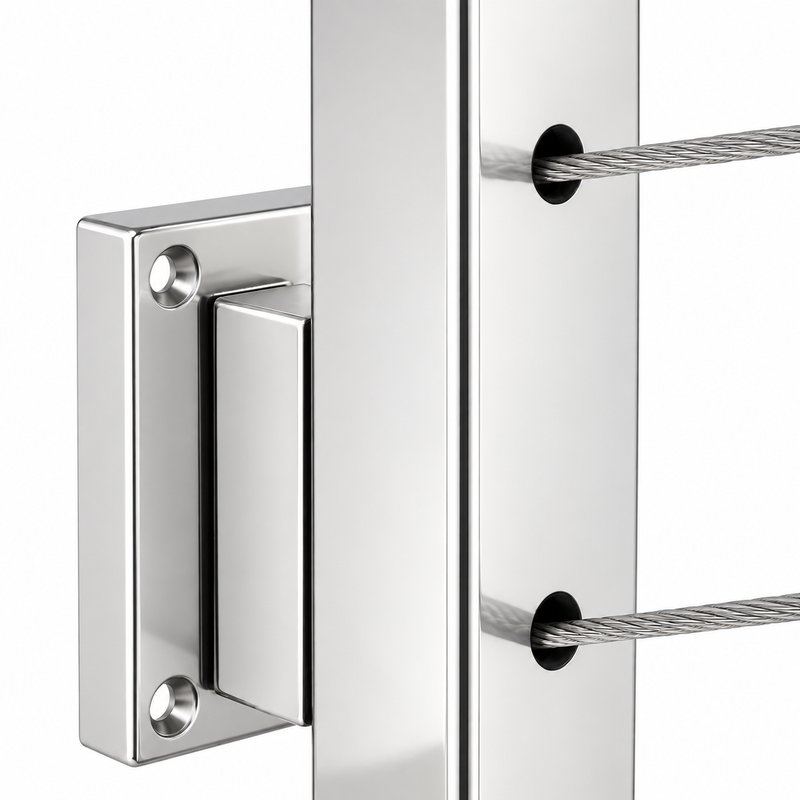

Side mount cable railing post is presented for component selection and project enquiries. The supplied views show a square cable post with an offset rectangular mounting plate. Send edge mounting position, standoff, post height and anchor arrangement so the quoted configuration can be matched to your installation. Quotation starting options: 40 x 40 or 50 x 50 mm square-post options; cable-size options 3 / 4 / 5 / 6 mm. These reference options are not measurements of the pictured model.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

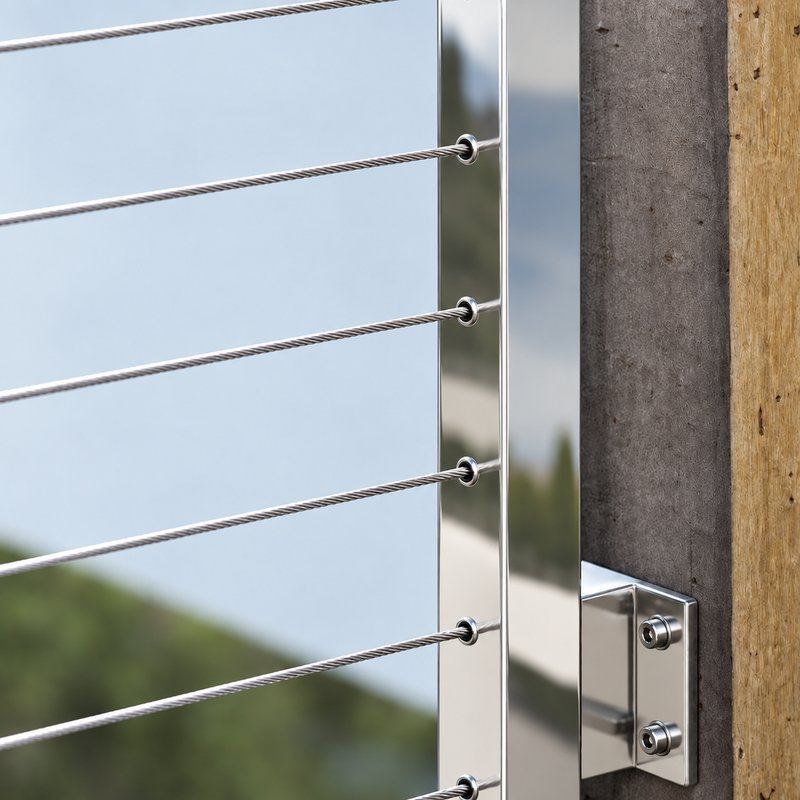

Fascia-mounted cable layouts

A square cable post with an offset rectangular mounting plate. Reference selection: 40 x 40 or 50 x 50 mm square-post options; cable-size options 3 / 4 / 5 / 6 mm. Match the project layout and mating parts; the image is a configuration illustration.

Customization

Quotation options include cable length, connection dimensions, thread type, surface finish, laser marking and private-label packaging. Send the drawing and order quantity for a manufacturing review. Custom tooling and prototypes are quoted separately before production.

Frequently Asked Questions

What defines a side-mounted post?

Fascia mount cable railing uses a fixing at the side of the supporting edge. For fascia mount cable railing posts, coordinate the rectangular plate, standoff and anchor positions; these cable railing side mount posts must match the project mounting detail.

Which reference sizes can be used for an enquiry?

Reference options, not measured image dimensions: 40 x 40 or 50 x 50 mm square-post options; cable-size options 3 / 4 / 5 / 6 mm. Side-mounted plate, standoff and anchor layout require matching to the support edge. Provide edge mounting position, standoff, post height and anchor arrangement for model matching.

Which material and finish should be specified?

Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade. Reference: polished silver appearance. The image is a finish concept; approve the final sample. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What can be included in a customization enquiry?

Request the required dimensions, connection type, thread, finish, marking and packing. Proposed sample schedule: 7 calendar days.

What are the reference MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Specifications

Product type	Side Mount Cable Railing Post
Visible configuration	A square cable post with an offset rectangular mounting plate
Material	Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.
Surface finish	Reference: polished silver appearance. The image is a finish concept; approve the final sample.
Reference dimensions	Reference options, not measured image dimensions: 40 x 40 or 50 x 50 mm square-post options; cable-size options 3 / 4 / 5 / 6 mm.
Compatibility	Side-mounted plate, standoff and anchor layout require matching to the support edge.
Packaging	Proposed packing: each post in a protective sleeve with foam separation, individually boxed or separated in an export carton; hardware bag labeled by post.
Load and compliance	No model-specific load rating or certification supplied. Assess the complete assembly against project requirements before installation.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Proposed terms: EXW factory or FOB named port. Specify the collection location or loading port in the quotation.
Packaging Proposed packing: each post in a protective sleeve with foam separation, individually boxed or separated in an export carton; hardware bag labeled by post.
Quality Control Proposed checks: material traceability, tube section, post height, hole positions, mounting details, surface finish and assembly fit against the approved drawing.
