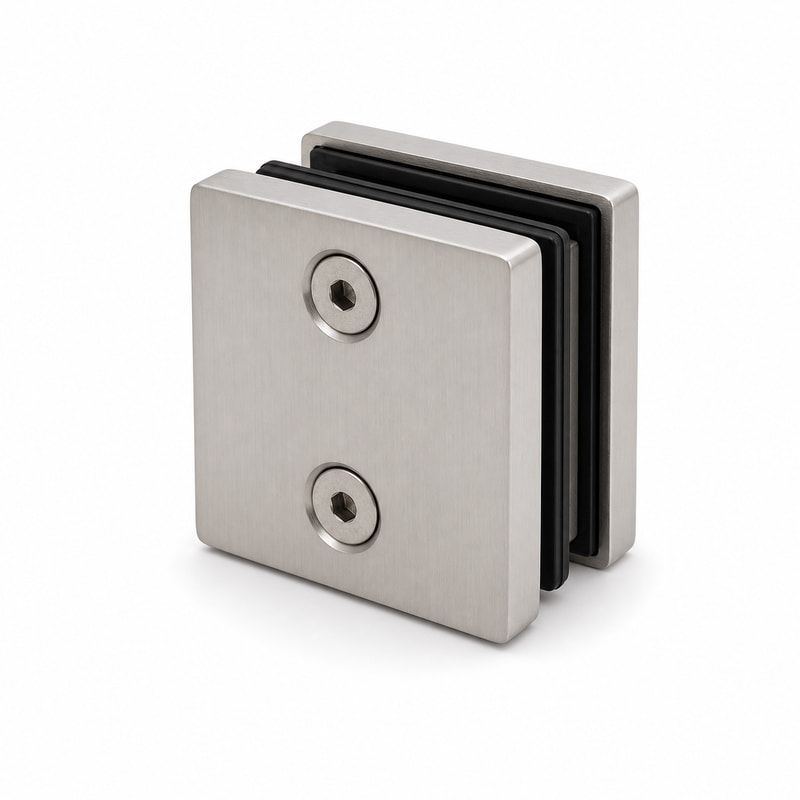

Square Glass-to-Glass Shower Clamp

Model: SHS-037

Square Glass-to-Glass Shower Clamp for B2B shower hardware sourcing. Square clamping faces with a connecting assembly shown between the glass interfaces. Confirm model dimensions, fit and finish before bulk ordering.

Material Proposed material options: AISI 304 / AISI 316 stainless steel.

Surface Finish Proposed finish options: Satin brushed / mirror polished.

Dimensions Proposed clamp width: 50 mm; body depth: 26 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Proposed glass options: 8 / 10 / 12 mm. Model-specific fit is not verified.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Product configuration

Square Glass-to-Glass Shower Clamp (SHS-037) is intended to join fixed shower glass panels with a square-faced clamp arrangement. Square clamping faces with a connecting assembly shown between the glass interfaces.

Selection and fit

Confirm the glass-to-glass angle, panel gap and connection geometry. Compare the overall assembly with the face-only image when selecting the part.

Bulk sourcing information

Provide the required quantity, drawing revision, finish reference and packing requirements. Agree the model-specific material, dimensions and supplied accessories before sample approval.

Compare the Shower Systems range and request a model-specific quotation.

Compare configurations

This reference shows a compact square clamping assembly. Compare its glass interfaces and overall footprint with the straight connecting-section model. Confirm the intended panel arrangement from the approved model drawing.

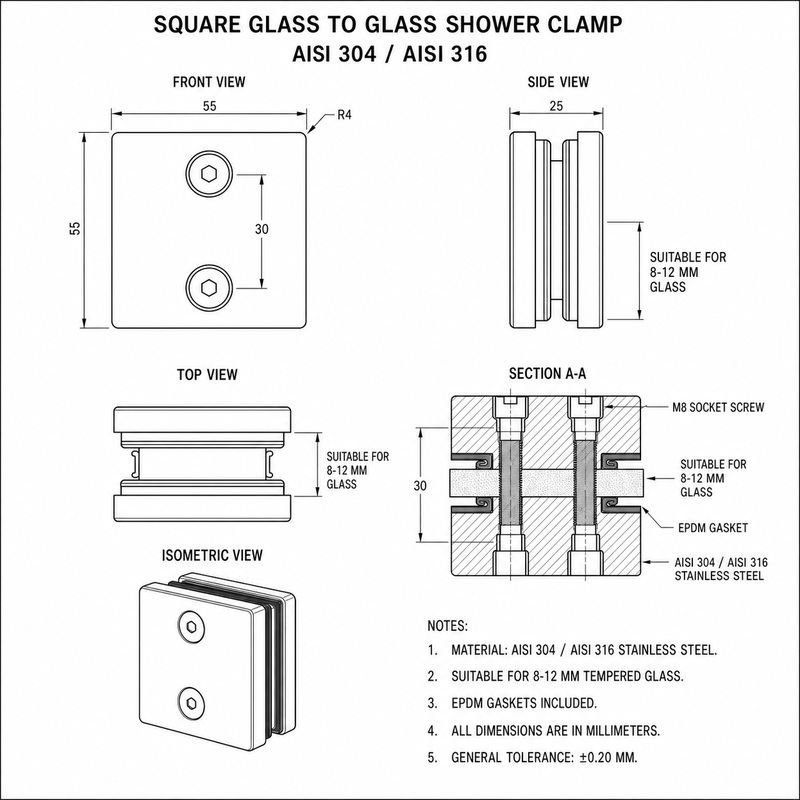

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

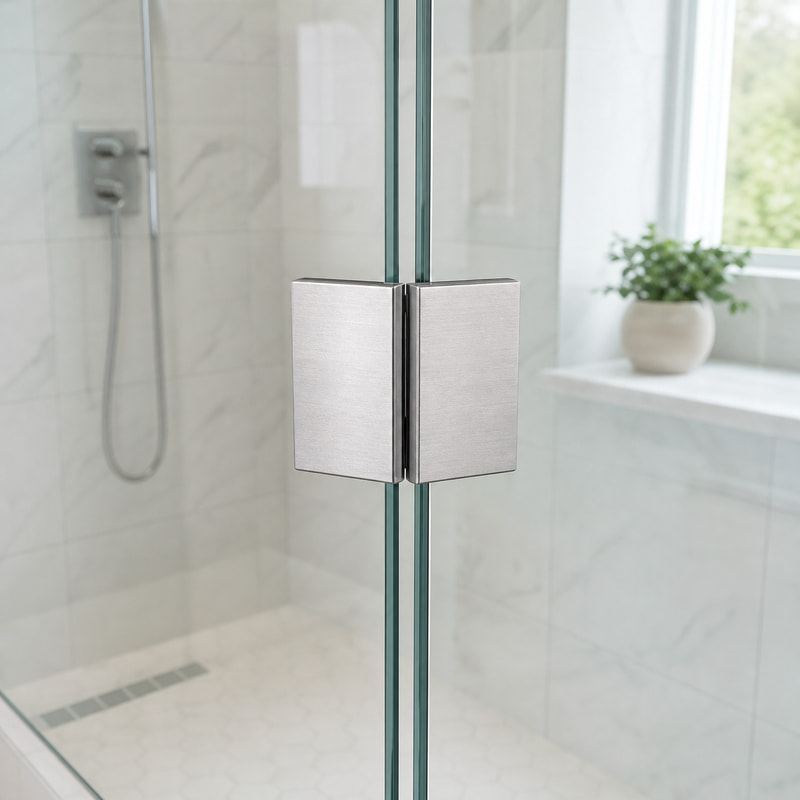

Fixed shower glass panels

Select the clamp or connector for the actual panel junction and mounting surface. Confirm the complete fixed-panel arrangement.

Wet-room glass screens

Review the glass retention detail, gasket fit and connection layout as part of the screen specification.

Enclosure component supply

Define the model, finish and included fixing parts so that repeated shipments match the approved reference.

Customization

Elim Hardware can review drawing-based changes to the glass thickness, panel angle, panel gap, mounting surface and gasket set. Material selection, finish, marking, coordinated accessories and private-label packaging are reviewed for manufacturing feasibility and the intended order.

Confirm the sample and drawing revision before bulk production. Concept finish images illustrate a proposed appearance and do not establish the production material or an available stock finish.

Learn about OEM and ODM development and the relevant manufacturing capabilities.

Frequently Asked Questions

Does the square front face identify the connection angle?

No. Similar square faces may be used on different connector bodies. Select by the complete assembly drawing and installed panel angle.

What information is needed to check SHS-037 compatibility?

Provide the glass thickness, panel angle, panel gap, mounting surface and gasket set. Proposed glass options: 8 / 10 / 12 mm. Model-specific fit is not verified.

How are material and finish confirmed?

Proposed material options: AISI 304 / AISI 316 stainless steel. Proposed finish options: Satin brushed / mirror polished. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What are the MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Can this product be customized for a wholesale or project order?

Drawing-based changes can be reviewed. Send the glass thickness, panel angle, panel gap, mounting surface and gasket set, estimated quantity, intended market and packing requirements. The final scope depends on model suitability and manufacturing feasibility.

Specifications

Product model	SHS-037
Product configuration	Square clamping faces with a connecting assembly shown between the glass interfaces
Material	Proposed material options: AISI 304 / AISI 316 stainless steel.
Surface finish	Proposed finish options: Satin brushed / mirror polished.
Dimensions and fitting	Proposed clamp width: 50 mm; body depth: 26 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Glass compatibility	Proposed glass options: 8 / 10 / 12 mm. Model-specific fit is not verified.
Supply scope	Clamp / connector and the agreed gasket / fixing set; complete enclosure hardware as quoted.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Agree the Incoterm, named place and payment terms in the written quotation.
Packaging Agree protective packing, carton quantity and shipping marks for the actual order.
Quality Control Dimensional, surface and assembly checks against the approved sample/drawing; agree model-specific functional inspection. Check the glass thickness, panel angle, panel gap, mounting surface and gasket set.
