Stainless Steel Swage Sleeves — WR067

Model: EL-WR-067 (catalogue reference)

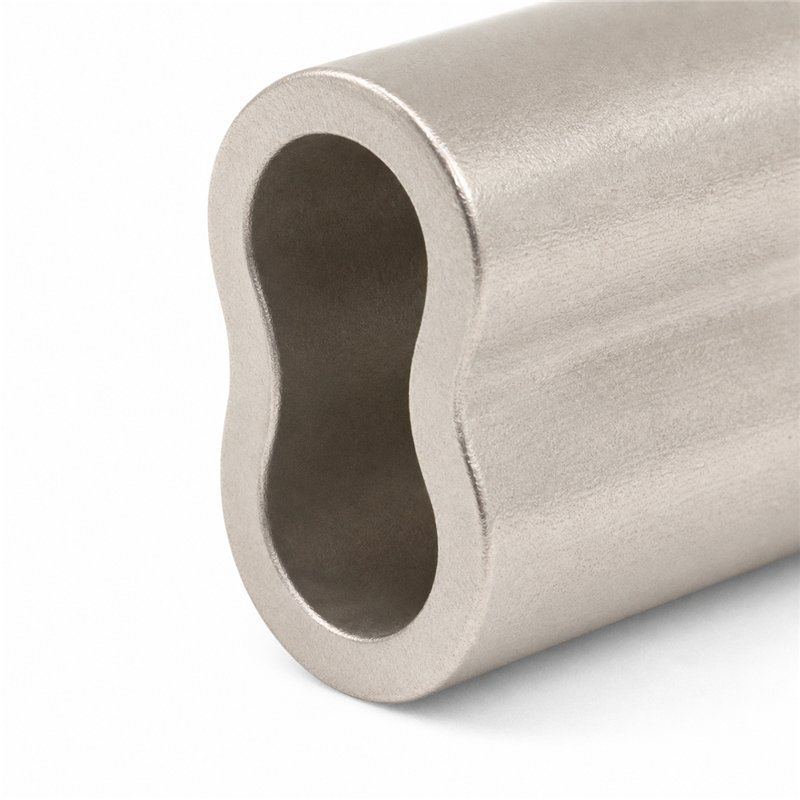

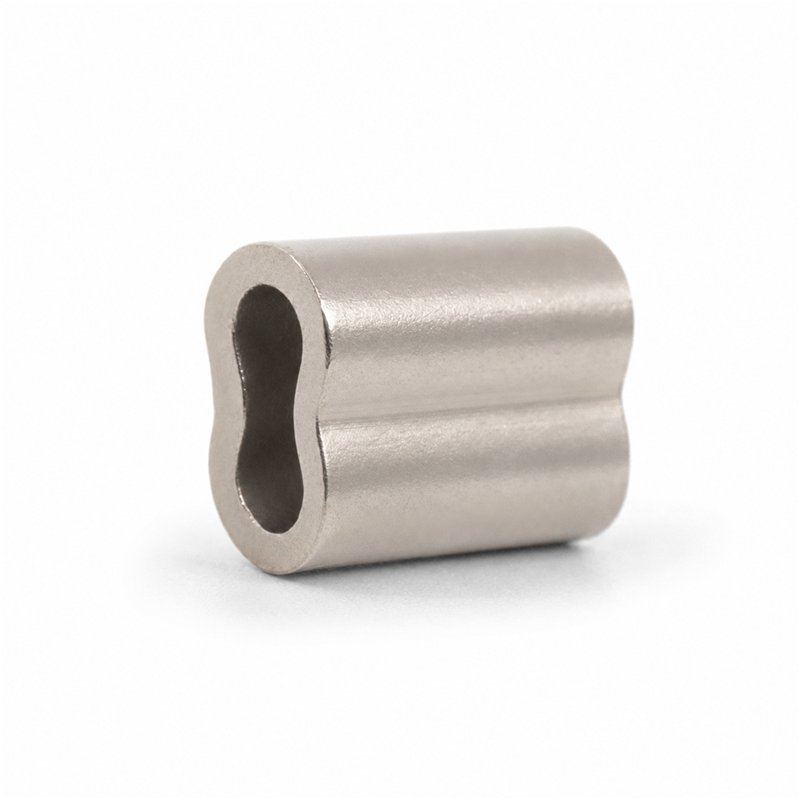

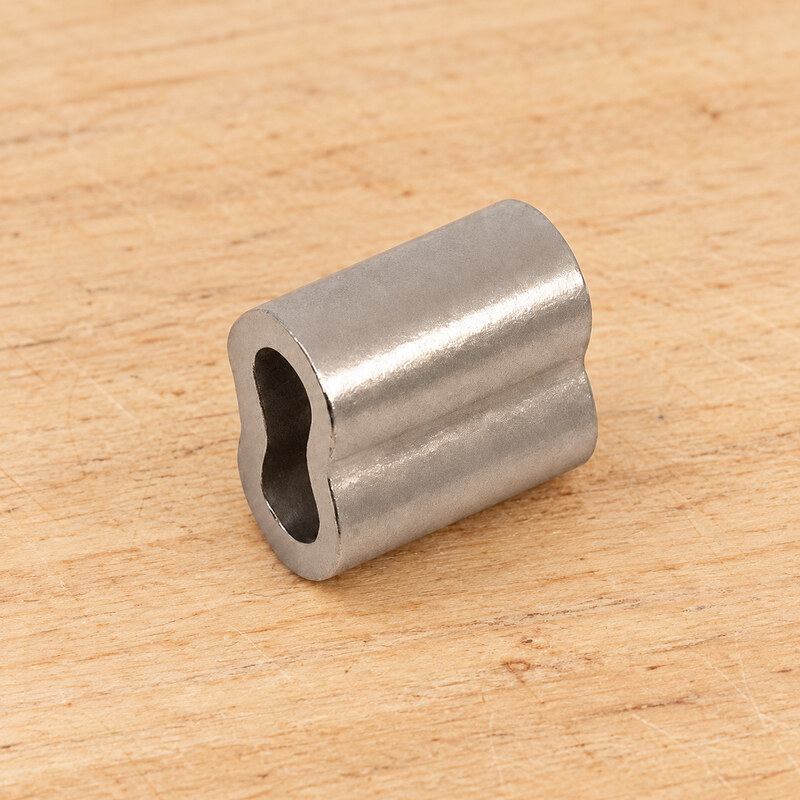

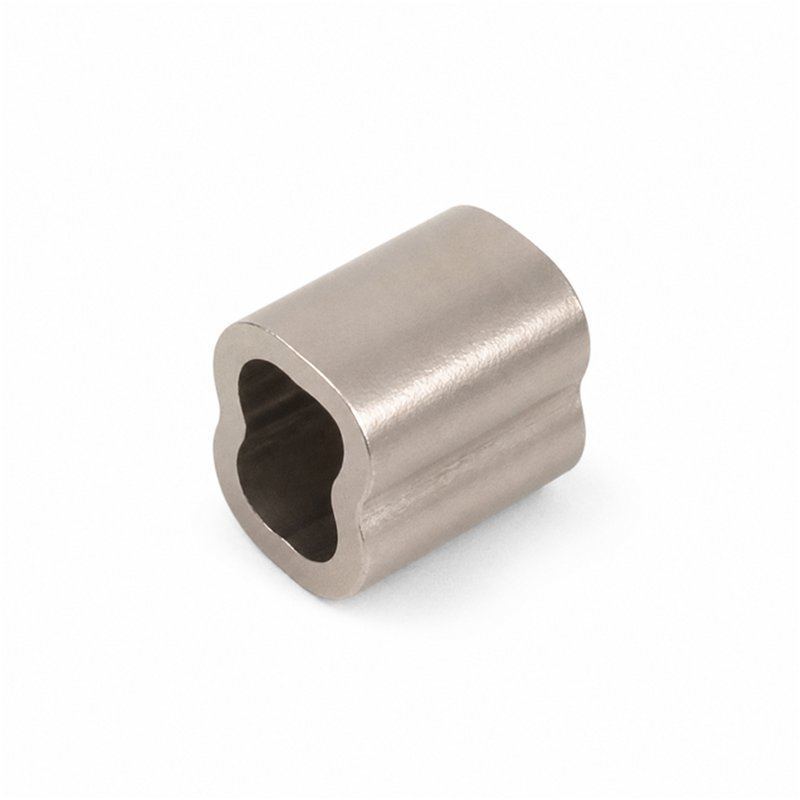

Stainless steel swage sleeves for project enquiries, illustrated with compact sleeves with oval or double-lobed sections and two cable paths. Specify sleeve profile, cable diameter, material and the approved swaging process when requesting the matching configuration.

Material Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.

Surface Finish Reference options: satin silver or polished silver; approve the surface sample for the selected model.

Dimensions Reference options, not measured image dimensions: Nominal sleeve options for 3 / 4 / 5 / 6 mm cable; oval or double-lobed profile.

Glass Thickness Not applicable: this wire rope item is not a glass clamp or glass support.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Stainless steel swage sleeves is presented for component selection and project enquiries. The supplied views show compact sleeves with oval or double-lobed sections and two cable paths. Send sleeve profile, cable diameter, material and the approved swaging process so the quoted configuration can be matched to your installation. Quotation starting options: Nominal sleeve options for 3 / 4 / 5 / 6 mm cable; oval or double-lobed profile. These reference options are not measurements of the pictured model.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

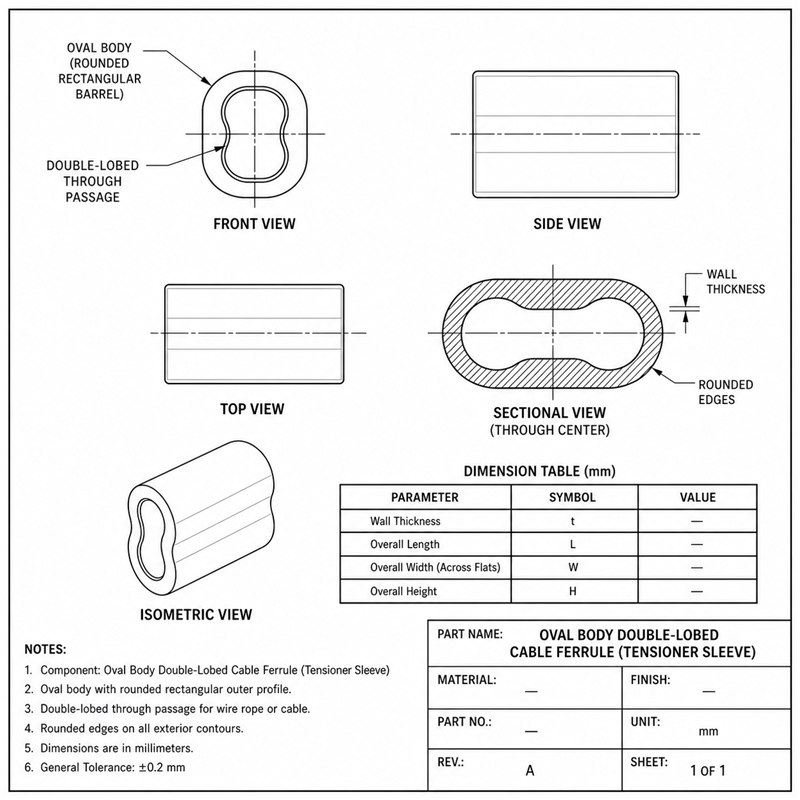

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

Cable sleeve selection

Compact sleeves with oval or double-lobed sections and two cable paths. Reference selection: Nominal sleeve options for 3 / 4 / 5 / 6 mm cable; oval or double-lobed profile. Match the project layout and mating parts; the image is a configuration illustration.

Customization

Quotation options include cable length, connection dimensions, thread type, surface finish, laser marking and private-label packaging. Send the drawing and order quantity for a manufacturing review. Custom tooling and prototypes are quoted separately before production.

Frequently Asked Questions

Which sleeve profile should be selected?

Cable swage sleeves in this group include an oval double hole cable sleeve and a double lobed cable ferrule. Specify the exact wire rope swage sleeve profile and cable size together, then confirm the material and approved swaging process.

Which reference sizes can be used for an enquiry?

Reference options, not measured image dimensions: Nominal sleeve options for 3 / 4 / 5 / 6 mm cable; oval or double-lobed profile. Reference ferrule systems use compatible flexible rope; do not assume a sleeve is suitable for 1x19 cable. Provide sleeve profile, cable diameter, material and the approved swaging process for model matching.

Which material and finish should be specified?

Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade. Reference options: satin silver or polished silver; approve the surface sample for the selected model. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What can be included in a customization enquiry?

Request the required dimensions, connection type, thread, finish, marking and packing. Proposed sample schedule: 7 calendar days.

What are the reference MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Specifications

Product type	Stainless Steel Swage Sleeves
Visible configuration	Compact sleeves with oval or double-lobed sections and two cable paths
Material	Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.
Surface finish	Reference options: satin silver or polished silver; approve the surface sample for the selected model.
Reference dimensions	Reference options, not measured image dimensions: Nominal sleeve options for 3 / 4 / 5 / 6 mm cable; oval or double-lobed profile.
Compatibility	Reference ferrule systems use compatible flexible rope; do not assume a sleeve is suitable for 1x19 cable.
Packaging	Proposed packing: individual protective bag, separated inner box and export carton; labels identify item, size, finish and quantity.
Load and compliance	No model-specific load rating or certification supplied. Assess the complete assembly against project requirements before installation.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Proposed terms: EXW factory or FOB named port. Specify the collection location or loading port in the quotation.
Packaging Proposed packing: individual protective bag, separated inner box and export carton; labels identify item, size, finish and quantity.
Quality Control Proposed checks: material traceability, critical dimensions, surface appearance and mating fit. Inspect threads or bores where present; agree any termination testing separately.
