Swage Stud Cable Terminal — WR097

Model: EL-WR-097 (catalogue reference)

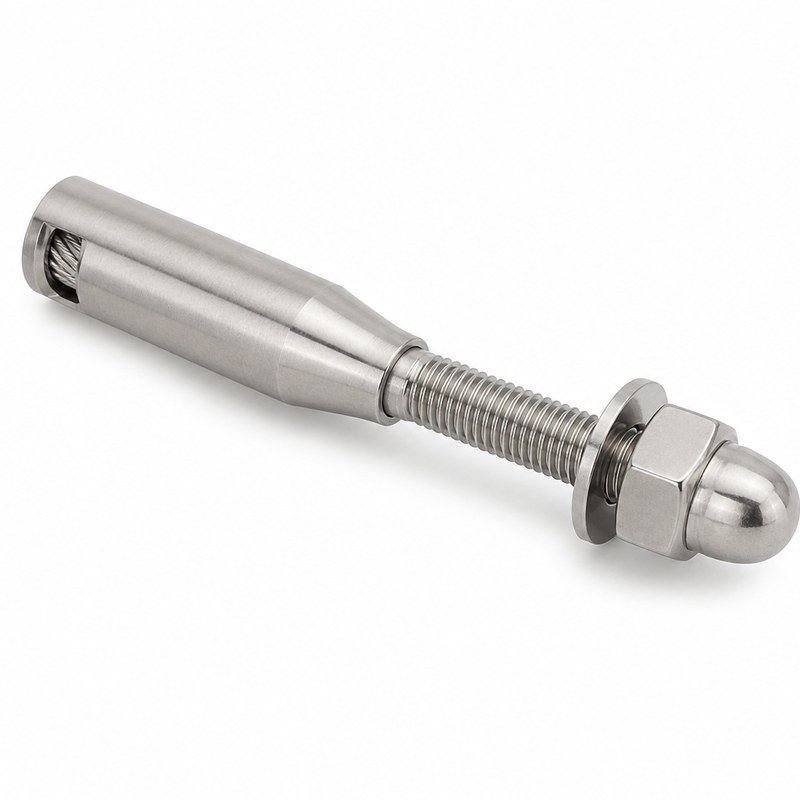

Swage stud cable terminal for project enquiries, illustrated with a cable barrel with a threaded stud and retaining nuts. Specify cable diameter, barrel type, thread and stud length when requesting the matching configuration.

Material Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.

Surface Finish Reference options: satin silver or polished silver; approve the surface sample for the selected model.

Dimensions Reference options, not measured image dimensions: Reference combinations: 3 mm cable / M5; 4 mm / M6; 5 mm / M8; 6 mm / M10.

Glass Thickness Not applicable: this wire rope item is not a glass clamp or glass support.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

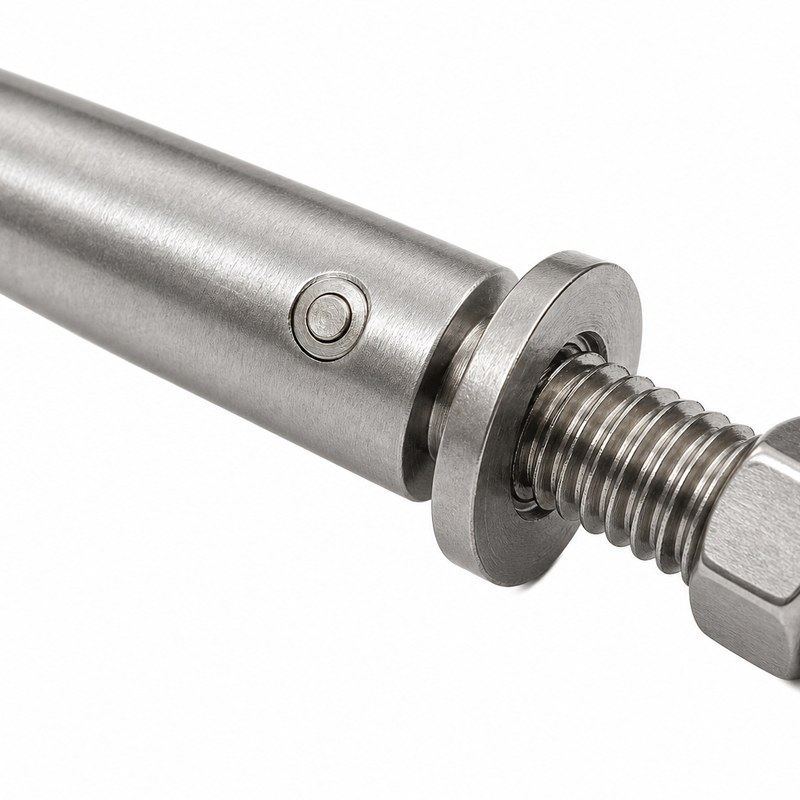

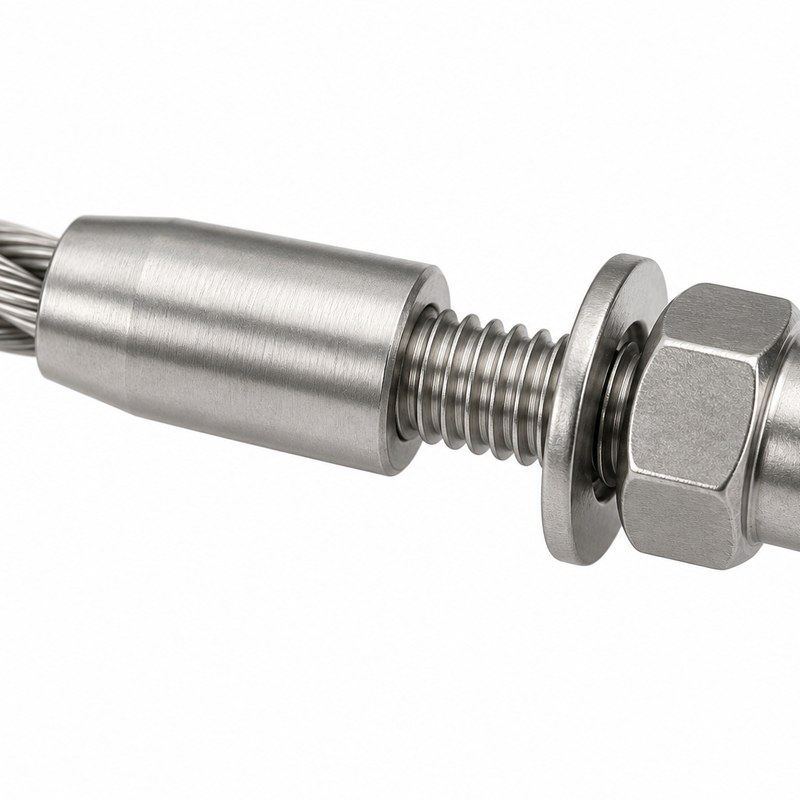

Swage stud cable terminal is presented for component selection and project enquiries. The supplied views show a cable barrel with a threaded stud and retaining nuts. Send cable diameter, barrel type, thread and stud length so the quoted configuration can be matched to your installation. Quotation starting options: Reference combinations: 3 mm cable / M5; 4 mm / M6; 5 mm / M8; 6 mm / M10. These reference options are not measurements of the pictured model.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

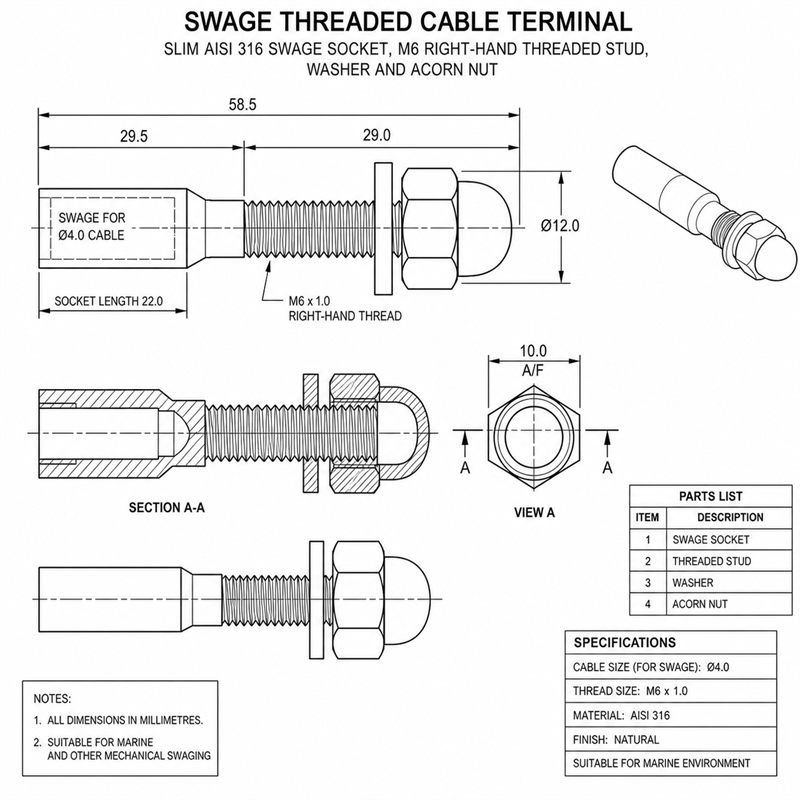

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

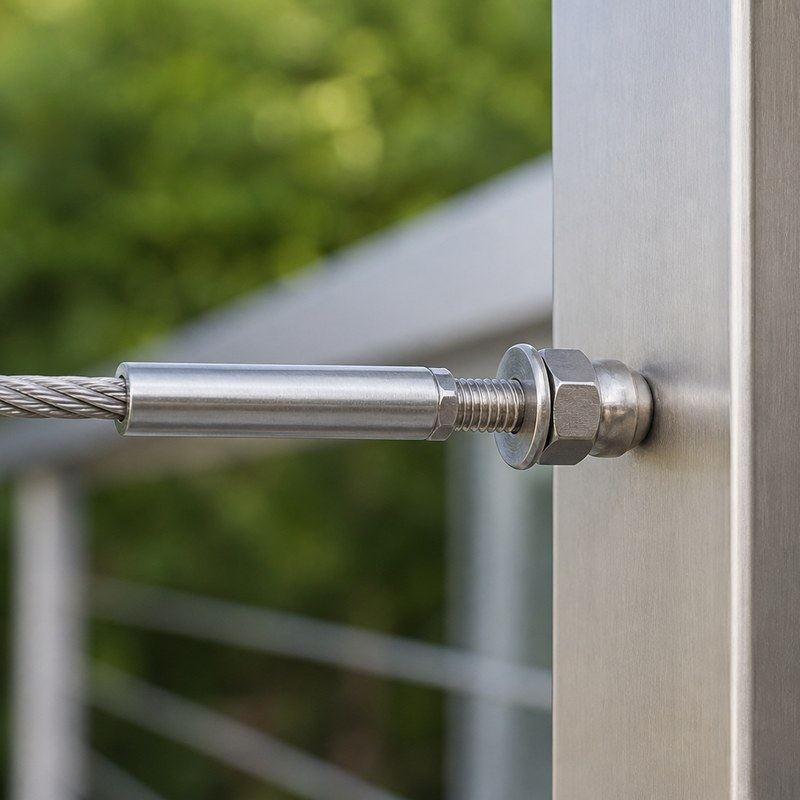

Through-post cable termination

A cable barrel with a threaded stud and retaining nuts. Reference selection: Reference combinations: 3 mm cable / M5; 4 mm / M6; 5 mm / M8; 6 mm / M10. Match the project layout and mating parts; the image is a configuration illustration.

Customization

Quotation options include cable length, connection dimensions, thread type, surface finish, laser marking and private-label packaging. Send the drawing and order quantity for a manufacturing review. Custom tooling and prototypes are quoted separately before production.

Frequently Asked Questions

Which dimensions define the threaded swage end?

Wire rope threaded end fittings in this family combine a cable barrel with an external stud. Match the threaded swage cable end to the cable and mating component; specify the barrel type, thread and usable stud length for these threaded wire rope ends.

Which reference sizes can be used for an enquiry?

Reference options, not measured image dimensions: Reference combinations: 3 mm cable / M5; 4 mm / M6; 5 mm / M8; 6 mm / M10. Metric stud with right-hand or left-hand thread; barrel length and stud length follow the selected model. Provide cable diameter, barrel type, thread and stud length for model matching.

Which material and finish should be specified?

Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade. Reference options: satin silver or polished silver; approve the surface sample for the selected model. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What can be included in a customization enquiry?

Request the required dimensions, connection type, thread, finish, marking and packing. Proposed sample schedule: 7 calendar days.

What are the reference MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Specifications

Product type	Swage Stud Cable Terminal
Visible configuration	A cable barrel with a threaded stud and retaining nuts
Material	Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.
Surface finish	Reference options: satin silver or polished silver; approve the surface sample for the selected model.
Reference dimensions	Reference options, not measured image dimensions: Reference combinations: 3 mm cable / M5; 4 mm / M6; 5 mm / M8; 6 mm / M10.
Compatibility	Metric stud with right-hand or left-hand thread; barrel length and stud length follow the selected model.
Packaging	Proposed packing: individual protective bag, separated inner box and export carton; labels identify item, size, finish and quantity.
Load and compliance	No model-specific load rating or certification supplied. Assess the complete assembly against project requirements before installation.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Proposed terms: EXW factory or FOB named port. Specify the collection location or loading port in the quotation.
Packaging Proposed packing: individual protective bag, separated inner box and export carton; labels identify item, size, finish and quantity.
Quality Control Proposed checks: material traceability, critical dimensions, surface appearance and mating fit. Inspect threads or bores where present; agree any termination testing separately.
