Wire Rope Eye Terminal — WR076

Model: EL-WR-076 (catalogue reference)

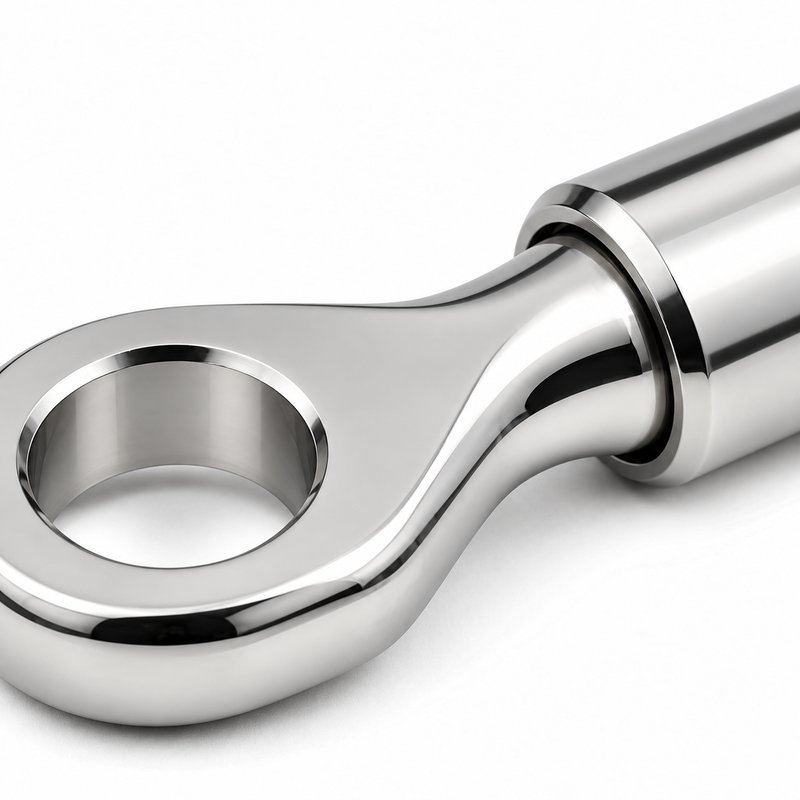

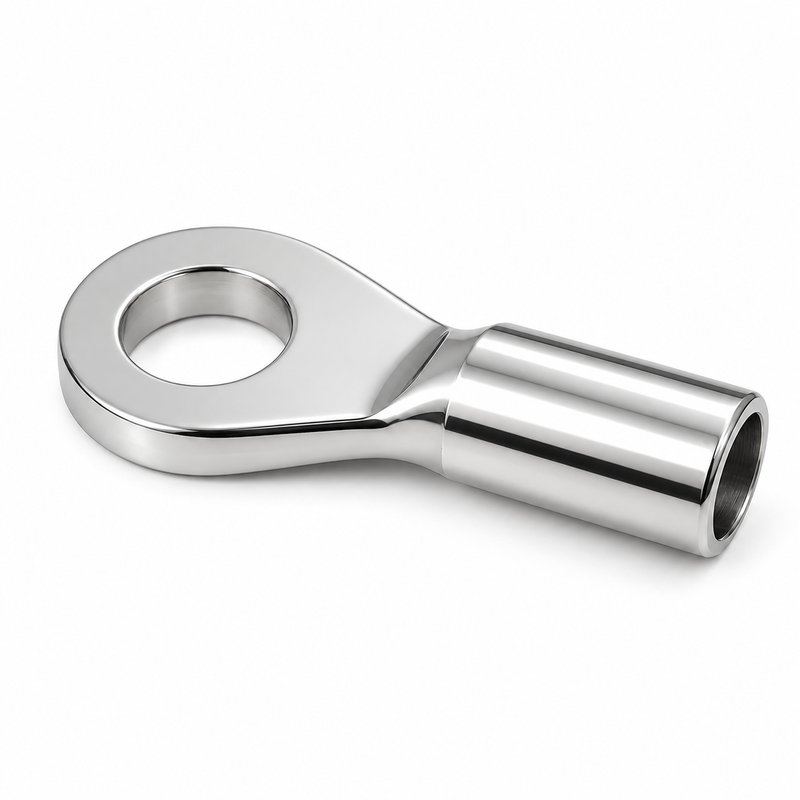

Wire rope eye terminal for project enquiries, illustrated with a fixed eye connected to a tubular cable terminal barrel. Specify eye bore, cable diameter, barrel dimensions and termination method when requesting the matching configuration.

Material Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.

Surface Finish Reference: polished silver appearance. The image is a finish concept; approve the final sample.

Dimensions Reference options, not measured image dimensions: Reference cable-size options: 3 / 4 / 5 / 6 mm; fixed-eye terminal.

Glass Thickness Not applicable: this wire rope item is not a glass clamp or glass support.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Wire rope eye terminal is presented for component selection and project enquiries. The supplied views show a fixed eye connected to a tubular cable terminal barrel. Send eye bore, cable diameter, barrel dimensions and termination method so the quoted configuration can be matched to your installation. Quotation starting options: Reference cable-size options: 3 / 4 / 5 / 6 mm; fixed-eye terminal. These reference options are not measurements of the pictured model.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

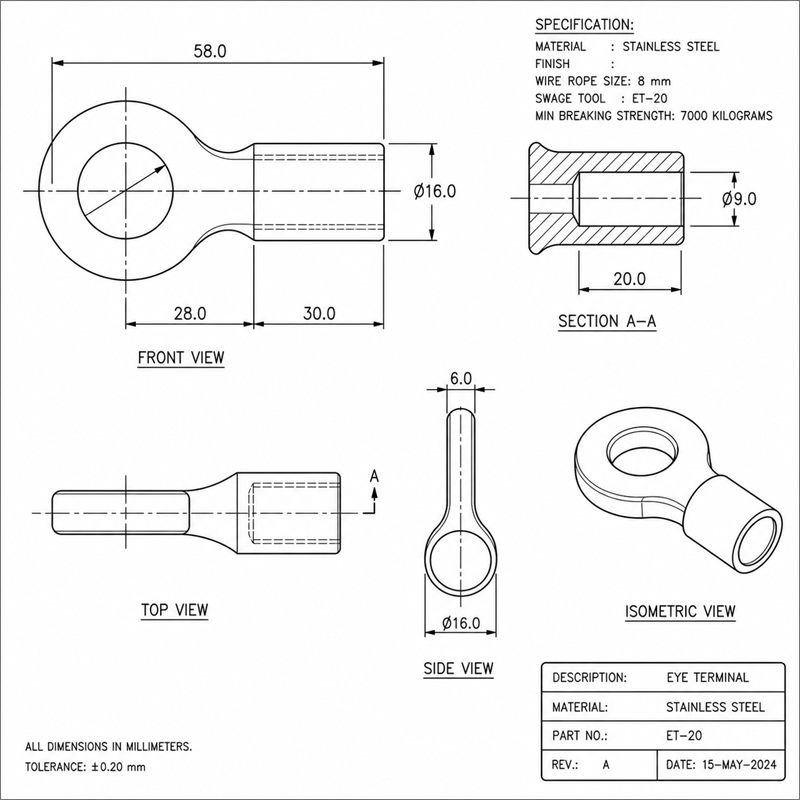

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

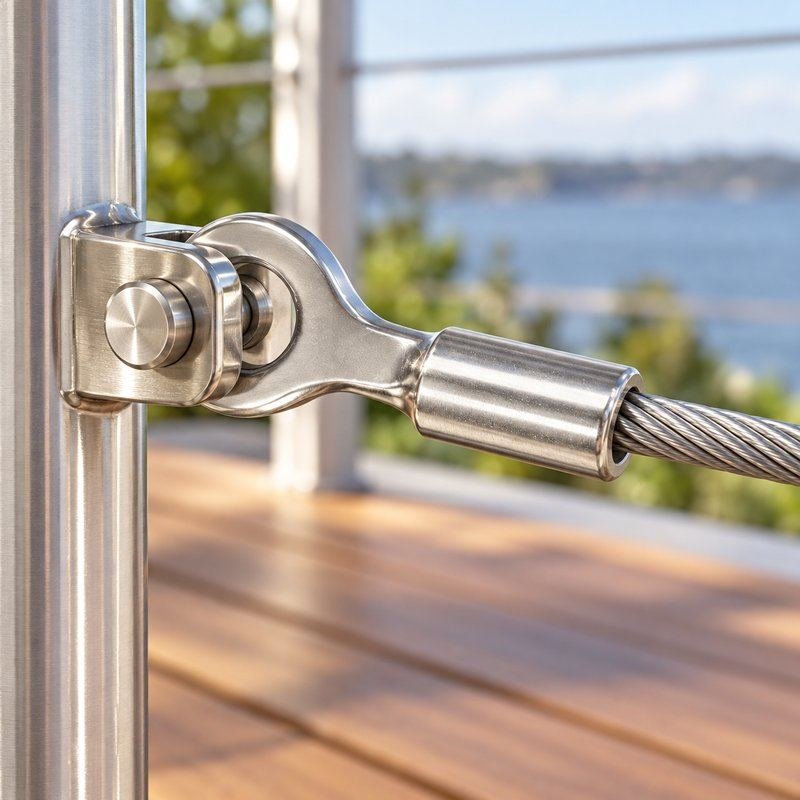

Eye-ended cable terminations

A fixed eye connected to a tubular cable terminal barrel. Reference selection: Reference cable-size options: 3 / 4 / 5 / 6 mm; fixed-eye terminal. Match the project layout and mating parts; the image is a configuration illustration.

Customization

Quotation options include cable length, connection dimensions, thread type, surface finish, laser marking and private-label packaging. Send the drawing and order quantity for a manufacturing review. Custom tooling and prototypes are quoted separately before production.

Frequently Asked Questions

What distinguishes the fixed eye terminal?

The fixed eye cable terminal joins an eye directly to the cable barrel. Wire rope eye fittings require a matching eye bore and cable diameter; for wire rope swage eye fittings, confirm the barrel and approved termination method in the quotation.

Which reference sizes can be used for an enquiry?

Reference options, not measured image dimensions: Reference cable-size options: 3 / 4 / 5 / 6 mm; fixed-eye terminal. Specify the eye bore and barrel together; approve the cable construction and termination method. Provide eye bore, cable diameter, barrel dimensions and termination method for model matching.

Which material and finish should be specified?

Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade. Reference: polished silver appearance. The image is a finish concept; approve the final sample. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What can be included in a customization enquiry?

Request the required dimensions, connection type, thread, finish, marking and packing. Proposed sample schedule: 7 calendar days.

What are the reference MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Specifications

Product type	Wire Rope Eye Terminal
Visible configuration	A fixed eye connected to a tubular cable terminal barrel
Material	Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.
Surface finish	Reference: polished silver appearance. The image is a finish concept; approve the final sample.
Reference dimensions	Reference options, not measured image dimensions: Reference cable-size options: 3 / 4 / 5 / 6 mm; fixed-eye terminal.
Compatibility	Specify the eye bore and barrel together; approve the cable construction and termination method.
Packaging	Proposed packing: individual protective bag, separated inner box and export carton; labels identify item, size, finish and quantity.
Load and compliance	No model-specific load rating or certification supplied. Assess the complete assembly against project requirements before installation.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Proposed terms: EXW factory or FOB named port. Specify the collection location or loading port in the quotation.
Packaging Proposed packing: individual protective bag, separated inner box and export carton; labels identify item, size, finish and quantity.
Quality Control Proposed checks: material traceability, critical dimensions, surface appearance and mating fit. Inspect threads or bores where present; agree any termination testing separately.
