Model: SHS-006

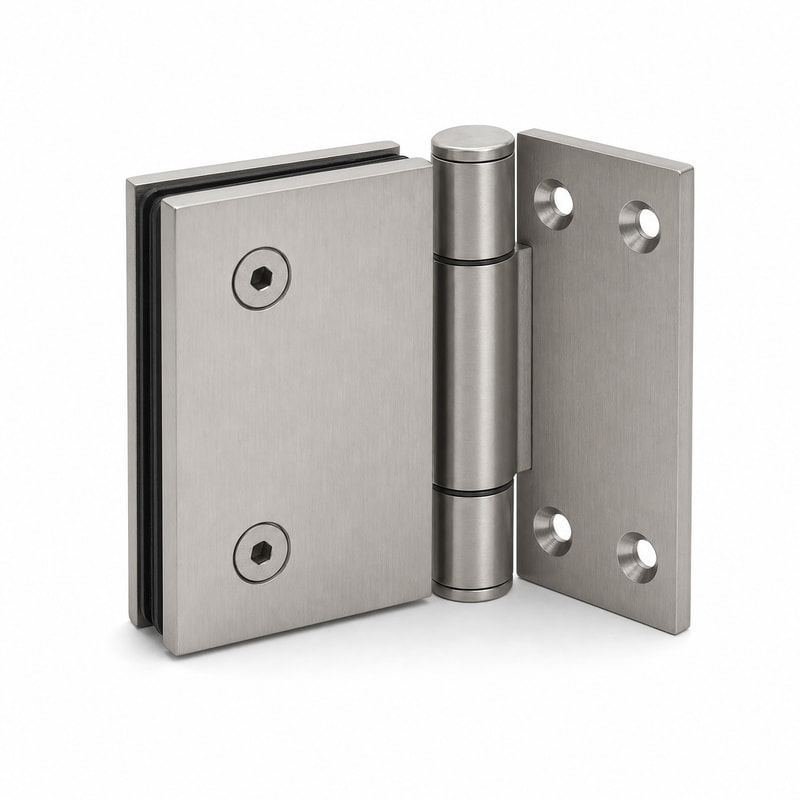

90 Degree Wall-to-Glass Shower Door Hinge for B2B shower hardware sourcing. Wall fixing plate paired with a gasket-lined glass clamping leaf. Confirm model dimensions, fit and finish before bulk ordering.
Product Highlights
90 Degree Wall-to-Glass Shower Door Hinge (SHS-006) is intended to mount a frameless shower door to a suitable wall at a nominal 90-degree junction. Wall fixing plate paired with a gasket-lined glass clamping leaf.
Provide the wall construction, fixing position and glass cut-out. Select anchors for the actual substrate and coordinate the door clearances with adjacent tiles and seals.
Provide the required quantity, drawing revision, finish reference and packing requirements. Agree the model-specific material, dimensions and supplied accessories before sample approval.
Compare the Shower Systems range and request a model-specific quotation.
Use this reference to review the wall-to-glass arrangement. Compare wall-plate position, fixing-hole pattern and glass preparation with other wall-mounted models; a similar outside profile does not establish interchangeability.

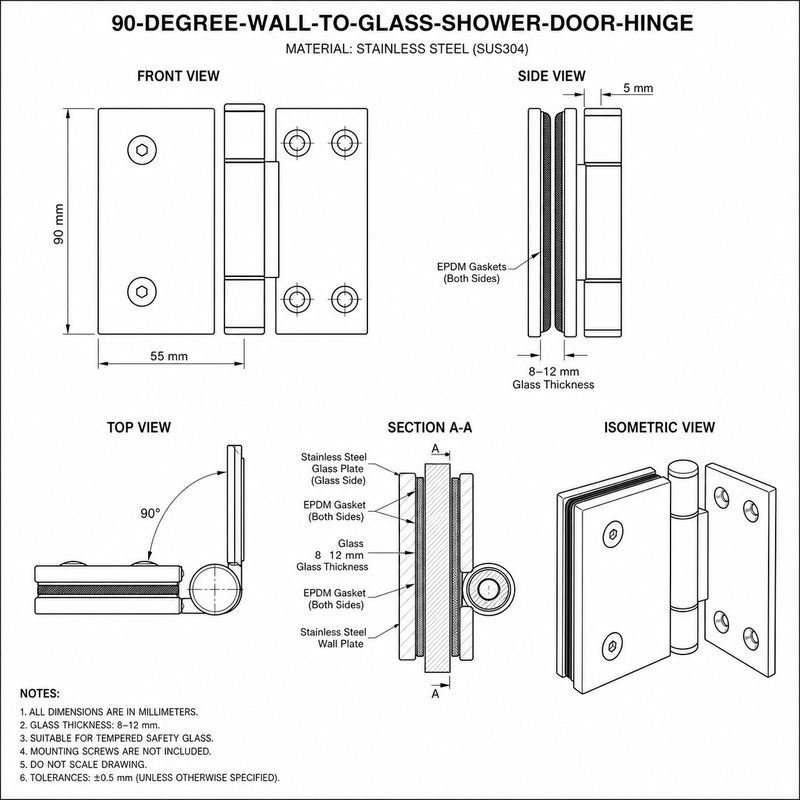

View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

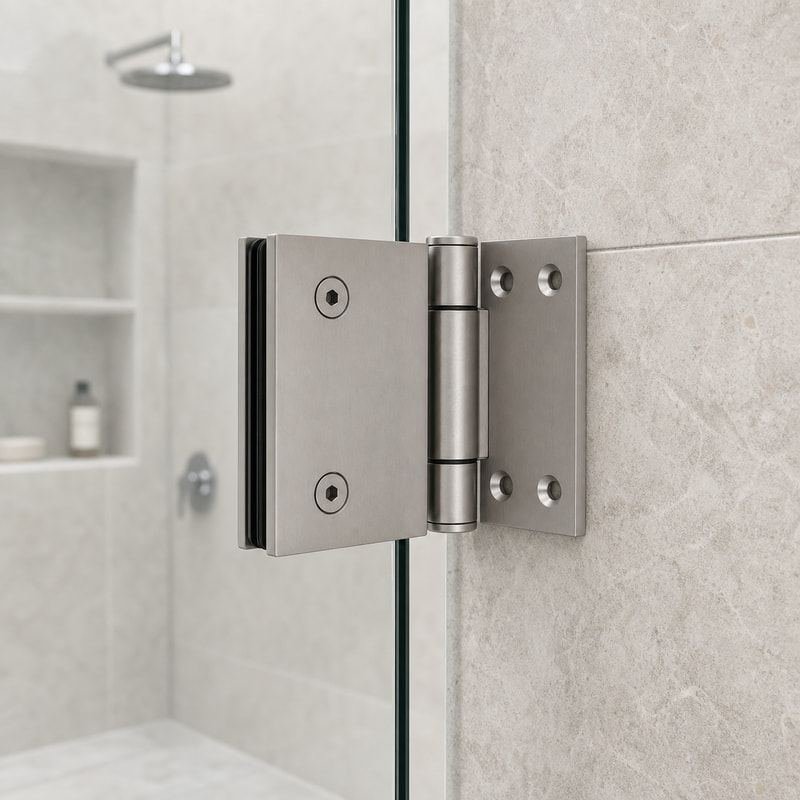

Review this hinge within the complete door, fixed-panel and wall arrangement. Confirm the mounting and opening requirements before glass production.
Use the approved hinge drawing and sample as a reference for repeat procurement, gasket matching and finish coordination.
Coordinate the hinge schedule with the door weight, glass preparation, handles, seals and agreed installation details.
Elim Hardware can review drawing-based changes to the glass thickness, cut-out, door dimensions, door mass, pivot position and hinge quantity. Material selection, finish, marking, coordinated accessories and private-label packaging are reviewed for manufacturing feasibility and the intended order.
Confirm the sample and drawing revision before bulk production. Concept finish images illustrate a proposed appearance and do not establish the production material or an available stock finish.
