Barrel Door Hinge with Mounting Plates

Model: SHS-013

Barrel door hinge with flat mounting plates and circular fixing holes for door hardware selection. Review the visible barrel-and-leaf construction, then confirm dimensions, fixing requirements and material against the physical product.

Material Proposed material options: AISI 304 / AISI 316 stainless steel.

Surface Finish Proposed finish options: Satin brushed / mirror polished.

Dimensions Proposed leaf height: 100 mm; leaf width: 57 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Not applicable: mounting-plate door hinge; no direct glass-clamping interface.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Product configuration

This barrel door hinge uses an exposed cylindrical barrel between flat mounting leaves with circular fixing holes. It is a door-hardware reference for selecting a plate-mounted hinge configuration.

Selection and fit

Check overall height and width, barrel diameter, plate thickness, hole centers, fixing method and door clearance against the actual component. Confirm material and operating performance in the quotation.

Image reference

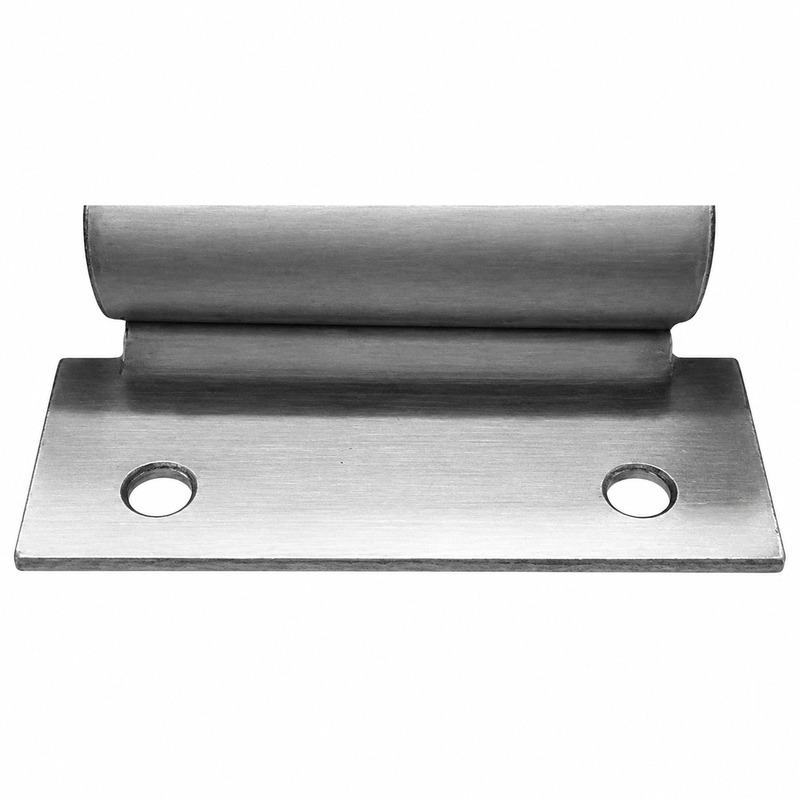

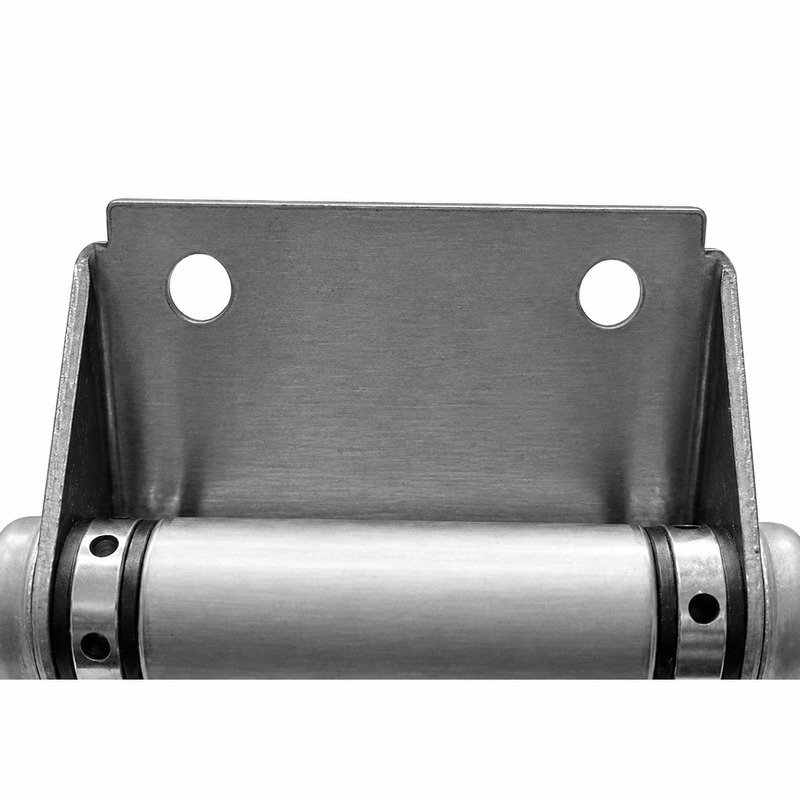

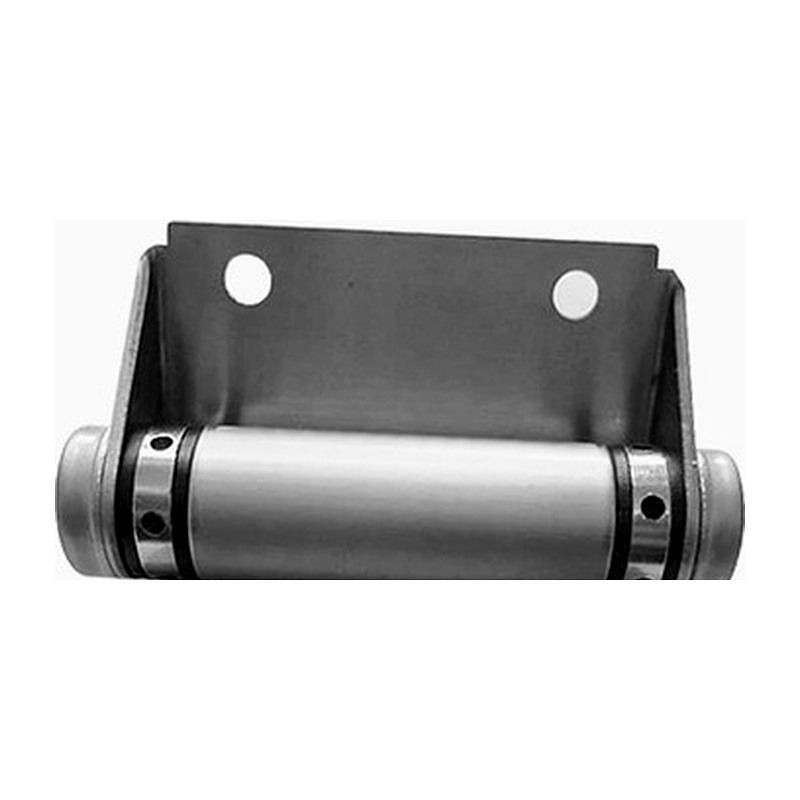

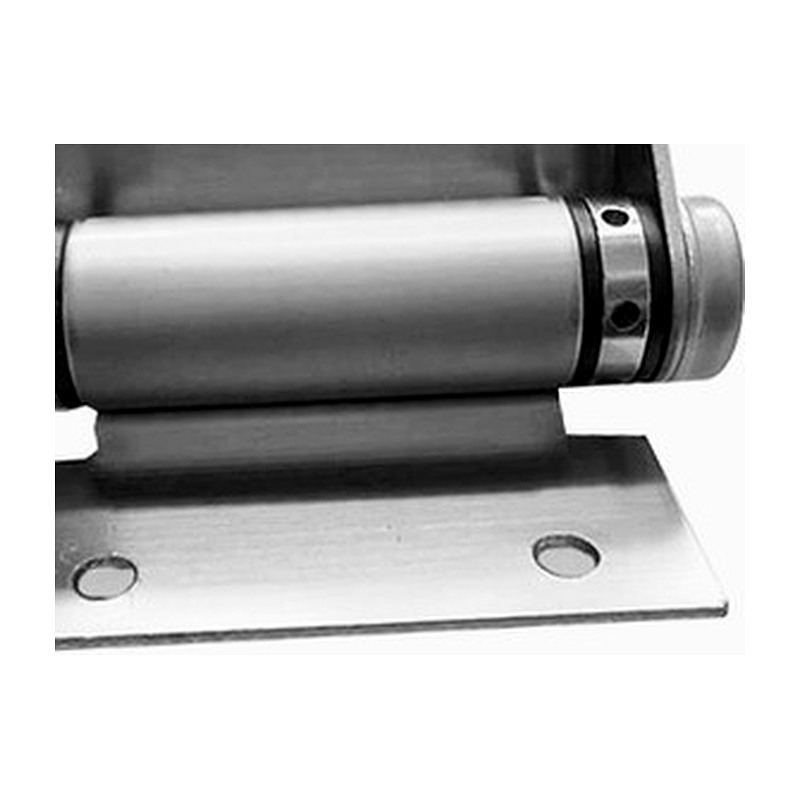

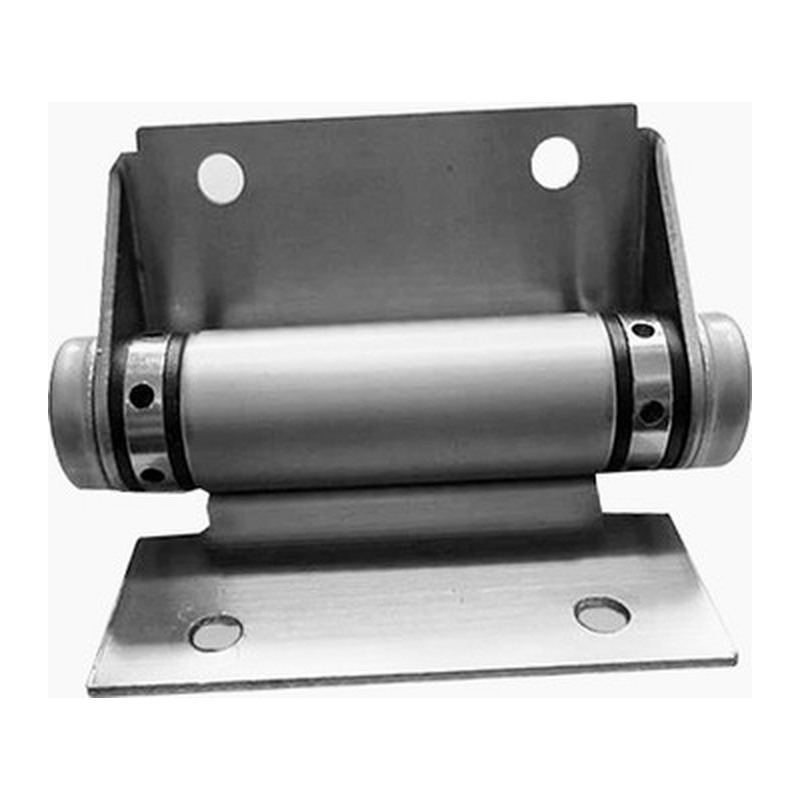

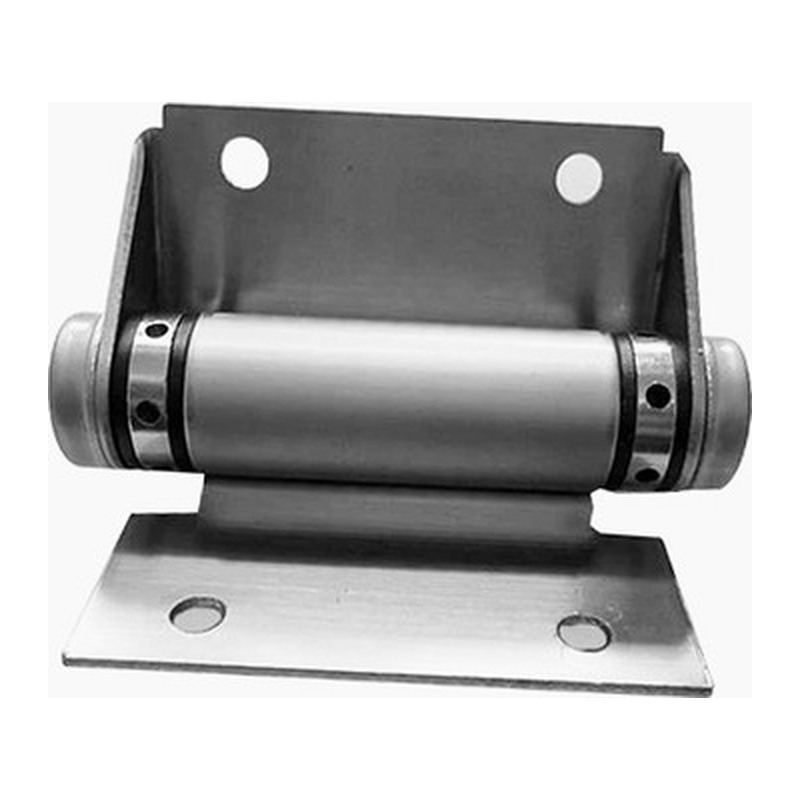

The gallery shows the main view, an angled view, barrel details and mounting-plate details. Two plate close-ups are AI-assisted illustrations based on the supplied main image. They are not installation or dimensioned engineering drawings.

Bulk enquiry

Send the required quantity, finish reference and measured fixing details. Request a model-specific quotation.

Applications

Customization

Provide a measured component drawing, quantity and finish reference for review. Confirm any change to plate size, mounting-hole layout, material, finish or packaging through an approved physical sample.

Frequently Asked Questions

What configuration is shown?

The supplied reference shows an exposed cylindrical barrel with flat mounting leaves. Each leaf has two visible circular fixing holes.

Is this a glass-clamp shower door hinge?

The pictured component uses mounting leaves and fixing holes. No glass-clamping plates or glass-thickness compatibility are established for this reference.

How are material and finish confirmed?

Proposed material options: AISI 304 / AISI 316 stainless steel. Proposed finish options: Satin brushed / mirror polished. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

Can the metallic appearance identify the material or closing function?

The minimum order quantity, sample availability and production schedule are quoted for the selected model, finish and quantity. Request these terms in writing before ordering.

What should a bulk enquiry include?

Send the reference code, quantity, measured fixing details, finish sample or reference, packing requirements and delivery destination.

Specifications

Product model	SHS-013 catalog reference
Product configuration	Exposed cylindrical barrel with flat mounting leaves and circular fixing holes
Material	Proposed material options: AISI 304 / AISI 316 stainless steel.
Surface finish	Proposed finish options: Satin brushed / mirror polished.
Dimensions and fitting	Proposed leaf height: 100 mm; leaf width: 57 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Fixing arrangement	Not applicable: mounting-plate door hinge; no direct glass-clamping interface.
Supply scope	Hinge assembly and supplied fixing parts as agreed in the quotation.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Agree the Incoterm, named place and payment terms in the written quotation.
Packaging Agree protective packing, carton quantity and shipping marks for the actual order.
Quality Control Check dimensions, hole layout, surface condition and hinge movement against an approved physical sample. Agree any required performance test separately.
