Model: SHS-013 / SHS-013-C-BS (finish concept reference)

Matte silver barrel door hinge finish concept with flat mounting plates and circular fixing holes. Review the proposed appearance alongside the base model, then confirm the physical sample, dimensions and fixing requirements.

Material Proposed material options: AISI 304 / AISI 316 stainless steel.

Surface Finish Proposed finish options: Satin brushed.

Dimensions Proposed leaf height: 100 mm; leaf width: 57 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Not applicable: mounting-plate door hinge; no direct glass-clamping interface.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Finish concept reference. This page illustrates a proposed finish. Production material, finish process, availability and performance require confirmation on the actual sample.

Matte Silver Barrel Door Hinge with Mounting Plates

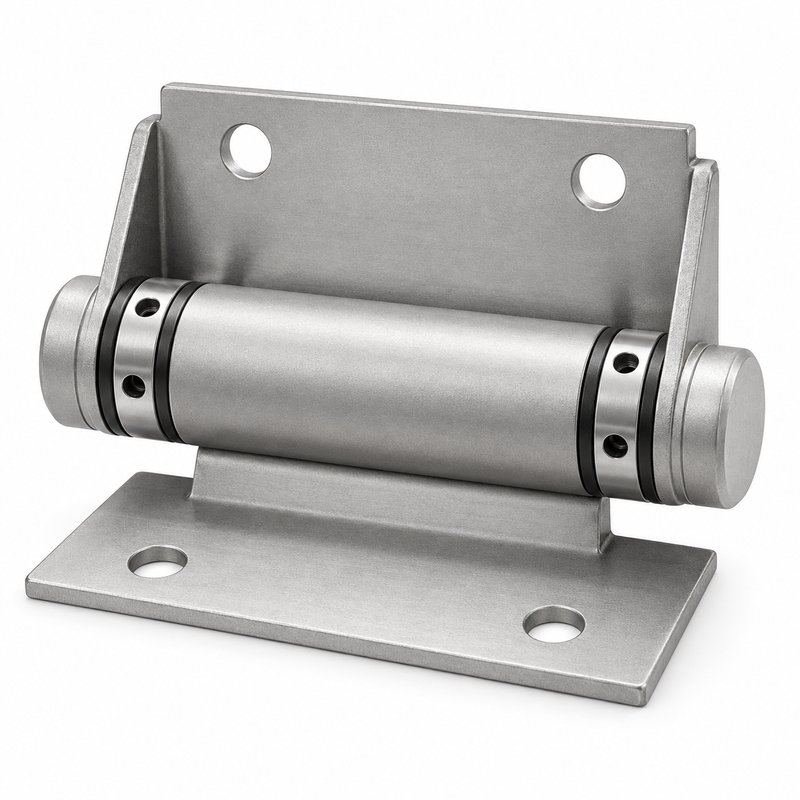

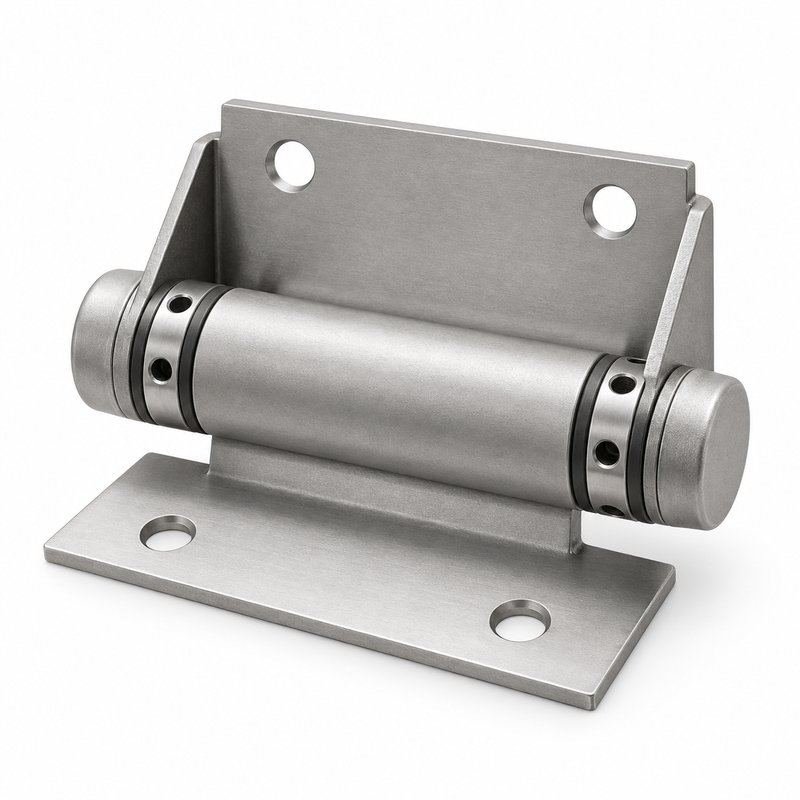

This matte silver barrel door hinge is a finish concept showing an exposed cylindrical barrel and two mounting leaves. Confirm the finish on a physical sample before ordering.

Fit and finish selection

Check overall height and width, barrel diameter, plate thickness, hole centers, fixing method and door clearance against the actual component. Confirm material and operating performance in the quotation.

Approve the physical finish sample and confirm the supplied parts and availability before ordering.

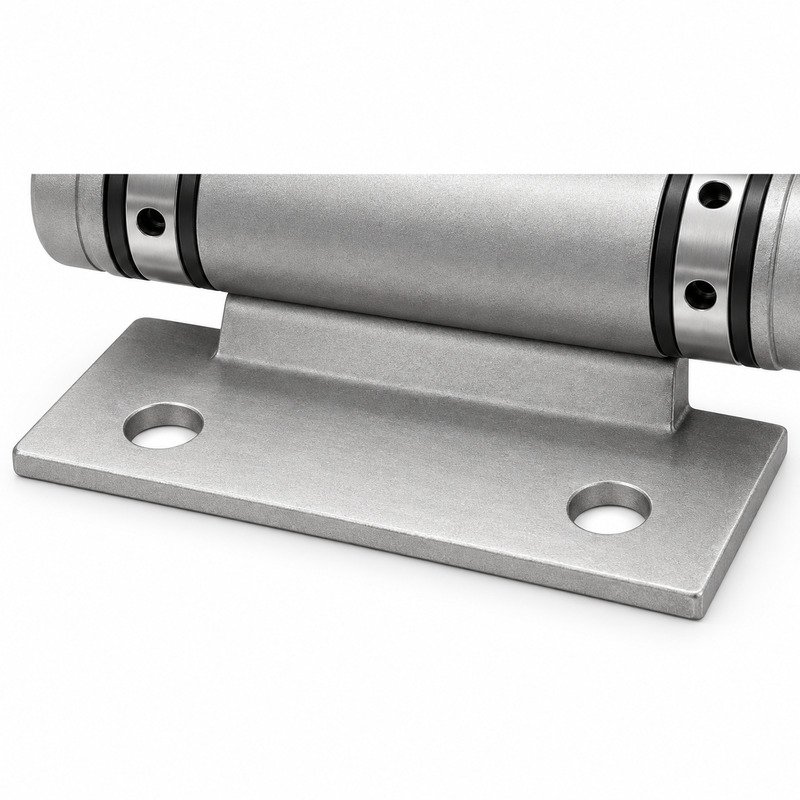

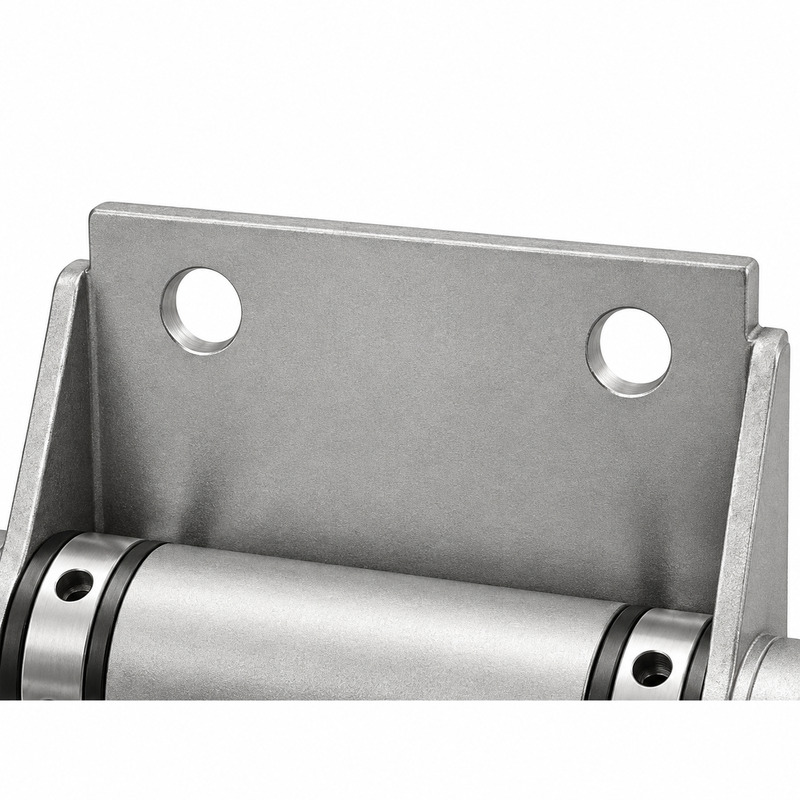

Two mounting-plate close-ups in this image group are AI-assisted illustrations based on the supplied main image. They are not dimensioned engineering drawings.

Applications

Customization

Provide a measured component drawing, quantity and finish reference for review. Confirm any change to plate size, mounting-hole layout, material, finish or packaging through an approved physical sample.

Frequently Asked Questions

What configuration is shown?

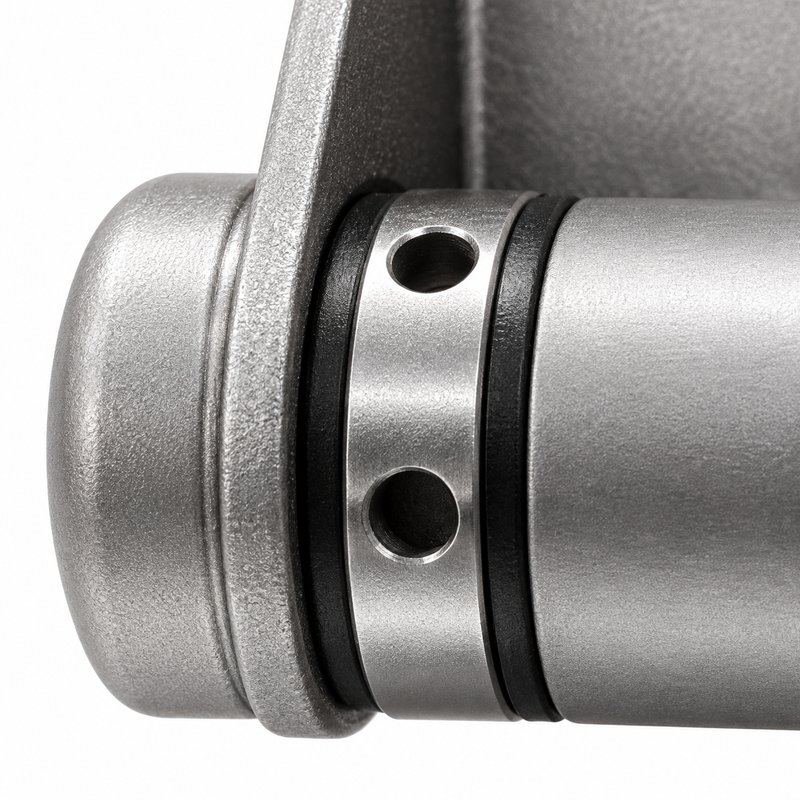

The supplied reference shows an exposed cylindrical barrel with flat mounting leaves. Each leaf has two visible circular fixing holes.

Is this a glass-clamp shower door hinge?

The pictured component uses mounting leaves and fixing holes. No glass-clamping plates or glass-thickness compatibility are established for this reference.

How are material and finish confirmed?

Proposed material options: AISI 304 / AISI 316 stainless steel. Proposed finish options: Satin brushed. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

Is the matte silver finish a confirmed stock option?

The minimum order quantity, sample availability and production schedule are quoted for the selected model, finish and quantity. Request these terms in writing before ordering.

What should a bulk enquiry include?

Send the reference code, quantity, measured fixing details, finish sample or reference, packing requirements and delivery destination.

Specifications

Product model	SHS-013 catalog reference; finish-variant SKU to be confirmed
Product configuration	Exposed cylindrical barrel with flat mounting leaves and circular fixing holes
Material	Proposed material options: AISI 304 / AISI 316 stainless steel.
Surface finish	Proposed finish options: Satin brushed.
Dimensions and fitting	Proposed leaf height: 100 mm; leaf width: 57 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Fixing arrangement	Not applicable: mounting-plate door hinge; no direct glass-clamping interface.
Supply scope	Hinge assembly and supplied fixing parts as agreed in the quotation.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Agree the Incoterm, named place and payment terms in the written quotation.
Packaging Agree protective packing, carton quantity and shipping marks for the actual order.
Quality Control Check dimensions, hole layout, surface condition and hinge movement against an approved physical sample. Agree any required performance test separately.
