Cable Railing Kits — WR089

Model: EL-WR-089 (catalogue reference)

Cable railing kits for project enquiries, illustrated with post-and-handrail layouts, horizontal cables and separate fitting components. Specify project measurements, post layout, mounting method and a complete bill of materials when requesting the matching configuration.

Material Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.

Surface Finish Reference options: satin or mirror silver posts and fittings, with natural bright-drawn cable.

Dimensions Reference options, not measured image dimensions: RFQ example: 4 mm cable; 42.4 / 50.8 mm round or 40 x 40 / 50 x 50 mm square posts.

Glass Thickness Not applicable: this wire rope item is not a glass clamp or glass support.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

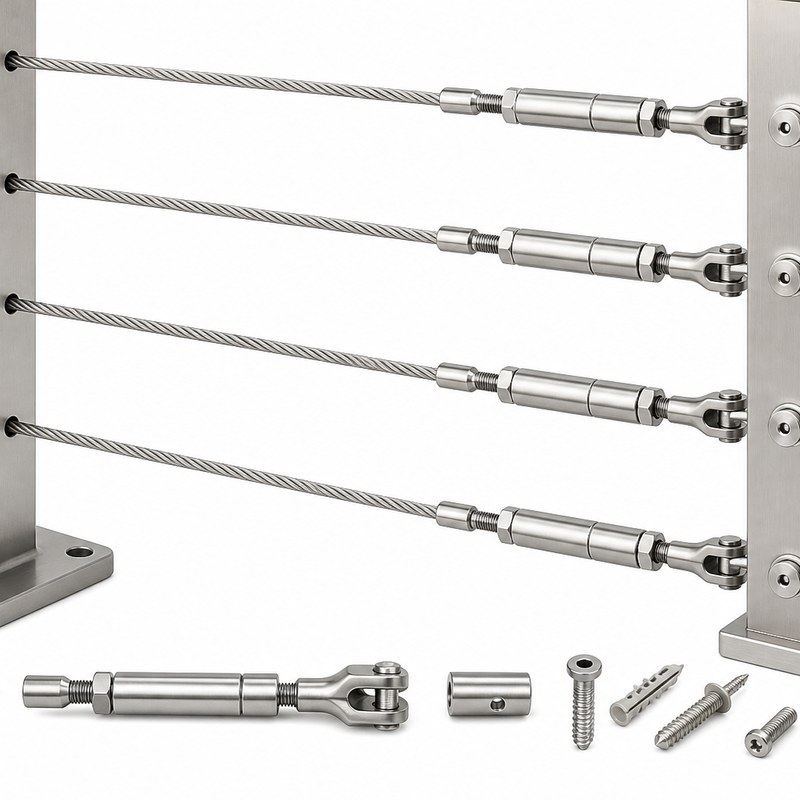

Cable railing kits is presented for component selection and project enquiries. The supplied views show post-and-handrail layouts, horizontal cables and separate fitting components. Send project measurements, post layout, mounting method and a complete bill of materials so the quoted configuration can be matched to your installation. Quotation starting options: RFQ example: 4 mm cable; 42.4 / 50.8 mm round or 40 x 40 / 50 x 50 mm square posts. These reference options are not measurements of the pictured model.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

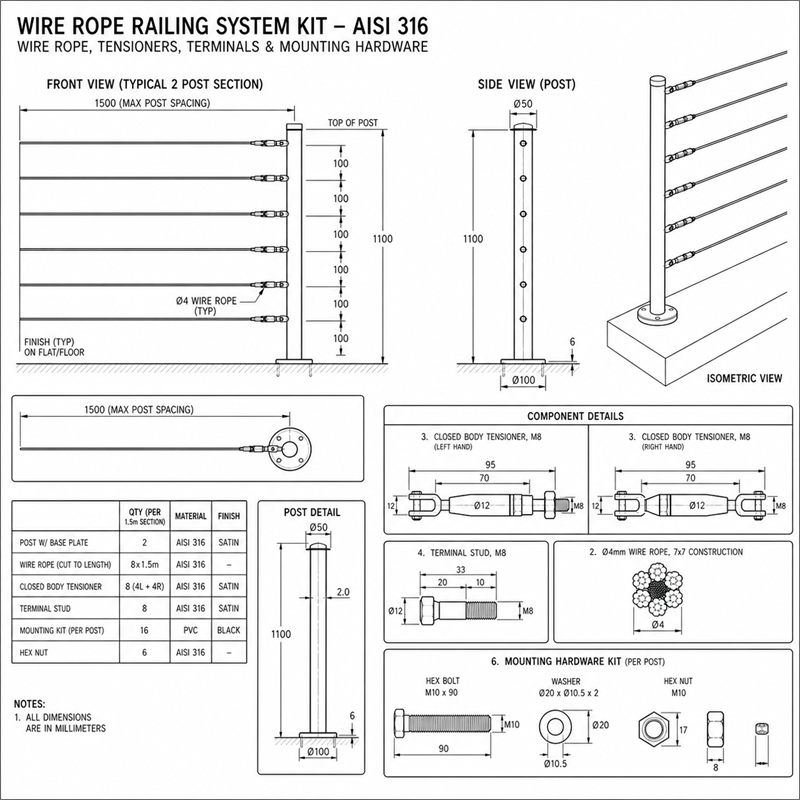

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

Complete cable railing planning

Post-and-handrail layouts, horizontal cables and separate fitting components. Reference selection: RFQ example: 4 mm cable; 42.4 / 50.8 mm round or 40 x 40 / 50 x 50 mm square posts. Match the project layout and mating parts; the image is a configuration illustration.

Customization

Quotation options include cable length, connection dimensions, thread type, surface finish, laser marking and private-label packaging. Send the drawing and order quantity for a manufacturing review. Custom tooling and prototypes are quoted separately before production.

Frequently Asked Questions

What does a project-specific railing kit include?

A cable railing kit with metal posts should be quoted against a complete project layout and bill of materials. For a cable deck railing kit or an interior cable railing kit, identify the posts, handrail connections, cable runs and fittings. An outdoor cable railing kit also needs the specified material and surface requirements for its intended environment.

Which reference sizes can be used for an enquiry?

Reference options, not measured image dimensions: RFQ example: 4 mm cable; 42.4 / 50.8 mm round or 40 x 40 / 50 x 50 mm square posts. Project kit of posts, cable and matching fittings; list handrails and anchors separately in the bill of materials. Provide project measurements, post layout, mounting method and a complete bill of materials for model matching.

Which material and finish should be specified?

Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade. Reference options: satin or mirror silver posts and fittings, with natural bright-drawn cable. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What can be included in a customization enquiry?

Request the required dimensions, connection type, thread, finish, marking and packing. Proposed sample schedule: 7 calendar days.

What are the reference MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Specifications

Product type	Cable Railing Kits
Visible configuration	Post-and-handrail layouts, horizontal cables and separate fitting components
Material	Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.
Surface finish	Reference options: satin or mirror silver posts and fittings, with natural bright-drawn cable.
Reference dimensions	Reference options, not measured image dimensions: RFQ example: 4 mm cable; 42.4 / 50.8 mm round or 40 x 40 / 50 x 50 mm square posts.
Compatibility	Project kit of posts, cable and matching fittings; list handrails and anchors separately in the bill of materials.
Packaging	Proposed packing: posts protected separately; cable on reels; fittings in labeled bags and inner boxes, consolidated by project zone in export cartons.
Load and compliance	No model-specific load rating or certification supplied. Assess the complete assembly against project requirements before installation.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Proposed terms: EXW factory or FOB named port. Specify the collection location or loading port in the quotation.
Packaging Proposed packing: posts protected separately; cable on reels; fittings in labeled bags and inner boxes, consolidated by project zone in export cartons.
Quality Control Proposed checks: component quantities, material traceability, post dimensions, cable diameter, termination compatibility and trial assembly against the approved project drawing.
