Stainless Steel Wire Rope Eye Nut — WR088

Stainless Steel Wire Rope Eye Nut — WR088

Model: EL-WR-088 (catalogue reference)

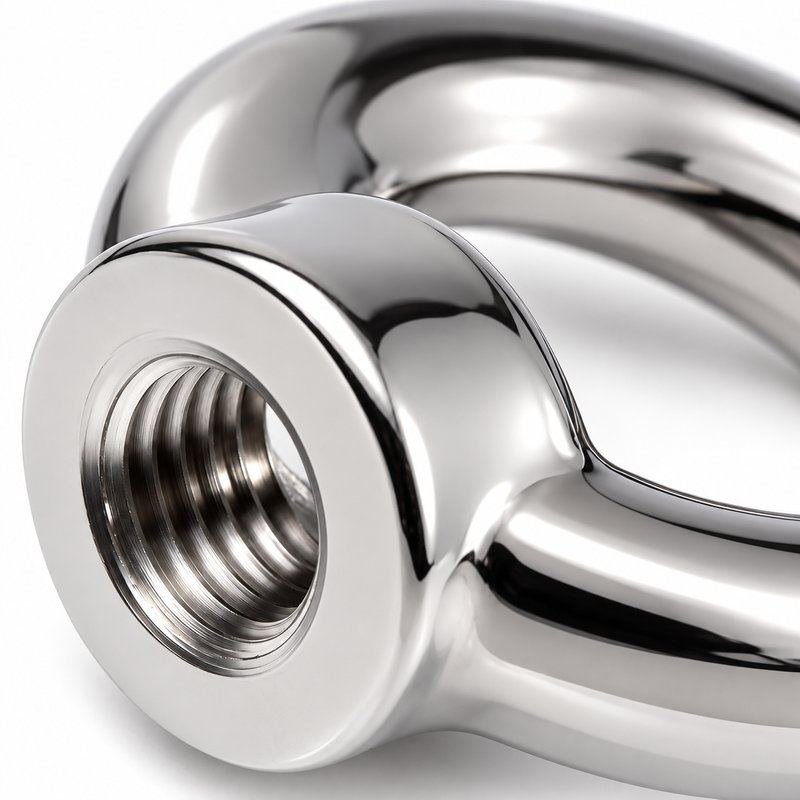

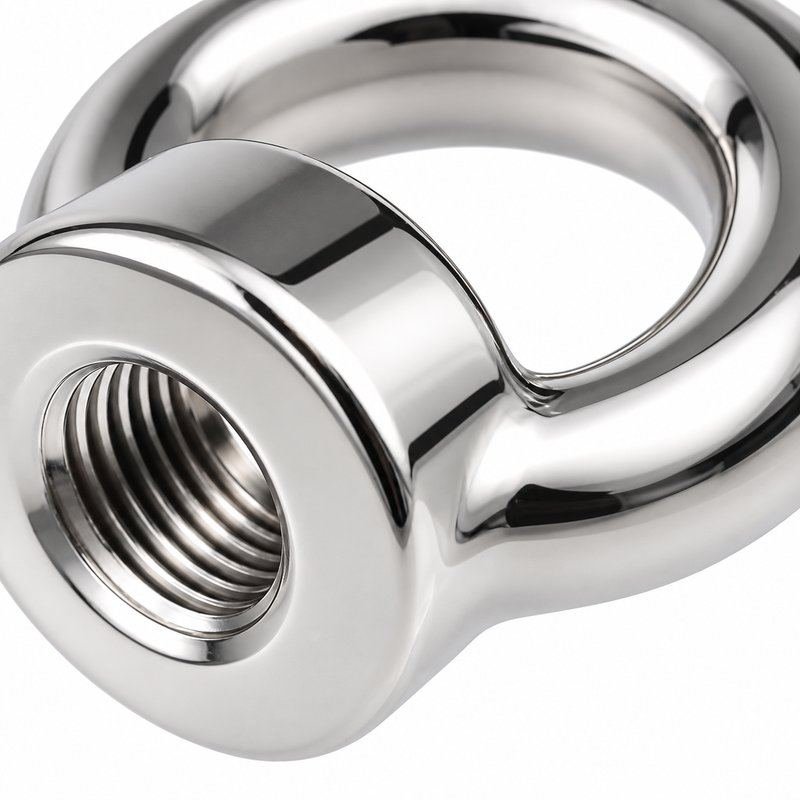

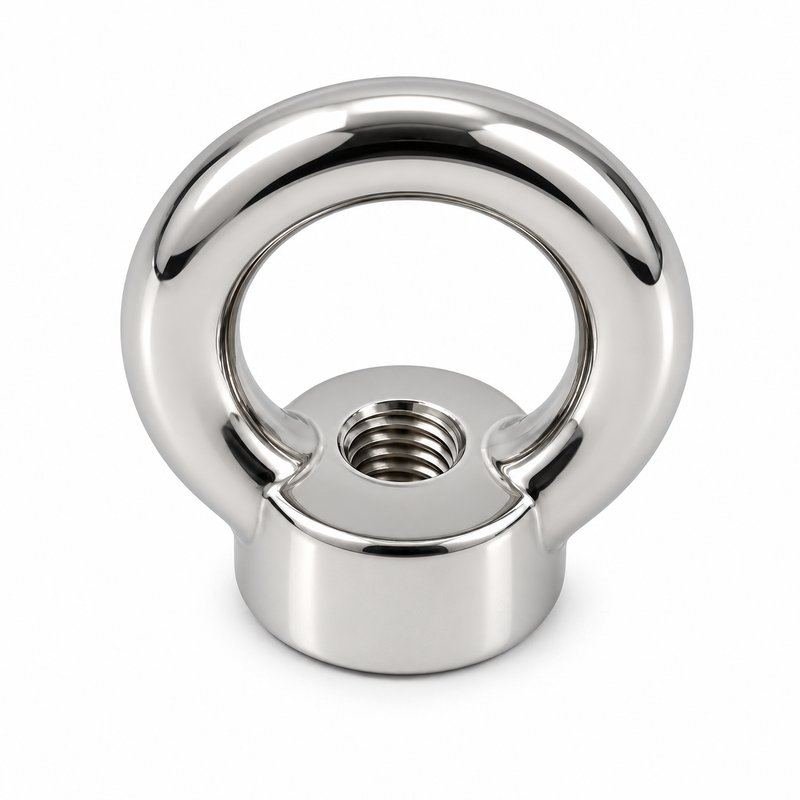

Stainless steel wire rope eye nut for project enquiries, illustrated with a closed eye above a female-threaded base. Specify thread diameter and pitch, eye size and matching stud when requesting the matching configuration.

Material Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.

Surface Finish Reference: polished silver appearance. The image is a finish concept; approve the final sample.

Dimensions Reference options, not measured image dimensions: RFQ female-thread options: M6 / M8 / M10; eye nut.

Glass Thickness Not applicable: this wire rope item is not a glass clamp or glass support.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Stainless steel wire rope eye nut is presented for component selection and project enquiries. The supplied views show a closed eye above a female-threaded base. Send thread diameter and pitch, eye size and matching stud so the quoted configuration can be matched to your installation. Quotation starting options: RFQ female-thread options: M6 / M8 / M10; eye nut. These reference options are not measurements of the pictured model.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

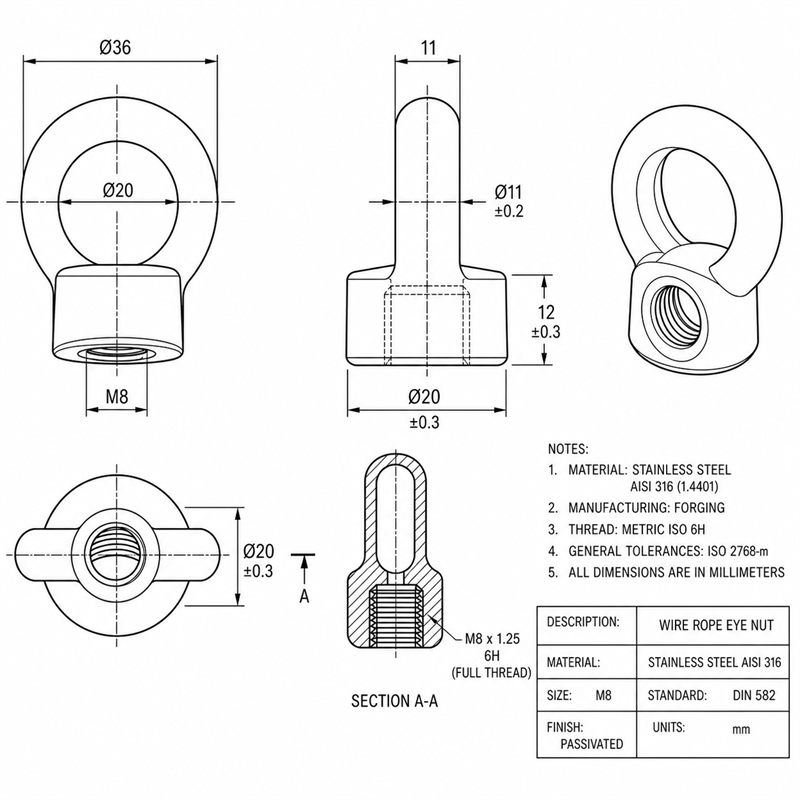

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

Threaded eye connections

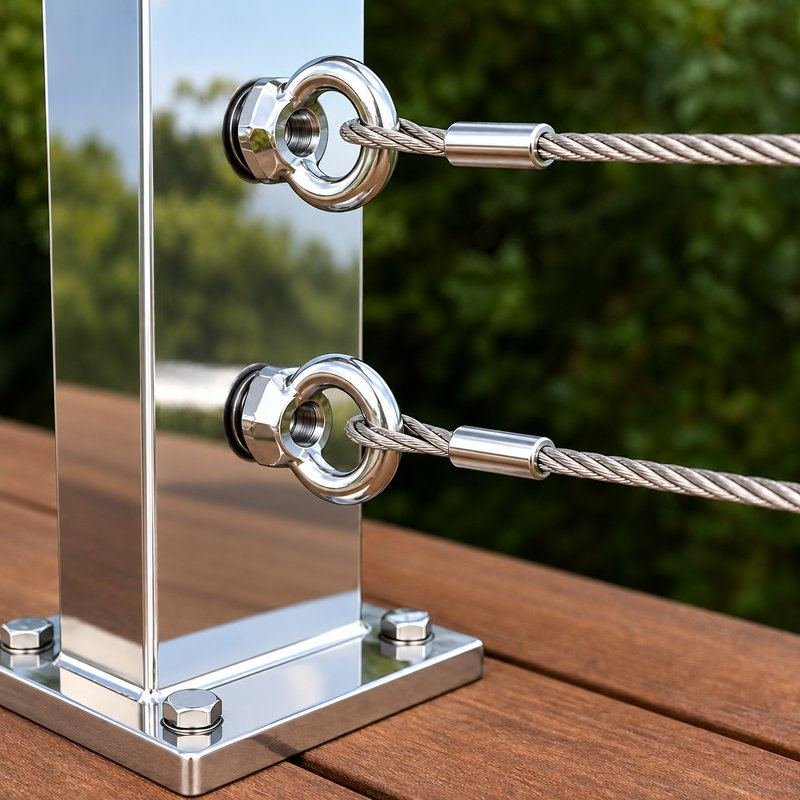

A closed eye above a female-threaded base. Reference selection: RFQ female-thread options: M6 / M8 / M10; eye nut. Match the project layout and mating parts; the image is a configuration illustration.

Customization

Quotation options include cable length, connection dimensions, thread type, surface finish, laser marking and private-label packaging. Send the drawing and order quantity for a manufacturing review. Custom tooling and prototypes are quoted separately before production.

Frequently Asked Questions

How is the eye nut matched to its stud?

A female threaded cable eye nut screws onto a matching external thread. Confirm the thread diameter, pitch and available engagement together with the eye dimensions.

Which reference sizes can be used for an enquiry?

Reference options, not measured image dimensions: RFQ female-thread options: M6 / M8 / M10; eye nut. Match the stud pitch and engagement length; eye dimensions and any rated application require model evidence. Provide thread diameter and pitch, eye size and matching stud for model matching.

Which material and finish should be specified?

Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade. Reference: polished silver appearance. The image is a finish concept; approve the final sample. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What can be included in a customization enquiry?

Request the required dimensions, connection type, thread, finish, marking and packing. Proposed sample schedule: 7 calendar days.

What are the reference MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Specifications

Product type	Stainless Steel Wire Rope Eye Nut
Visible configuration	A closed eye above a female-threaded base
Material	Reference material: AISI 316 stainless steel. AISI 304 may be quoted as an alternative; verify the actual model grade.
Surface finish	Reference: polished silver appearance. The image is a finish concept; approve the final sample.
Reference dimensions	Reference options, not measured image dimensions: RFQ female-thread options: M6 / M8 / M10; eye nut.
Compatibility	Match the stud pitch and engagement length; eye dimensions and any rated application require model evidence.
Packaging	Proposed packing: individual protective bag, separated inner box and export carton; labels identify item, size, finish and quantity.
Load and compliance	No model-specific load rating or certification supplied. Assess the complete assembly against project requirements before installation.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Proposed terms: EXW factory or FOB named port. Specify the collection location or loading port in the quotation.
Packaging Proposed packing: individual protective bag, separated inner box and export carton; labels identify item, size, finish and quantity.
Quality Control Proposed checks: material traceability, critical dimensions, surface appearance and mating fit. Inspect threads or bores where present; agree any termination testing separately.
