Model: EL-GBH-100 (catalogue reference)
Compare this flanged top-mount glass railing base shoe for reviewing a glass channel supported on a horizontal base. The design shows fixing holes through the foot of the channel. Confirm the dimensions, mating components and supplied finish for your project.
Product Highlights

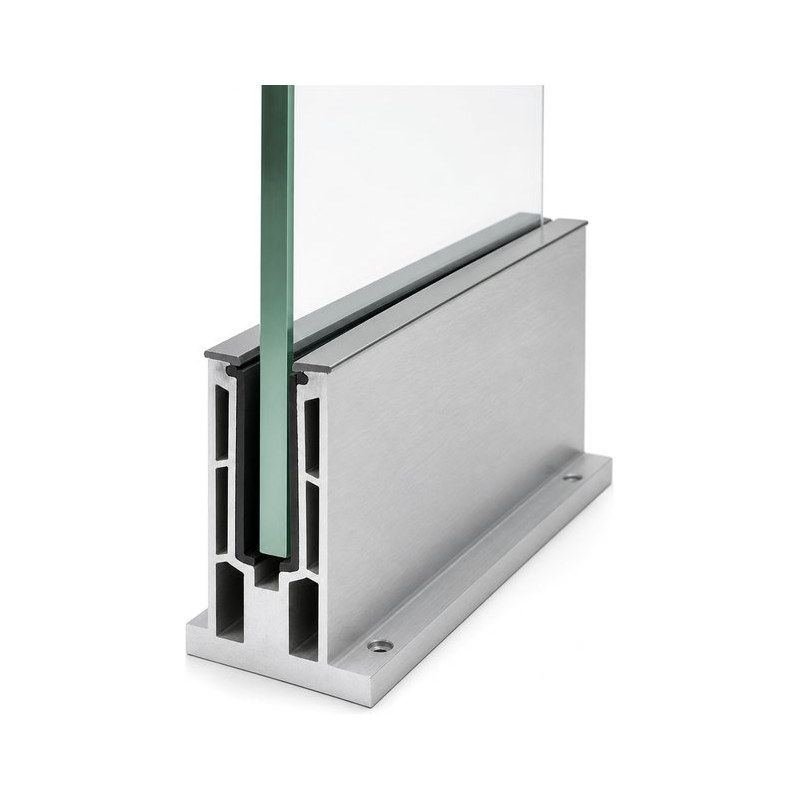

This flanged top-mount glass railing base shoe is shown for reviewing a glass channel supported on a horizontal base. Its visible construction includes a continuous glass channel above projecting horizontal base flanges. Compare the component views and confirm channel dimensions, anchor pattern, glass build-up and substrate detail for the required assembly.

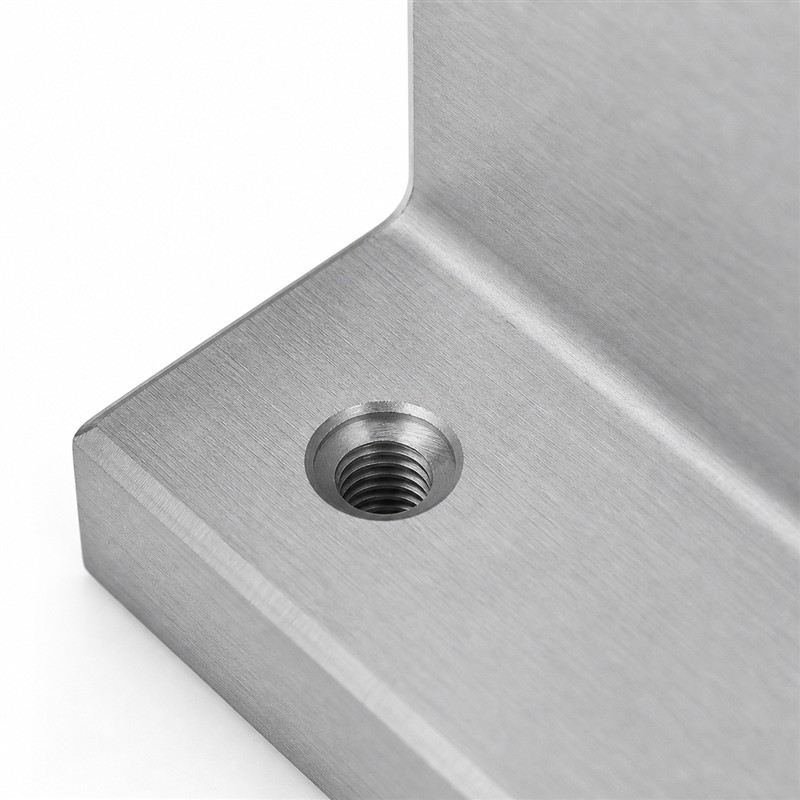

Fixing holes through the foot of the channel. This detail separates the design from other components in the same category.

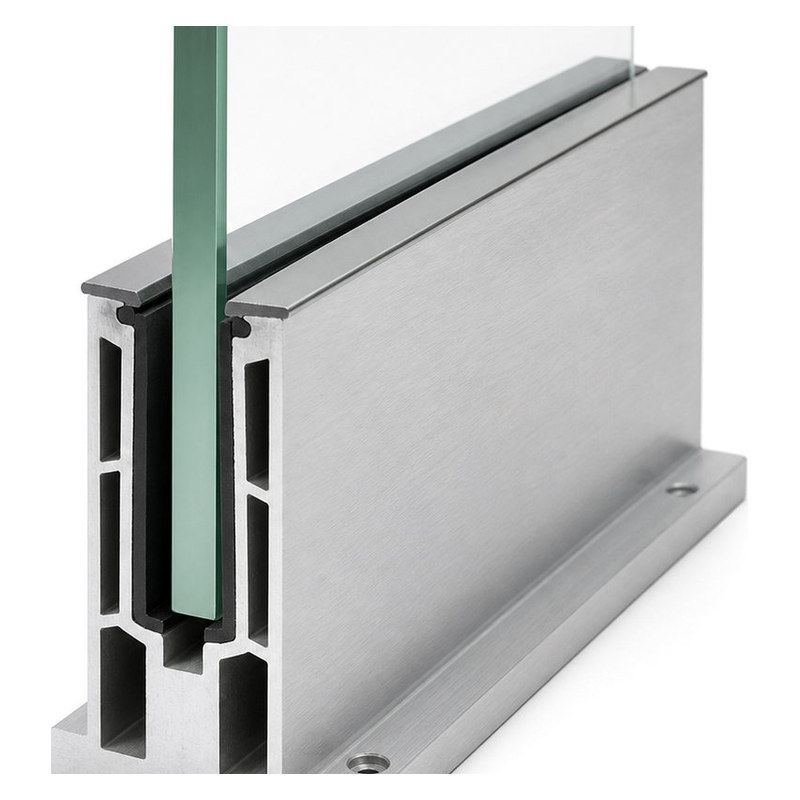

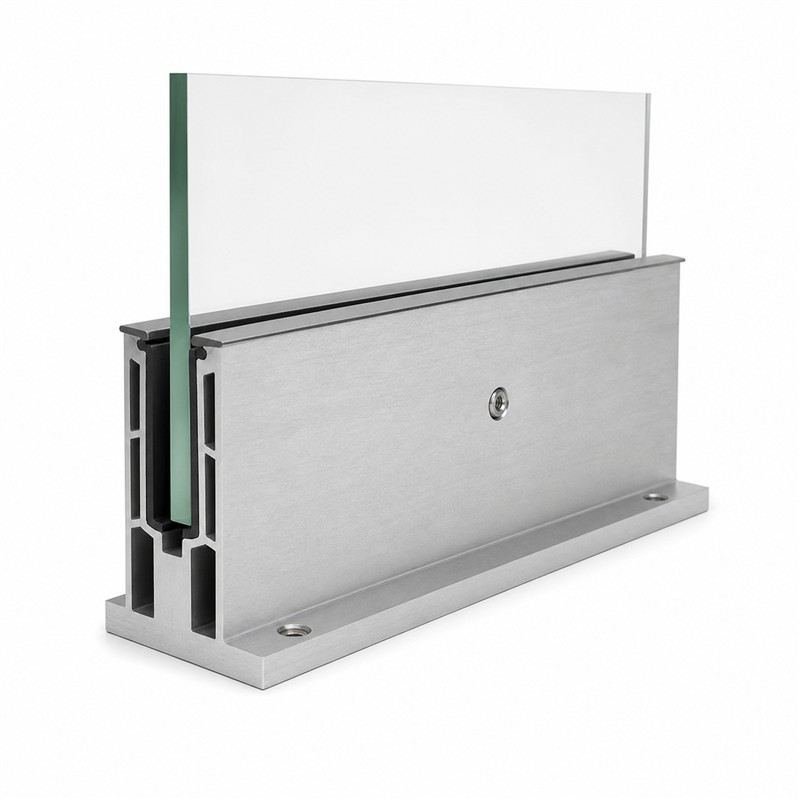

Silver appearance shown. This view shows a continuous glass channel above projecting horizontal base flanges. Use catalogue reference EL-GBH-100 when identifying the appearance in an enquiry. Confirm material and surface process before specifying a supplied finish.
Confirm channel dimensions, anchor pattern, glass build-up and substrate detail. The supplied reference images do not establish material grade, glass thickness, rated capacity or installation spacing. Request the approved specification and fixing detail for the selected configuration.
Send the product reference, quantities, mating component details, installation environment and preferred finish. Ask for feasibility of any custom changes and for the MOQ, sample timing, production lead time, packing and trade terms in the quotation.
Specify the required configuration and quantity when requesting a quotation. Final dimensions, material, finish and delivery terms are agreed for the selected model.
| Catalogue reference | EL-GBH-100 |
|---|---|
| Material selection | Proposed material options: Aluminium. |
| Finish reference | Proposed finish options: Anodized aluminium. |
| Size selection | Proposed supply lengths: 3000 / 6000 mm. Selection proposal only; not measured dimensions or an installation drawing for this model. |
| Glass compatibility | Proposed glass options: 10 / 12 mm. Model-specific fit is not verified. |
| Minimum order | 200 pieces per model / specification. |
| Sample timing | Proposed sample schedule: 7 calendar days. |
| Production timing | 30 calendar days. |
| Trade terms | Agreed in the quotation, including the delivery term, named place and freight scope. |
Proposed inspection scope: channel section, fixing geometry and fit with the selected glass-retaining components. Agree dimensional tolerances, visual criteria and sampling with the order.
Protect the profile surfaces and channel edges with individual wrapping and separated bundling. Final pack quantity, labels and protection are agreed with the order.
View source reference drawing. This is an unapproved reference image, not a verified manufacturing or installation drawing. Confirm dimensions and applicability against the approved model documentation.
No approved datasheet attached. Request the specification sheet for EL-GBH-100 after selecting the configuration.
No approved installation manual attached. Request instructions for the selected model and fixing arrangement.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Review channel dimensions, anchor pattern, glass build-up and substrate detail for this connection. Confirm the complete project design before selecting the component.
Send your proposed changes to dimensions, mounting interfaces, surface finish, logo or packaging with a marked drawing. Feasibility, tooling, sample requirements and order quantities must be confirmed for the selected component.
