Model: PFH-025 (image reference; model to confirm)

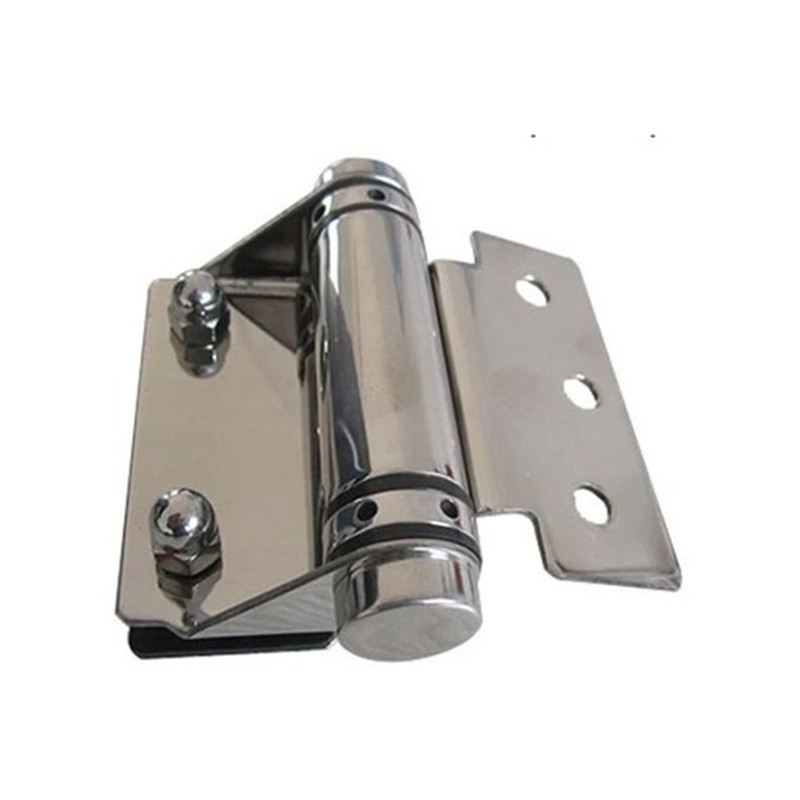

This pool gate hinge shows a flat perforated mounting leaf, barrel and glass clamp with exposed acorn nuts. Compare the pictured connection layout with your project, then confirm material, dimensions and fixing requirements with Elim Hardware.
Product Highlights
A flat perforated mounting leaf.
Flat mounting leaf.

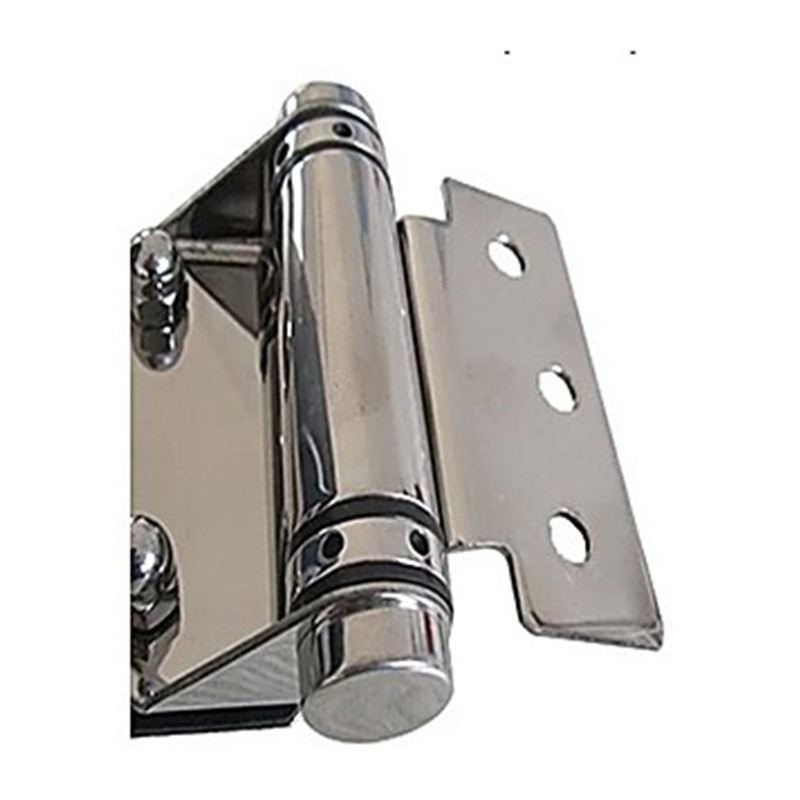

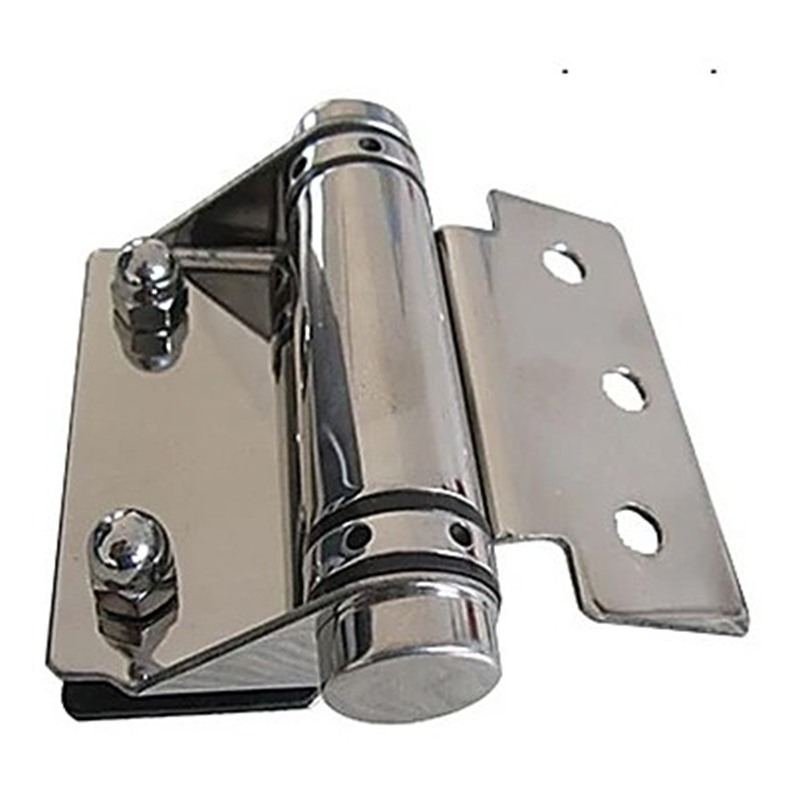

Visible barrel adjustment holes and flat leaf and fasteners.

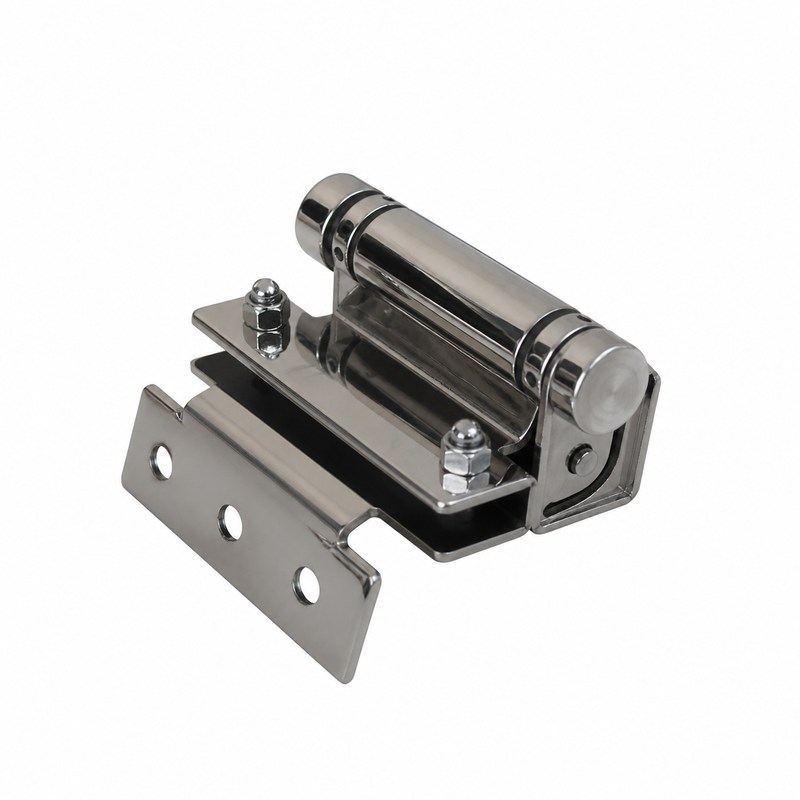

The flat leaf pool gate hinge with acorn nuts reference shows a flat perforated mounting leaf, barrel and glass clamp with exposed acorn nuts. The pictured layout is flat mounting leaf. Use the close views to compare the connection and fixing arrangement.
The perforated mounting leaf is flat and the clamp nuts are exposed. The related post-to-glass reference has a curved mounting leaf.

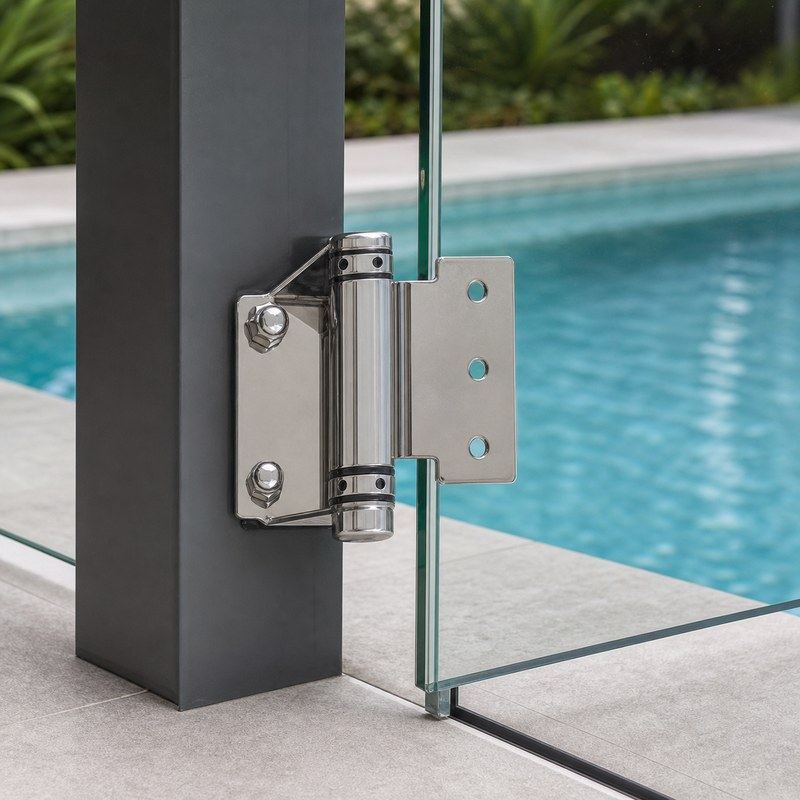

Contact Elim Hardware with the required panel layout, mounting substrate, project location, quantity and preferred appearance. Request the released drawing, confirmed material, dimensions and compatible glass specification for the selected reference. Finish concepts and scene visualisations show appearance only.
Use PFH-025 as the image reference when requesting model confirmation. Provide gate dimensions and weight, hinge quantity, opening clearance and required operating behaviour. Proposed glass interface options: 10 / 12 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Discuss the intended opening and closing behaviour for the complete gate. A hinge photograph does not establish self-closing operation or a rated gate load. Confirm the complete installation details and the evidence required for the project location before specification.

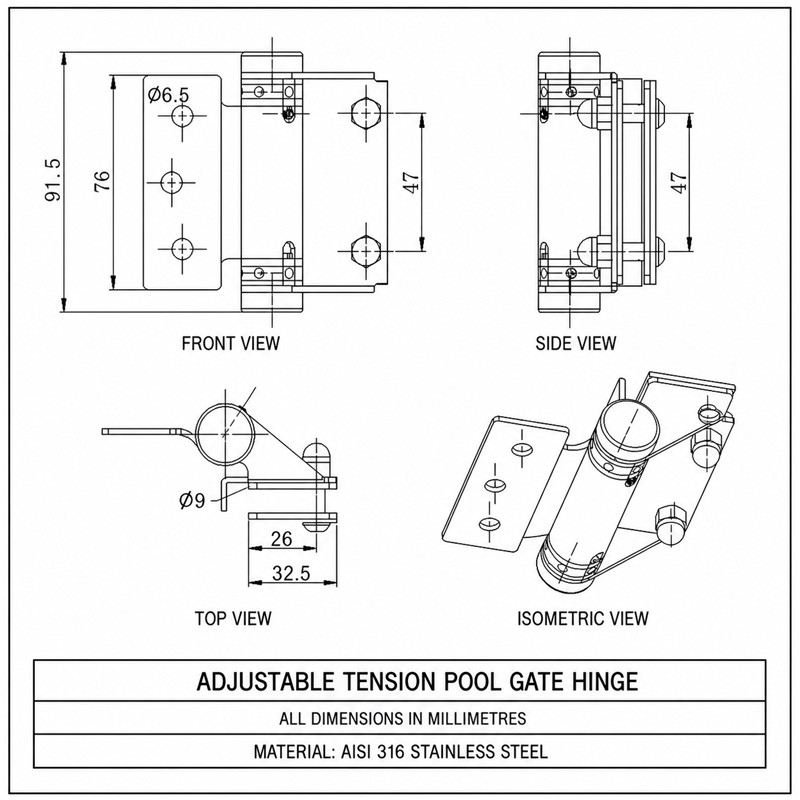

View the reference drawing image for discussion. This reference image is not an approved manufacturing or installation drawing. Request the released dimensional drawing, product specification and applicable installation instructions for the confirmed model.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Compare the pictured flat mounting leaf with the project layout. Submit gate dimensions and weight, hinge quantity, opening clearance and required operating behaviour for model and fit confirmation.
Provide the existing part reference, photographs and measurements of hinge mounting faces, pivot position, leaf dimensions, fixing centres and glass preparation. Confirm compatibility before substituting a component; a similar appearance does not establish interchangeability.
Prepare an itemised schedule with the selected reference, quantities, finish and delivery destination. Confirm the included hinge bodies, matching gaskets, mounting parts and fasteners and any project-specific documentation in the quotation.
Send the required changes to hinge mounting faces, pivot position, leaf dimensions, fixing centres and glass preparation, together with the panel layout, quantity and finish reference, for feasibility review. Confirm material, finish, marking and packing requirements in the quotation.
Agree the model drawing, physical sample and included parts before bulk production. Appearance concepts illustrate a proposed finish; production availability requires confirmation.
