Model: PFH-066 (image reference; model to confirm)

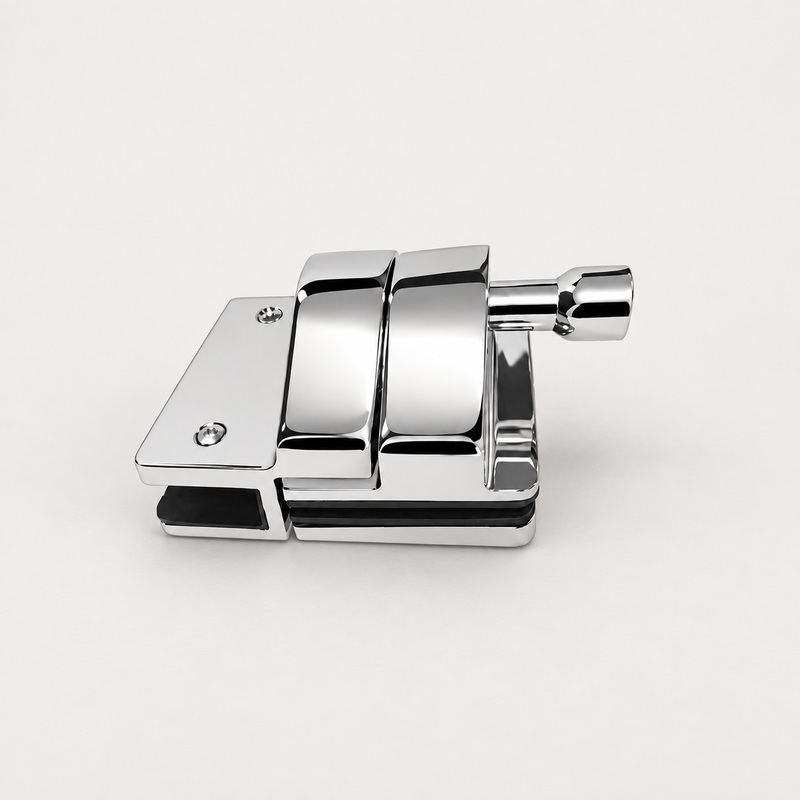

This finish concept shows an inline bracket arrangement, silver-colour curved housing and pull knob. Use the polished silver appearance concept to discuss appearance and project requirements. Confirm the production finish and model specification before ordering.
Product Highlights
An inline bracket arrangement.
Inline glass latch layout.

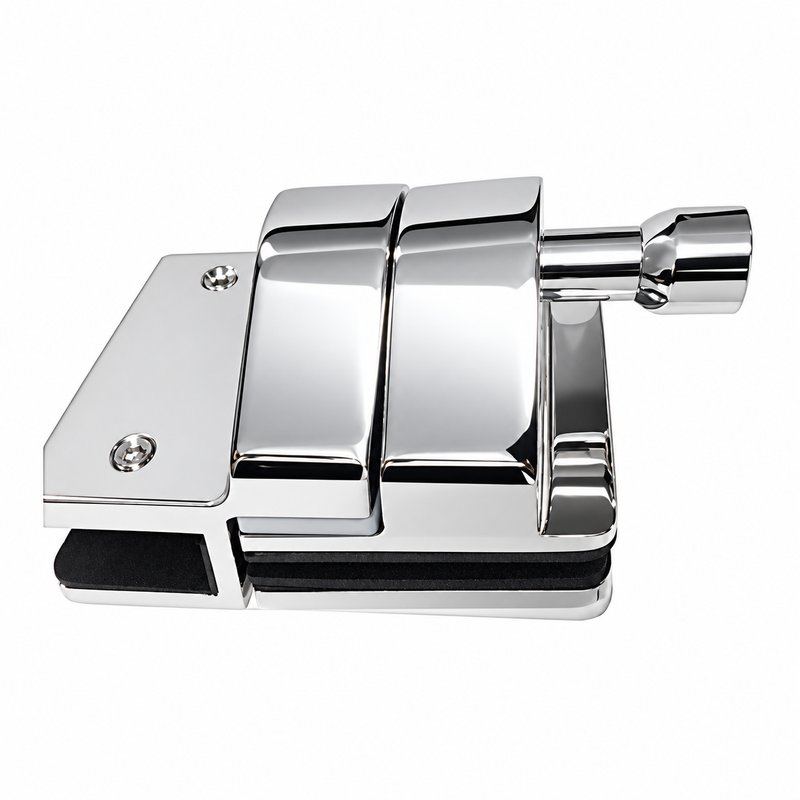

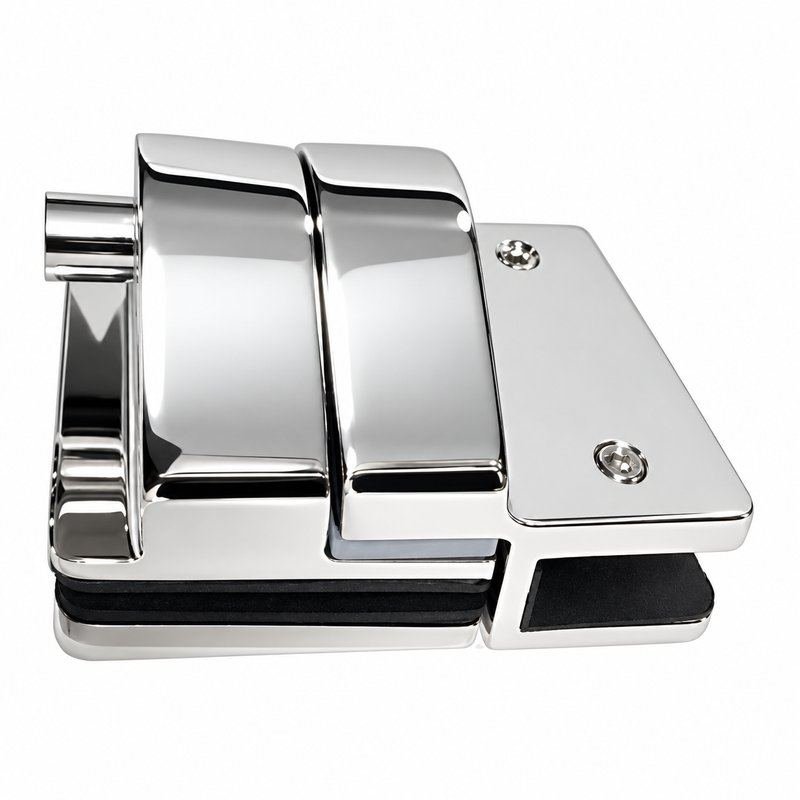

Visible housing cover and glass bracket.

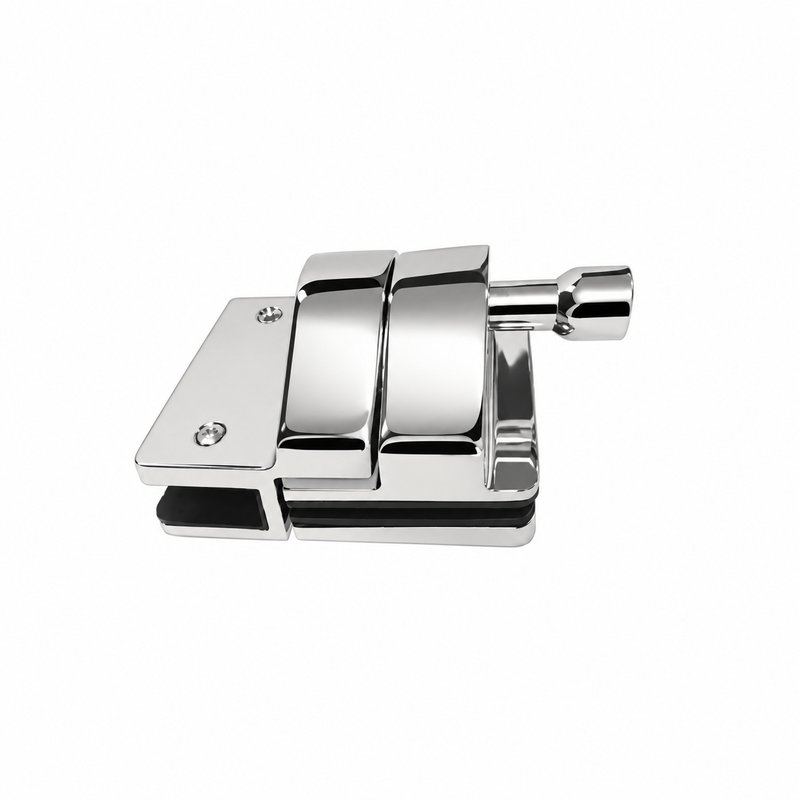

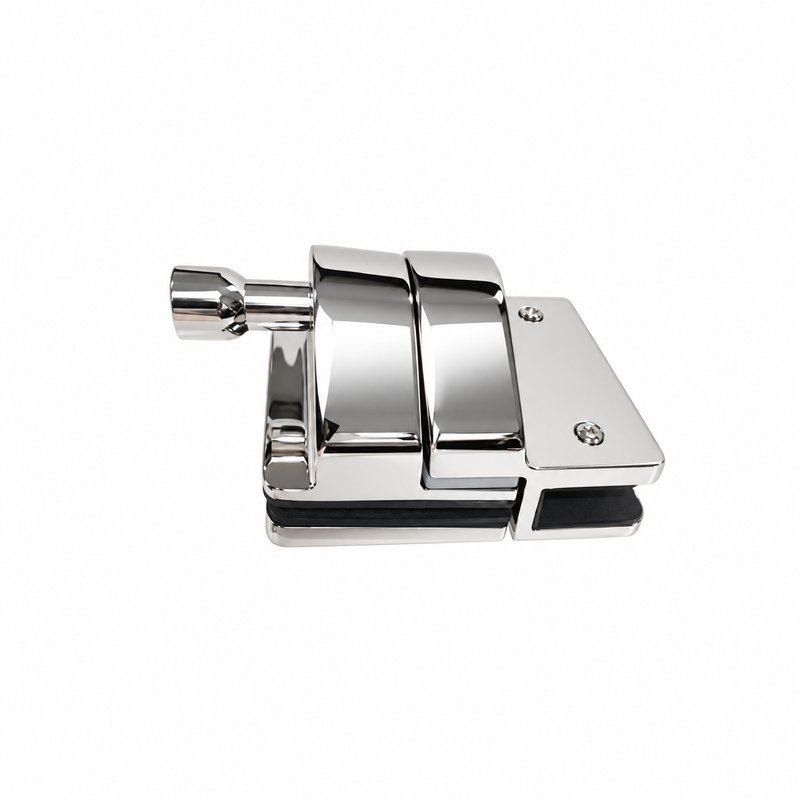

The polished silver inline glass pool gate latch with metal housing concept shows an inline bracket arrangement, silver-colour curved housing and pull knob. This image illustrates polished silver appearance. Confirm the production material and finish against an approved sample.
Use PFH-066 as the image reference when requesting model confirmation. Provide gate handing, closing gap, latch-to-keeper alignment and the required release arrangement. Proposed glass interface options: 10 / 12 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Confirm the closing and release functions for the selected latch and keeper. Do not infer magnetic, self-latching or child-resistant performance from the housing appearance. Confirm the complete installation details and the evidence required for the project location before specification.

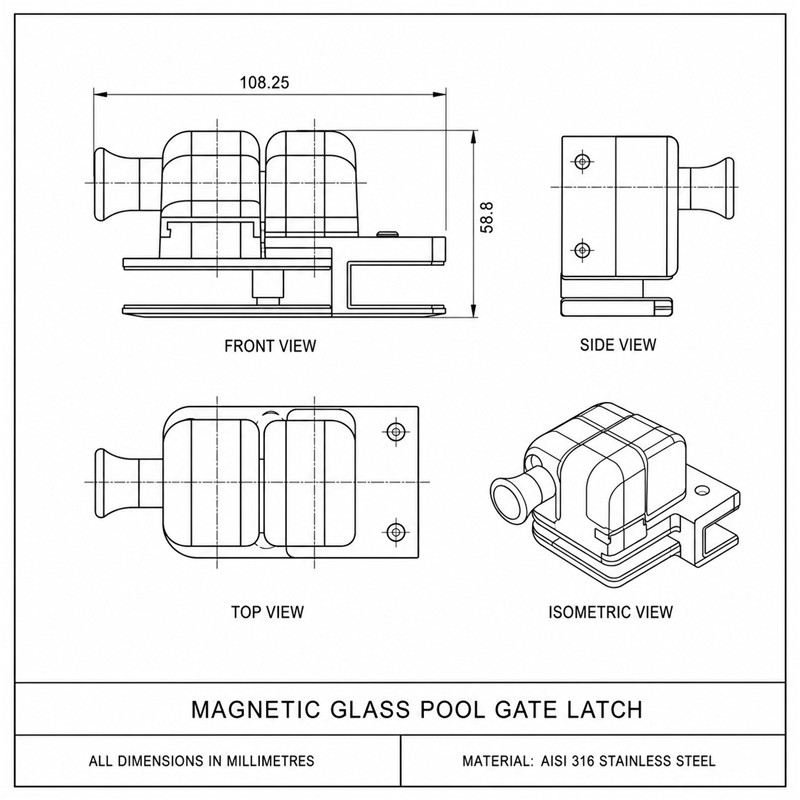

View the reference drawing image for discussion. This reference image is not an approved manufacturing or installation drawing. Request the released dimensional drawing, product specification and applicable installation instructions for the confirmed model.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Compare the pictured inline glass latch layout with the project layout. Submit gate handing, closing gap, latch-to-keeper alignment and the required release arrangement for model and fit confirmation.
Provide the existing part reference, photographs and measurements of latch housing, keeper position, mounting brackets, fixing centres and glass preparation. Confirm compatibility before substituting a component; a similar appearance does not establish interchangeability.
Prepare an itemised schedule with the selected reference, quantities, finish and delivery destination. Confirm the included latch body, keeper, mounting brackets, gaskets and fasteners and any project-specific documentation in the quotation.
Send the required changes to latch housing, keeper position, mounting brackets, fixing centres and glass preparation, together with the panel layout, quantity and finish reference, for feasibility review. Confirm material, finish, marking and packing requirements in the quotation.
Agree the model drawing, physical sample and included parts before bulk production. Appearance concepts illustrate a proposed finish; production availability requires confirmation.
