Polished Silver Square Wall-to-Glass Shower Clamp — Finish Concept

Polished Silver Square Wall-to-Glass Shower Clamp — Finish Concept

Model: SHS-040 / SHS-040-C-PS (finish concept reference)

Polished Silver square wall-to-glass shower clamp finish concept for B2B design review. Confirm the physical sample, model dimensions, actual material and finish availability before ordering. Images illustrate proposed appearance.

Material Proposed material options: AISI 304 / AISI 316 stainless steel.

Surface Finish Proposed finish options: Mirror polished.

Dimensions Proposed clamp width: 50 mm; body depth: 26 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Proposed glass options: 8 / 10 / 12 mm. Model-specific fit is not verified.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Finish concept reference. This page illustrates a proposed finish. Production material, finish process, availability and performance require confirmation on the actual sample.

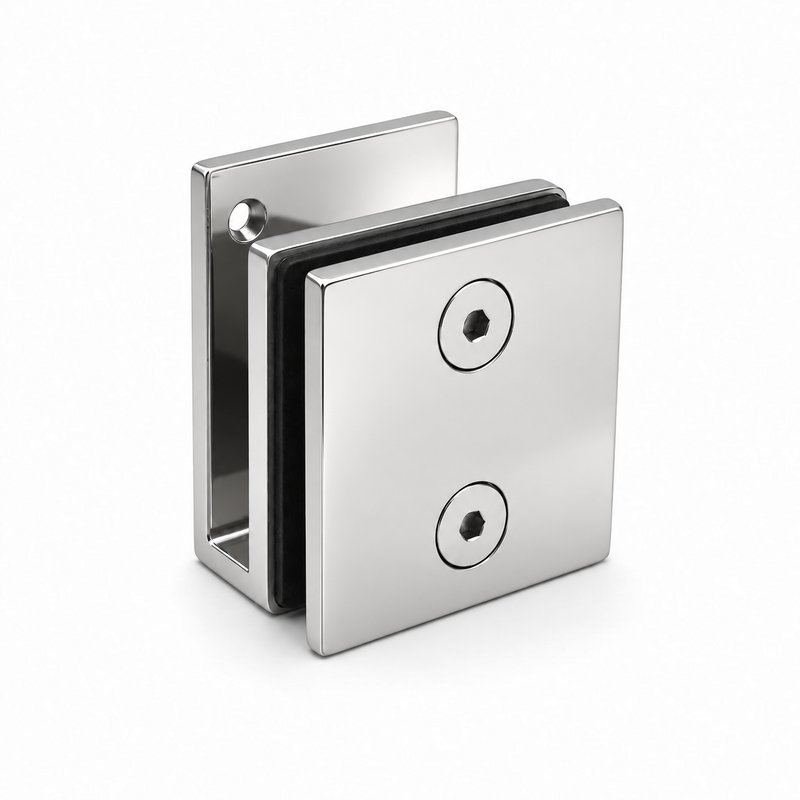

Polished Silver Square Wall-to-Glass Shower Clamp

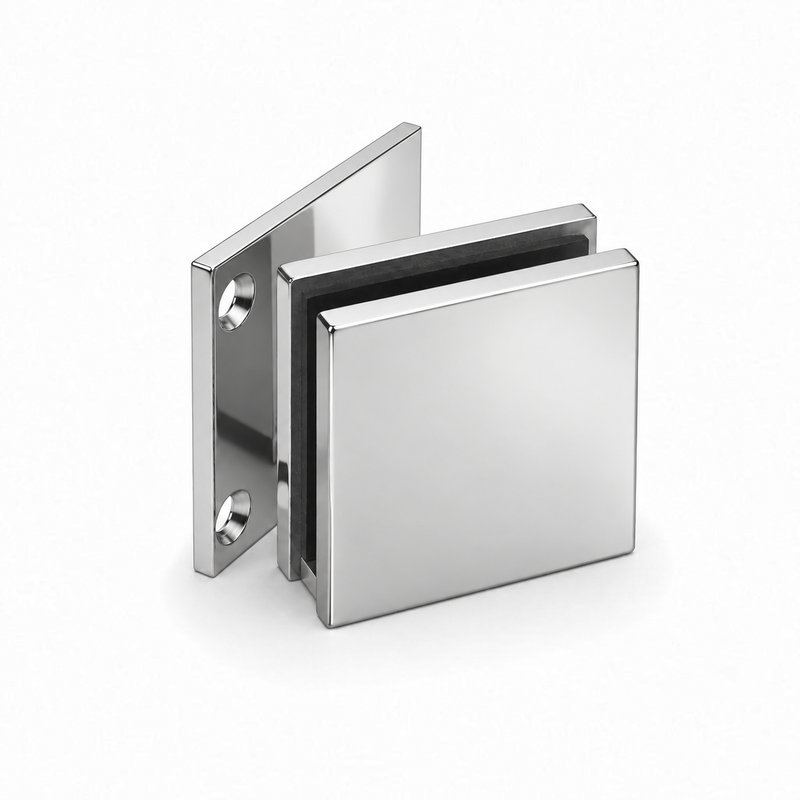

This polished silver square wall to glass shower clamp reference illustrates a proposed finish on the SHS-040 configuration. Square front clamp with a separate wall fixing flange. The concept does not verify production material, finish process, stock or functional performance.

Fit and finish selection

Match the wall flange, substrate anchors and glass retention detail. Set the clamp locations from the enclosure drawing and confirm the supplied protective gaskets.

Approve the physical finish sample and confirm the supplied parts and availability before ordering.

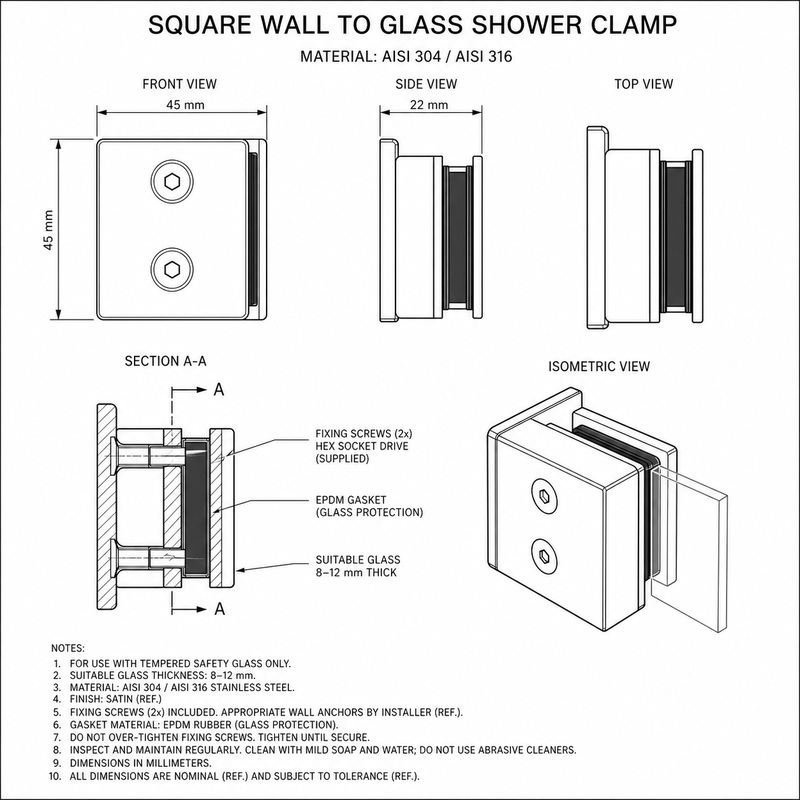

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

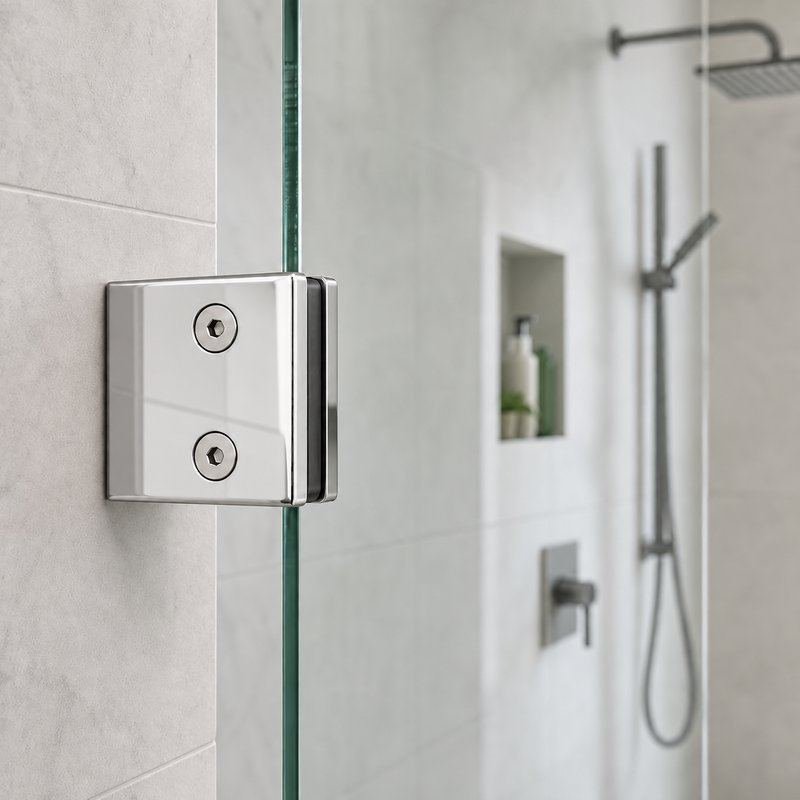

Fixed shower glass panels

Select the clamp or connector for the actual panel junction and mounting surface. Confirm the complete fixed-panel arrangement.

Wet-room glass screens

Review the glass retention detail, gasket fit and connection layout as part of the screen specification.

Enclosure component supply

Define the model, finish and included fixing parts so that repeated shipments match the approved reference.

Customization

Elim Hardware can review drawing-based changes to the glass thickness, panel angle, panel gap, mounting surface and gasket set. Material selection, finish, marking, coordinated accessories and private-label packaging are reviewed for manufacturing feasibility and the intended order.

Confirm the sample and drawing revision before bulk production. Concept finish images illustrate a proposed appearance and do not establish the production material or an available stock finish.

Learn about OEM and ODM development and the relevant manufacturing capabilities.

Frequently Asked Questions

Is the polished silver finish shown here a confirmed production option?

The supplied polished silver images are finish concepts for reference model SHS-040. Confirm a physical sample, the finish process and supply availability before ordering.

Can this wall clamp be used as a door hinge?

It is intended as a fixed glass connection. A door requires an opening hinge with the appropriate mounting and operating specifications.

How are material and finish confirmed?

Proposed material options: AISI 304 / AISI 316 stainless steel. Proposed finish options: Mirror polished. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What are the MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Can this product be customized for a wholesale or project order?

Drawing-based changes can be reviewed. Send the glass thickness, panel angle, panel gap, mounting surface and gasket set, estimated quantity, intended market and packing requirements. The final scope depends on model suitability and manufacturing feasibility.

Specifications

Product model	SHS-040 reference; actual finish-variant SKU to be confirmed
Product configuration	Square front clamp with a separate wall fixing flange
Material	Proposed material options: AISI 304 / AISI 316 stainless steel.
Surface finish	Proposed finish options: Mirror polished.
Dimensions and fitting	Proposed clamp width: 50 mm; body depth: 26 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Glass compatibility	Proposed glass options: 8 / 10 / 12 mm. Model-specific fit is not verified.
Supply scope	Clamp / connector and the agreed gasket / fixing set; complete enclosure hardware as quoted.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Agree the Incoterm, named place and payment terms in the written quotation.
Packaging Agree protective packing, carton quantity and shipping marks for the actual order.
Quality Control Dimensional, surface and assembly checks against the approved sample/drawing; agree model-specific functional inspection. Check the glass thickness, panel angle, panel gap, mounting surface and gasket set.
