Model: EL-GBH-053 (catalogue reference)

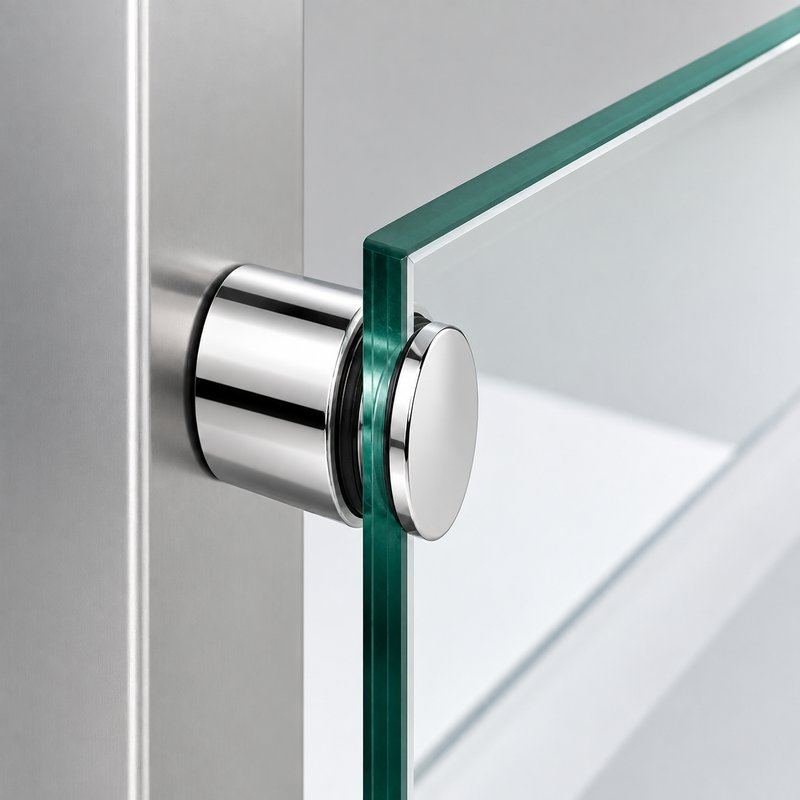

Compare this female-thread glass mounting adapter for connecting a glass point fixing to a compatible threaded support. The design shows a central female thread visible at the rear of the body. Confirm the dimensions, mating components and supplied finish for your project.
Product Highlights

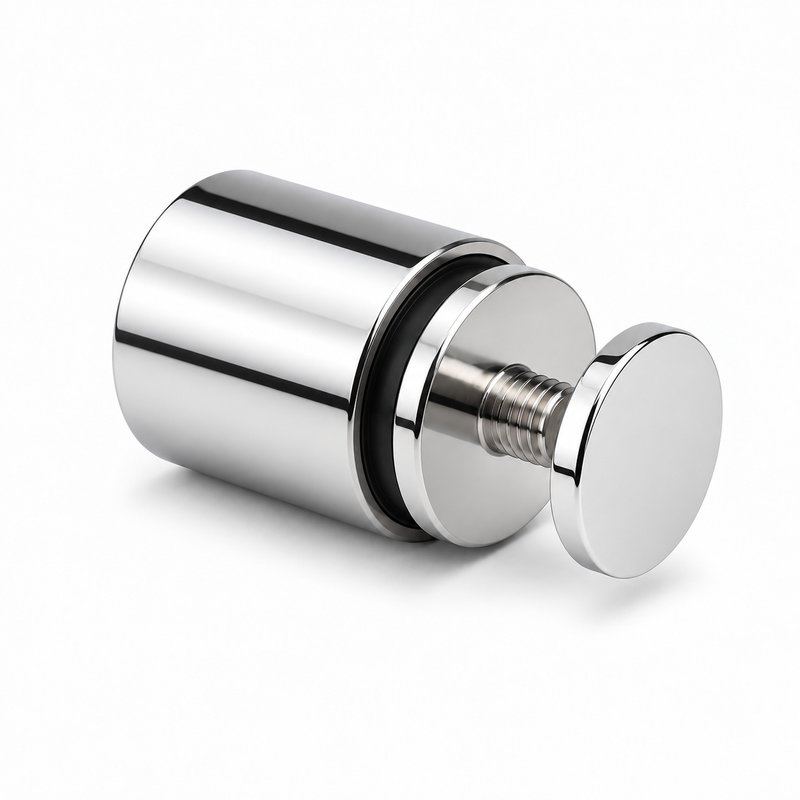

The reflective silver female-thread glass mounting adapter is a reference design for connecting a glass point fixing to a compatible threaded support. It shows a cylindrical mounting body, flat face disc and separating gasket. Review female thread diameter and pitch, glass hole and spacer length before confirming the product specification and supplied parts.

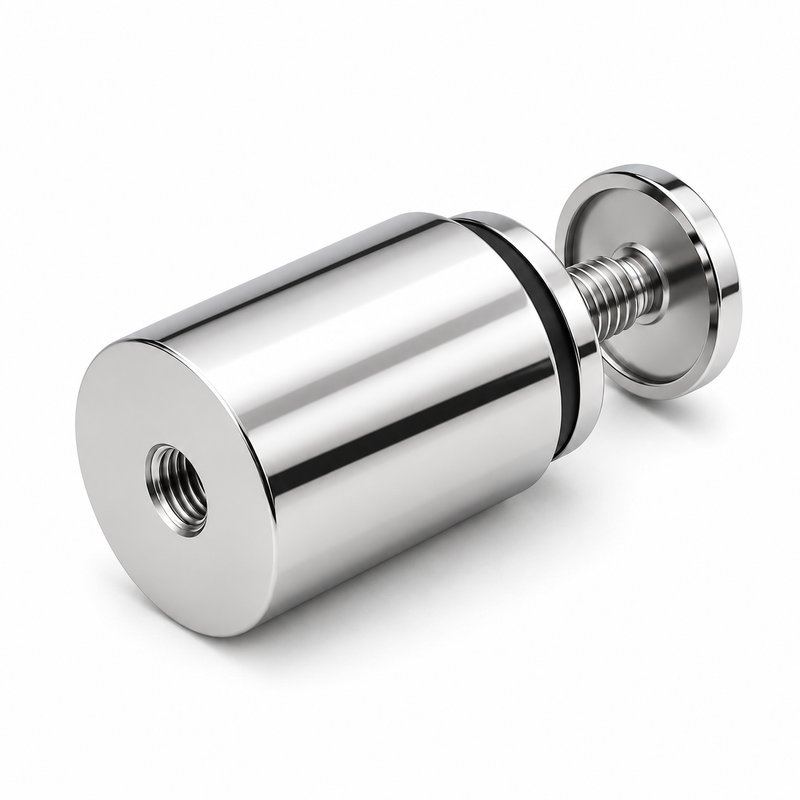

A cylindrical mounting body, flat face disc and separating gasket. The distinguishing detail is a central female thread visible at the rear of the body.
Confirm female thread diameter and pitch, glass hole and spacer length. Material grade, finish process, dimensions and any tested capacity should be checked against the approved specification before ordering.
Reflective silver appearance concept. Confirm which liners, screws, washers and mating components are included. Assembly illustrations show the connection context and do not define the complete supply scope.
Quote catalogue reference EL-GBH-053 and provide quantities, the mating component or panel details, installation environment and finish requirements. Ask for the minimum order, sample timing, production lead time and included parts in the written quotation.
Specify the required configuration and quantity when requesting a quotation. Final dimensions, material, finish and delivery terms are agreed for the selected model.
| Catalogue reference | EL-GBH-053 |
|---|---|
| Material selection | Proposed material options: AISI 304 / AISI 316 stainless steel. |
| Finish reference | Proposed finish options: Mirror polished. |
| Size selection | Proposed cap diameter: 50 mm; mounting thread option: M10. Selection proposal only; not measured dimensions or an installation drawing for this model. |
| Glass compatibility | Proposed glass options: 10 / 12 mm. Model-specific fit is not verified. |
| Minimum order | 200 pieces per model / specification. |
| Sample timing | Proposed sample schedule: 7 calendar days. |
| Production timing | 30 calendar days. |
| Trade terms | Agreed in the quotation, including the delivery term, named place and freight scope. |
Proposed inspection scope: thread engagement, mating geometry and component fit. Agree dimensional tolerances, visual criteria and sampling with the order.
Use individual protective bags or wrapping, separated inner packing and suitable outer cartons. Final pack quantity, labels and protection are agreed with the order.

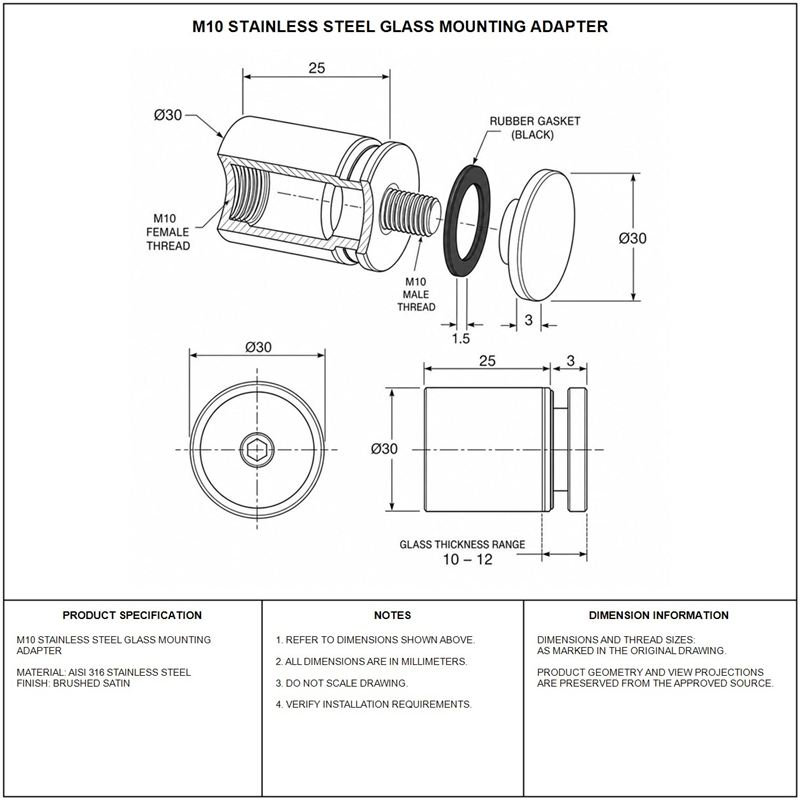

View source reference drawing. This is an unapproved reference image, not a verified manufacturing or installation drawing. Confirm dimensions and applicability against the approved model documentation.
No approved datasheet attached. Request the specification sheet for EL-GBH-053 after selecting the configuration.
No approved installation manual attached. Request instructions for the selected model and fixing arrangement.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Review female thread diameter and pitch, glass hole and spacer length for this connection. Confirm the complete project design before selecting the component.
Send your proposed changes to dimensions, mounting interfaces, surface finish, logo or packaging with a marked drawing. Feasibility, tooling, sample requirements and order quantities must be confirmed for the selected component.
