Model: EL-GBH-080 (catalogue reference)
Compare this round end glass railing post for supporting a glass panel at the end of a post-supported run. The design shows a single-sided panel connection at a railing termination. Confirm the dimensions, mating components and supplied finish for your project.
Product Highlights

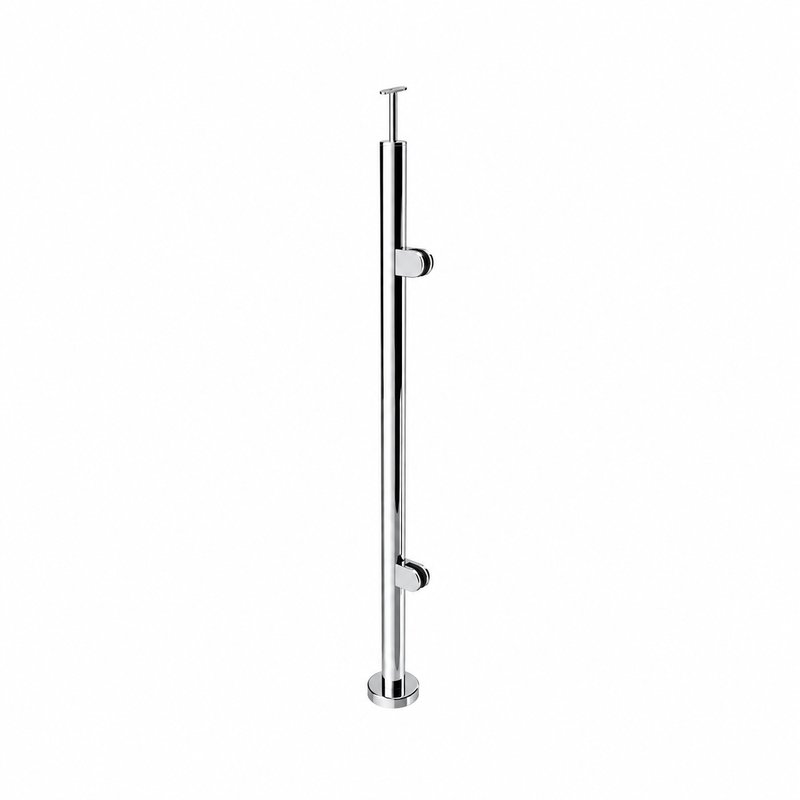

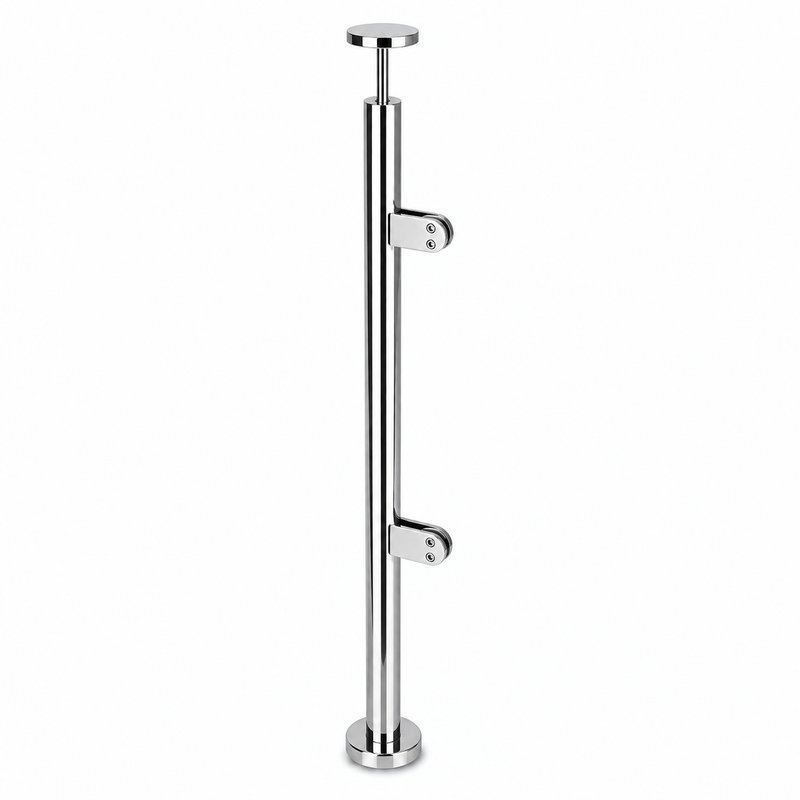

The reflective silver round end glass railing post is a reference design for supporting a glass panel at the end of a post-supported run. It shows a round upright with two glass clamps on one side. Review end clearance, clamp positions, handrail support and base anchorage before confirming the product specification and supplied parts.
A round upright with two glass clamps on one side. The distinguishing detail is a single-sided panel connection at a railing termination.
Confirm end clearance, clamp positions, handrail support and base anchorage. Material grade, finish process, dimensions and any tested capacity should be checked against the approved specification before ordering.

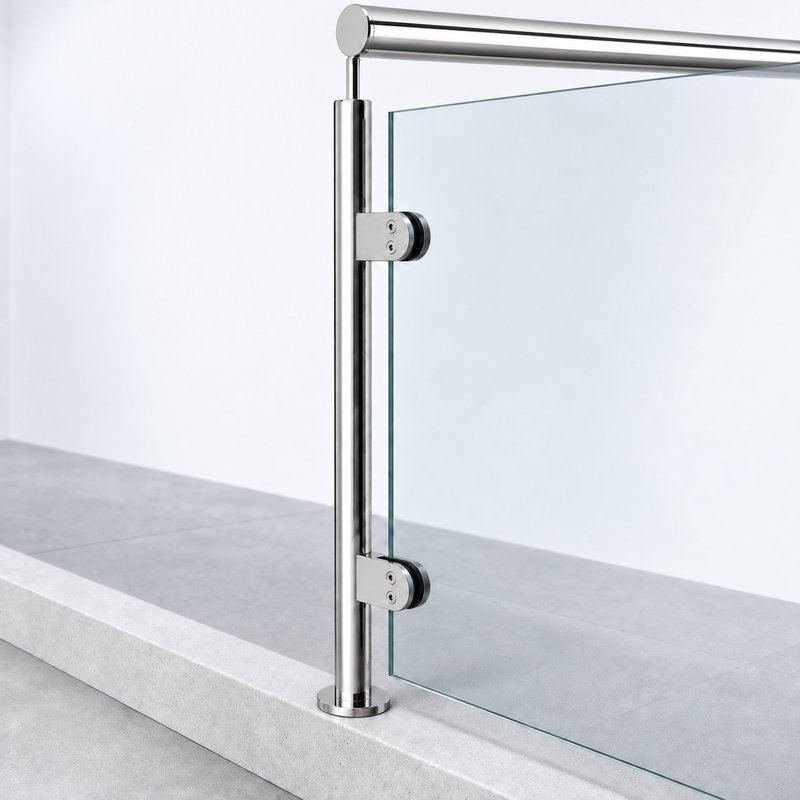

Reflective silver appearance concept. Confirm which liners, screws, washers and mating components are included. Assembly illustrations show the connection context and do not define the complete supply scope.
Quote catalogue reference EL-GBH-080 and provide quantities, the mating component or panel details, installation environment and finish requirements. Ask for the minimum order, sample timing, production lead time and included parts in the written quotation.
Specify the required configuration and quantity when requesting a quotation. Final dimensions, material, finish and delivery terms are agreed for the selected model.
| Catalogue reference | EL-GBH-080 |
|---|---|
| Material selection | Proposed material options: AISI 304 / AISI 316 stainless steel. |
| Finish reference | Proposed finish options: Mirror polished. |
| Size selection | Round tube interface: diameter 42.4 / 48.3 mm. Selection proposal only; not measured dimensions or an installation drawing for this model. |
| Glass compatibility | Proposed glass options: 10 / 12 mm. Model-specific fit is not verified. |
| Minimum order | 200 pieces per model / specification. |
| Sample timing | Proposed sample schedule: 7 calendar days. |
| Production timing | 30 calendar days. |
| Trade terms | Agreed in the quotation, including the delivery term, named place and freight scope. |
Proposed inspection scope: post alignment, clamp positions and fit of the base or side-fixing interface. Agree dimensional tolerances, visual criteria and sampling with the order.
Protect post surfaces and fixing plates; separate loose fittings within the outer pack. Final pack quantity, labels and protection are agreed with the order.
View source reference drawing. This is an unapproved reference image, not a verified manufacturing or installation drawing. Confirm dimensions and applicability against the approved model documentation.
No approved datasheet attached. Request the specification sheet for EL-GBH-080 after selecting the configuration.
No approved installation manual attached. Request instructions for the selected model and fixing arrangement.

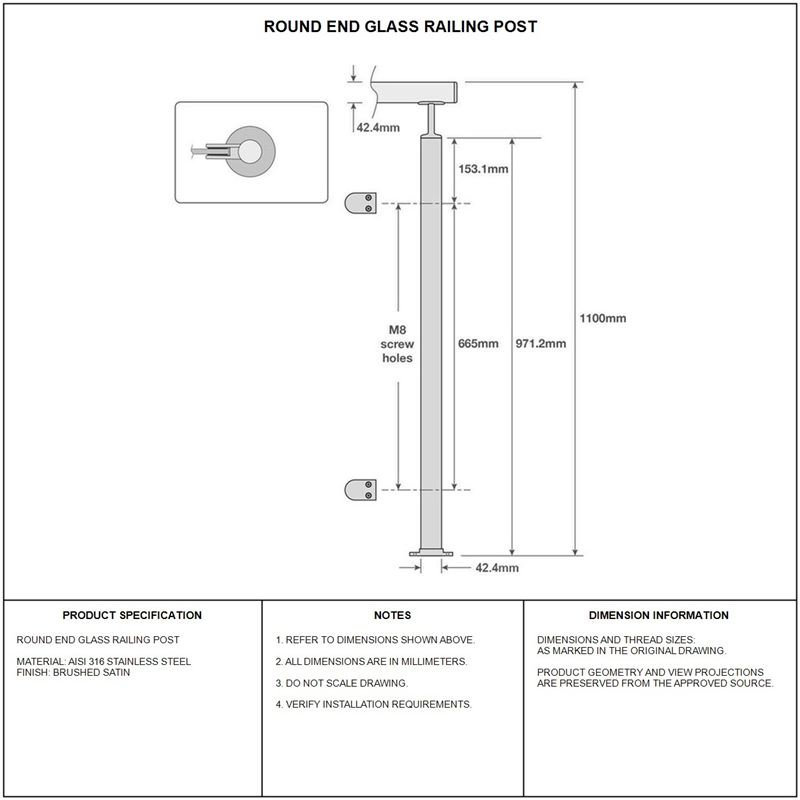

View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Review end clearance, clamp positions, handrail support and base anchorage for this connection. Confirm the complete project design before selecting the component.
Send your proposed changes to dimensions, mounting interfaces, surface finish, logo or packaging with a marked drawing. Feasibility, tooling, sample requirements and order quantities must be confirmed for the selected component.
