Model: EL-GBH-096 (catalogue reference)
Compare this square slotted glass handrail tube for capping a glass edge with a square top-rail profile. The design shows a U-shaped internal pocket for a compatible glass edge. Confirm the dimensions, mating components and supplied finish for your project.
Product Highlights

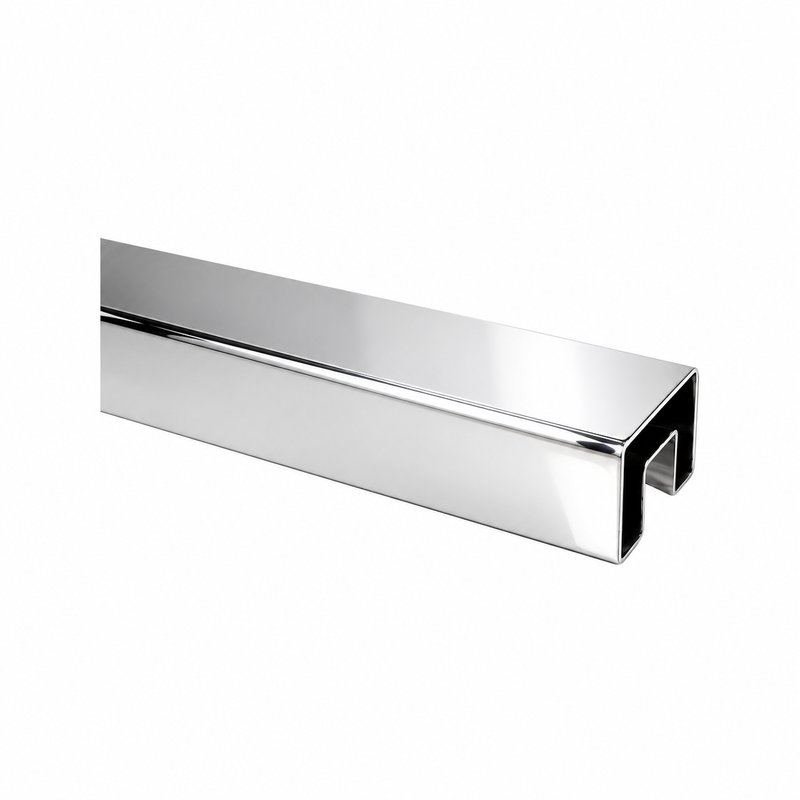

The reflective silver square slotted glass handrail tube is a reference design for capping a glass edge with a square top-rail profile. It shows a square outer rail with a continuous underside slot. Review rail width, height, slot dimensions and liner requirements before confirming the product specification and supplied parts.

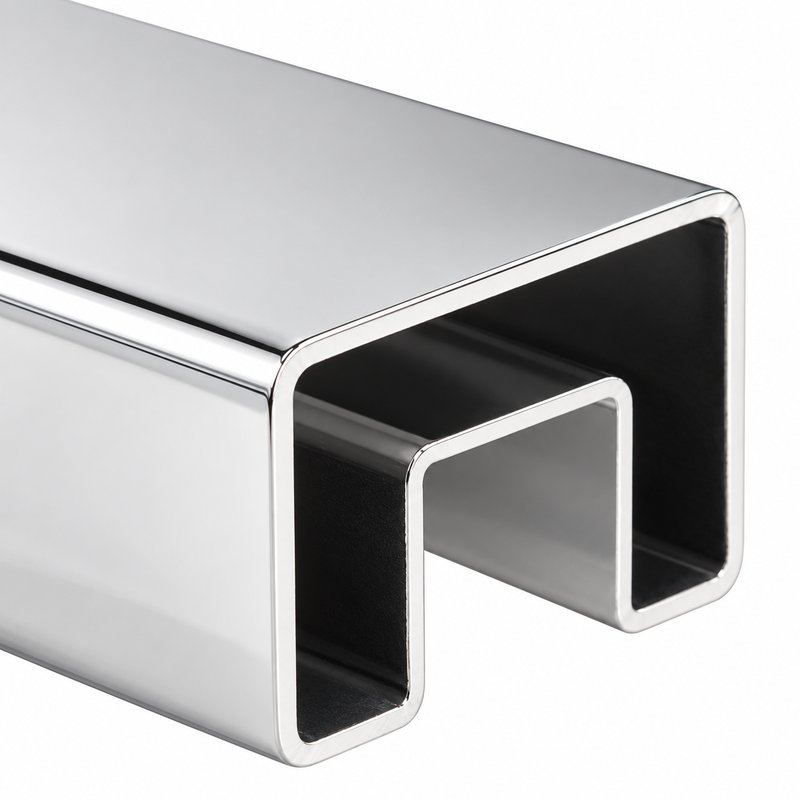

A square outer rail with a continuous underside slot. The distinguishing detail is a U-shaped internal pocket for a compatible glass edge.
Confirm rail width, height, slot dimensions and liner requirements. Material grade, finish process, dimensions and any tested capacity should be checked against the approved specification before ordering.
Reflective silver appearance concept. Confirm which liners, screws, washers and mating components are included. Assembly illustrations show the connection context and do not define the complete supply scope.
Quote catalogue reference EL-GBH-096 and provide quantities, the mating component or panel details, installation environment and finish requirements. Ask for the minimum order, sample timing, production lead time and included parts in the written quotation.
Specify the required configuration and quantity when requesting a quotation. Final dimensions, material, finish and delivery terms are agreed for the selected model.
| Catalogue reference | EL-GBH-096 |
|---|---|
| Material selection | Proposed material options: AISI 304 / AISI 316 stainless steel. |
| Finish reference | Proposed finish options: Mirror polished. |
| Size selection | Proposed square tube interface: 40 x 40 / 50 x 50 mm. Selection proposal only; not measured dimensions or an installation drawing for this model. |
| Glass compatibility | Proposed glass options: 10 / 12 mm. Model-specific fit is not verified. |
| Minimum order | 200 pieces per model / specification. |
| Sample timing | Proposed sample schedule: 7 calendar days. |
| Production timing | 30 calendar days. |
| Trade terms | Agreed in the quotation, including the delivery term, named place and freight scope. |
Proposed inspection scope: profile dimensions, slot continuity and fit with the selected liner and connectors. Agree dimensional tolerances, visual criteria and sampling with the order.
Protect the tube surfaces and cut ends with sleeves, separators and suitable outer packing. Final pack quantity, labels and protection are agreed with the order.

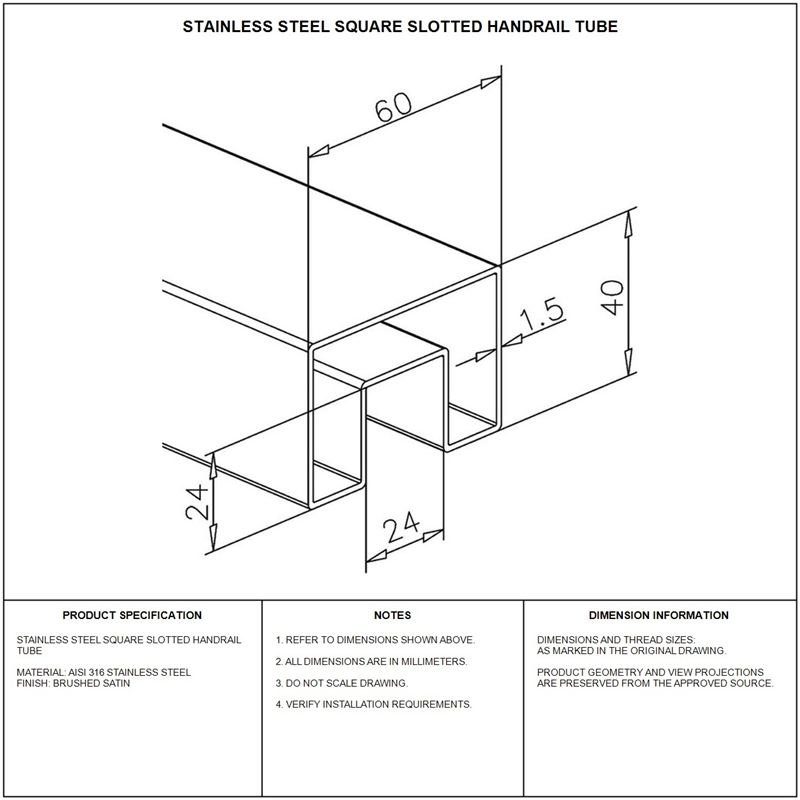

View source reference drawing. This is an unapproved reference image, not a verified manufacturing or installation drawing. Confirm dimensions and applicability against the approved model documentation.
No approved datasheet attached. Request the specification sheet for EL-GBH-096 after selecting the configuration.
No approved installation manual attached. Request instructions for the selected model and fixing arrangement.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Review rail width, height, slot dimensions and liner requirements for this connection. Confirm the complete project design before selecting the component.
Send your proposed changes to dimensions, mounting interfaces, surface finish, logo or packaging with a marked drawing. Feasibility, tooling, sample requirements and order quantities must be confirmed for the selected component.
