Model: EL-GBH-077 (catalogue reference)
Compare this round inline glass railing post for supporting adjacent panels along a straight railing run. The design shows clamp connections on both sides for adjacent panel positions. Confirm the dimensions, mating components and supplied finish for your project.
Product Highlights

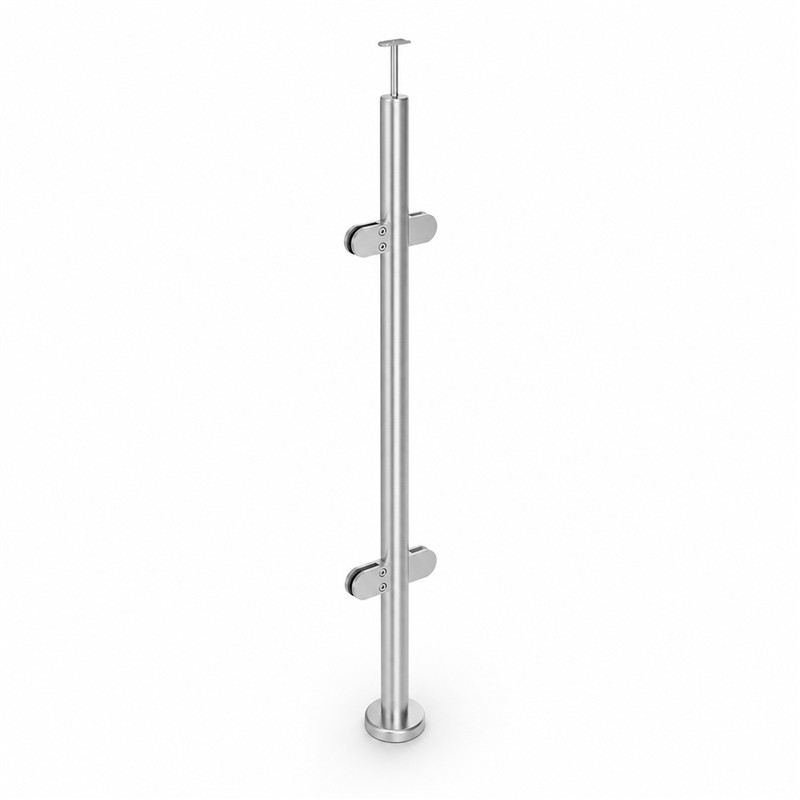

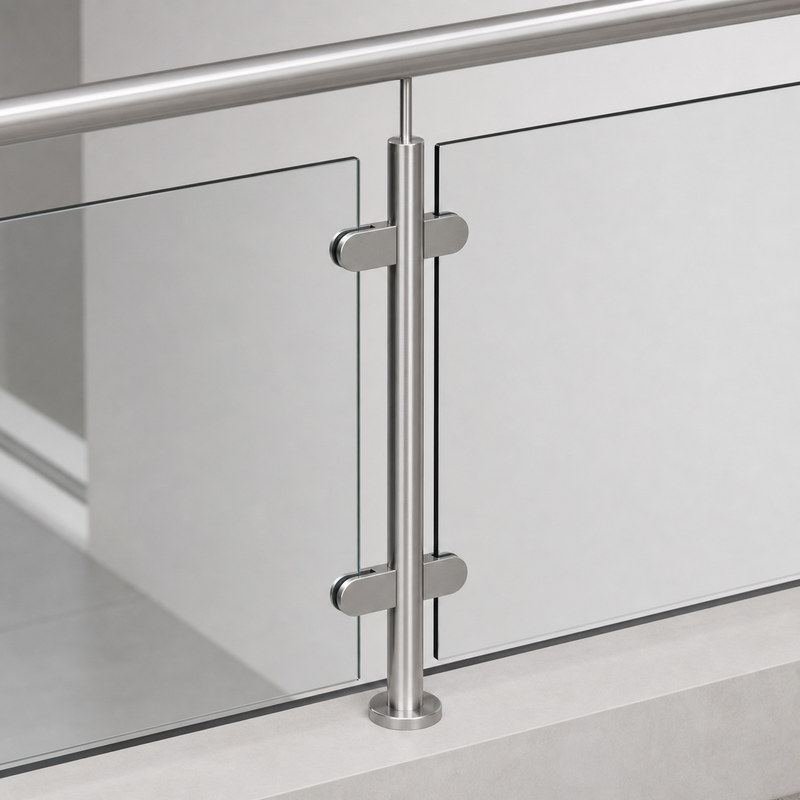

This round inline glass railing post is shown for supporting adjacent panels along a straight railing run. Its visible construction includes a round upright with opposing clamps at two heights. Compare the component views and confirm panel spacing, post height, clamp alignment and anchoring detail for the required assembly.

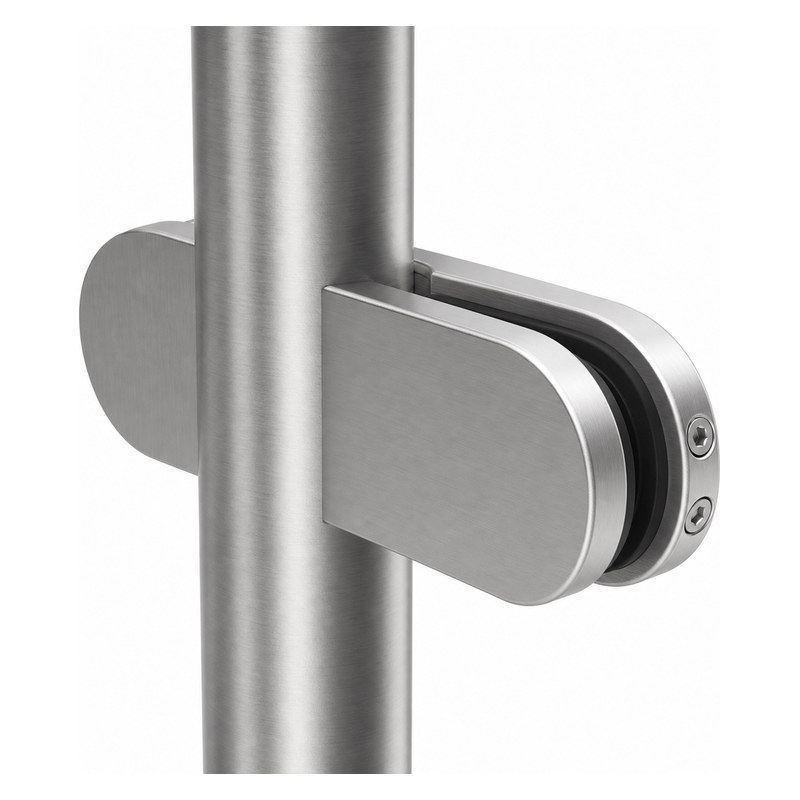

Clamp connections on both sides for adjacent panel positions. This detail separates the design from other components in the same category.
Silver appearance shown. This view shows a round upright with opposing clamps at two heights. Use catalogue reference EL-GBH-077 when identifying the appearance in an enquiry. Confirm material and surface process before specifying a supplied finish.
Confirm panel spacing, post height, clamp alignment and anchoring detail. The supplied reference images do not establish material grade, glass thickness, rated capacity or installation spacing. Request the approved specification and fixing detail for the selected configuration.
Send the product reference, quantities, mating component details, installation environment and preferred finish. Ask for feasibility of any custom changes and for the MOQ, sample timing, production lead time, packing and trade terms in the quotation.
Specify the required configuration and quantity when requesting a quotation. Final dimensions, material, finish and delivery terms are agreed for the selected model.
| Catalogue reference | EL-GBH-077 |
|---|---|
| Material selection | Proposed material options: AISI 304 / AISI 316 stainless steel. |
| Finish reference | Proposed finish options: Satin brushed / mirror polished. |
| Size selection | Round tube interface: diameter 42.4 / 48.3 mm. Selection proposal only; not measured dimensions or an installation drawing for this model. |
| Glass compatibility | Proposed glass options: 10 / 12 mm. Model-specific fit is not verified. |
| Minimum order | 200 pieces per model / specification. |
| Sample timing | Proposed sample schedule: 7 calendar days. |
| Production timing | 30 calendar days. |
| Trade terms | Agreed in the quotation, including the delivery term, named place and freight scope. |

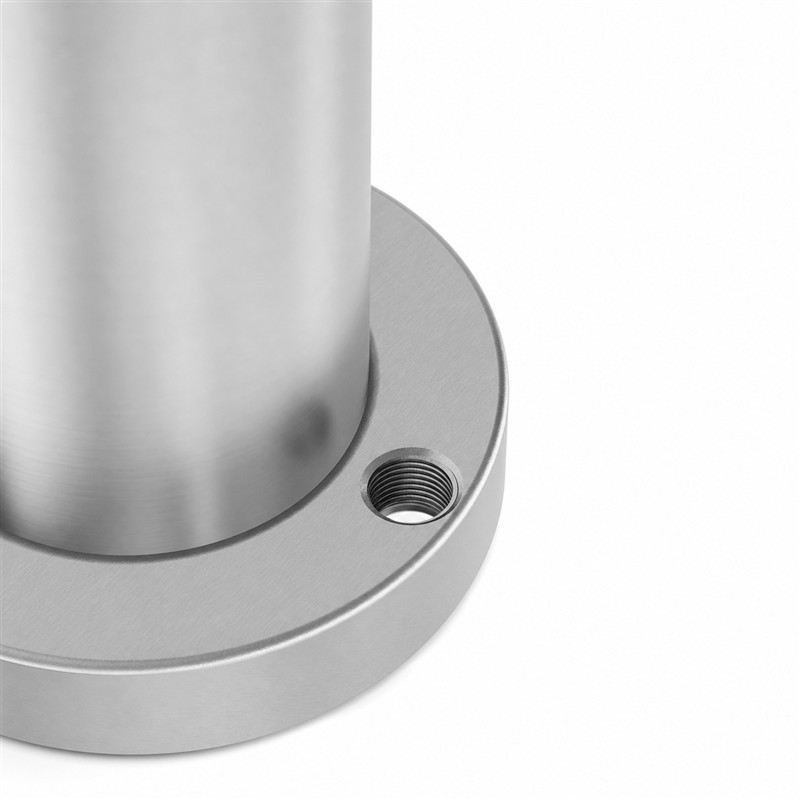

Proposed inspection scope: post alignment, clamp positions and fit of the base or side-fixing interface. Agree dimensional tolerances, visual criteria and sampling with the order.
Protect post surfaces and fixing plates; separate loose fittings within the outer pack. Final pack quantity, labels and protection are agreed with the order.

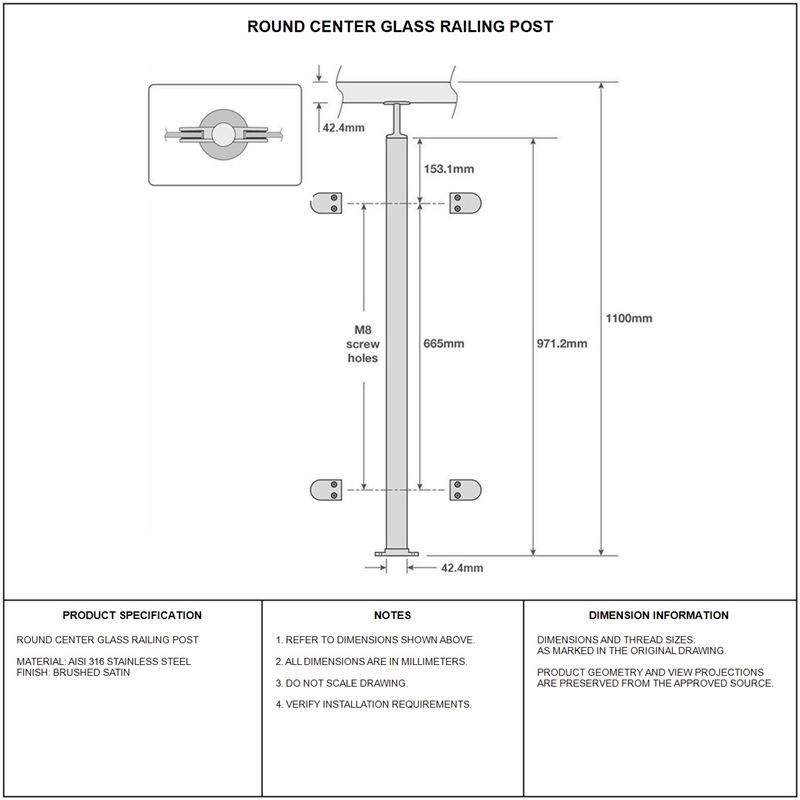

View source reference drawing. This is an unapproved reference image, not a verified manufacturing or installation drawing. Confirm dimensions and applicability against the approved model documentation.
No approved datasheet attached. Request the specification sheet for EL-GBH-077 after selecting the configuration.
No approved installation manual attached. Request instructions for the selected model and fixing arrangement.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Review panel spacing, post height, clamp alignment and anchoring detail for this connection. Confirm the complete project design before selecting the component.
Send your proposed changes to dimensions, mounting interfaces, surface finish, logo or packaging with a marked drawing. Feasibility, tooling, sample requirements and order quantities must be confirmed for the selected component.
