Model: PFH-022 (image reference; model to confirm)

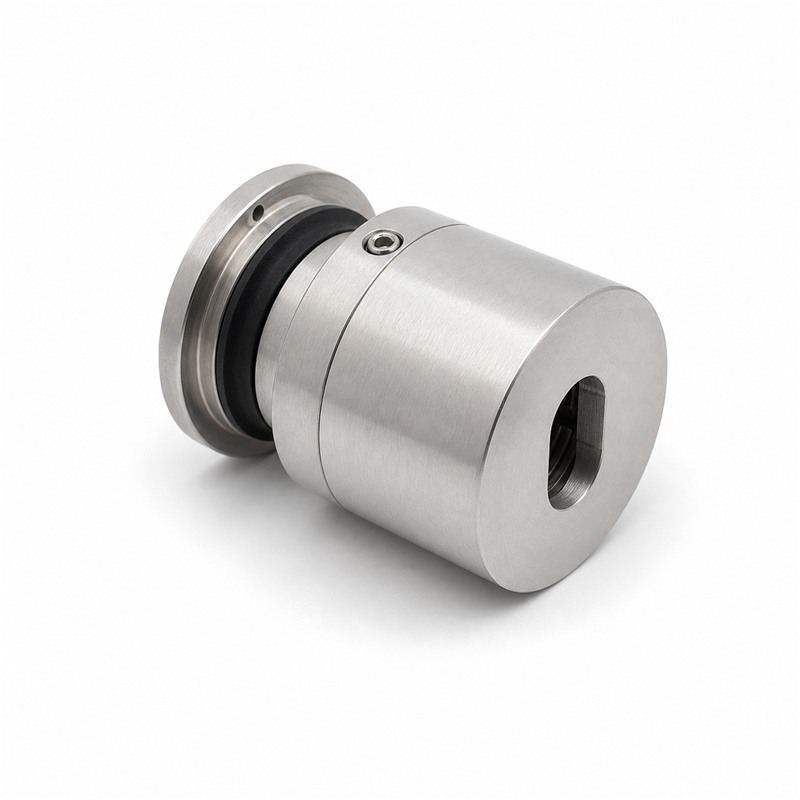

This glass standoff shows a cylindrical body, slotted cap, black gasket and visible side set screw. Compare the pictured connection layout with your project, then confirm material, dimensions and fixing requirements with Elim Hardware.
Product Highlights
A cylindrical body.
Round panel standoff.

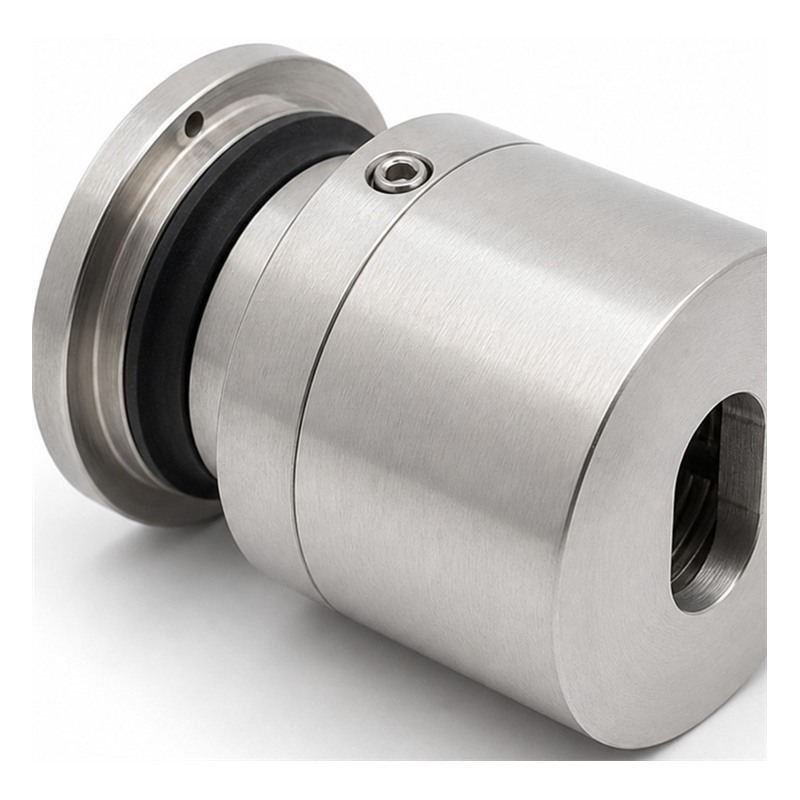

Visible side set screw and slotted cap.
The set screw glass pool fence standoff reference shows a cylindrical body, slotted cap, black gasket and visible side set screw. The pictured layout is round panel standoff. Use the close views to compare the connection and fixing arrangement.

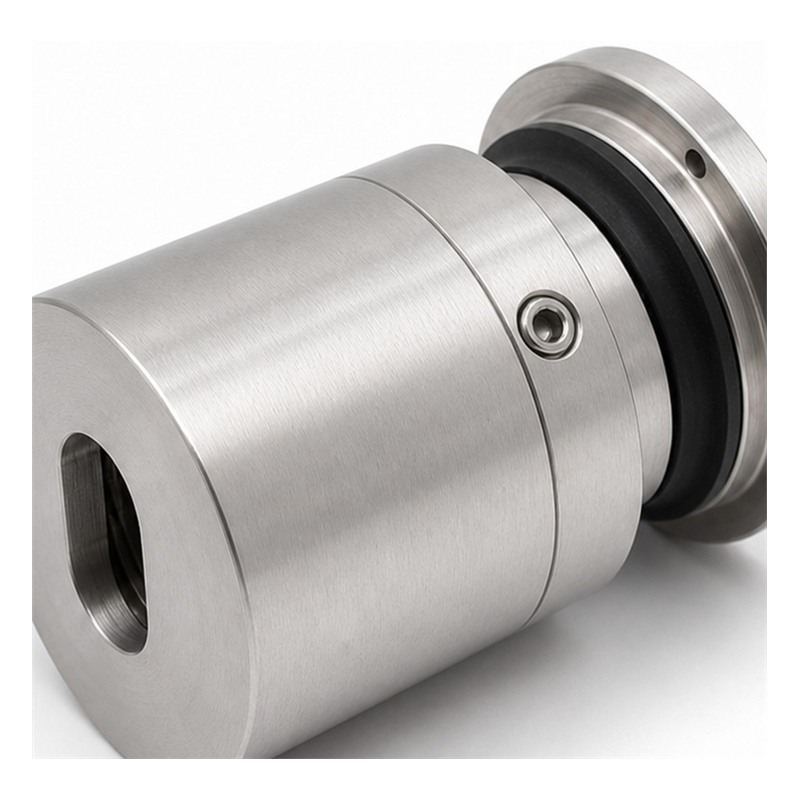

This reference shows a black gasket and visible side set screw. The slotted-face alternative shows a pale gasket and smaller side screws.

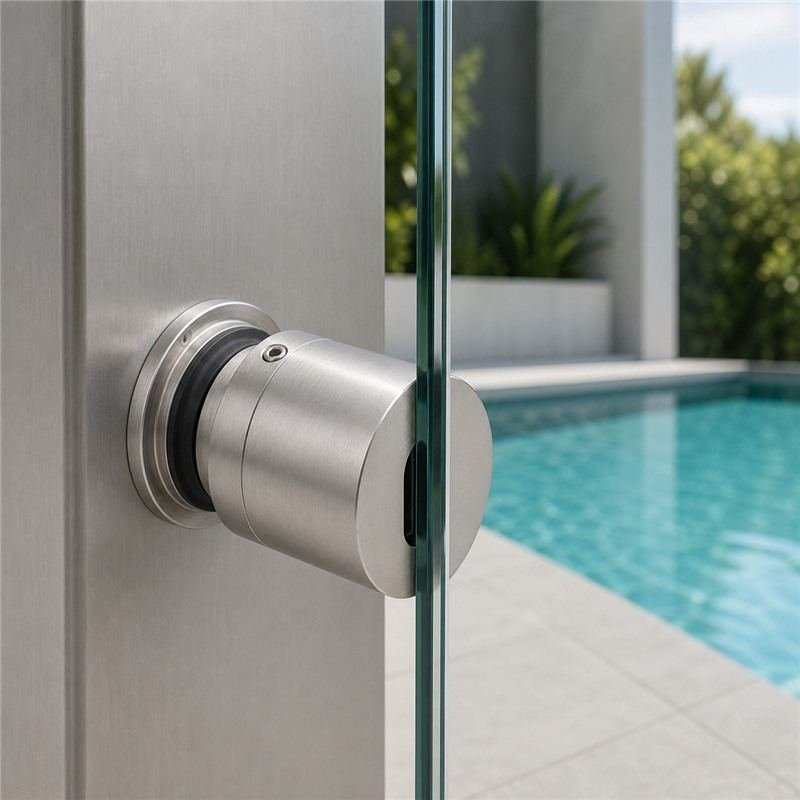

Contact Elim Hardware with the required panel layout, mounting substrate, project location, quantity and preferred appearance. Request the released drawing, confirmed material, dimensions and compatible glass specification for the selected reference. Finish concepts and scene visualisations show appearance only.
Use PFH-022 as the image reference when requesting model confirmation. Provide panel layout, fixing positions, substrate, spacer arrangement and contact liners. Proposed cap diameter: 50 mm; mounting thread option: M10. Selection proposal only; not measured dimensions or an installation drawing for this model.
Coordinate the glass-hole and stud details with the released drawing. Confirm the full fixing assembly and mounting substrate before selecting the component. Confirm the complete installation details and the evidence required for the project location before specification.

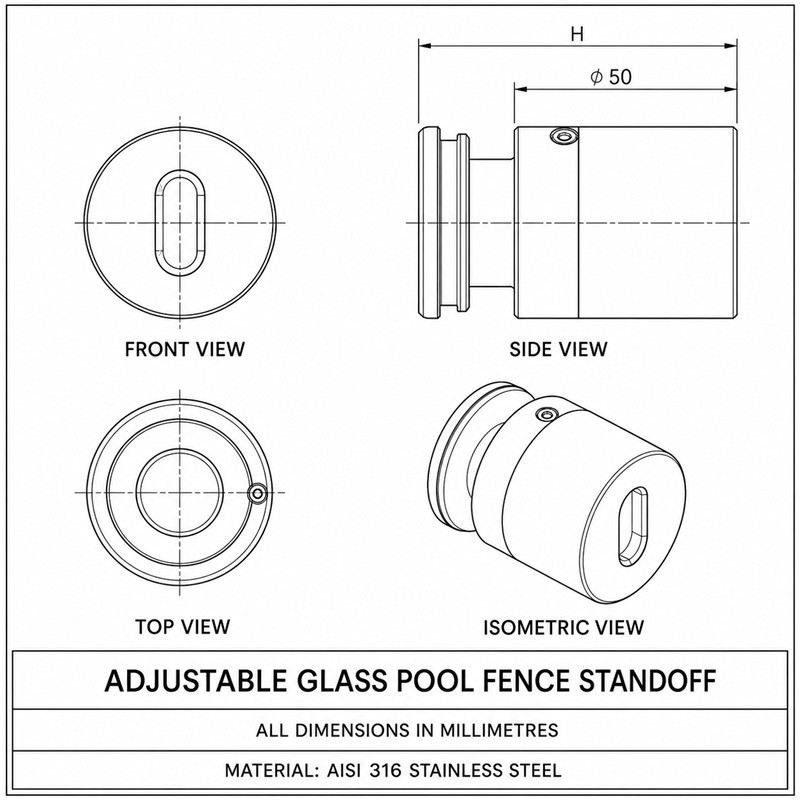

View the reference drawing image for discussion. This reference image is not an approved manufacturing or installation drawing. Request the released dimensional drawing, product specification and applicable installation instructions for the confirmed model.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Compare the pictured round panel standoff with the project layout. Submit panel layout, fixing positions, substrate, spacer arrangement and contact liners for model and fit confirmation.
Provide the existing part reference, photographs and measurements of cap and body diameter, projection, stud thread, fixing depth and glass-hole preparation. Confirm compatibility before substituting a component; a similar appearance does not establish interchangeability.
Prepare an itemised schedule with the selected reference, quantities, finish and delivery destination. Confirm the included standoff body, cap, stud, spacers and glass-contact liners and any project-specific documentation in the quotation.
Send the required changes to cap and body diameter, projection, stud thread, fixing depth and glass-hole preparation, together with the panel layout, quantity and finish reference, for feasibility review. Confirm material, finish, marking and packing requirements in the quotation.
Agree the model drawing, physical sample and included parts before bulk production. Appearance concepts illustrate a proposed finish; production availability requires confirmation.
