Model: PFH-077 (image reference; model to confirm)
This finish concept shows a silver-colour hinge body, conical barrel caps and right-angle mounting leaf. Use the matte silver appearance concept to discuss appearance and project requirements. Confirm the production finish and model specification before ordering.
Product Highlights
A silver-colour hinge body.
Wall-to-glass layout.

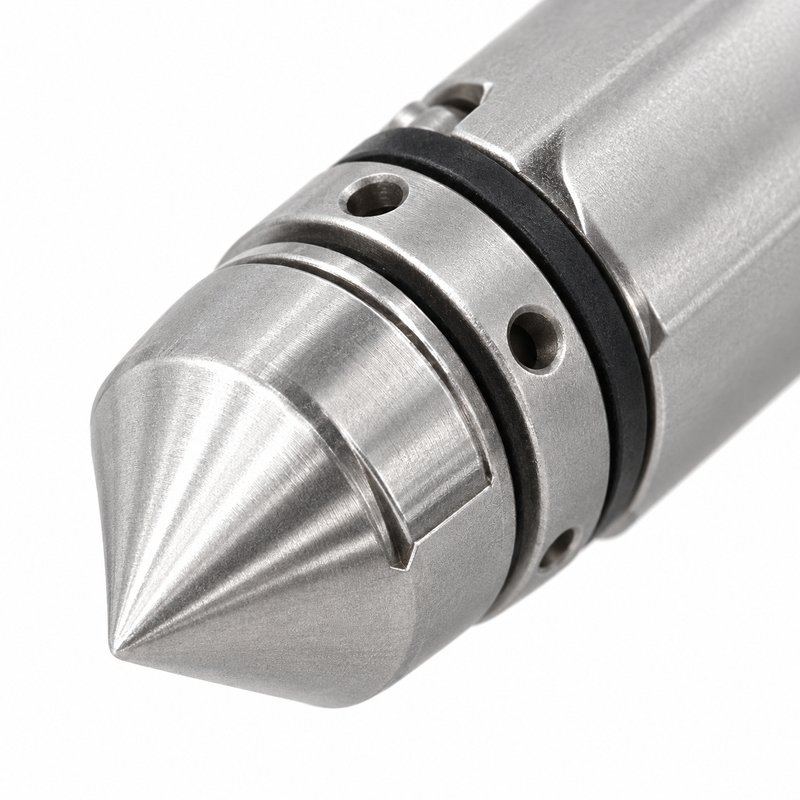

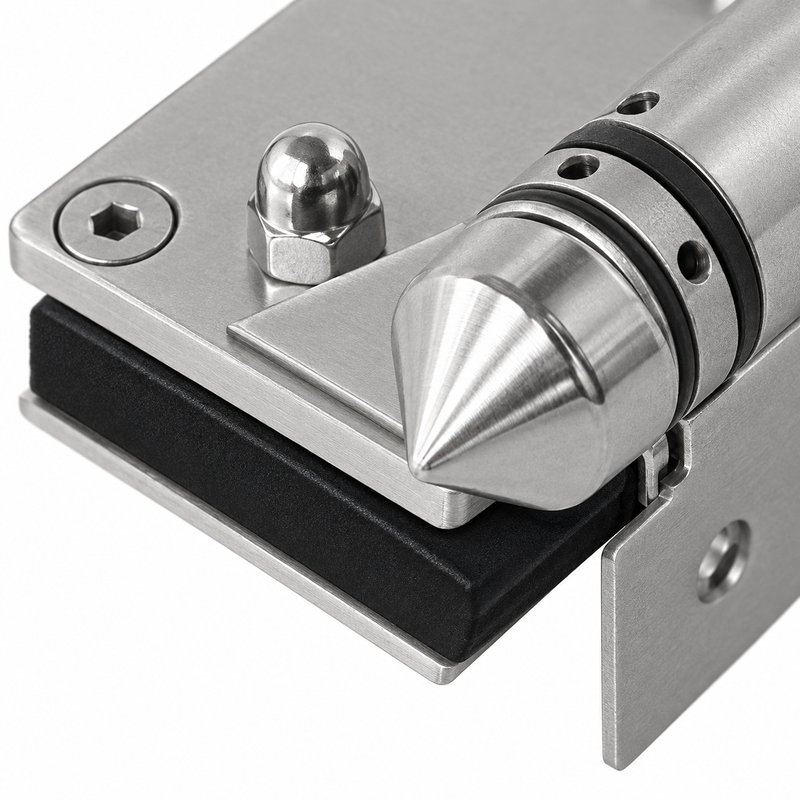

Visible silver barrel cap and clamp plate and fasteners.

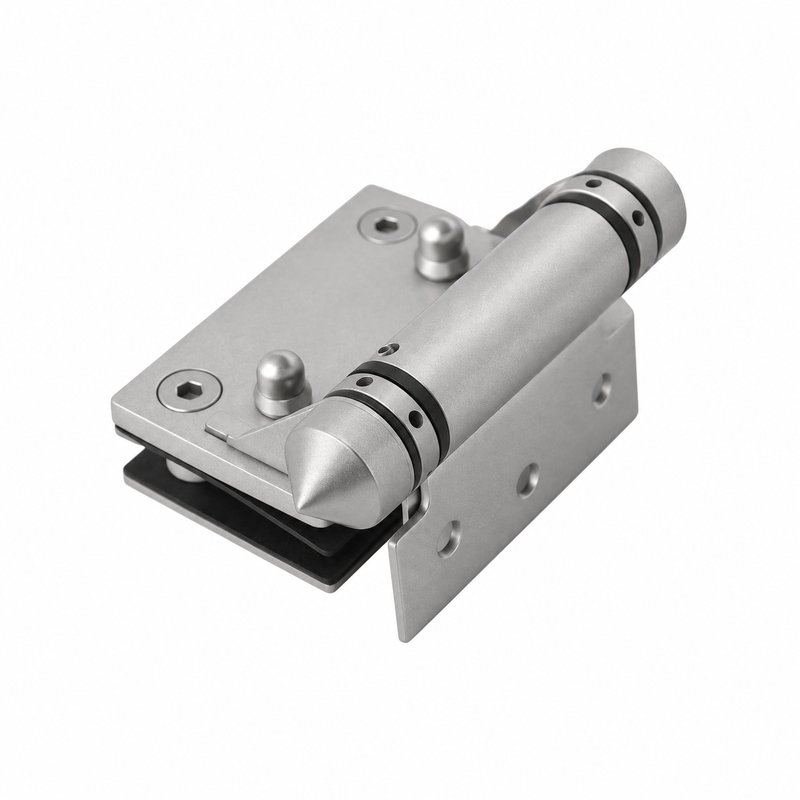

The matte silver conical cap wall mount pool gate hinge concept shows a right-angle mounting leaf, glass clamp and barrel with conical end caps. This image illustrates matte silver appearance. Confirm the production material and finish against an approved sample.
Use PFH-077 as the image reference when requesting model confirmation. Provide gate dimensions and weight, hinge quantity, opening clearance and required operating behaviour. Proposed glass interface options: 10 / 12 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Discuss the intended opening and closing behaviour for the complete gate. A hinge photograph does not establish self-closing operation or a rated gate load. Confirm the complete installation details and the evidence required for the project location before specification.

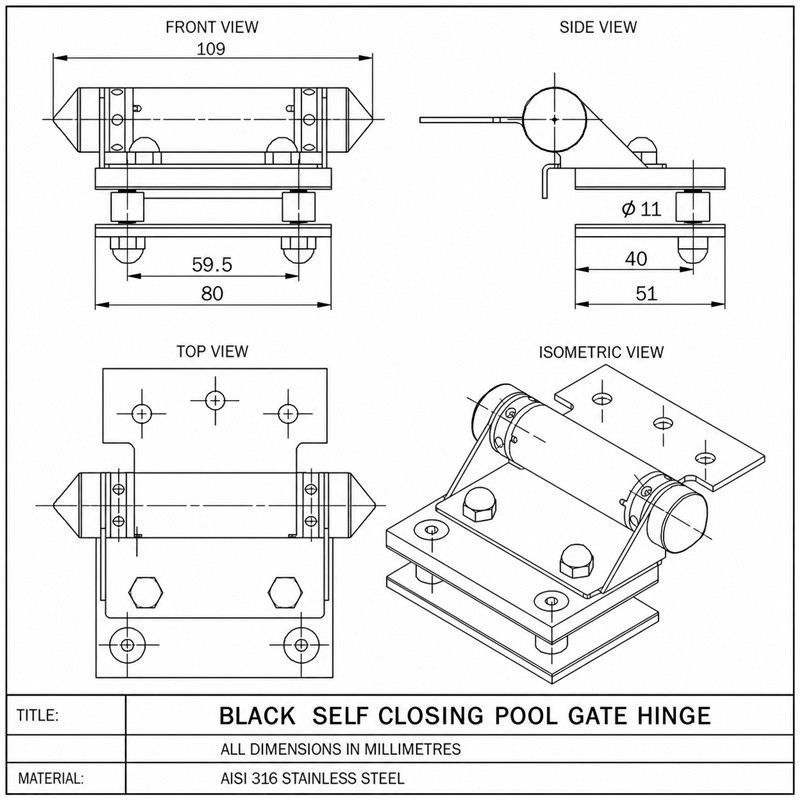

View the reference drawing image for discussion. This reference image is not an approved manufacturing or installation drawing. Request the released dimensional drawing, product specification and applicable installation instructions for the confirmed model.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Compare the pictured wall-to-glass layout with the project layout. Submit gate dimensions and weight, hinge quantity, opening clearance and required operating behaviour for model and fit confirmation.
Provide the existing part reference, photographs and measurements of hinge mounting faces, pivot position, leaf dimensions, fixing centres and glass preparation. Confirm compatibility before substituting a component; a similar appearance does not establish interchangeability.
Prepare an itemised schedule with the selected reference, quantities, finish and delivery destination. Confirm the included hinge bodies, matching gaskets, mounting parts and fasteners and any project-specific documentation in the quotation.
Send the required changes to hinge mounting faces, pivot position, leaf dimensions, fixing centres and glass preparation, together with the panel layout, quantity and finish reference, for feasibility review. Confirm material, finish, marking and packing requirements in the quotation.
Agree the model drawing, physical sample and included parts before bulk production. Appearance concepts illustrate a proposed finish; production availability requires confirmation.
