Model: PFH-086 (image reference; model to confirm)
This finish concept shows a cylindrical body with elongated face opening, small side screws and pale gasket. Use the polished silver appearance concept to discuss appearance and project requirements. Confirm the production finish and model specification before ordering.
Product Highlights
A cylindrical body with elongated face opening.
Round side fixing.

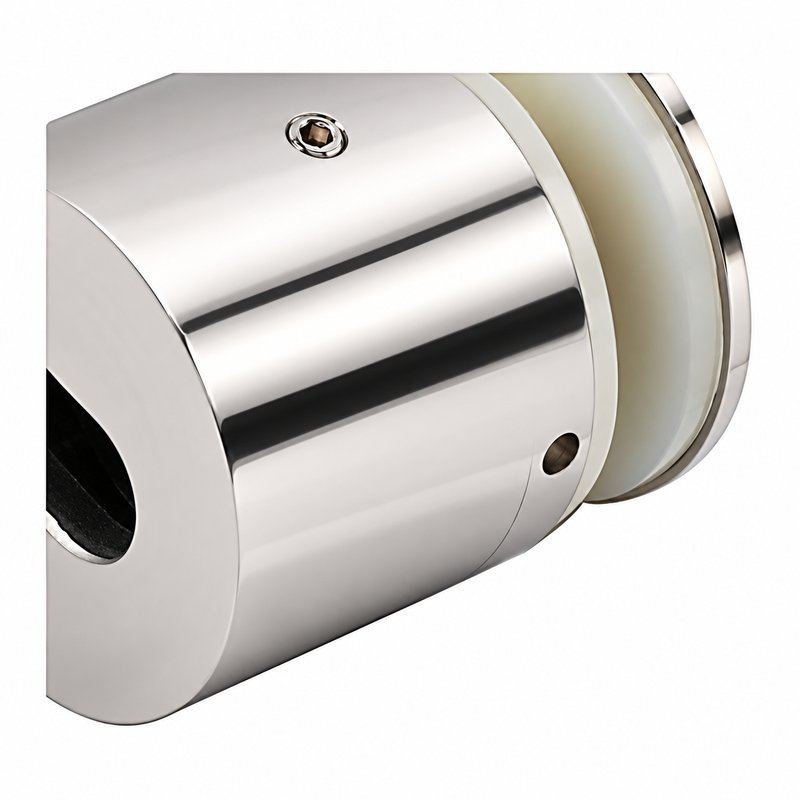

Visible slotted face and gasket and side set screw.

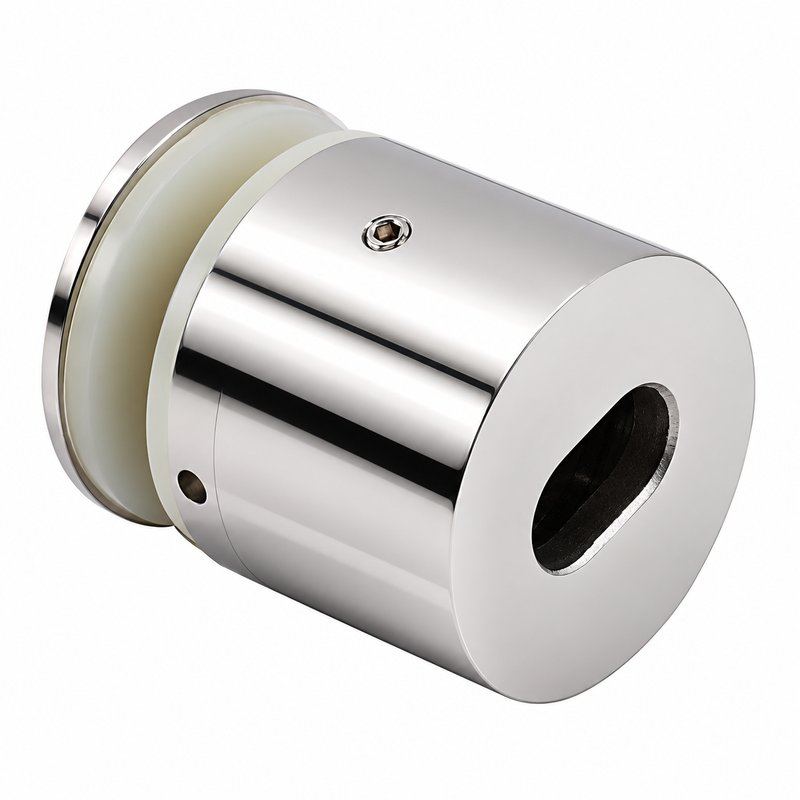

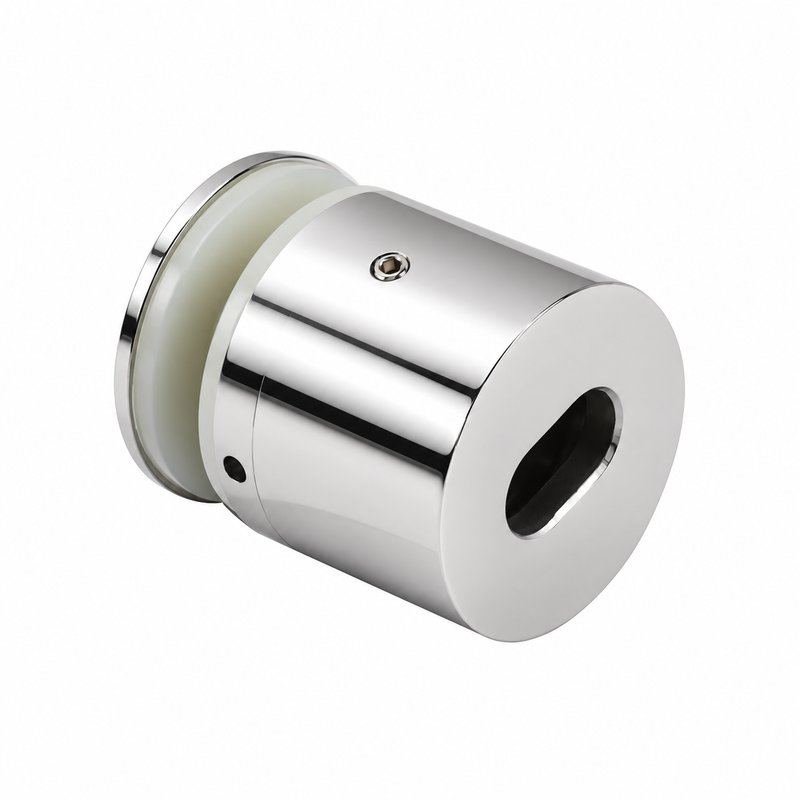

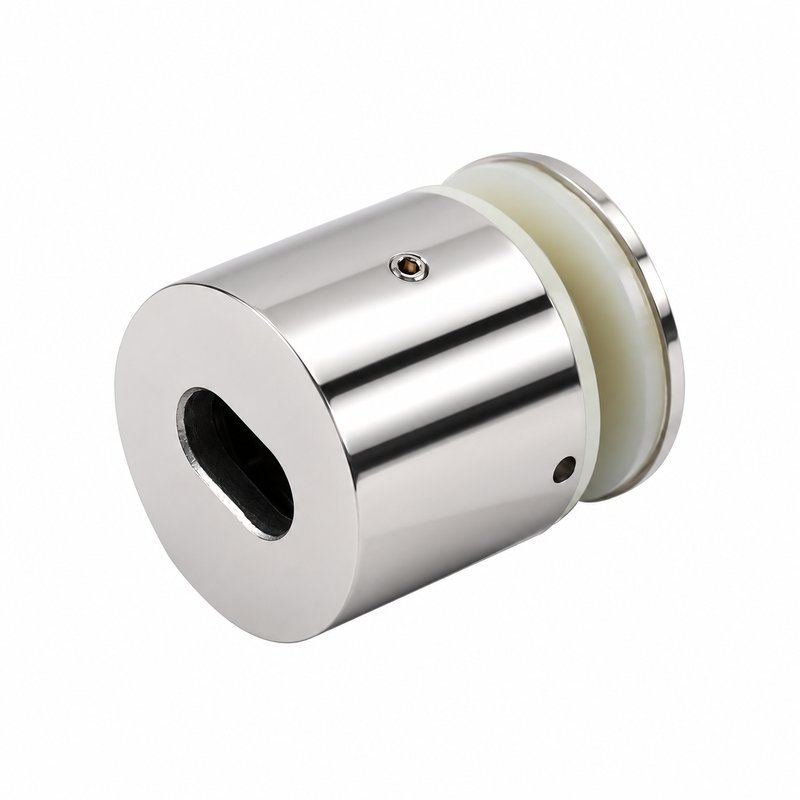

The polished silver slotted face glass pool fence standoff concept shows a cylindrical body with elongated face opening, small side screws and pale gasket. This image illustrates polished silver appearance. Confirm the production material and finish against an approved sample.
Use PFH-086 as the image reference when requesting model confirmation. Provide panel layout, fixing positions, substrate, spacer arrangement and contact liners. Proposed cap diameter: 50 mm; mounting thread option: M10. Selection proposal only; not measured dimensions or an installation drawing for this model.
Coordinate the glass-hole and stud details with the released drawing. Confirm the full fixing assembly and mounting substrate before selecting the component. Confirm the complete installation details and the evidence required for the project location before specification.

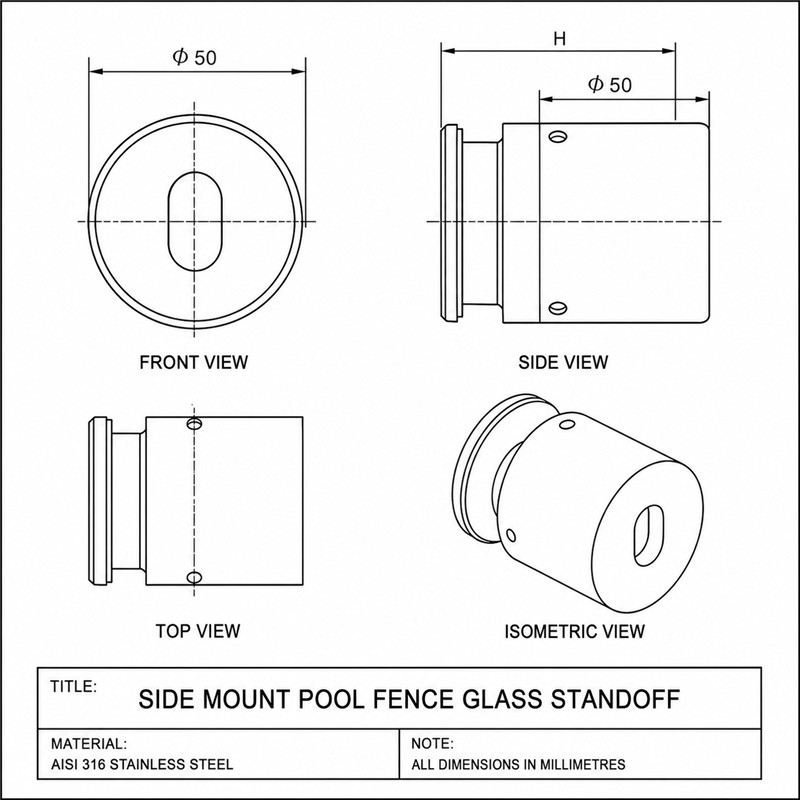

View the reference drawing image for discussion. This reference image is not an approved manufacturing or installation drawing. Request the released dimensional drawing, product specification and applicable installation instructions for the confirmed model.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Compare the pictured round side fixing with the project layout. Submit panel layout, fixing positions, substrate, spacer arrangement and contact liners for model and fit confirmation.
Provide the existing part reference, photographs and measurements of cap and body diameter, projection, stud thread, fixing depth and glass-hole preparation. Confirm compatibility before substituting a component; a similar appearance does not establish interchangeability.
Prepare an itemised schedule with the selected reference, quantities, finish and delivery destination. Confirm the included standoff body, cap, stud, spacers and glass-contact liners and any project-specific documentation in the quotation.
Send the required changes to cap and body diameter, projection, stud thread, fixing depth and glass-hole preparation, together with the panel layout, quantity and finish reference, for feasibility review. Confirm material, finish, marking and packing requirements in the quotation.
Agree the model drawing, physical sample and included parts before bulk production. Appearance concepts illustrate a proposed finish; production availability requires confirmation.
