Model: PFH-038 (image reference; model to confirm)
This finish concept shows a straight double glass channel, black liners and two slotted screws. Use the polished silver appearance concept to discuss appearance and project requirements. Confirm the production finish and model specification before ordering.
Product Highlights
A straight double glass channel.
Straight panel connection.

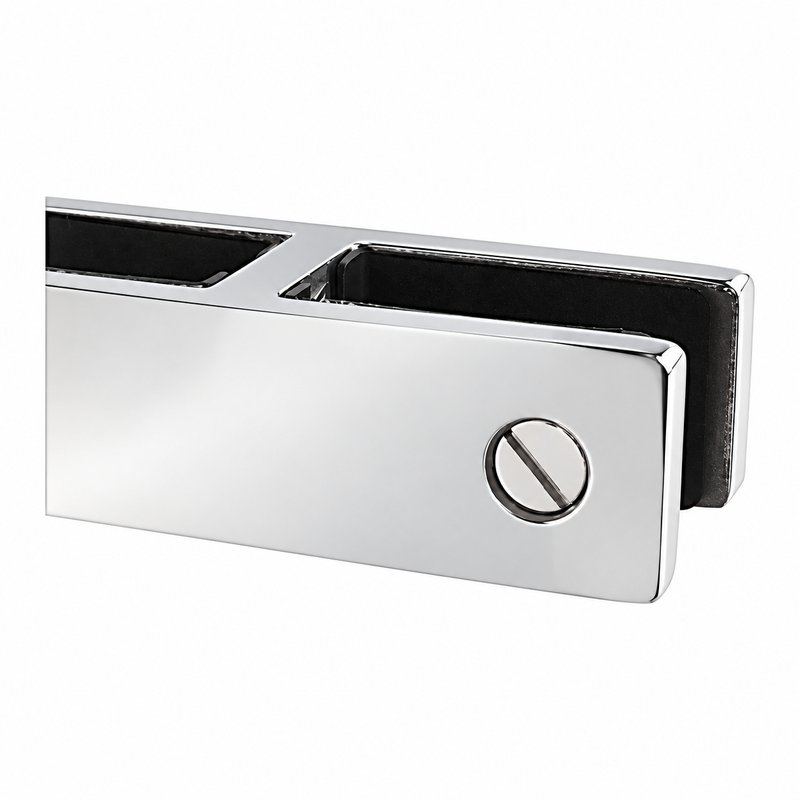

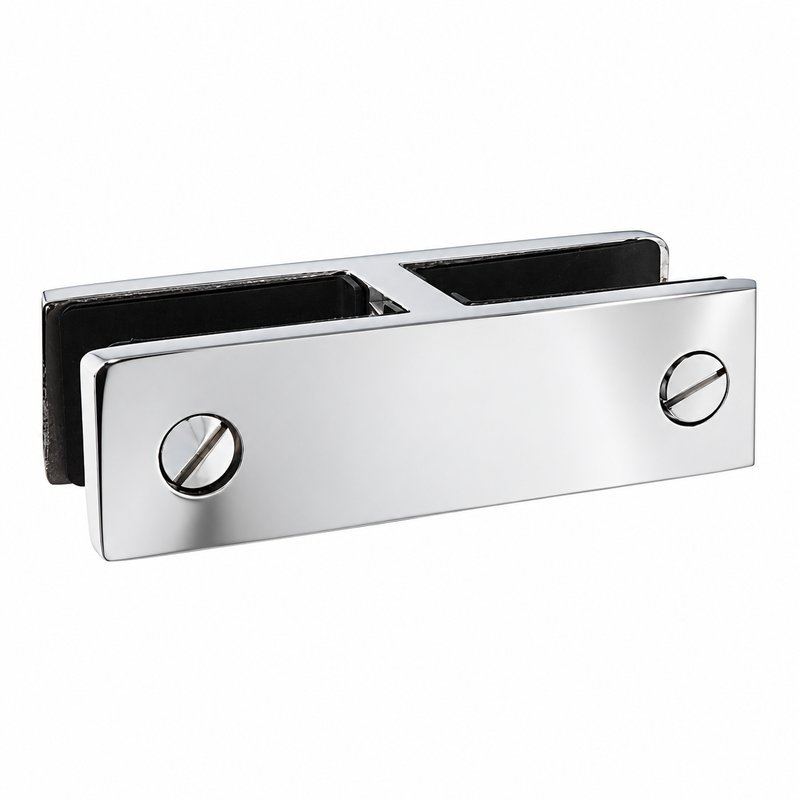

Visible channel liner and slotted clamp screw.

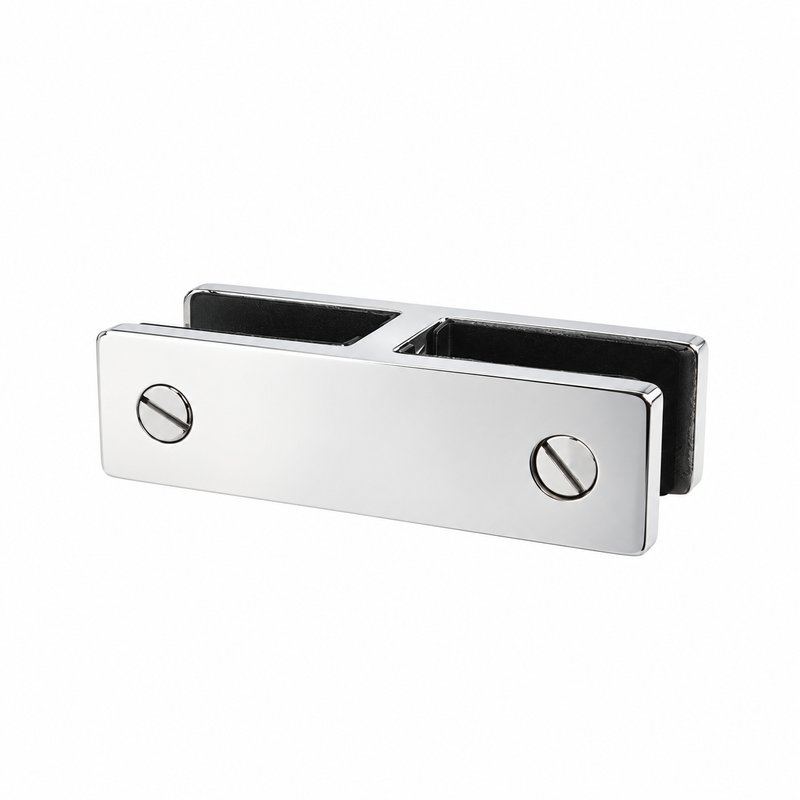

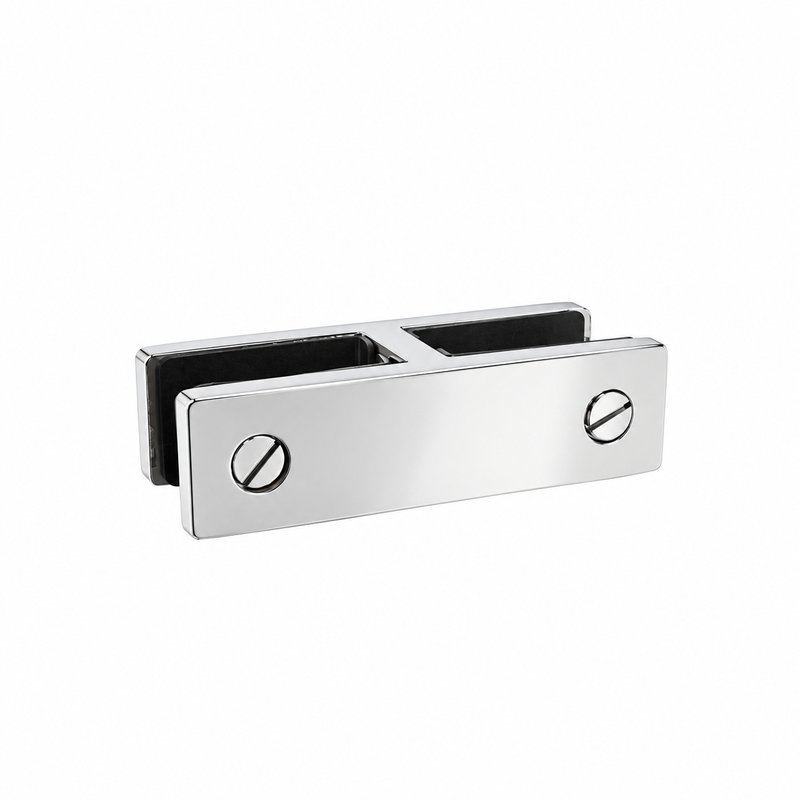

The polished silver straight glass to glass pool fence clamp concept shows a straight double glass channel, black liners and two slotted screws. This image illustrates polished silver appearance. Confirm the production material and finish against an approved sample.
Use PFH-038 as the image reference when requesting model confirmation. Provide panel junction, glass thickness, panel gap, mounting face and gasket arrangement. Proposed clamp width: 50 mm; body depth: 26 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Confirm whether the chosen clamp requires drilled glass or another preparation. Match the gasket set and connection geometry to the approved panel layout. Confirm the complete installation details and the evidence required for the project location before specification.

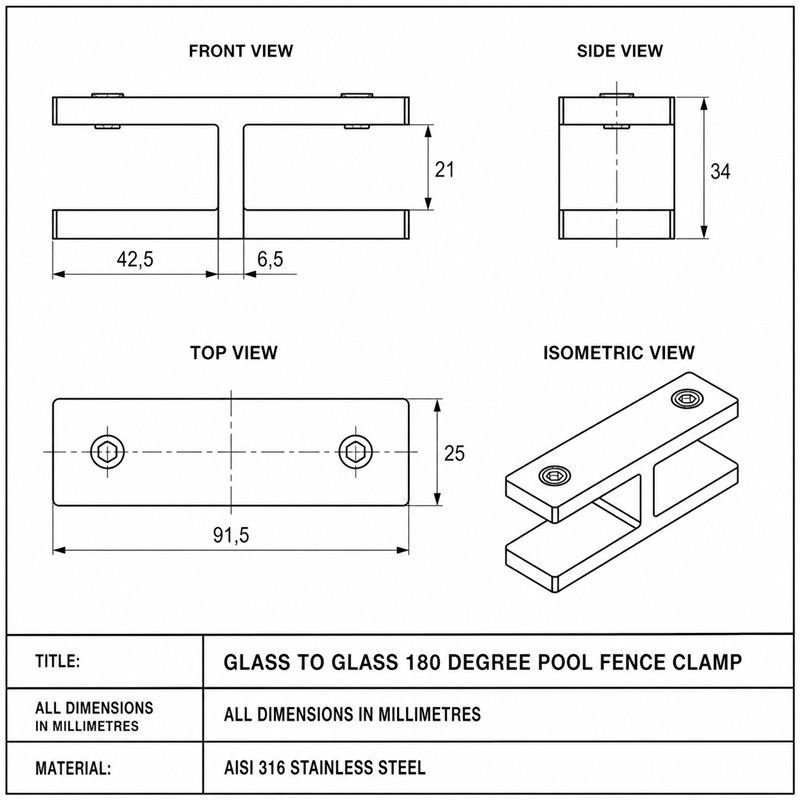

View the reference drawing image for discussion. This reference image is not an approved manufacturing or installation drawing. Request the released dimensional drawing, product specification and applicable installation instructions for the confirmed model.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Compare the pictured straight panel connection with the project layout. Submit panel junction, glass thickness, panel gap, mounting face and gasket arrangement for model and fit confirmation.
Provide the existing part reference, photographs and measurements of clamp body, glass-contact area, connection angle, fixing centres and glass preparation. Confirm compatibility before substituting a component; a similar appearance does not establish interchangeability.
Prepare an itemised schedule with the selected reference, quantities, finish and delivery destination. Confirm the included clamp bodies, matching gaskets and specified fasteners and any project-specific documentation in the quotation.
Send the required changes to clamp body, glass-contact area, connection angle, fixing centres and glass preparation, together with the panel layout, quantity and finish reference, for feasibility review. Confirm material, finish, marking and packing requirements in the quotation.
Agree the model drawing, physical sample and included parts before bulk production. Appearance concepts illustrate a proposed finish; production availability requires confirmation.
