Model: PFH-073 (image reference; model to confirm)
This glass spigot shows a tapered rounded body, vertical black-lined slot and curved outer face. Compare the pictured connection layout with your project, then confirm material, dimensions and fixing requirements with Elim Hardware.
Product Highlights
A tapered rounded body.
Tapered round body.

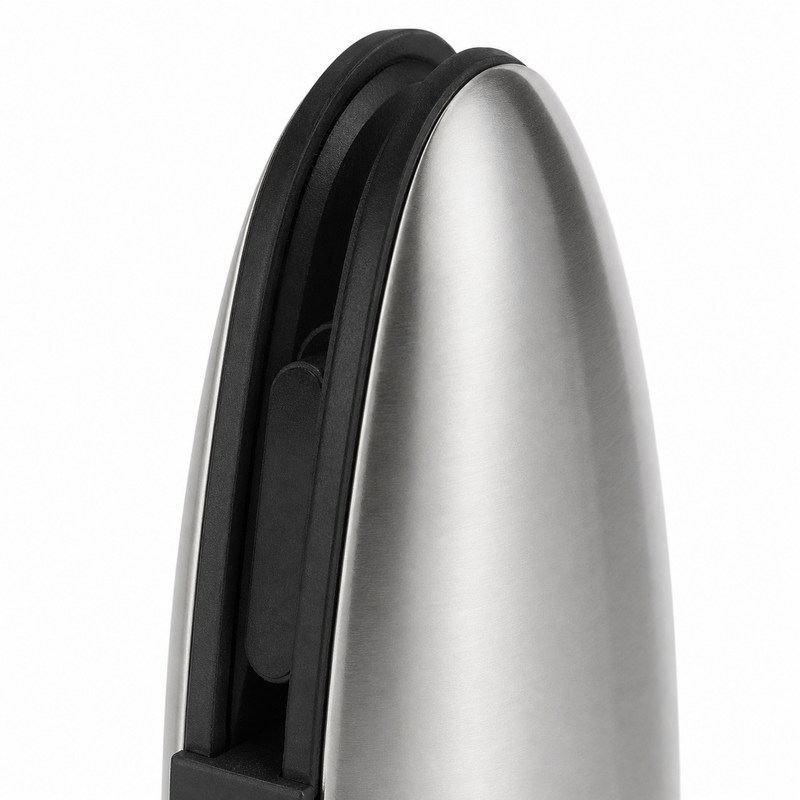

Visible vertical glass slot and rounded outer face.

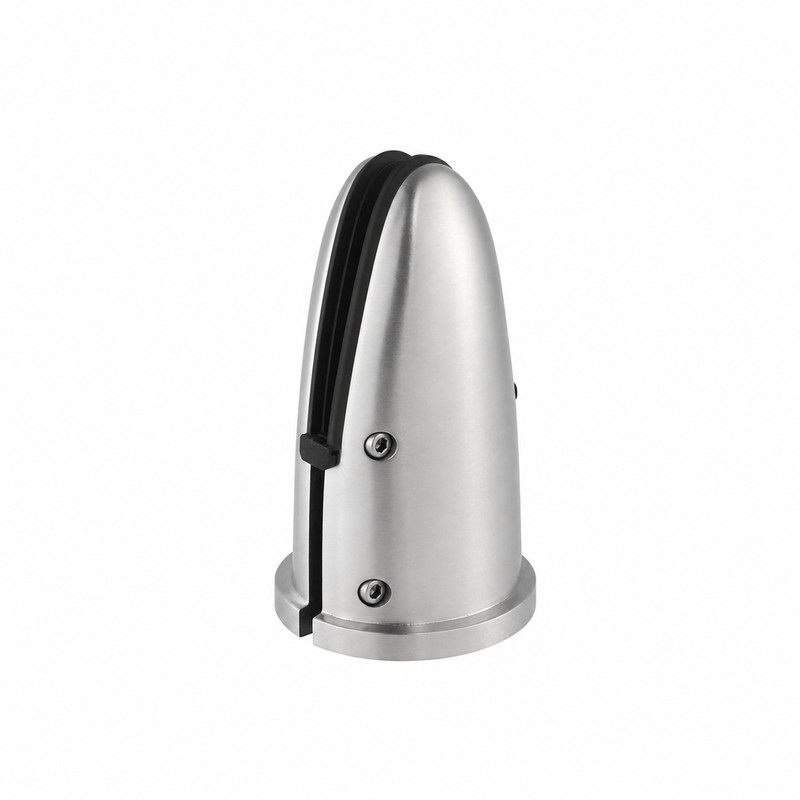

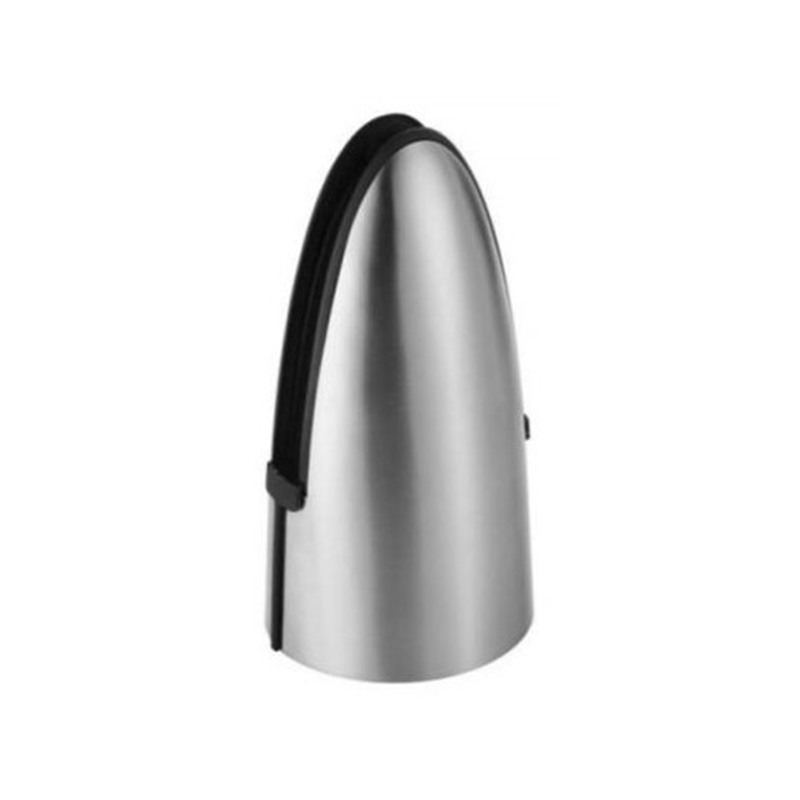

The tapered round glass pool fence spigot reference shows a tapered rounded body, vertical black-lined slot and curved outer face. The pictured layout is tapered round body. Use the close views to compare the connection and fixing arrangement.
A tapered curved outer face identifies this body. The round-base reference has a more cylindrical upright and a separate circular mounting plate.
Contact Elim Hardware with the required panel layout, mounting substrate, project location, quantity and preferred appearance. Request the released drawing, confirmed material, dimensions and compatible glass specification for the selected reference. Finish concepts and scene visualisations show appearance only.
Use PFH-073 as the image reference when requesting model confirmation. Provide panel dimensions, support spacing, substrate details and the proposed fixing arrangement. Proposed round body diameter: 50 mm; body height: 160 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Confirm whether the selected reference uses a base plate, side plate, embedded stem or another fixing method. The visible body shape alone does not establish anchorage requirements. Confirm the complete installation details and the evidence required for the project location before specification.
View the reference drawing image for discussion. This reference image is not an approved manufacturing or installation drawing. Request the released dimensional drawing, product specification and applicable installation instructions for the confirmed model.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Compare the pictured tapered round body with the project layout. Submit panel dimensions, support spacing, substrate details and the proposed fixing arrangement for model and fit confirmation.
Provide the existing part reference, photographs and measurements of glass slot, body dimensions, base or stem geometry, fixing centres and mounting depth. Confirm compatibility before substituting a component; a similar appearance does not establish interchangeability.
Prepare an itemised schedule with the selected reference, quantities, finish and delivery destination. Confirm the included spigot body, glass-contact liners, covers and the specified fixing components and any project-specific documentation in the quotation.
Send the required changes to glass slot, body dimensions, base or stem geometry, fixing centres and mounting depth, together with the panel layout, quantity and finish reference, for feasibility review. Confirm material, finish, marking and packing requirements in the quotation.
Agree the model drawing, physical sample and included parts before bulk production. Appearance concepts illustrate a proposed finish; production availability requires confirmation.
