Model: PFH-099 (image reference; model to confirm)

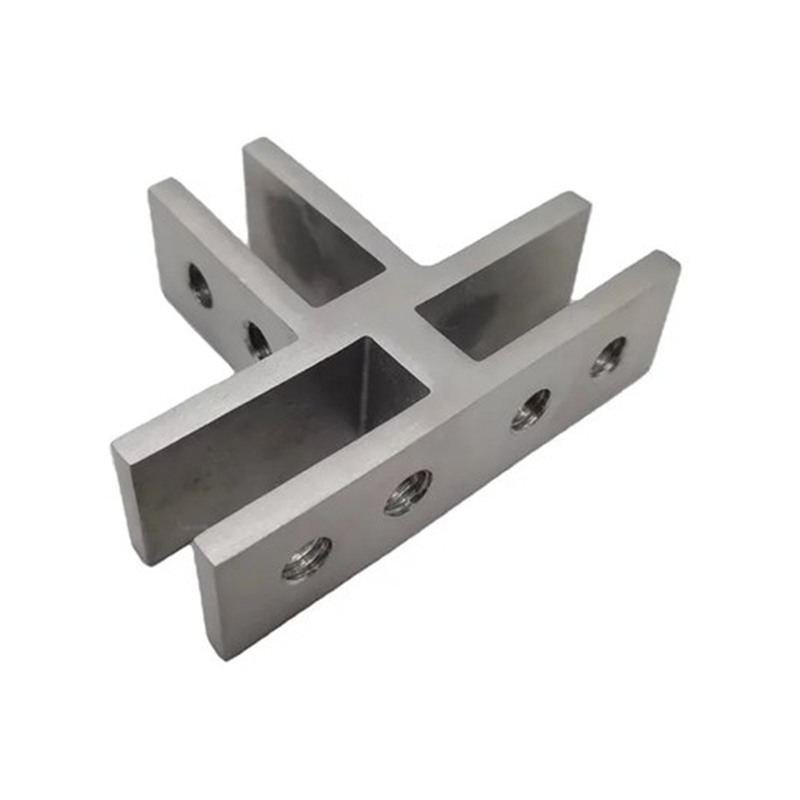

This glass connector shows a T-shaped junction with multiple glass channels and side fixing screws. Compare the pictured connection layout with your project, then confirm material, dimensions and fixing requirements with Elim Hardware.
Product Highlights
A T-shaped junction with multiple glass channels and side fixing screws.
Three-way panel junction.

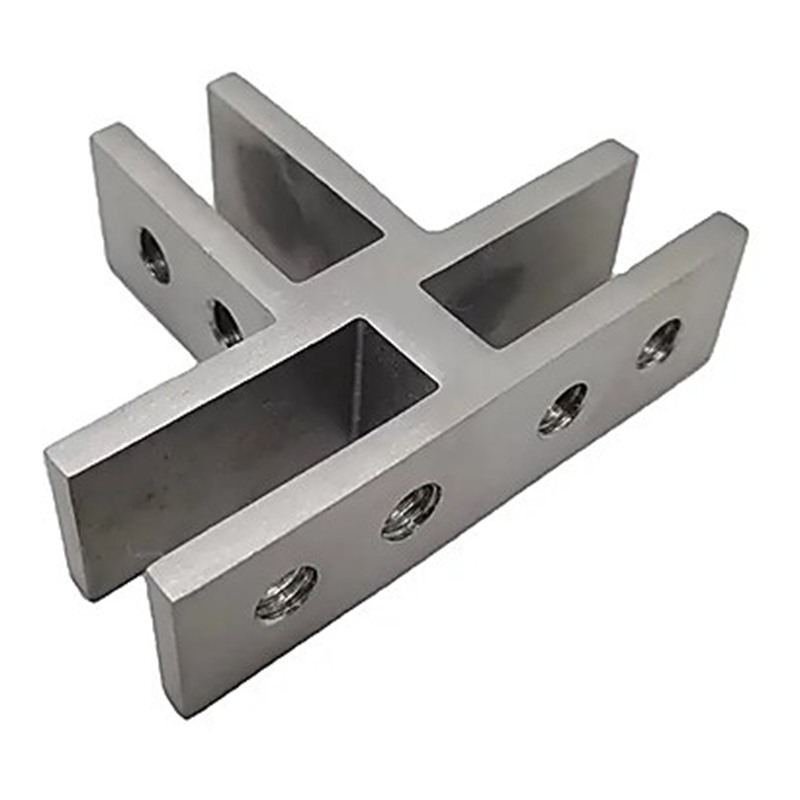

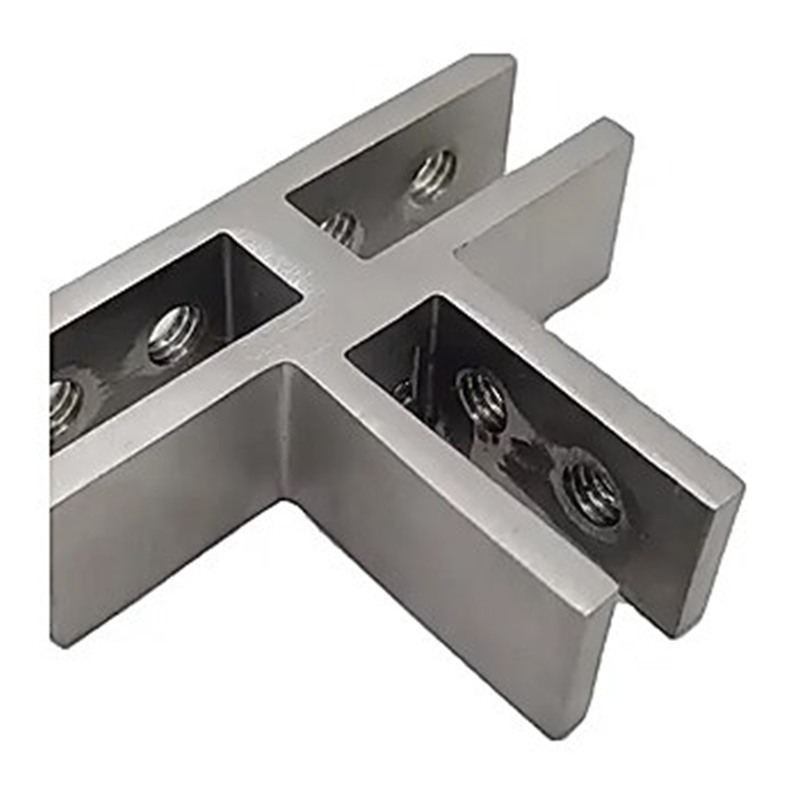

Visible T-shaped glass channels and side fixing screws.

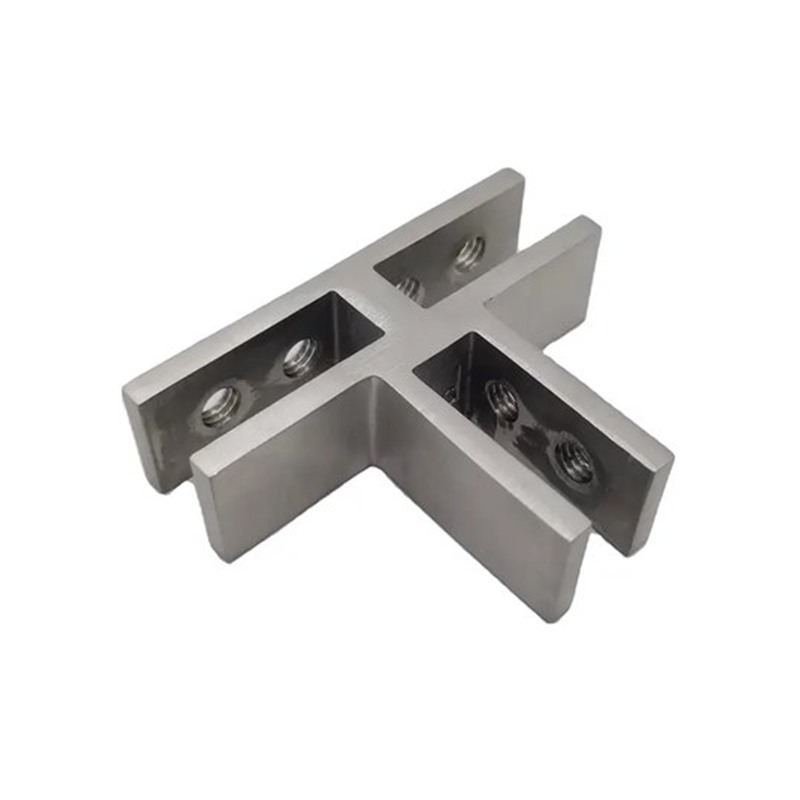

The three way glass pool fence connector reference shows a T-shaped junction with multiple glass channels and side fixing screws. The pictured layout is three-way panel junction. Use the close views to compare the connection and fixing arrangement.
The junction is T-shaped with multiple channels. The pivoting connector reference joins two channels around one pivot.

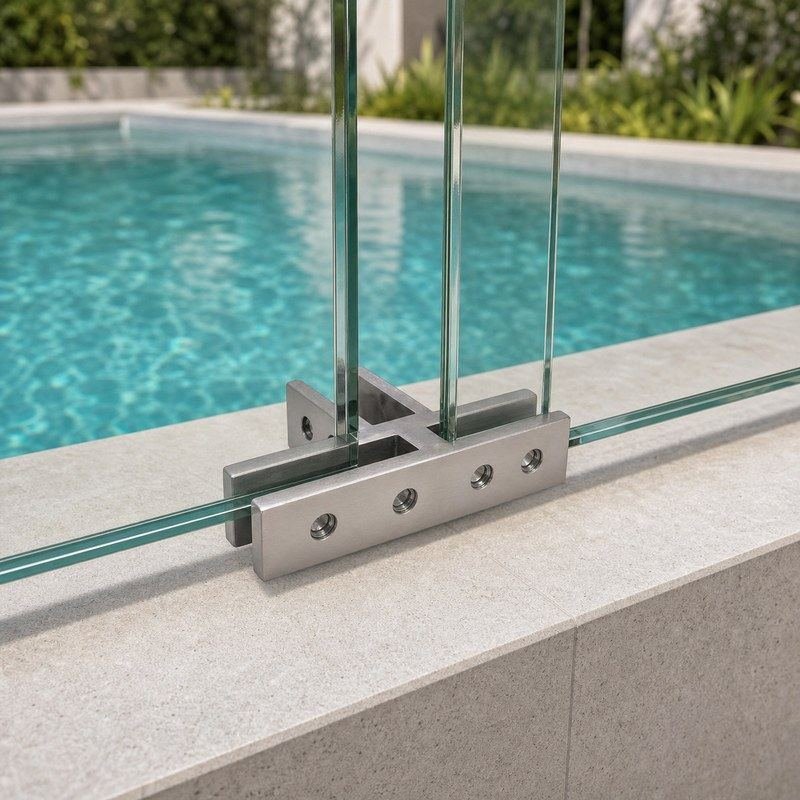

Contact Elim Hardware with the required panel layout, mounting substrate, project location, quantity and preferred appearance. Request the released drawing, confirmed material, dimensions and compatible glass specification for the selected reference. Finish concepts and scene visualisations show appearance only.
Use PFH-099 as the image reference when requesting model confirmation. Provide panel angles, glass preparation, mounting interfaces and any required adjustment or locking. Round tube interface: diameter 42.4 / 48.3 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Distinguish a fixed junction from an installation-adjustable connection. Confirm the permitted adjustment and locking details; a visible joint does not establish an operating range. Confirm the complete installation details and the evidence required for the project location before specification.

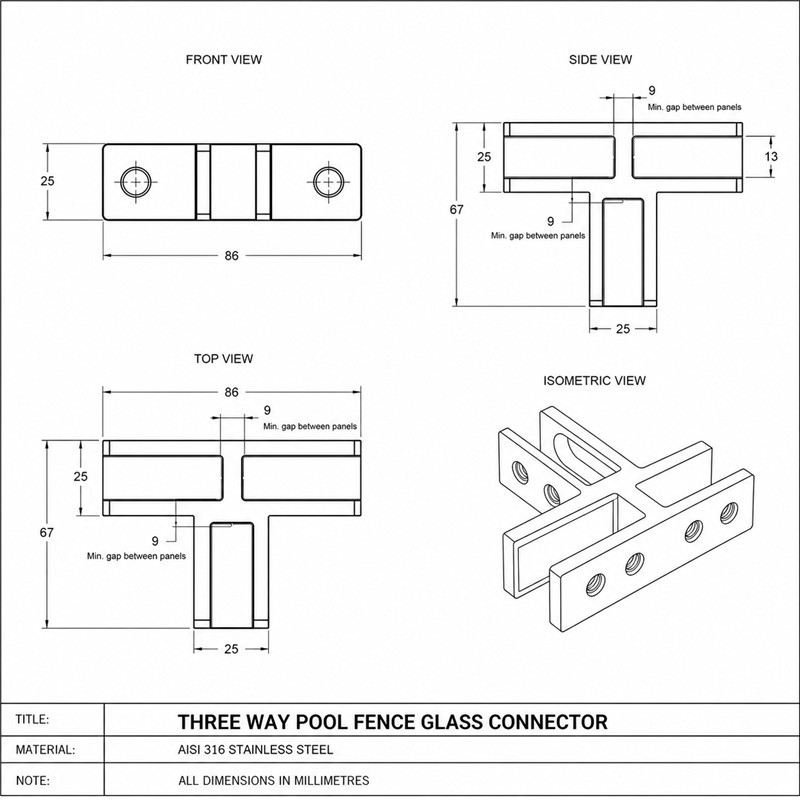

View the reference drawing image for discussion. This reference image is not an approved manufacturing or installation drawing. Request the released dimensional drawing, product specification and applicable installation instructions for the confirmed model.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Compare the pictured three-way panel junction with the project layout. Submit panel angles, glass preparation, mounting interfaces and any required adjustment or locking for model and fit confirmation.
Provide the existing part reference, photographs and measurements of connector span, joint geometry, glass-contact surfaces, fixing positions and panel gap. Confirm compatibility before substituting a component; a similar appearance does not establish interchangeability.
Prepare an itemised schedule with the selected reference, quantities, finish and delivery destination. Confirm the included connector or joiner bodies, contact liners and specified fasteners and any project-specific documentation in the quotation.
Send the required changes to connector span, joint geometry, glass-contact surfaces, fixing positions and panel gap, together with the panel layout, quantity and finish reference, for feasibility review. Confirm material, finish, marking and packing requirements in the quotation.
Agree the model drawing, physical sample and included parts before bulk production. Appearance concepts illustrate a proposed finish; production availability requires confirmation.
