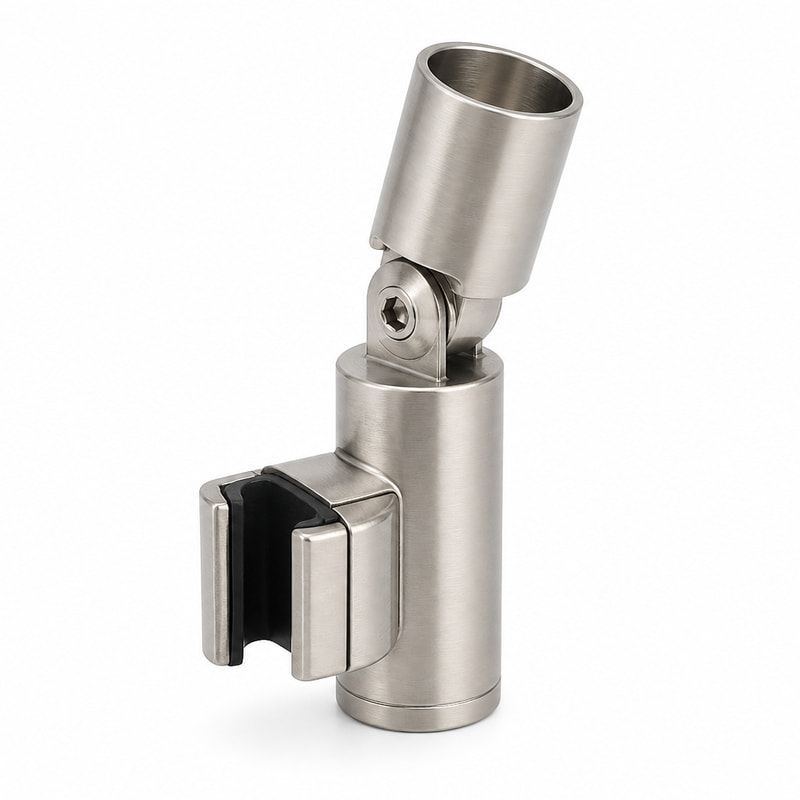

Adjustable Shower Support Bar Bracket

Model: SHS-009

Adjustable Shower Support Bar Bracket for B2B shower hardware sourcing. Tube socket above an articulated joint and a glass clamping connection. Confirm model dimensions, fit and finish before bulk ordering.

Material Proposed material options: AISI 304 / AISI 316 stainless steel.

Surface Finish Proposed finish options: Satin brushed / mirror polished.

Dimensions Proposed round bar diameter: 19 mm; length: 1000 / 1200 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Proposed glass interface options: 8 / 10 / 12 mm. Model-specific fit is not verified.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Product configuration

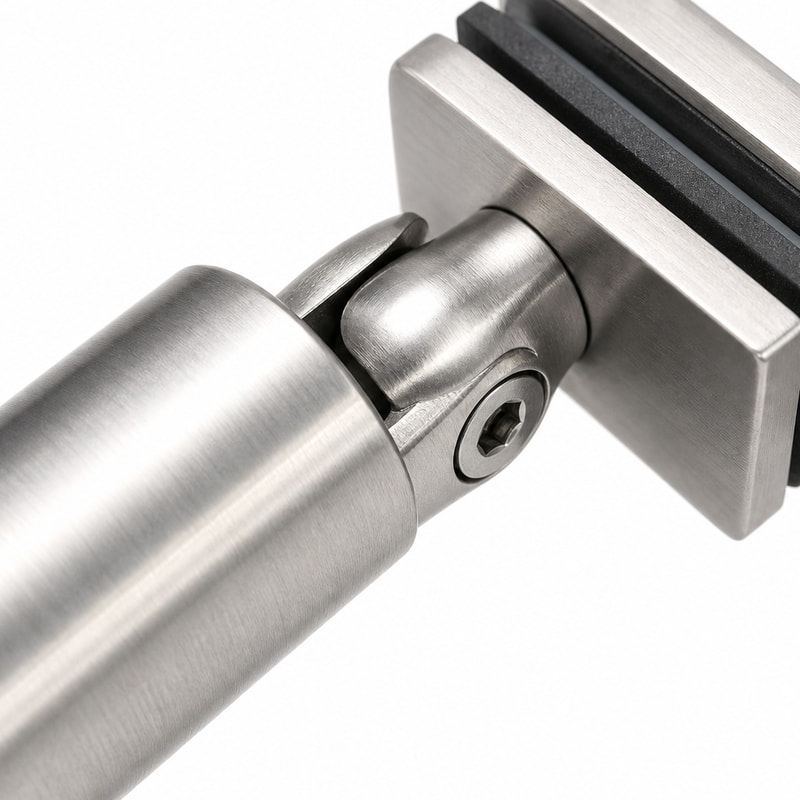

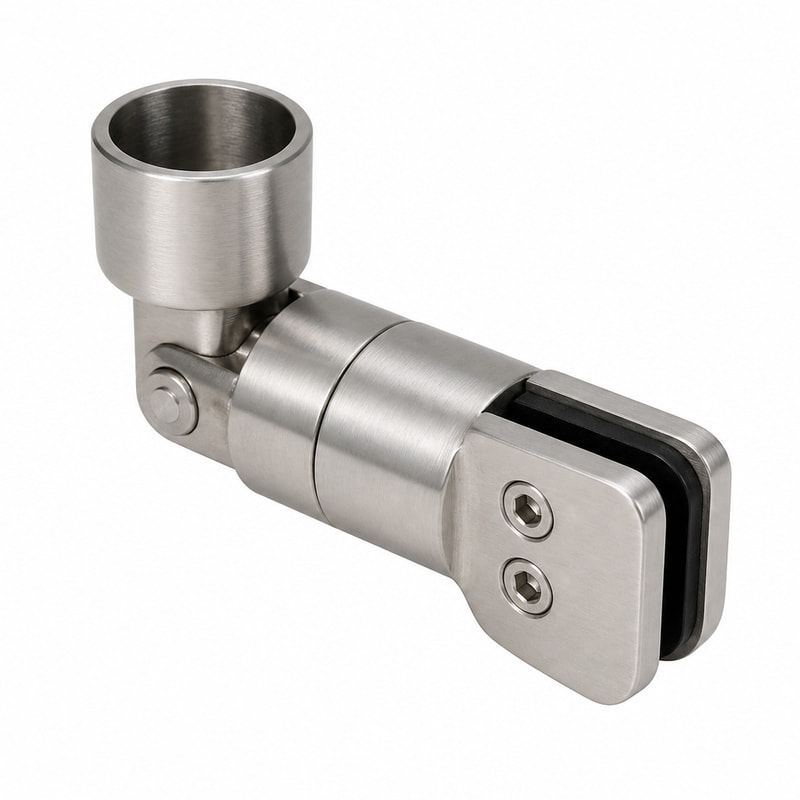

Adjustable Shower Support Bar Bracket (SHS-009) is intended to connect a shower support tube to glass where an angled bracket is required. Tube socket above an articulated joint and a glass clamping connection.

Function verification

The adjustment or operating capability associated with this model designation must be confirmed with model-specific documentation and a working sample; appearance alone does not establish performance.

Selection and fit

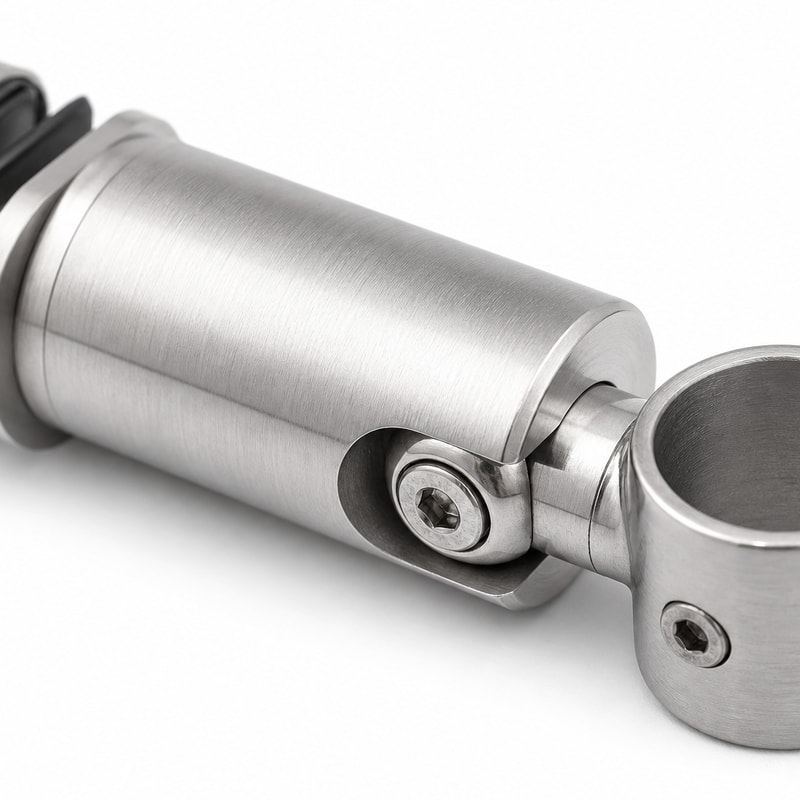

Match the socket to the support tube outside diameter. Confirm the joint angle, tube insertion depth and locking hardware with the complete support assembly.

Bulk sourcing information

Provide the required quantity, drawing revision, finish reference and packing requirements. Agree the model-specific material, dimensions and supplied accessories before sample approval.

Compare the Shower Systems range and request a model-specific quotation.

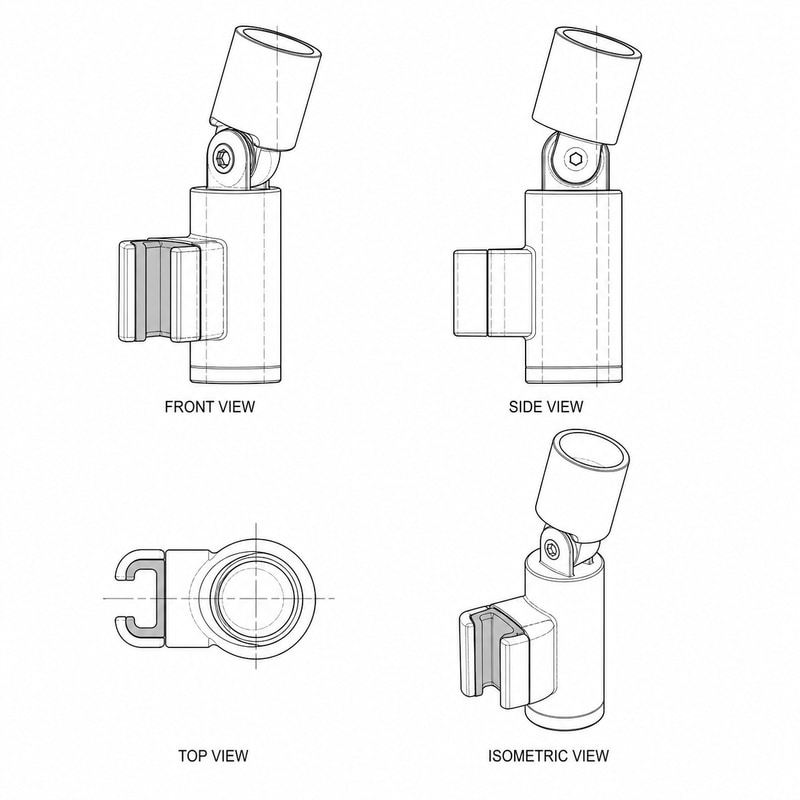

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

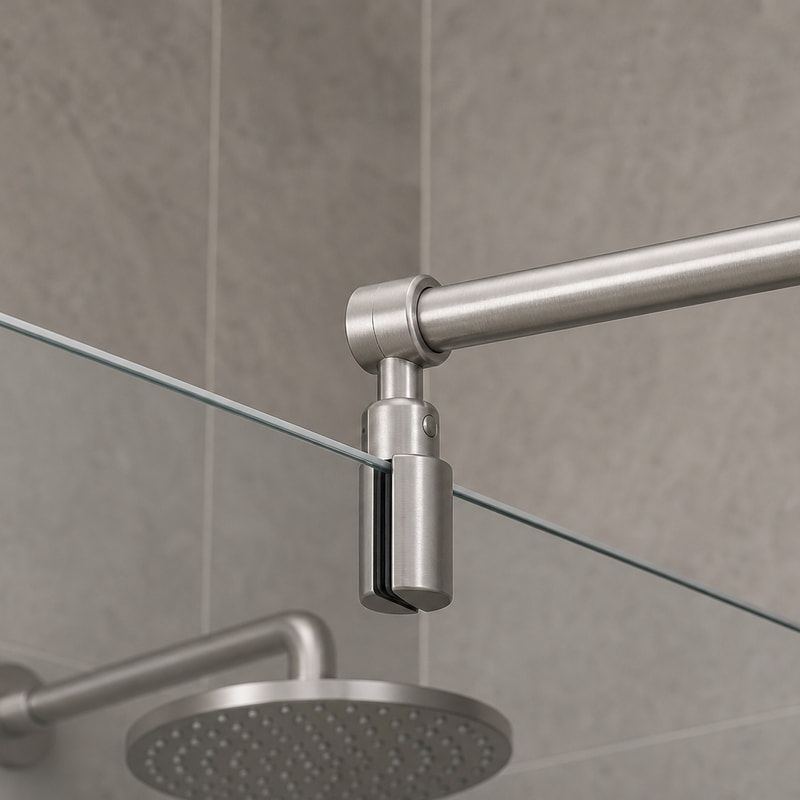

Fixed-panel shower supports

Coordinate this support component with the fixed panel and the structural fixing location. Review the complete assembly.

Walk-in shower screen layouts

Specify the finished dimensions and the intended wall or ceiling connection before selecting support hardware.

Matched support assemblies

Confirm compatible bar sections, sockets, glass fittings and anchors as one coordinated supply package.

Customization

Elim Hardware can review drawing-based changes to the bar section, installed span, fixing angle, end connections and structural substrate. Material selection, finish, marking, coordinated accessories and private-label packaging are reviewed for manufacturing feasibility and the intended order.

Confirm the sample and drawing revision before bulk production. Concept finish images illustrate a proposed appearance and do not establish the production material or an available stock finish.

Learn about OEM and ODM development and the relevant manufacturing capabilities.

Frequently Asked Questions

Will this bracket fit any round support bar?

The socket diameter and locking arrangement must match the chosen tube. Provide the tube dimensions or a sample for compatibility review.

What information is needed to check SHS-009 compatibility?

Provide the bar section, installed span, fixing angle, end connections and structural substrate. Proposed glass interface options: 8 / 10 / 12 mm. Model-specific fit is not verified.

How are material and finish confirmed?

Proposed material options: AISI 304 / AISI 316 stainless steel. Proposed finish options: Satin brushed / mirror polished. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What are the MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Can this product be customized for a wholesale or project order?

Drawing-based changes can be reviewed. Send the bar section, installed span, fixing angle, end connections and structural substrate, estimated quantity, intended market and packing requirements. The final scope depends on model suitability and manufacturing feasibility.

Specifications

Product model	SHS-009
Product configuration	Tube socket above an articulated joint and a glass clamping connection
Material	Proposed material options: AISI 304 / AISI 316 stainless steel.
Surface finish	Proposed finish options: Satin brushed / mirror polished.
Dimensions and fitting	Proposed round bar diameter: 19 mm; length: 1000 / 1200 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Glass compatibility	Proposed glass interface options: 8 / 10 / 12 mm. Model-specific fit is not verified.
Supply scope	Bar or bracket and end fittings only as listed in the quotation; define bare-component or complete-set supply.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Agree the Incoterm, named place and payment terms in the written quotation.
Packaging Agree protective packing, carton quantity and shipping marks for the actual order.
Quality Control Dimensional, surface and assembly checks against the approved sample/drawing; agree model-specific functional inspection. Check the bar section, installed span, fixing angle, end connections and structural substrate.
