Matte Silver Adjustable Shower Support Bar Bracket — Finish Concept

Matte Silver Adjustable Shower Support Bar Bracket — Finish Concept

Model: SHS-009 / SHS-009-C-BS (finish concept reference)

Matte Silver adjustable shower support bar bracket finish concept for B2B design review. Confirm the physical sample, model dimensions, actual material and finish availability before ordering. Images illustrate proposed appearance.

Material Proposed material options: AISI 304 / AISI 316 stainless steel.

Surface Finish Proposed finish options: Satin brushed.

Dimensions Proposed round bar diameter: 19 mm; length: 1000 / 1200 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Proposed glass interface options: 8 / 10 / 12 mm. Model-specific fit is not verified.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

Finish concept reference. This page illustrates a proposed finish. Production material, finish process, availability and performance require confirmation on the actual sample.

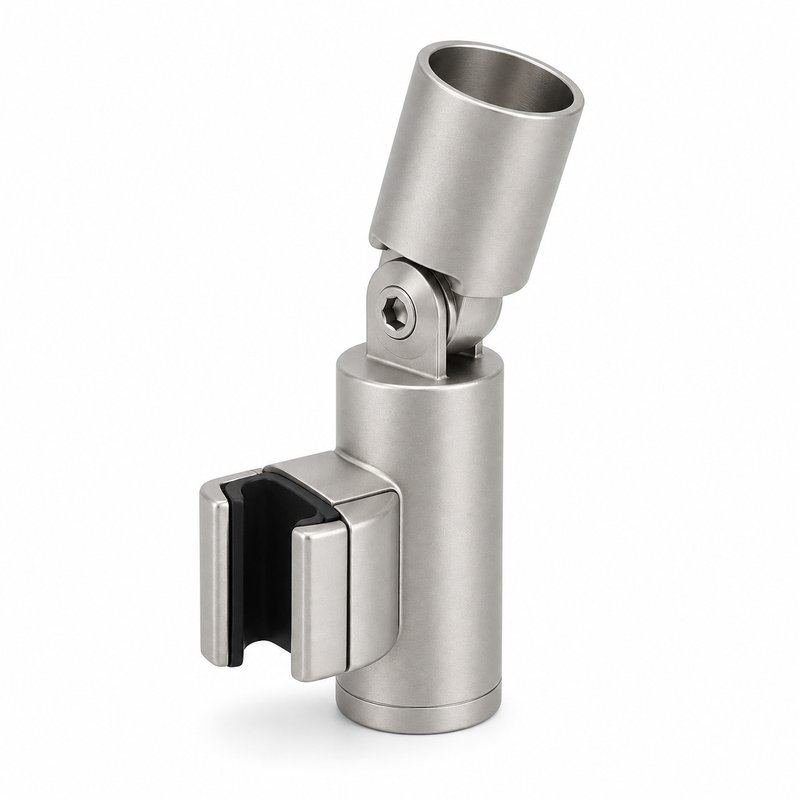

Matte Silver Adjustable Shower Support Bar Bracket

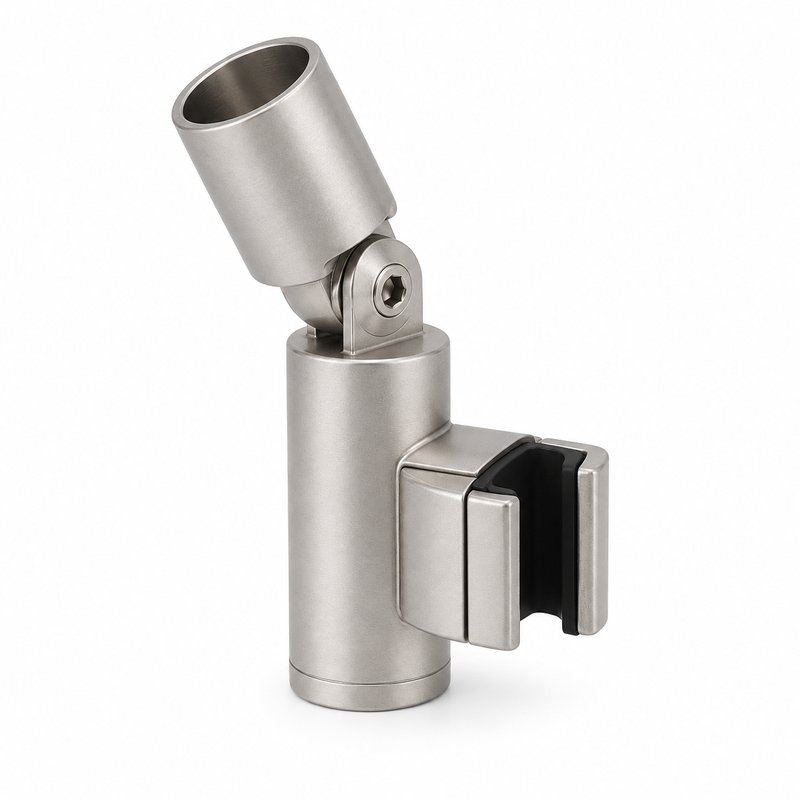

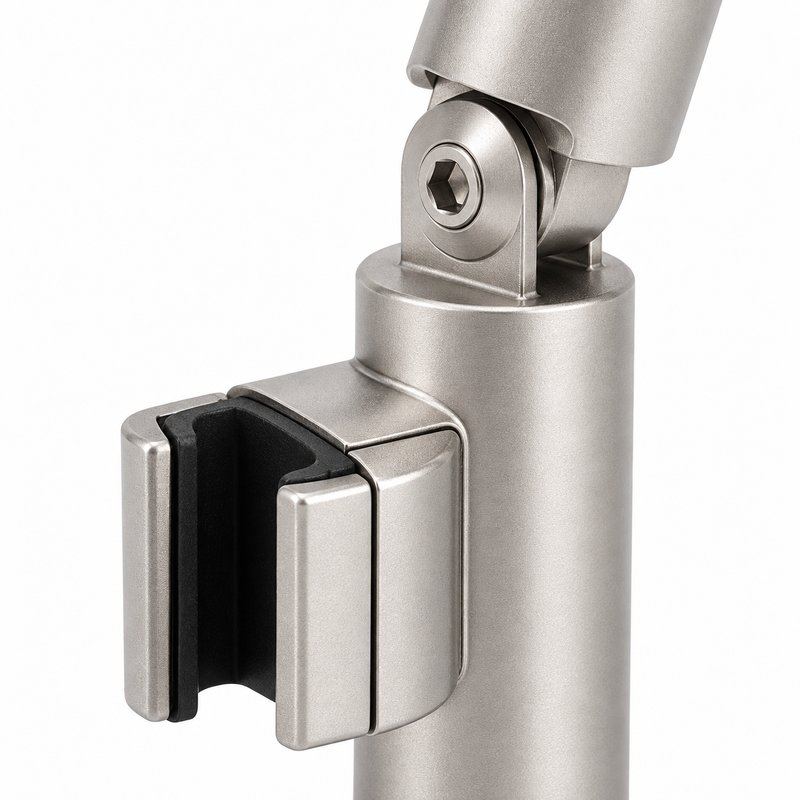

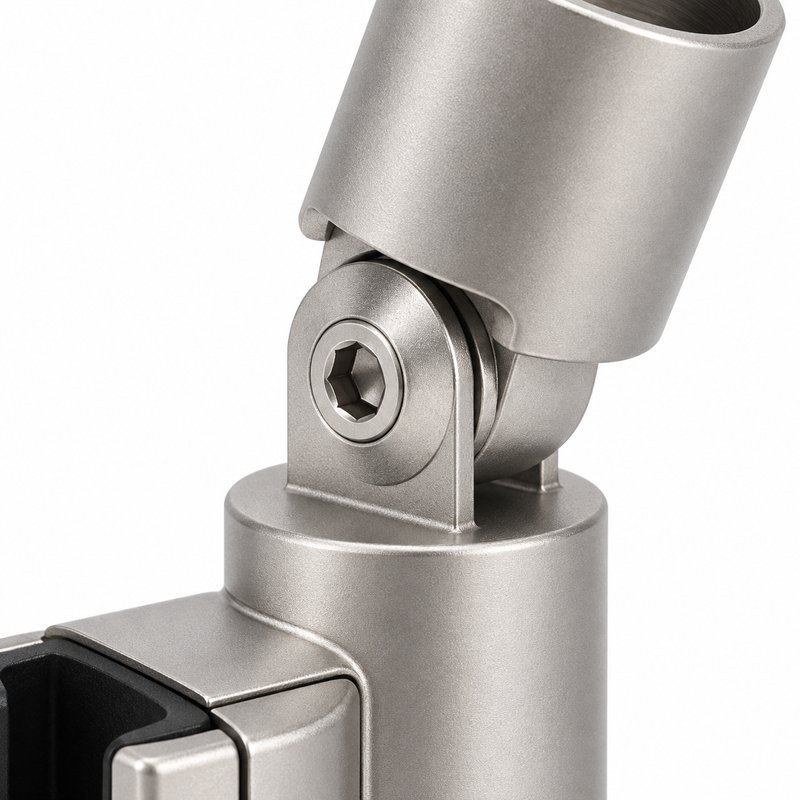

This matte silver adjustable shower support bar bracket reference illustrates a proposed finish on the SHS-009 configuration. Tube socket above an articulated joint and a glass clamping connection. The concept does not verify production material, finish process, stock or functional performance.

Fit and finish selection

Match the socket to the support tube outside diameter. Confirm the joint angle, tube insertion depth and locking hardware with the complete support assembly.

Approve the physical finish sample and confirm the supplied parts and availability before ordering.

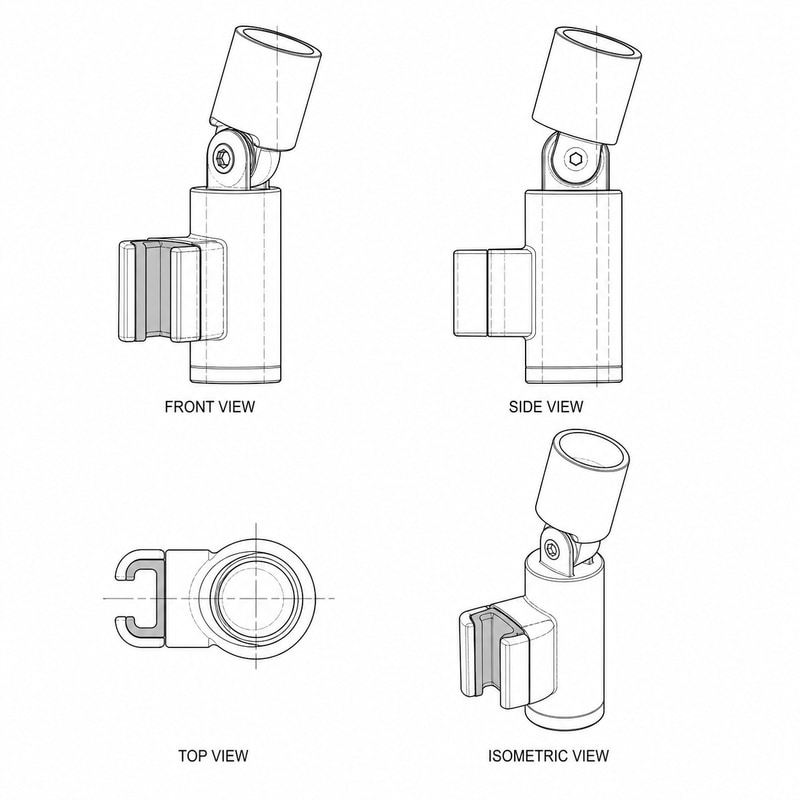

Reference drawing

View source reference drawing (JPG)

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

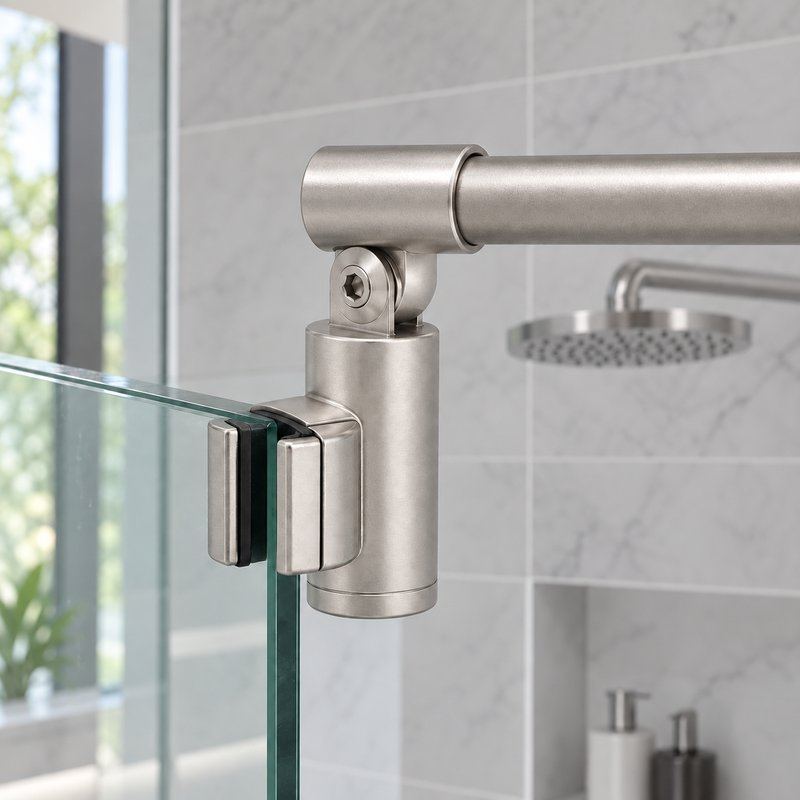

Fixed-panel shower supports

Coordinate this support component with the fixed panel and the structural fixing location. Review the complete assembly.

Walk-in shower screen layouts

Specify the finished dimensions and the intended wall or ceiling connection before selecting support hardware.

Matched support assemblies

Confirm compatible bar sections, sockets, glass fittings and anchors as one coordinated supply package.

Customization

Elim Hardware can review drawing-based changes to the bar section, installed span, fixing angle, end connections and structural substrate. Material selection, finish, marking, coordinated accessories and private-label packaging are reviewed for manufacturing feasibility and the intended order.

Confirm the sample and drawing revision before bulk production. Concept finish images illustrate a proposed appearance and do not establish the production material or an available stock finish.

Learn about OEM and ODM development and the relevant manufacturing capabilities.

Frequently Asked Questions

Is the matte silver finish shown here a confirmed production option?

The supplied matte silver images are finish concepts for reference model SHS-009. Confirm a physical sample, the finish process and supply availability before ordering.

Will this bracket fit any round support bar?

The socket diameter and locking arrangement must match the chosen tube. Provide the tube dimensions or a sample for compatibility review.

How are material and finish confirmed?

Proposed material options: AISI 304 / AISI 316 stainless steel. Proposed finish options: Satin brushed. These are enquiry options; material certification and the approved finish sample identify the supplied specification.

What are the MOQ, sample time and production lead time?

Minimum order quantity: 200 pieces per model / specification. Production lead time: 30 calendar days. Proposed sample schedule: 7 calendar days. Production starts after order and specification approval; shipping time is additional.

Can this product be customized for a wholesale or project order?

Drawing-based changes can be reviewed. Send the bar section, installed span, fixing angle, end connections and structural substrate, estimated quantity, intended market and packing requirements. The final scope depends on model suitability and manufacturing feasibility.

Specifications

Product model	SHS-009 reference; actual finish-variant SKU to be confirmed
Product configuration	Tube socket above an articulated joint and a glass clamping connection
Material	Proposed material options: AISI 304 / AISI 316 stainless steel.
Surface finish	Proposed finish options: Satin brushed.
Dimensions and fitting	Proposed round bar diameter: 19 mm; length: 1000 / 1200 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Glass compatibility	Proposed glass interface options: 8 / 10 / 12 mm. Model-specific fit is not verified.
Supply scope	Bar or bracket and end fittings only as listed in the quotation; define bare-component or complete-set supply.

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Agree the Incoterm, named place and payment terms in the written quotation.
Packaging Agree protective packing, carton quantity and shipping marks for the actual order.
Quality Control Dimensional, surface and assembly checks against the approved sample/drawing; agree model-specific functional inspection. Check the bar section, installed span, fixing angle, end connections and structural substrate.
