Articulated Wall Handrail Sleeve Bracket — Matte silver appearance concept

Articulated Wall Handrail Sleeve Bracket — Matte silver appearance concept

Model: EL-SSR-008 (catalogue reference)

This articulated wall handrail sleeve bracket features two articulated joints and a horizontal sleeve. Images show matte silver appearance concept. Confirm dimensions, mating components and the production finish before ordering.

Material Proposed material options: AISI 304 / AISI 316 stainless steel.

Surface Finish Proposed finish options: Satin brushed.

Dimensions Round tube interface: diameter 42.4 / 48.3 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Not applicable: no direct glass-clamping interface.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

This articulated wall handrail sleeve bracket features two articulated joints and a horizontal sleeve. Images show matte silver appearance concept. Confirm dimensions, mating components and the production finish before ordering.

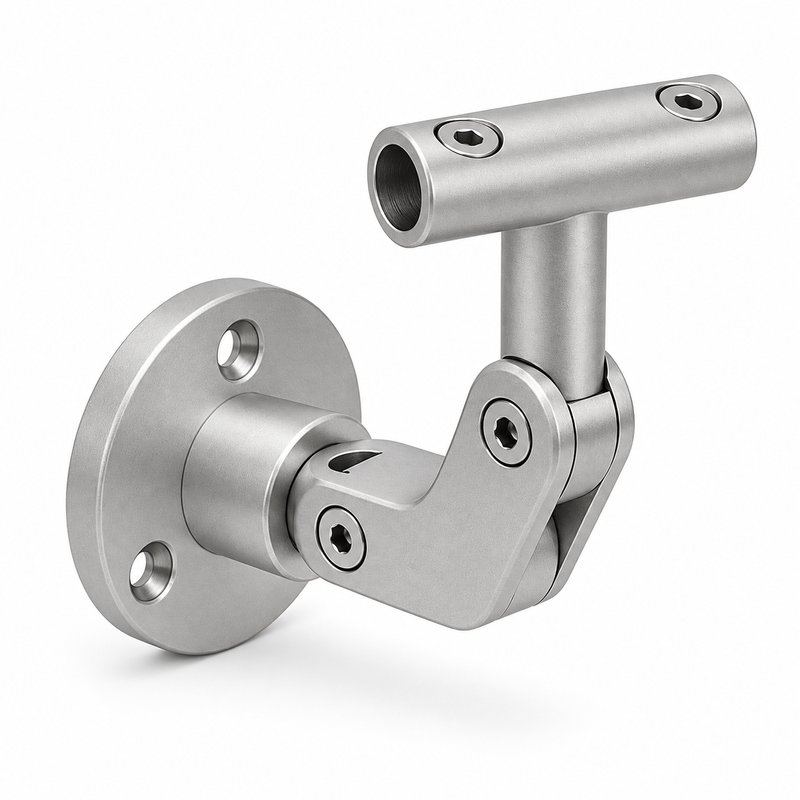

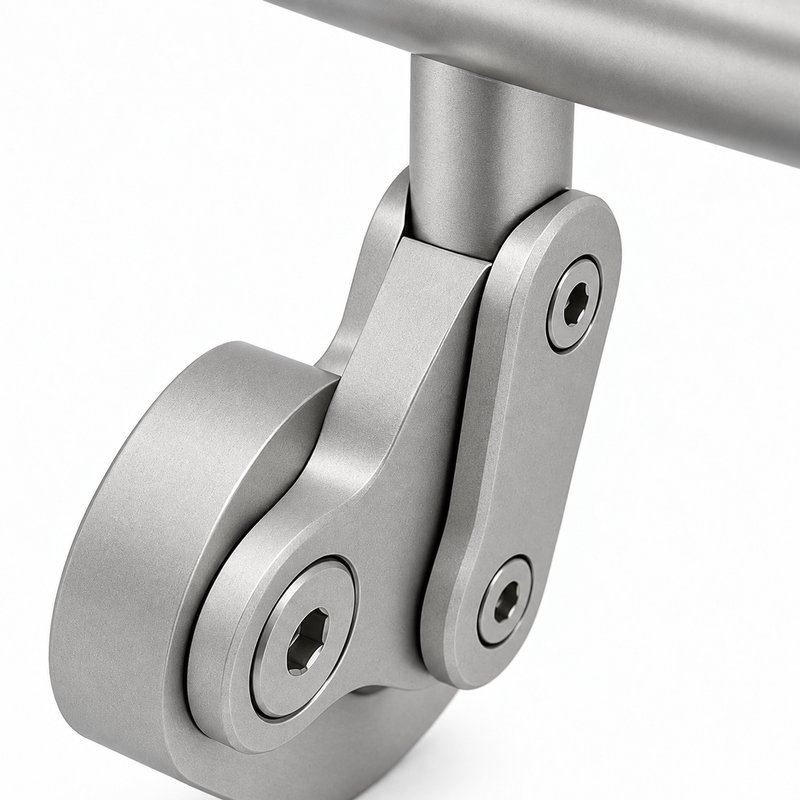

Visible structure: a round wall plate, two articulated joints and a horizontal cylindrical sleeve with set screws.

The articulated arm and sleeve are separate interfaces. Confirm both the joint range and the rail-to-sleeve fit.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

Applications

Articulated Wall Handrail Sleeve Bracket — application concept

wall handrail layouts requiring joint adjustment. The articulated arm and sleeve are separate interfaces. Confirm both the joint range and the rail-to-sleeve fit. Context imagery is illustrative, not a verified project case.

Customization

Send the drawing, target finish, quantity, marking and packing requirements for feasibility review. Customization scope is confirmed in the quotation.

Frequently Asked Questions

What identifies this articulated wall handrail sleeve bracket?

It is identified by two articulated joints and a horizontal sleeve. The reference images show a round wall plate, two articulated joints and a horizontal cylindrical sleeve with set screws.

How do I check compatibility?

The articulated arm and sleeve are separate interfaces. Confirm both the joint range and the rail-to-sleeve fit.

Which stainless steel grade and finish can I order?

The steel grade and production finish must be specified and confirmed in the quotation. Visual finish concepts do not certify a grade or surface process.

Can I request a sample or an OEM version?

Send the target drawing, desired finish, quantity and packing requirements for feasibility review. Sample availability, customization scope, minimum order and lead time are confirmed with the quotation.

Are the supplied drawings approved for manufacture or installation?

Source drawings are supplied for review, but their model correspondence, dimensions and material notes have not been approved. Use a confirmed project drawing and installation instructions before manufacture or installation; these images are not load certificates.

Specifications

Product type	articulated wall handrail sleeve bracket
Mounting	Wall mounting
Visible structure	a round wall plate, two articulated joints and a horizontal cylindrical sleeve with set screws
Material	Proposed material options: AISI 304 / AISI 316 stainless steel.
Finish	Proposed finish options: Satin brushed.
Dimensions	Round tube interface: diameter 42.4 / 48.3 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Mating interface	The articulated arm and sleeve are separate interfaces. Confirm both the joint range and the rail-to-sleeve fit.
Load capacity	Not established by the supplied imagery; request project-specific evidence

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Trade terms, destination and shipping arrangements are agreed in the quotation.
Packaging Proposed packing: individual surface protection and separated export-carton packing. Confirm packing method, labels and carton quantities with the order.
Quality Control Proposed inspection scope: dimensions against the approved drawing, surface appearance and mating-fit checks. Agree acceptance criteria before production.

Articulated Wall Handrail Sleeve Bracket — Matte silver appearance concept
