Fixed Glass Mounted Handrail Bracket — Reflective silver appearance concept

Fixed Glass Mounted Handrail Bracket — Reflective silver appearance concept

Model: EL-SSR-040 (catalogue reference)

This straight-arm glass-mounted handrail bracket features fixed saddle without a visible pivot joint. Images show reflective silver appearance concept. Confirm dimensions, mating components and the production finish before ordering.

Material Proposed material options: AISI 304 / AISI 316 stainless steel.

Surface Finish Proposed finish options: Mirror polished.

Dimensions Round tube interface: diameter 42.4 / 48.3 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Proposed glass options: 10 / 12 mm. Model-specific fit is not verified.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

This straight-arm glass-mounted handrail bracket features fixed saddle without a visible pivot joint. Images show reflective silver appearance concept. Confirm dimensions, mating components and the production finish before ordering.

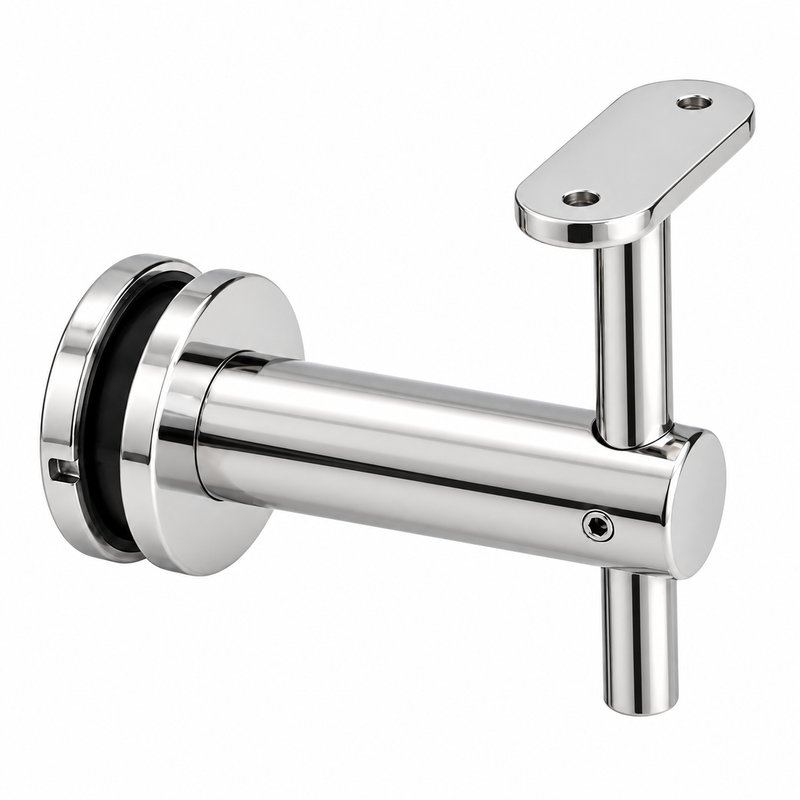

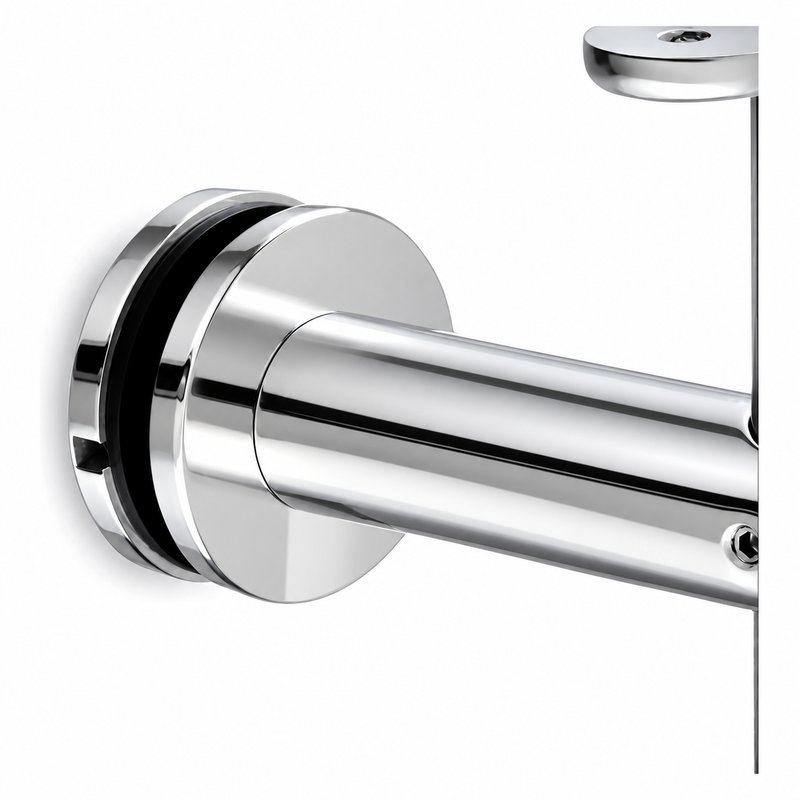

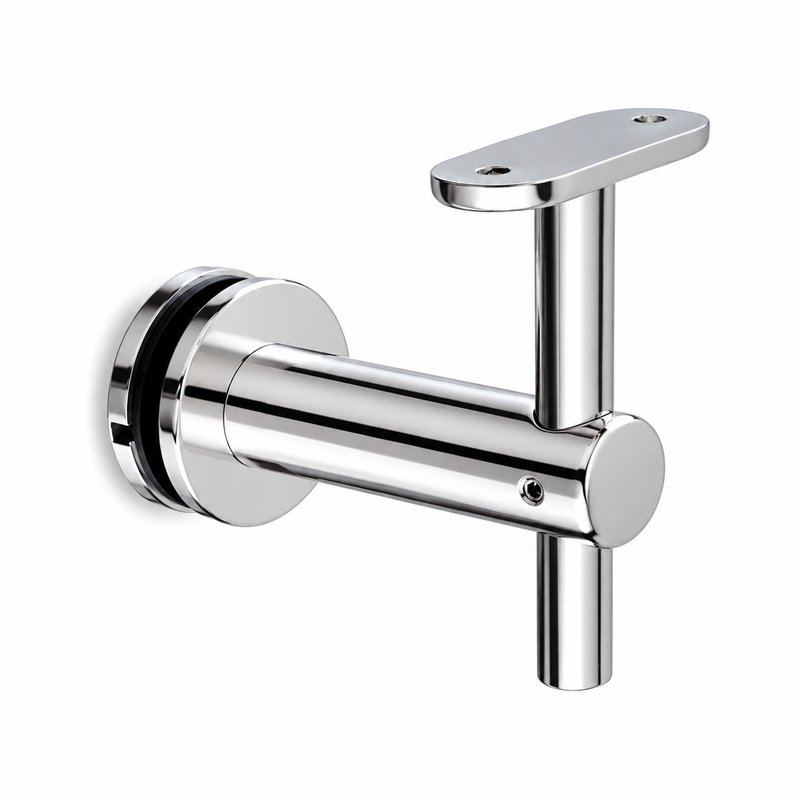

Visible structure: paired round glass mounting discs, a gasket, a straight arm and a fixed flat saddle on a projecting stem.

Confirm the glass build-up, hole preparation, gasket and saddle-to-rail interface together. No glass thickness is verified.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

Reference drawing

View source reference drawing (JPG)

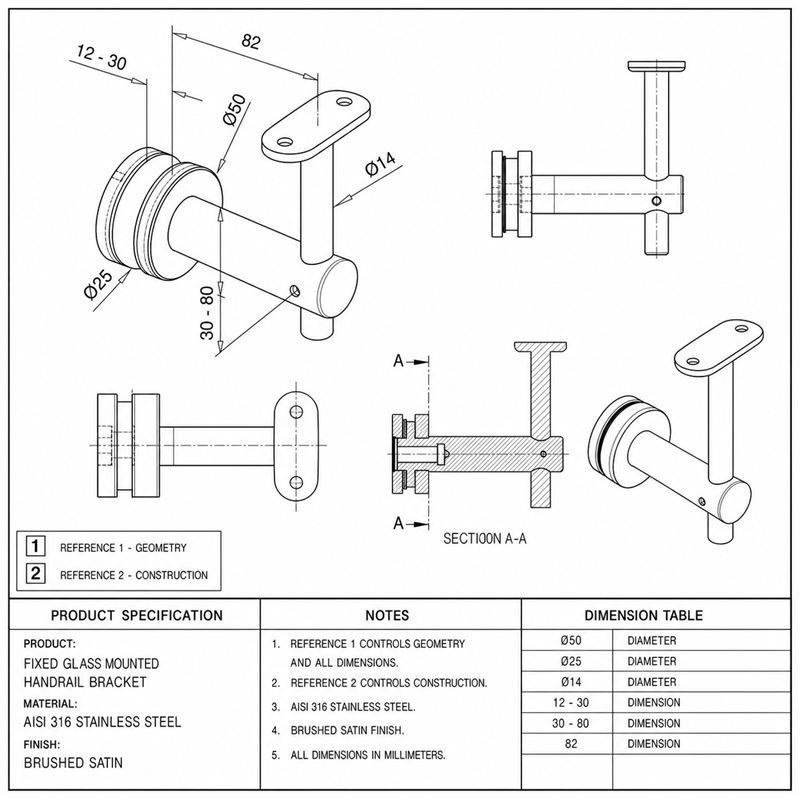

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

Fixed Glass Mounted Handrail Bracket — application concept

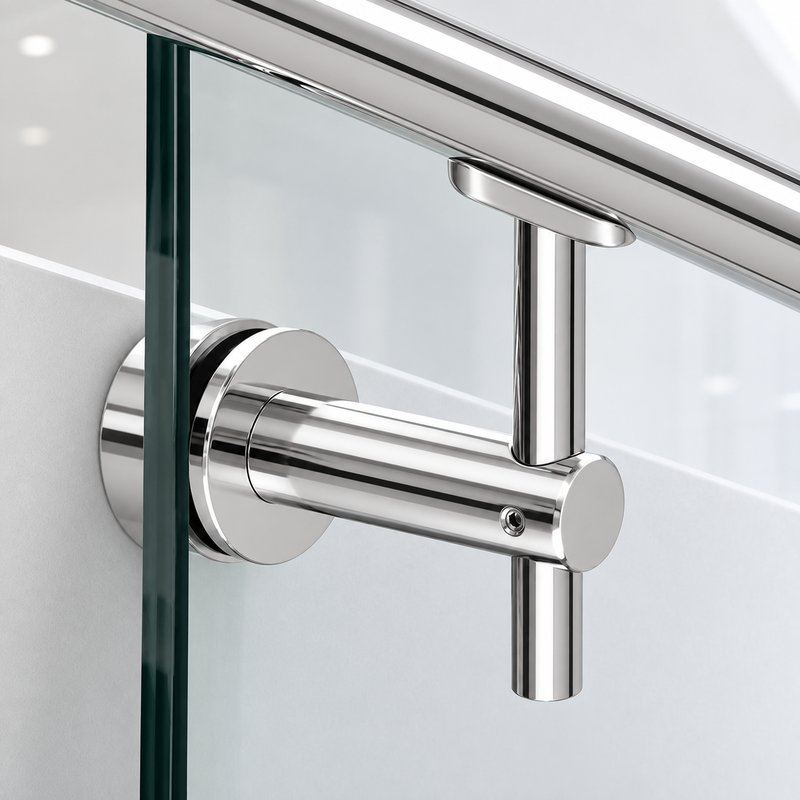

glass-mounted handrail layouts with a fixed saddle. Confirm the glass build-up, hole preparation, gasket and saddle-to-rail interface together. No glass thickness is verified. Context imagery is illustrative, not a verified project case.

Customization

Send the drawing, target finish, quantity, marking and packing requirements for feasibility review. Customization scope is confirmed in the quotation.

Frequently Asked Questions

What identifies this straight-arm glass-mounted handrail bracket?

It is identified by fixed saddle without a visible pivot joint. The reference images show paired round glass mounting discs, a gasket, a straight arm and a fixed flat saddle on a projecting stem.

How do I check compatibility?

Confirm the glass build-up, hole preparation, gasket and saddle-to-rail interface together. No glass thickness is verified.

Which stainless steel grade and finish can I order?

The steel grade and production finish must be specified and confirmed in the quotation. Visual finish concepts do not certify a grade or surface process.

Can I request a sample or an OEM version?

Send the target drawing, desired finish, quantity and packing requirements for feasibility review. Sample availability, customization scope, minimum order and lead time are confirmed with the quotation.

Are the supplied drawings approved for manufacture or installation?

Source drawings are supplied for review, but their model correspondence, dimensions and material notes have not been approved. Use a confirmed project drawing and installation instructions before manufacture or installation; these images are not load certificates.

Specifications

Product type	straight-arm glass-mounted handrail bracket
Mounting	Glass panel mounting
Visible structure	paired round glass mounting discs, a gasket, a straight arm and a fixed flat saddle on a projecting stem
Material	Proposed material options: AISI 304 / AISI 316 stainless steel.
Finish	Proposed finish options: Mirror polished.
Dimensions	Round tube interface: diameter 42.4 / 48.3 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Mating interface	Confirm the glass build-up, hole preparation, gasket and saddle-to-rail interface together. No glass thickness is verified.
Load capacity	Not established by the supplied imagery; request project-specific evidence

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Trade terms, destination and shipping arrangements are agreed in the quotation.
Packaging Proposed packing: individual surface protection and separated export-carton packing. Confirm packing method, labels and carton quantities with the order.
Quality Control Proposed inspection scope: dimensions against the approved drawing, surface appearance and mating-fit checks. Agree acceptance criteria before production.

Fixed Glass Mounted Handrail Bracket — Reflective silver appearance concept
