Model: EL-GBH-022 (catalogue reference)
Compare this horizontal corner connector for round slotted handrail for turning a slotted round top rail around a plan corner. The design shows open undersides and small threaded fixing holes. Confirm the dimensions, mating components and supplied finish for your project.
Product Highlights

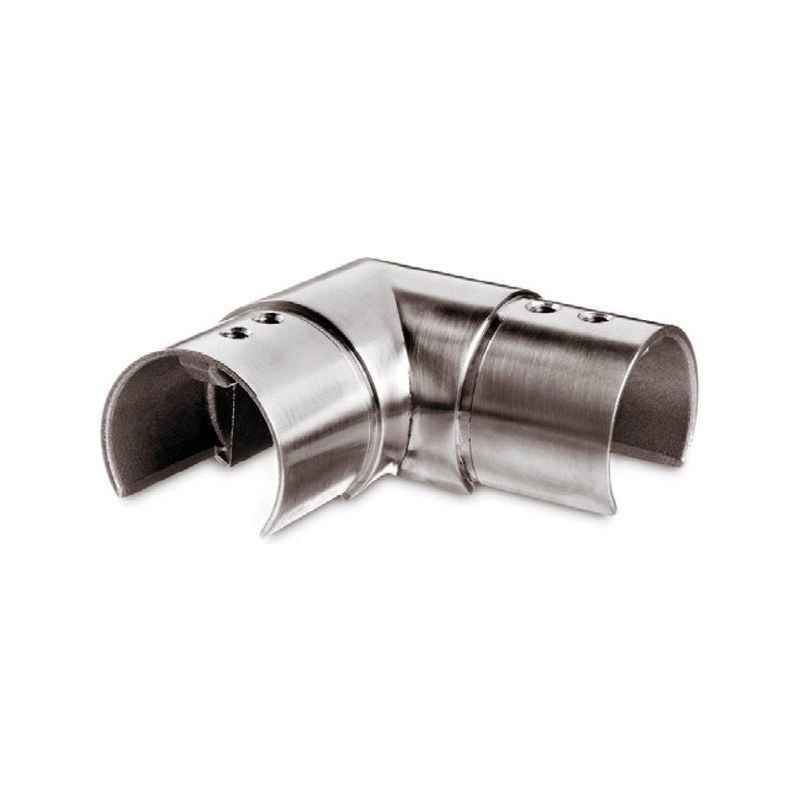

This horizontal corner connector for round slotted handrail is shown for turning a slotted round top rail around a plan corner. Its visible construction includes two round slotted sleeves meeting in a horizontal corner. Compare the component views and confirm tube diameter, slot profile, insertion depth and corner geometry for the required assembly.

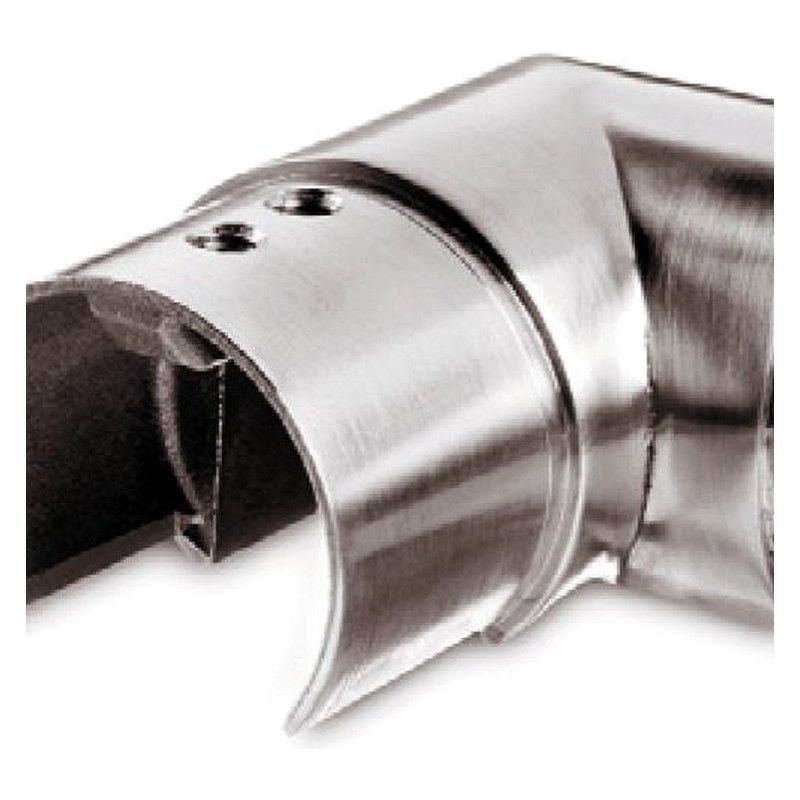

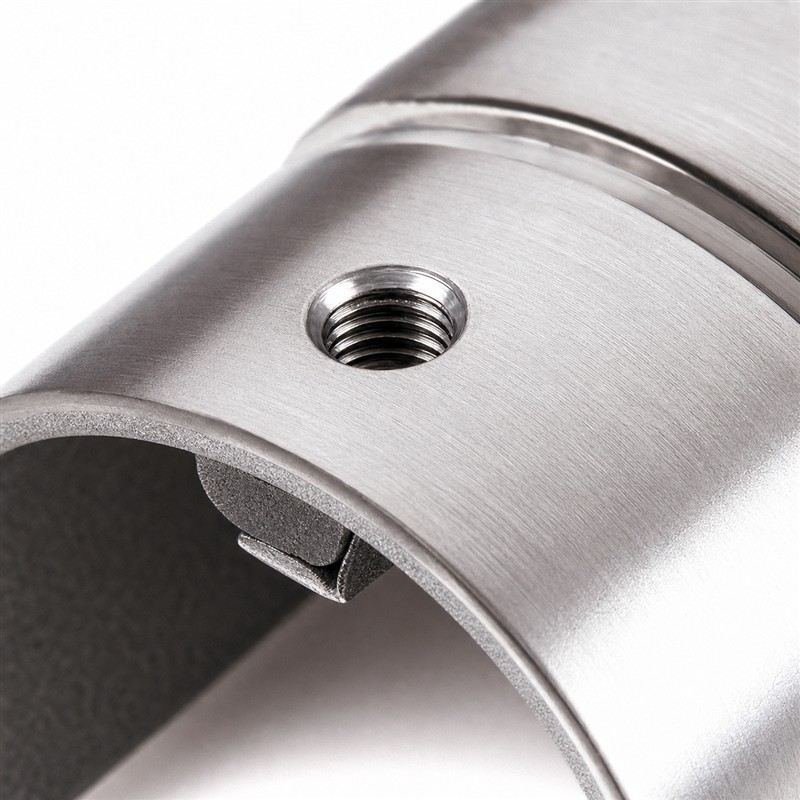

Open undersides and small threaded fixing holes. This detail separates the design from other components in the same category.

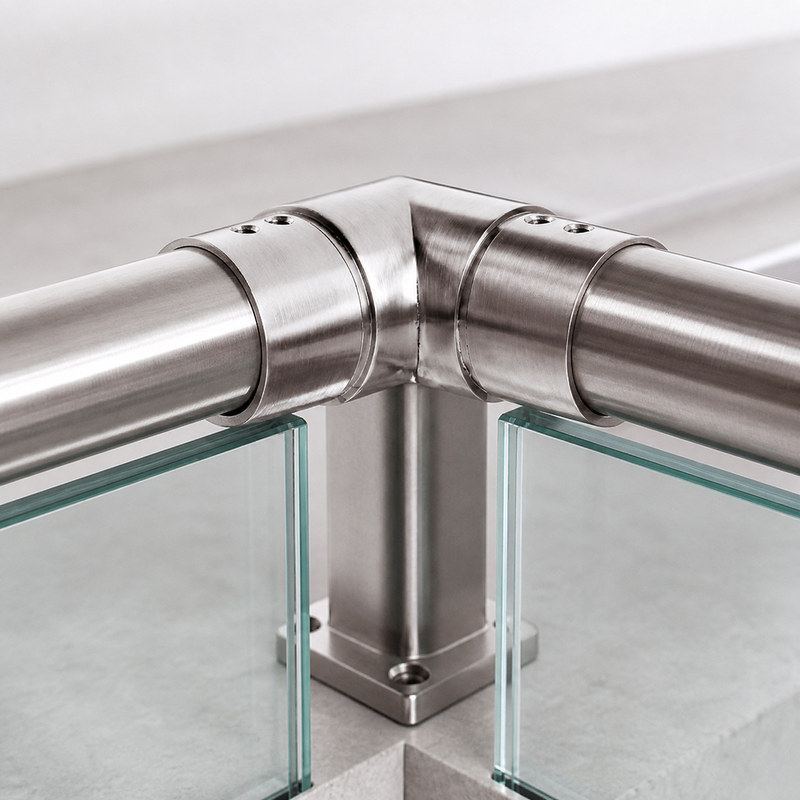

Silver appearance shown. This view shows two round slotted sleeves meeting in a horizontal corner. Use catalogue reference EL-GBH-022 when identifying the appearance in an enquiry. Confirm material and surface process before specifying a supplied finish.
Confirm tube diameter, slot profile, insertion depth and corner geometry. The supplied reference images do not establish material grade, glass thickness, rated capacity or installation spacing. Request the approved specification and fixing detail for the selected configuration.
Send the product reference, quantities, mating component details, installation environment and preferred finish. Ask for feasibility of any custom changes and for the MOQ, sample timing, production lead time, packing and trade terms in the quotation.
Specify the required configuration and quantity when requesting a quotation. Final dimensions, material, finish and delivery terms are agreed for the selected model.
| Catalogue reference | EL-GBH-022 |
|---|---|
| Material selection | Proposed material options: AISI 304 / AISI 316 stainless steel. |
| Finish reference | Proposed finish options: Satin brushed / mirror polished. |
| Size selection | Round tube interface: diameter 42.4 / 48.3 mm. Selection proposal only; not measured dimensions or an installation drawing for this model. |
| Glass compatibility | Not applicable: no direct glass-clamping interface. |
| Minimum order | 200 pieces per model / specification. |
| Sample timing | Proposed sample schedule: 7 calendar days. |
| Production timing | 30 calendar days. |
| Trade terms | Agreed in the quotation, including the delivery term, named place and freight scope. |
Proposed inspection scope: mating profile dimensions, joint alignment and fit with the specified rail. Agree dimensional tolerances, visual criteria and sampling with the order.
Use individual protective bags or wrapping, separated inner packing and suitable outer cartons. Final pack quantity, labels and protection are agreed with the order.

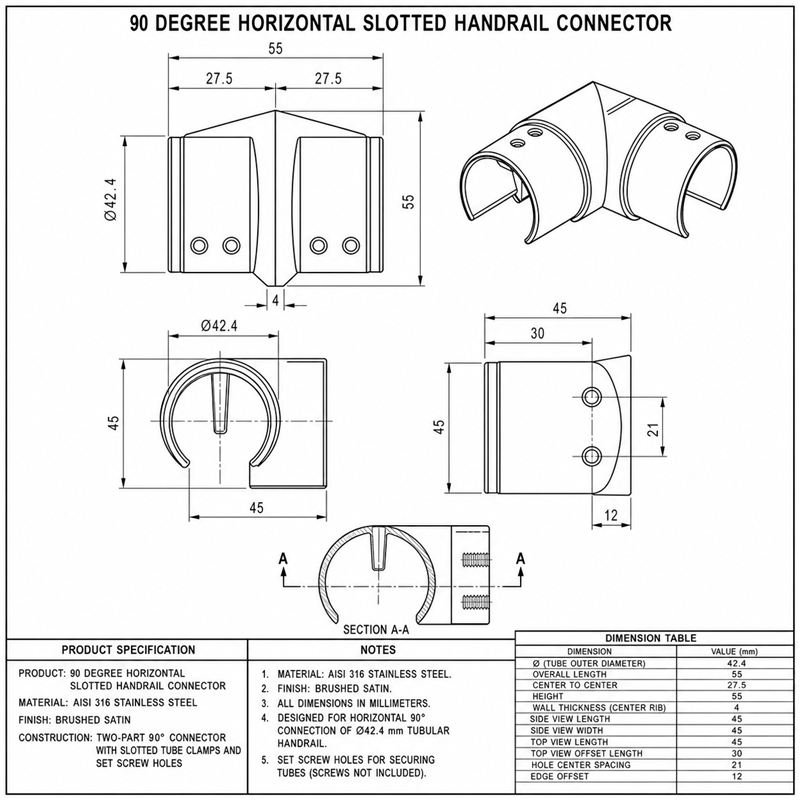

View source reference drawing. This is an unapproved reference image, not a verified manufacturing or installation drawing. Confirm dimensions and applicability against the approved model documentation.

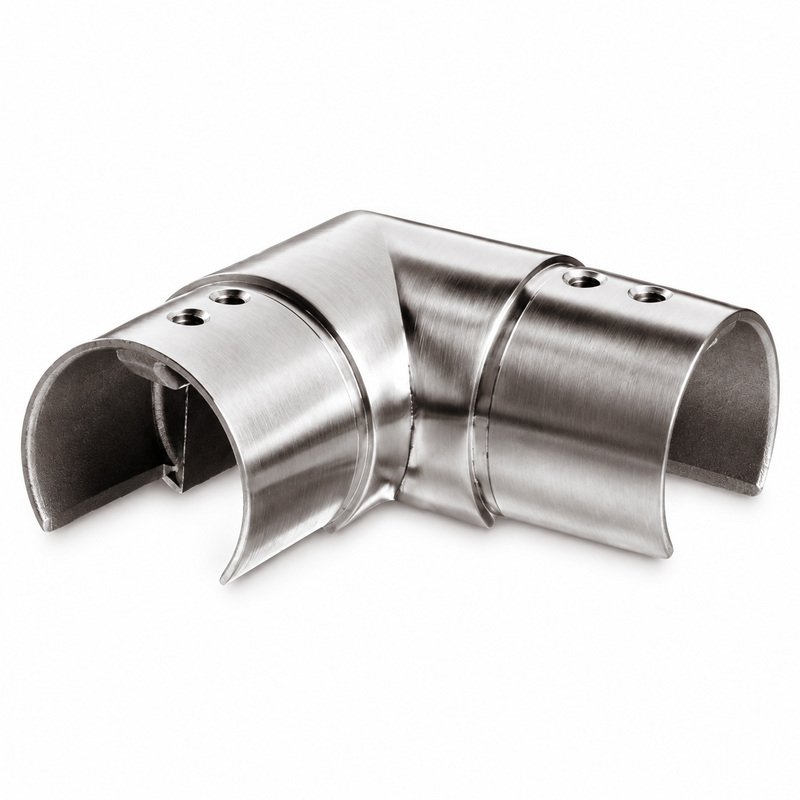

Some gallery views are AI-restored illustrations for component identification. They do not establish dimensions, tested performance or an approved installation.
No approved datasheet attached. Request the specification sheet for EL-GBH-022 after selecting the configuration.
No approved installation manual attached. Request instructions for the selected model and fixing arrangement.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Review tube diameter, slot profile, insertion depth and corner geometry for this connection. Confirm the complete project design before selecting the component.
Send your proposed changes to dimensions, mounting interfaces, surface finish, logo or packaging with a marked drawing. Feasibility, tooling, sample requirements and order quantities must be confirmed for the selected component.
