Model: EL-GBH-023 (catalogue reference)
Compare this horizontal corner connector for round slotted handrail for turning a slotted round top rail around a plan corner. The design shows open undersides and small threaded fixing holes. Confirm the dimensions, mating components and supplied finish for your project.
Product Highlights

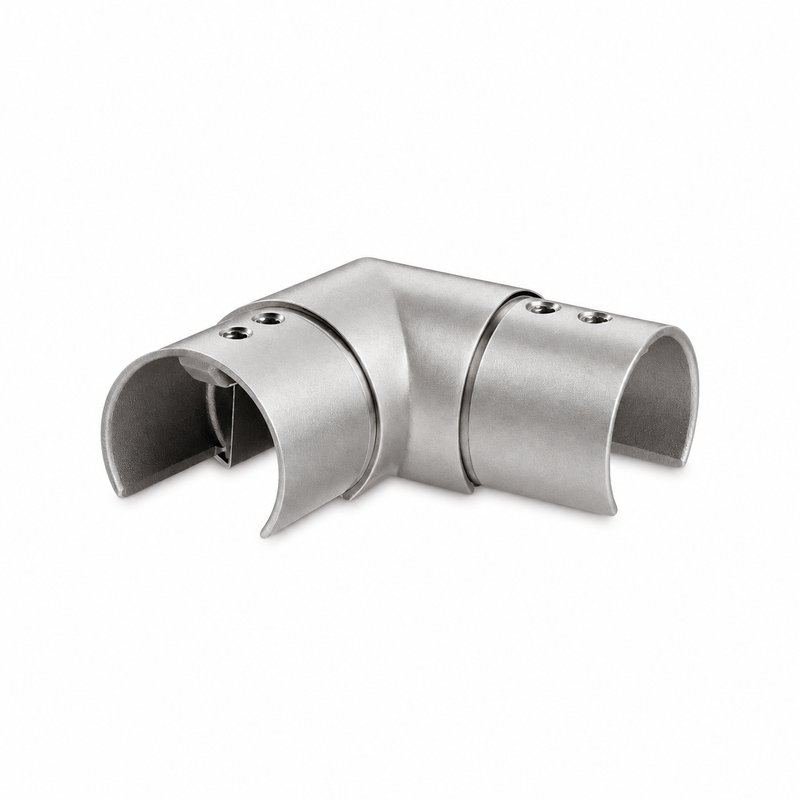

The matte silver horizontal corner connector for round slotted handrail is a reference design for turning a slotted round top rail around a plan corner. It shows two round slotted sleeves meeting in a horizontal corner. Review tube diameter, slot profile, insertion depth and corner geometry before confirming the product specification and supplied parts.

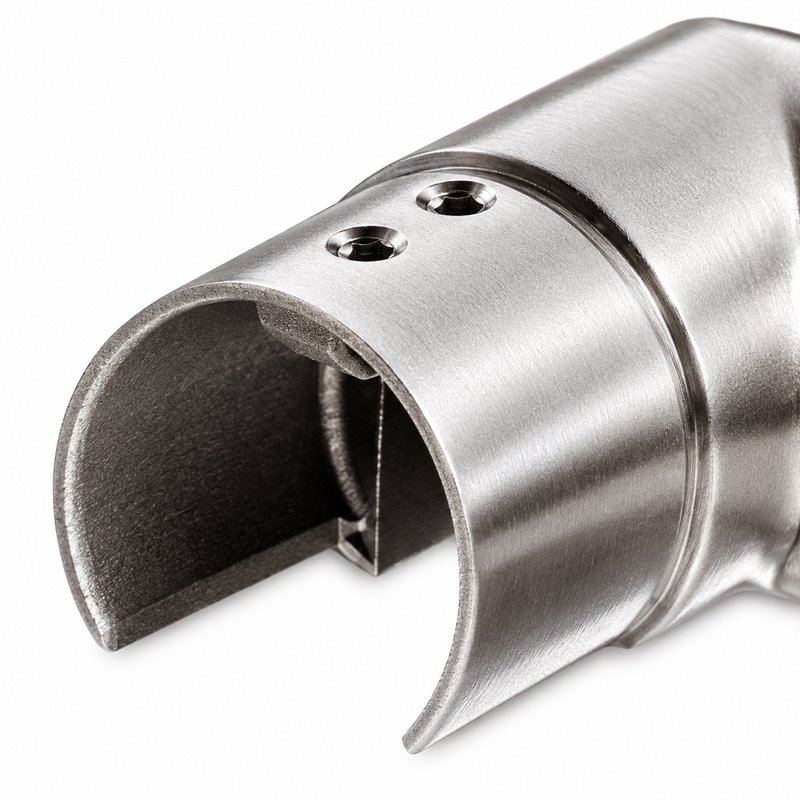

Two round slotted sleeves meeting in a horizontal corner. The distinguishing detail is open undersides and small threaded fixing holes.
Confirm tube diameter, slot profile, insertion depth and corner geometry. Material grade, finish process, dimensions and any tested capacity should be checked against the approved specification before ordering.

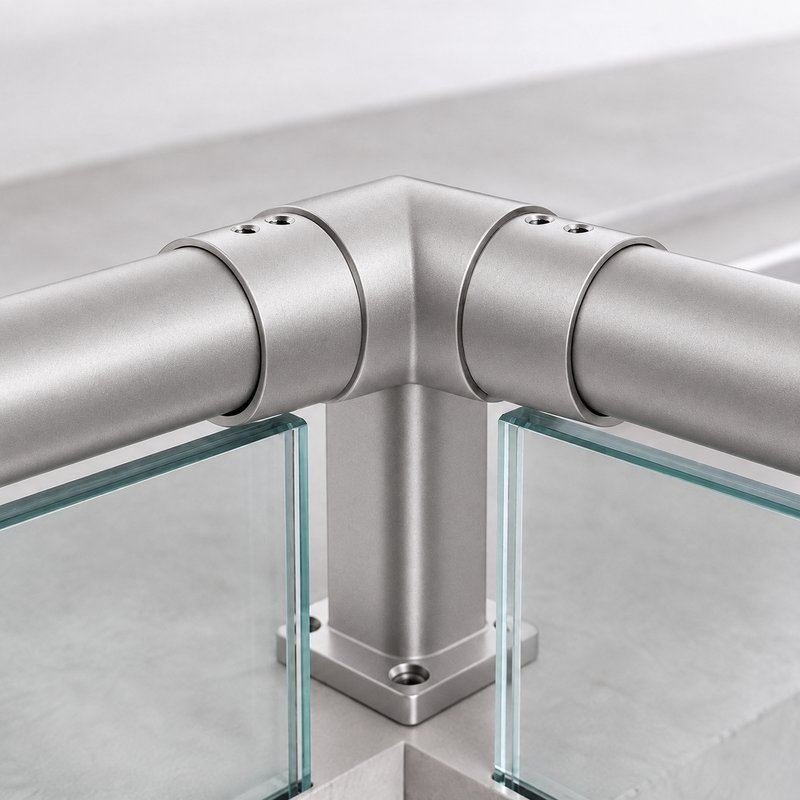

Matte silver appearance concept. Confirm which liners, screws, washers and mating components are included. Assembly illustrations show the connection context and do not define the complete supply scope.
Quote catalogue reference EL-GBH-023 and provide quantities, the mating component or panel details, installation environment and finish requirements. Ask for the minimum order, sample timing, production lead time and included parts in the written quotation.
Specify the required configuration and quantity when requesting a quotation. Final dimensions, material, finish and delivery terms are agreed for the selected model.
| Catalogue reference | EL-GBH-023 |
|---|---|
| Material selection | Proposed material options: AISI 304 / AISI 316 stainless steel. |
| Finish reference | Proposed finish options: Satin brushed. |
| Size selection | Round tube interface: diameter 42.4 / 48.3 mm. Selection proposal only; not measured dimensions or an installation drawing for this model. |
| Glass compatibility | Not applicable: no direct glass-clamping interface. |
| Minimum order | 200 pieces per model / specification. |
| Sample timing | Proposed sample schedule: 7 calendar days. |
| Production timing | 30 calendar days. |
| Trade terms | Agreed in the quotation, including the delivery term, named place and freight scope. |
Proposed inspection scope: mating profile dimensions, joint alignment and fit with the specified rail. Agree dimensional tolerances, visual criteria and sampling with the order.
Use individual protective bags or wrapping, separated inner packing and suitable outer cartons. Final pack quantity, labels and protection are agreed with the order.
View source reference drawing. This is an unapproved reference image, not a verified manufacturing or installation drawing. Confirm dimensions and applicability against the approved model documentation.
No approved datasheet attached. Request the specification sheet for EL-GBH-023 after selecting the configuration.
No approved installation manual attached. Request instructions for the selected model and fixing arrangement.
View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Review tube diameter, slot profile, insertion depth and corner geometry for this connection. Confirm the complete project design before selecting the component.
Send your proposed changes to dimensions, mounting interfaces, surface finish, logo or packaging with a marked drawing. Feasibility, tooling, sample requirements and order quantities must be confirmed for the selected component.
