Narrow Plate Side Fix Handrail Bracket — Reference silver appearance

Narrow Plate Side Fix Handrail Bracket — Reference silver appearance

Model: EL-SSR-067 (catalogue reference)

This narrow-plate side-fix handrail bracket features two-position narrow vertical wall plate. Images show reference silver appearance. Confirm dimensions, mating components and the production finish before ordering.

Material Proposed material options: AISI 304 / AISI 316 stainless steel.

Surface Finish Proposed finish options: Satin brushed / mirror polished.

Dimensions Round tube interface: diameter 42.4 / 48.3 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.

Glass Thickness Not applicable: no direct glass-clamping interface.

MOQ 200 pieces per model / specification.

Lead Time 30 calendar days.

Product Highlights

Product Details

This narrow-plate side-fix handrail bracket features two-position narrow vertical wall plate. Images show reference silver appearance. Confirm dimensions, mating components and the production finish before ordering.

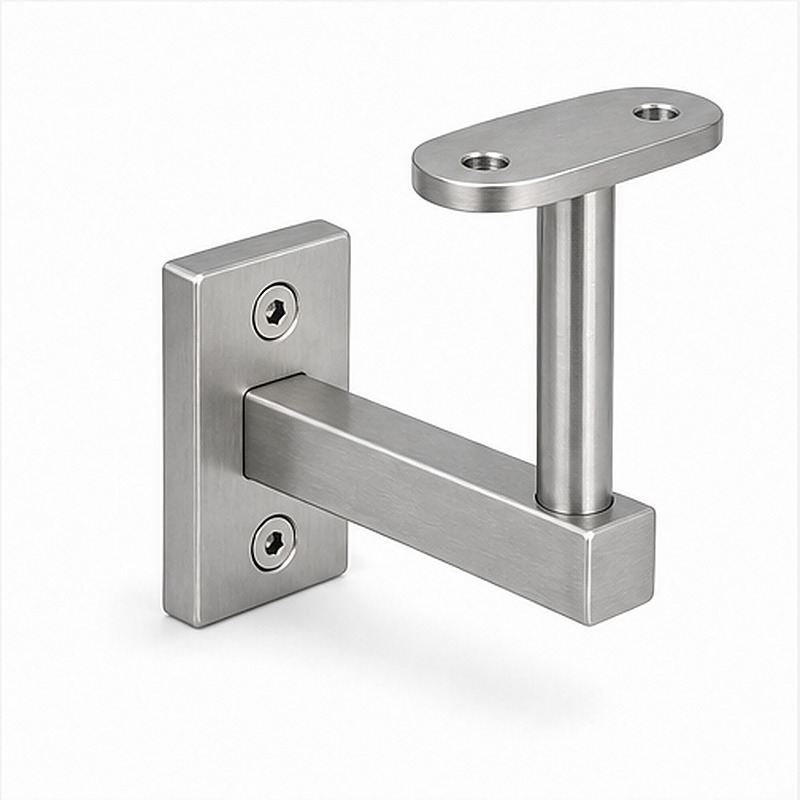

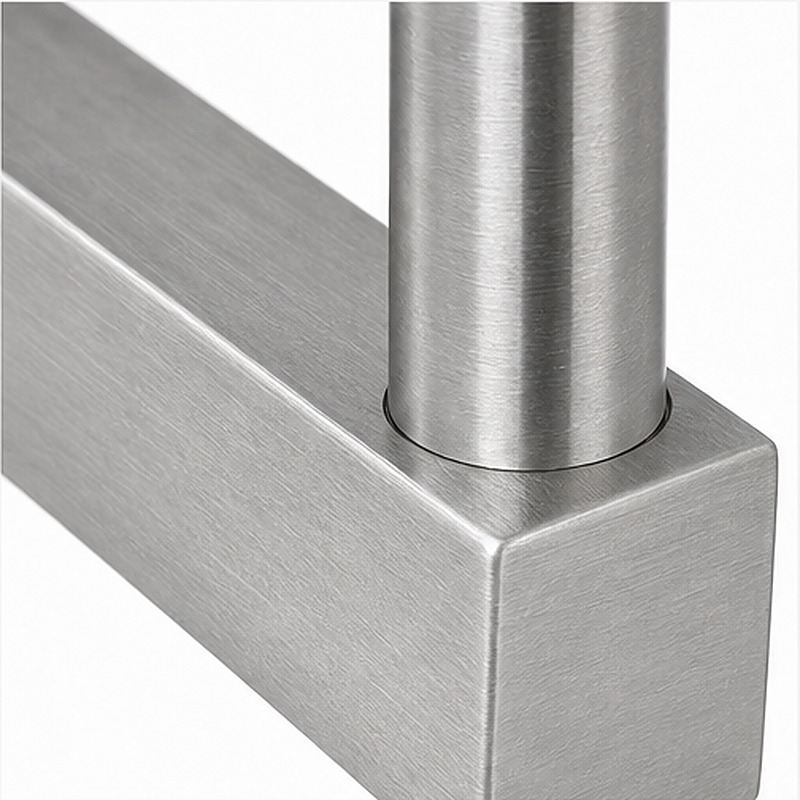

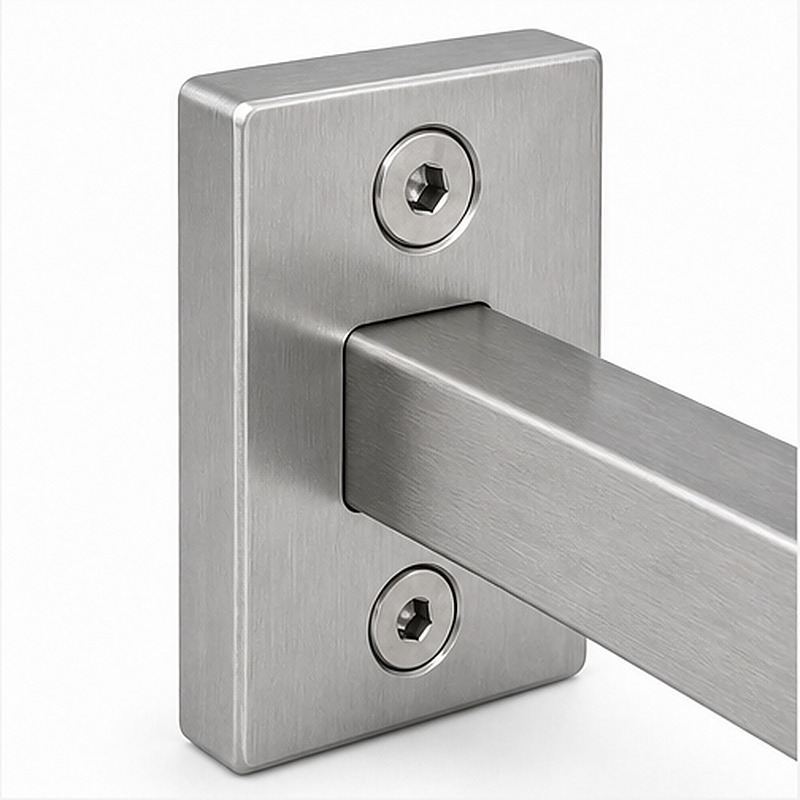

Visible structure: a narrow vertical two-position wall plate, rectangular arm, round stem and oval saddle.

Check the available vertical fixing area, hole centres and rail contact profile; no clearance dimension is stated.

Product documentation

Request the approved product datasheet, project drawing and installation instructions for the selected configuration. Dimensions, interfaces and material grade must be confirmed before ordering.

Reference drawing

View source reference drawing (JPG)

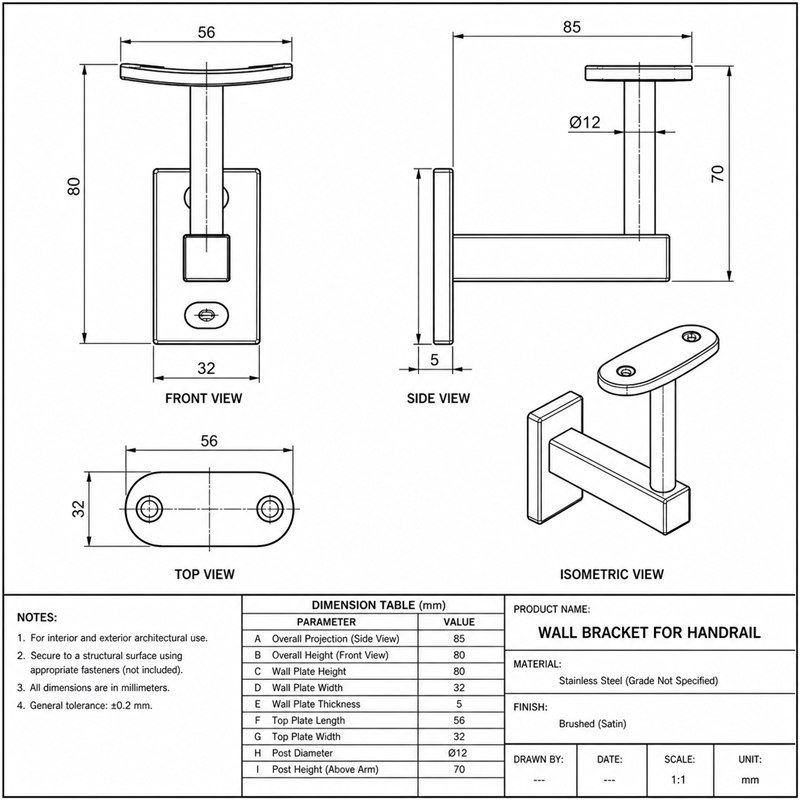

Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.

Applications

Narrow Plate Side Fix Handrail Bracket — application concept

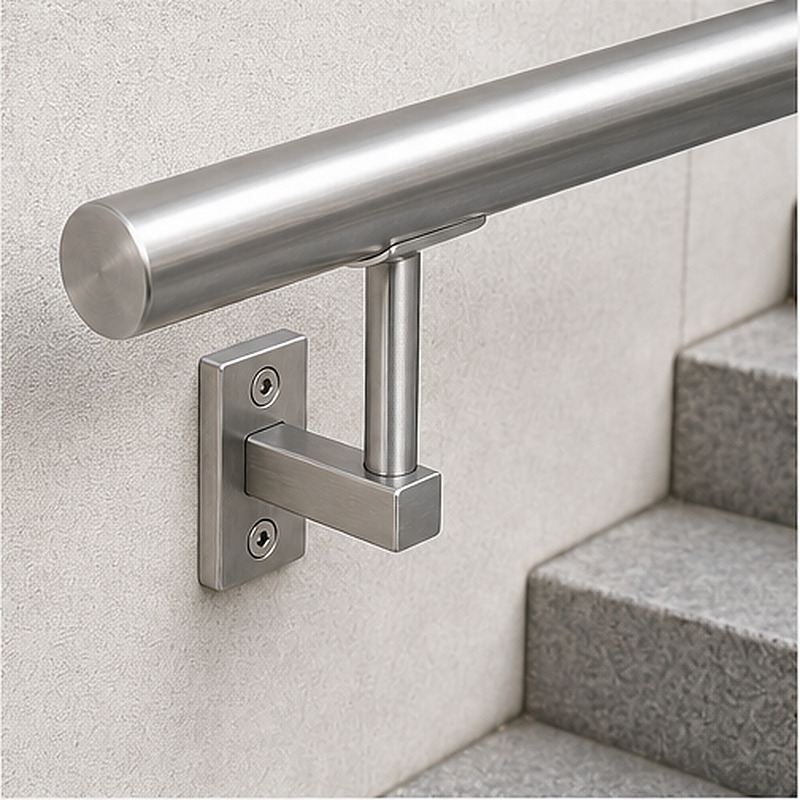

handrail projects using a narrow vertical mounting plate. Check the available vertical fixing area, hole centres and rail contact profile; no clearance dimension is stated. Context imagery is illustrative, not a verified project case.

Customization

Send the drawing, target finish, quantity, marking and packing requirements for feasibility review. Customization scope is confirmed in the quotation.

Frequently Asked Questions

What identifies this narrow-plate side-fix handrail bracket?

It is identified by two-position narrow vertical wall plate. The reference images show a narrow vertical two-position wall plate, rectangular arm, round stem and oval saddle.

How do I check compatibility?

Check the available vertical fixing area, hole centres and rail contact profile; no clearance dimension is stated.

Which stainless steel grade and finish can I order?

The steel grade and production finish must be specified and confirmed in the quotation. Visual finish concepts do not certify a grade or surface process.

Can I request a sample or an OEM version?

Send the target drawing, desired finish, quantity and packing requirements for feasibility review. Sample availability, customization scope, minimum order and lead time are confirmed with the quotation.

Are the supplied drawings approved for manufacture or installation?

Source drawings are supplied for review, but their model correspondence, dimensions and material notes have not been approved. Use a confirmed project drawing and installation instructions before manufacture or installation; these images are not load certificates.

Specifications

Product type	narrow-plate side-fix handrail bracket
Mounting	Vertical side mounting
Visible structure	a narrow vertical two-position wall plate, rectangular arm, round stem and oval saddle
Material	Proposed material options: AISI 304 / AISI 316 stainless steel.
Finish	Proposed finish options: Satin brushed / mirror polished.
Dimensions	Round tube interface: diameter 42.4 / 48.3 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Mating interface	Check the available vertical fixing area, hole centres and rail contact profile; no clearance dimension is stated.
Load capacity	Not established by the supplied imagery; request project-specific evidence

Trade Information

Minimum Order Quantity 200 pieces per model / specification.
Sample Time Proposed sample schedule: 7 calendar days.
Lead Time 30 calendar days.
Trade Terms Trade terms, destination and shipping arrangements are agreed in the quotation.
Packaging Proposed packing: individual surface protection and separated export-carton packing. Confirm packing method, labels and carton quantities with the order.
Quality Control Proposed inspection scope: dimensions against the approved drawing, surface appearance and mating-fit checks. Agree acceptance criteria before production.

Narrow Plate Side Fix Handrail Bracket — Reference silver appearance
