Model: PFH-083 (image reference; model to confirm)

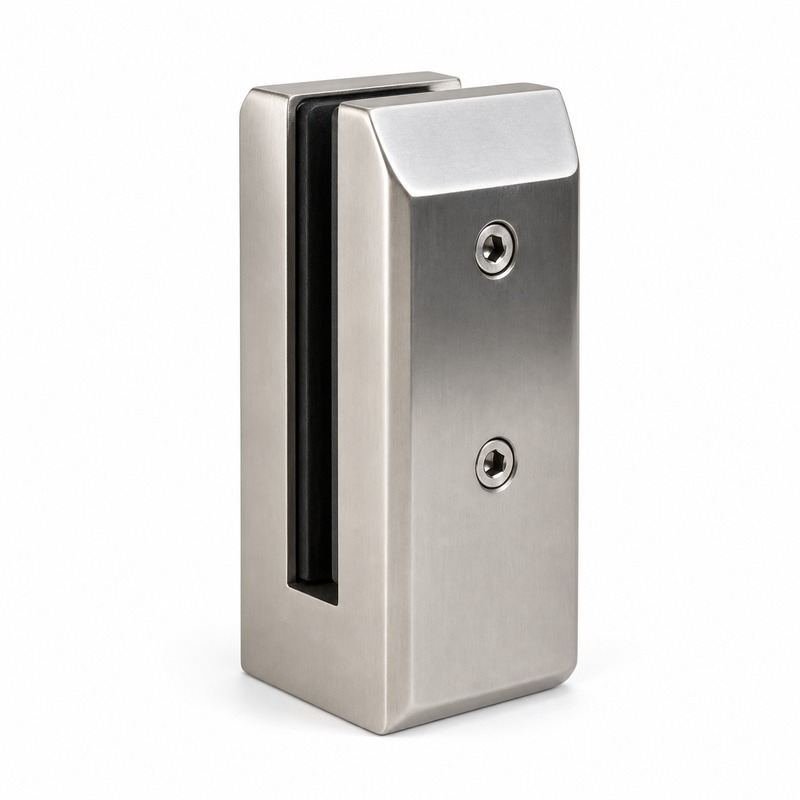

This glass spigot shows a square glass clamp body and an extended rear mounting plate with fixing holes. Compare the pictured connection layout with your project, then confirm material, dimensions and fixing requirements with Elim Hardware.
Product Highlights

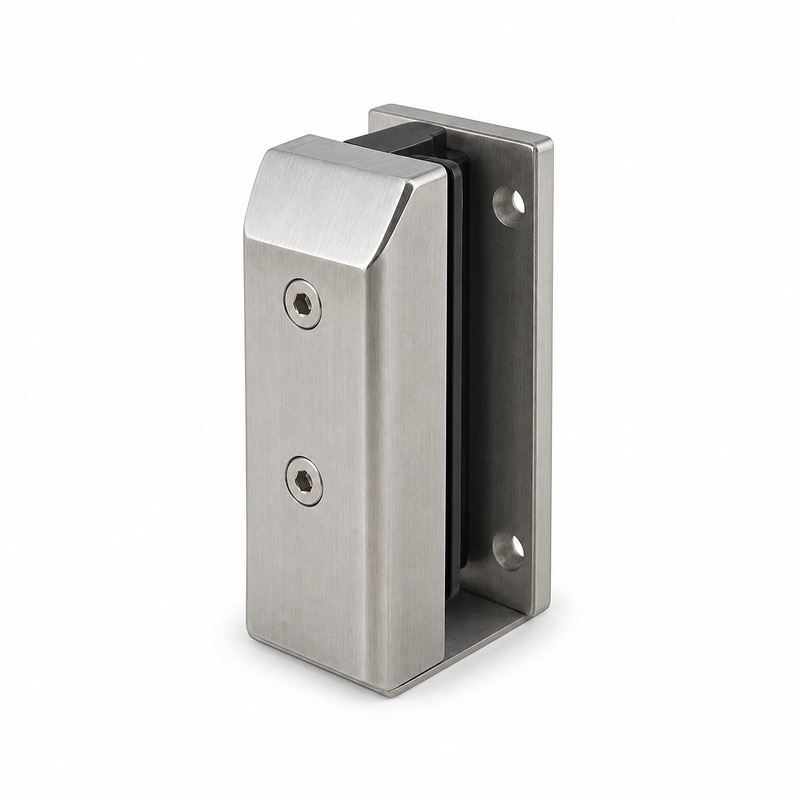

A square glass clamp body and an extended rear mounting plate with fixing holes.
Side mounting plate.

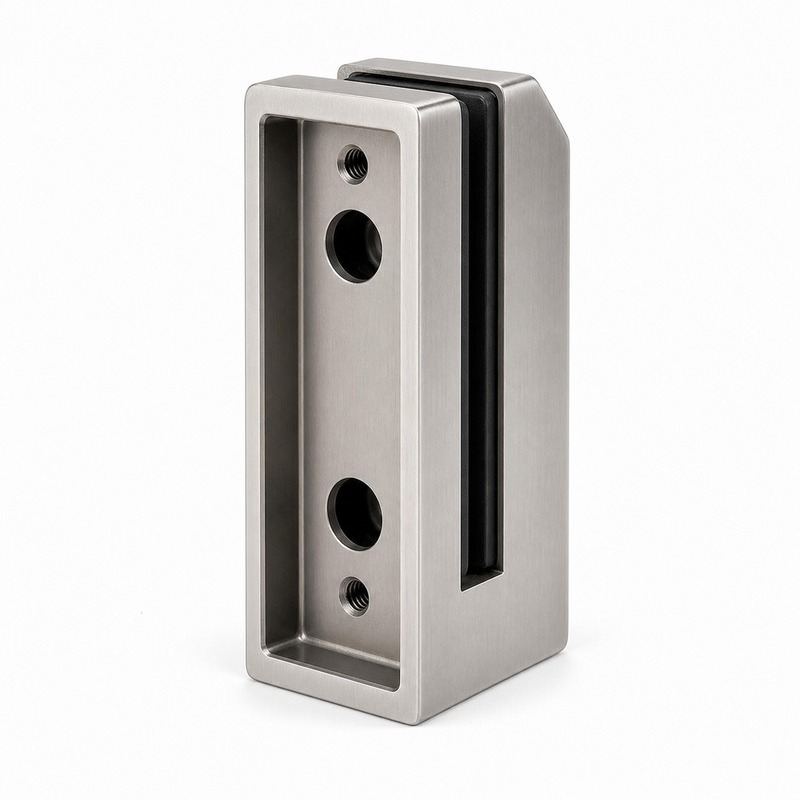

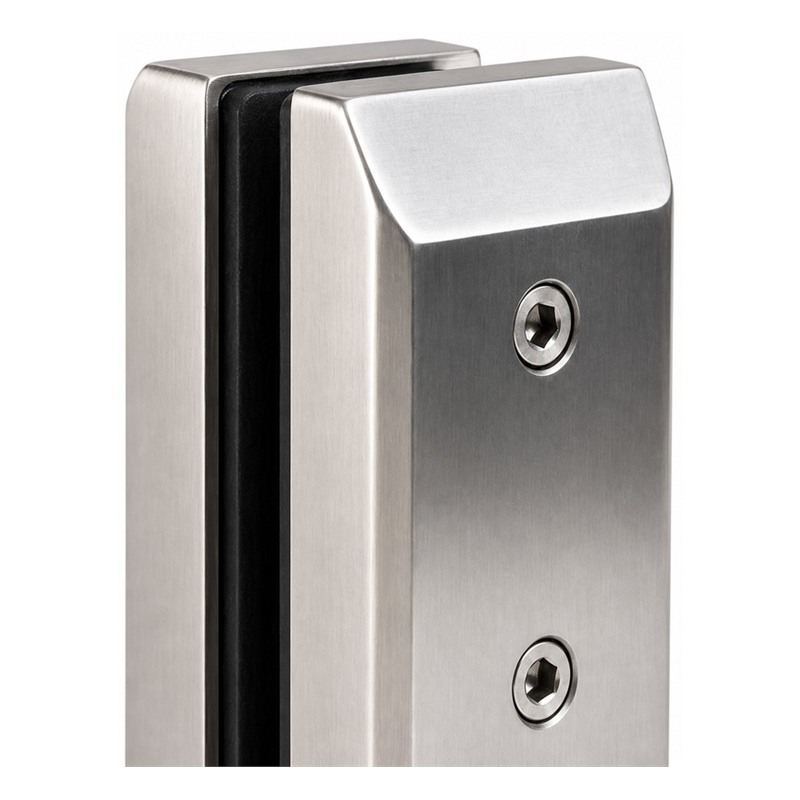

Visible front clamp screw and rear mounting holes.
The side mount glass pool fence spigot reference shows a square glass clamp body and an extended rear mounting plate with fixing holes. The pictured layout is side mounting plate. Use the close views to compare the connection and fixing arrangement.
An extended rear mounting plate identifies the side-mount layout. The bolt-down reference has an exposed plate beneath the upright.
Contact Elim Hardware with the required panel layout, mounting substrate, project location, quantity and preferred appearance. Request the released drawing, confirmed material, dimensions and compatible glass specification for the selected reference. Finish concepts and scene visualisations show appearance only.
Use PFH-083 as the image reference when requesting model confirmation. Provide panel dimensions, support spacing, substrate details and the proposed fixing arrangement. Proposed body height: 160 mm; square-body option: 50 x 50 mm. Selection proposal only; not measured dimensions or an installation drawing for this model.
Confirm whether the selected reference uses a base plate, side plate, embedded stem or another fixing method. The visible body shape alone does not establish anchorage requirements. Confirm the complete installation details and the evidence required for the project location before specification.
View the reference drawing image for discussion. This reference image is not an approved manufacturing or installation drawing. Request the released dimensional drawing, product specification and applicable installation instructions for the confirmed model.

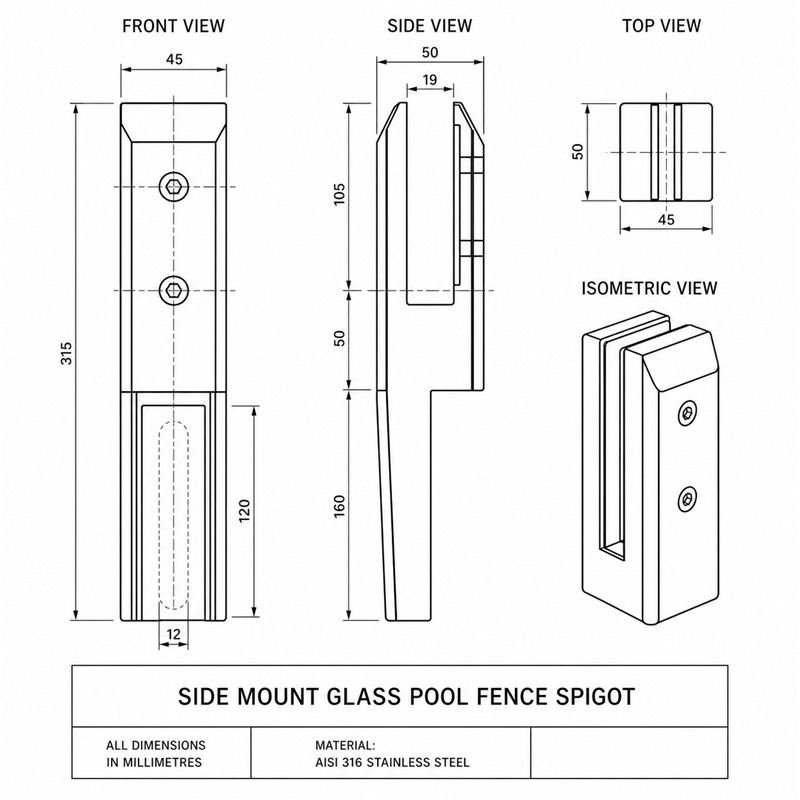

View source reference drawing (JPG)
Source reference for this catalogue record. This image is not an approved manufacturing or installation drawing. Dimensions and material notes shown on the image are unverified; the selection options listed on this page are separate proposals. Request a model-specific approved drawing before ordering or installation.
Compare the pictured side mounting plate with the project layout. Submit panel dimensions, support spacing, substrate details and the proposed fixing arrangement for model and fit confirmation.
Provide the existing part reference, photographs and measurements of glass slot, body dimensions, base or stem geometry, fixing centres and mounting depth. Confirm compatibility before substituting a component; a similar appearance does not establish interchangeability.
Prepare an itemised schedule with the selected reference, quantities, finish and delivery destination. Confirm the included spigot body, glass-contact liners, covers and the specified fixing components and any project-specific documentation in the quotation.
Send the required changes to glass slot, body dimensions, base or stem geometry, fixing centres and mounting depth, together with the panel layout, quantity and finish reference, for feasibility review. Confirm material, finish, marking and packing requirements in the quotation.
Agree the model drawing, physical sample and included parts before bulk production. Appearance concepts illustrate a proposed finish; production availability requires confirmation.
