Quick answer — shower glass U channels vs clamps: Choose shower glass U-channels or clamps by the fixed-panel support arrangement, exposed edge and glass interface. A channel provides a continuous profile; clamps create localized connections. Compare complete installed scope, including cutting, liners, fasteners and end treatment, rather than raw channel length against individual clamp prices.
For B2B buyers comparing frameless shower hardware range, these checks turn the catalogue shortlist into a complete purchasing specification.

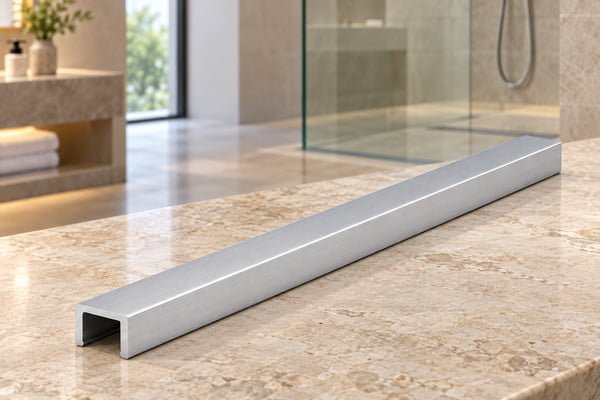

Option A: a defined channel section
Elim catalogue comparison: Elim identifies the linked U-channel as aluminium and the other references as wall-to-glass or round clamps. These catalogue labels support a profile-versus-point-connection comparison; stainless maintenance guidance should not be treated as aluminium-specific care instructions. Catalogue references: aluminum U-channel for shower glass.
Buying decision: Normalize both quotations to one fixed panel. Include cut lengths and end treatment on the channel side, and the design-specified number of clamps and accessories on the other. Keep visual preference separate from the required panel-support arrangement.
Catalogue reference: Aluminum U-Channel for Shower Glass.
Use CRL’s shower-hardware catalogue as an external example of component families and documentation. Its model data apply to those products and should not be copied into an unrelated Elim channel specification.
Option B: individually located clamps
A square wall-to-glass clamp requires the selected model’s glass and wall interfaces. Mark each clamp location on the panel drawing and identify the supplied gaskets and fasteners.
Catalogue reference: Polished Silver Square Wall-to-Glass Shower Clamp — Finish Concept.

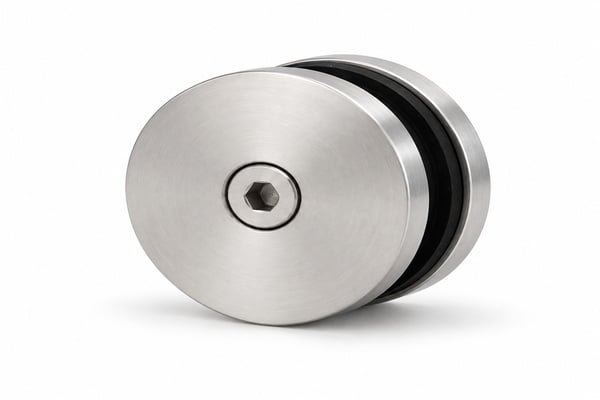

The round shower glass clamp presents another catalogue configuration. Check its mounting method and preparation details independently. Similar overall appearance does not establish identical holes, cut-outs or supported use.
Catalogue reference: Round Shower Glass Clamp.
What is the difference between regular and deep shower U-channel?
CRL’s Australian shower catalogue lists SDCR38 regular channel at 9.5 mm high and SDCD38 deep channel at 19 mm high, both in 2.4 m lengths. These named profiles are comparison examples, not dimensions for Elim’s pictured channel.
| CRL catalogue example | Height | Stock length |
|---|---|---|
| SDCR38 | 9.5 mm | 2.4 m |
| SDCD38 | 19 mm | 2.4 m |
Do not confuse profile height with glass thickness. A deeper profile changes the visible edge and glass engagement, while a clamp produces a localized connection. On a hypothetical 2.1 m cut, a 2.4 m stock length leaves 0.3 m before saw loss. Quantity planning must also account for end preparation and unusable offcuts.
Source: CRL shower U-channel size table. Reference checked 27 September 2026.
Request a matched quotation: Send the fixed-panel dimensions, glass thickness and preferred exposed edge for a channel-versus-clamp quotation..
Compare what purchasing must control
| Procurement field | U-channel route | Clamp route |
|---|---|---|
| Main drawing | Section, length and termination | Model interface and panel locations |
| Glass coordination | Approved channel-to-glass relationship | Exact model preparation where required |
| Supplied accessories | Named liners and setting components | Named gaskets and fixing components |
| Packing identity | Cut lengths or stock lengths | Clamp variants and accessory counts |
| Installation information | Channel fitting sequence | Individual fitting and adjustment sequence |
Use the complete shower-kit guide to coordinate either choice with hinges, seals and other components. Fixed-panel hardware is one part of the enclosure, not an independent approval of the whole shower.
Resolve glass and substrate before ordering
The AGWA AS 1288 notice provides Australian glass-selection context, while the CPSC tempered-glass alert addresses separate safety considerations. Use the current requirements governing the actual installation and the selected model’s approved preparation.
For wall or floor fixing, identify the supporting substrate beneath the finish. Hilti’s technical guides illustrate why fastening information belongs to the selected system and material. Do not assume that a tile surface identifies the underlying support.
A completed comparison brief
For a fictional project, a buyer asks two suppliers to quote the same approved fixed-panel drawing. Supplier A proposes cut channel lengths; supplier B proposes a specified clamp arrangement. The buyer should first reconcile the scope, not compare only the headline hardware totals.
If the design is revised, ask both suppliers to price the revised scope. A comparison spreadsheet cannot correct inconsistent input documents.
Keep material and finish information precise
Identify the actual material and production finish of each supplied component. Thyssenkrupp’s 304/316 comparison is relevant when stainless grades are under discussion; it is not a specification for the aluminum channel shown here.
Likewise, ASSDA’s stainless cleaning guidance should not be applied indiscriminately to aluminum, coatings or plastic parts. Request care information for the final supplied materials and approve adjacent visible components together.
Protect long channels from bending and separate finished clamps from loose fasteners. Use ISTA’s procedure overview for packing-test discussions and export-document guidance to keep shipment descriptions consistent with the itemized order.
Buyer questions
Is a channel always easier to install? Compare the actual preparation, access and fitting sequence; the profile name alone does not answer that question.
Can clamps replace a channel after glass is ordered? Review the panel preparation and support arrangement first.
Continue the same project: 90° vs. 135° Glass-to-Glass Shower Hinges: A Distributor’s Selection Guide covers the next related purchasing decision in this system.
